Panasonic MJ-M171PWTQ Manuale utente
MJ-M171PWSS
MJ-M171PWSD
MJ-M171PWTQ
Juicer / Blender
Order Number: PMMA100101CE
© 2010 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.
SPECIFICATION
POWER SOURCE TAIWAN : 110V
POWER CONSUMED 145W
ROTATION SPEED
SWITCH CONTROL
POWER CORD (U) RUSIA : 0.9m (WITH C2 PLUG) HONG KONG : 0.9m (WITH S3 PLUG) TAIWAN: 0.9m (WITH A2 PLUG)
DIMENSIONS (H x W x D) JUICER
DIMENSIONS (H x W x D) BLENDER
NETT WEIGHT (kg) JUICER
NETT WEIGHT (kg) BLENDER
RATED CAPACITY BLENDER
RATED CAPACITY MILL
CONTAINER MATERIAL BLENDER
ATTACHMENT CLEANING BRUSH
GLASS
50
g
COFFEE BEAN
3.0K
g
3.4K
g
1,000ml
323 X 288 X 212 mm
382 X 288 X 171 mm
HONG KONG & RUSIA : AC220V~240V, 50 - 60Hz
210-230W
JUICER : ON/OFF PUSH BUTTON TYPE / BLENDER : 2 SPEED PUSH BUTTON AND PULSE
JUICER : 12,000 - 13,100 r
p
m / BLENDER : 11,700 - 12700 r
p
m
2
CONTENTS
3
3
6-8
3
4-5
Page
5 DISASSEMBLY INSTRUCTIONS ..................................................................................................................................................................................................
9
6 PARTS LOCATION .........................................................................................................................................................................................................................
10
REPLACEMENT PARTS LIST ..........................................................................................................................................................................................................
11
SMALL STANDARDIZED METAL PARTS ........................................................................................................................................................................................
11
PACKING SPECIFICATIONS ............................................................................................................................................................................................................
1 PRECAUTIONS (Strictly follow these instructions) ...................................................................................................................................................................
2 SCHEMATIC DIAGRAM ........................................................................................................................................................................................................................................
3 BASIC WIRING DIAGRAM .............................................................................................................................................................................................................
4 TROUBLESHOOTING GUIDE ........................................................................................................................................................................................................
4.1 The Juicer, the Blender commons
4.1.1 SYMPTOM: Motor doesn’t rotate.
4.1.2 SYMPTOM: Motor “roars” but doesn’t rotate. (Turn the switch off immediately)
4.1.3 SYMPTOM: Motor overheats.
4.1.4 SYMPTOM: Unusual odor.
4.2 The Juicer
4.2.1 SYMPTOM: Motor “roars” but doesn’t rotate. (Turn the switch off immediately)
4.2.2 SYMPTOM: Noise, Vibration.
4.2.3 SYMPTOM: The spinner is difficult to install and remove.
4.2.4 SYMPTOM: Juice is poorly extracted.
4.3 The Blender
4.3.1 SYMPTOM: Cutter won’t rotate.
4.3.2 SYMPTOM: Motor rotates but cutter doesn’t rotate.
4.3.3 SYMPTOM: Noise, Vibration.
4.3.4 SYMPTOM: Juice leakage.
4.2.5 SYMPTOM: Juice contains too much residue.
4.2.6 SYMPTOM: Cutter rubs against inlet bottom
4.2.7 SYMPTOM: Leakage of juice.
3
1 PRECAUTIONS (Strictly follow these instructions.)
2 SCHEMATIC DIAGRAM
3 BASIC WIRING DIAGRAM
4
4 TROUBLESHOOTING GUIDE
5
6
5 DISASSEMBLY INSTRUCTIONS
3.
4.
5.
Upper cap
Upper cap screw
Stopper
spring
7
6.
8
7.
9

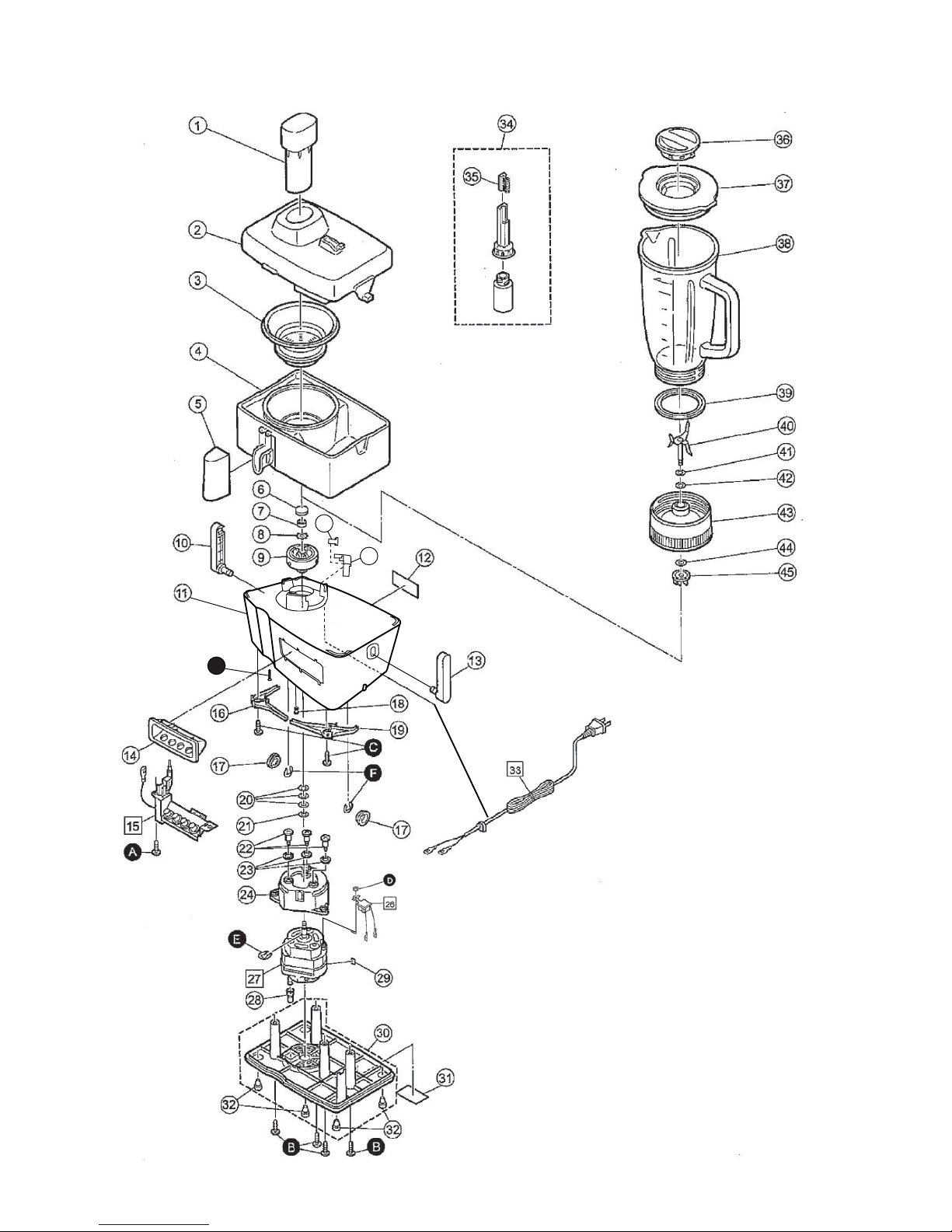

6 PARTS LOCATION
44
25
G
10
REPLACEMENT PARTS LIST
1 PLUNGER AJD08-129-W4 1
2 CONTAINER LID UNIT ASSY AJD93-142-H2 1
3 SPINNER COMPLETE AJ08QK5200 1
4 CONTAINER UNIT ASSY AJD98-142-W4 1
5 SPOUT COVER AJD07-1291W4 1
6 CONNECTOR INSULATION RUBBER AJF03-123 1
7 NUT AJF02M1141 1
8 TOOTH LOCK WASHER AJJ03M1141 1
9 CONNECTOR COMPLETE AJ07QA0600 1
10 CLAMP B AJG04-1291W4 1
11 MOTOR HOUSING UNIT AJA02-143-W4 1
12 CAUTION LABEL AJY02-1291 1 TAIWAN & HONG KONG
12 CAUTION LABEL AJY02K1301 1 RUSSIA
13 CLAMP A AJG03-1291W4 1
14 SWITCH PLATE AJB03-1293S0 1
15 SWITCH AJN99J1295A0 1 HONG KONG & RUSSIA
15 SWITCH AJN99B1305A0 1 TAIWAN
16 CLAMP LINK B AJG94-1292 1
17 SPACER AJG09-1291 2
18 SEAL CAP AVB18M216 1
19 CLAMP LINK A AJG93-1292 1
20 ADJUSMENT WASHER A AJJ01M114 2
21 ADJUSMENT WASHER B AJJ02M114 3
22 MOTOR SCREW X56A98200 3
23 MOTOR SCREW RUBBER AJ26A53000 3
24 MOTOR COVER AJF11-1292 1
25 UPPER CAP AJB04-142-W4 1
26 CAPACITOR AJQ99J1291 1
27 MOTOR ASMS293CR2 1 220 - 240V, HONG KONG & RUSSIA
27 MOTOR ASMS295AR2 1 110~127V, TAIWAN
28 BOTTOM RUBBER AJ31A44200 1
29 N LABEL AJY071291 1 HONG KONG
30 BOTTOM PLATE AJB02-142-W4 1
31 NAME PLATE AJY03B143 1 TAIWAN
31 NAME PLATE AJY03H143 1 HONG KONG
31 NAME PLATE AJY03K143 1 RUSSIA
32 FOOT AJ33A53000 4
33 POWER CORD (C2) AJP99-129-W0 1 RUSSIA
33 POWER CORD (S3) AJP99J129-W0 1 HONG KONG
33 POWER CORD (A2) AJP99B130-W0 1 TAIWAN
34 BRUSH COMPLETE AJ14QF6200 1
35 BRUSH AJ51B42100 1
36 INNER LID AVE44-180-X0 1
37 OUTER LID AVE02-1801W4 1
38 CUP (GLASS) AX03BR6300 1
39 UPPER GASKET AX05B83100 1
40 CUTTING BLADE UNIT AX95BG5200 1
41 WAVE WASHER AX13B451000 1
42 SHAFT WASHER (B) AX27B69200L 1
43 MOUNTING RING ASSY AVE86-219-W4 1
44 STOPPER SPRING AJG01-142 1
45 CONNECTOR UPPER UNIT AMX94BH1100 1
46
47
48
REF. NO. PART NAME PART NO.
SAFETY
PART QTY REMARKS
