Panasonic EP1273-U1 Manuale utente

ORDERNO.HPD0508U23C1

MASSAGELOUNGER

EP1273-U1 / EP1272-U1

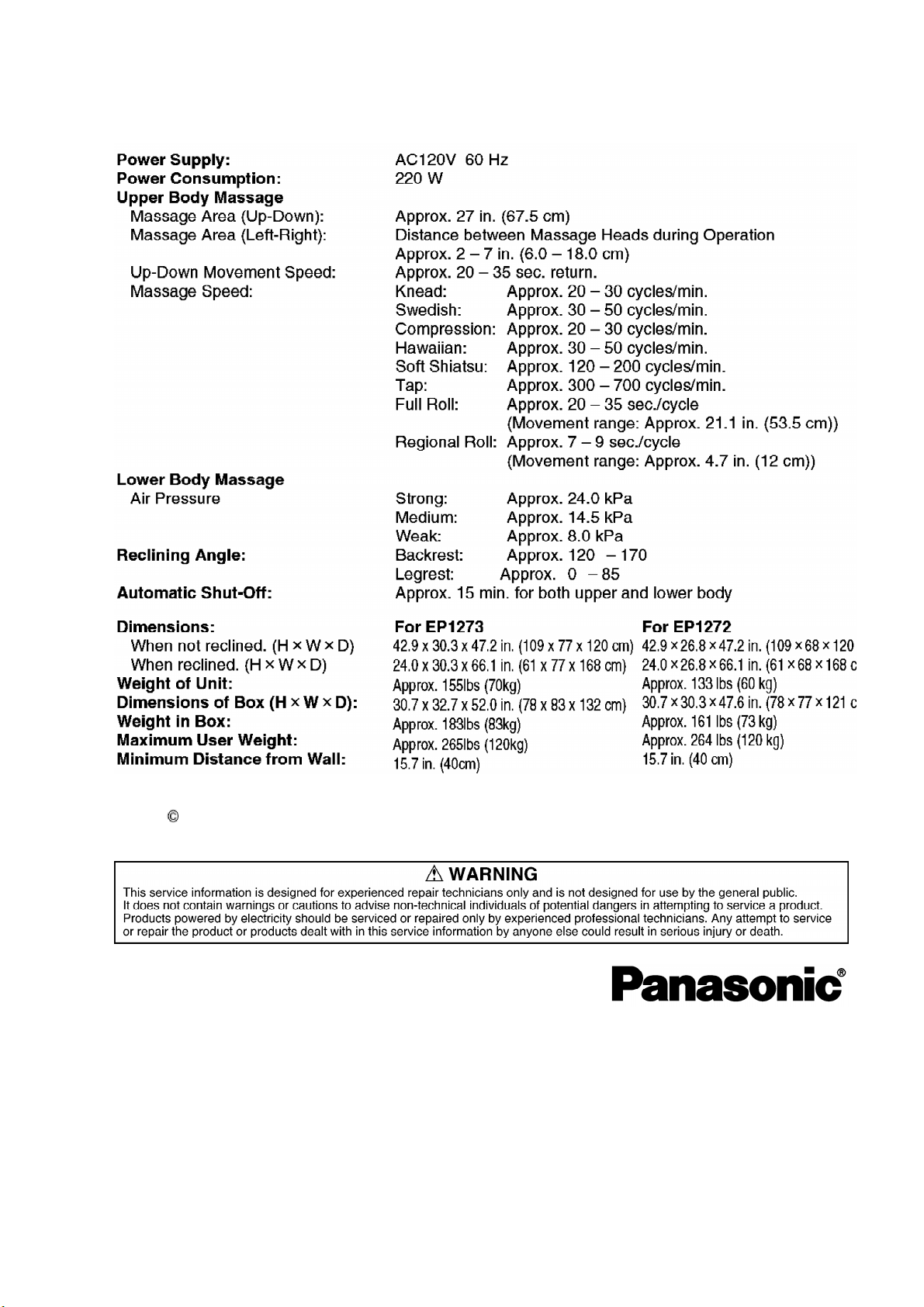

SPECIFICATIONS

SPECIFICATIONS

1

2005 Matsushita ElectricWorks, Ltd. All rights reserved.

Unauthorized copying and distribution isaviolation of law.

1. COMPONENTS IDENTIFICATION

1.1. Massage lounger

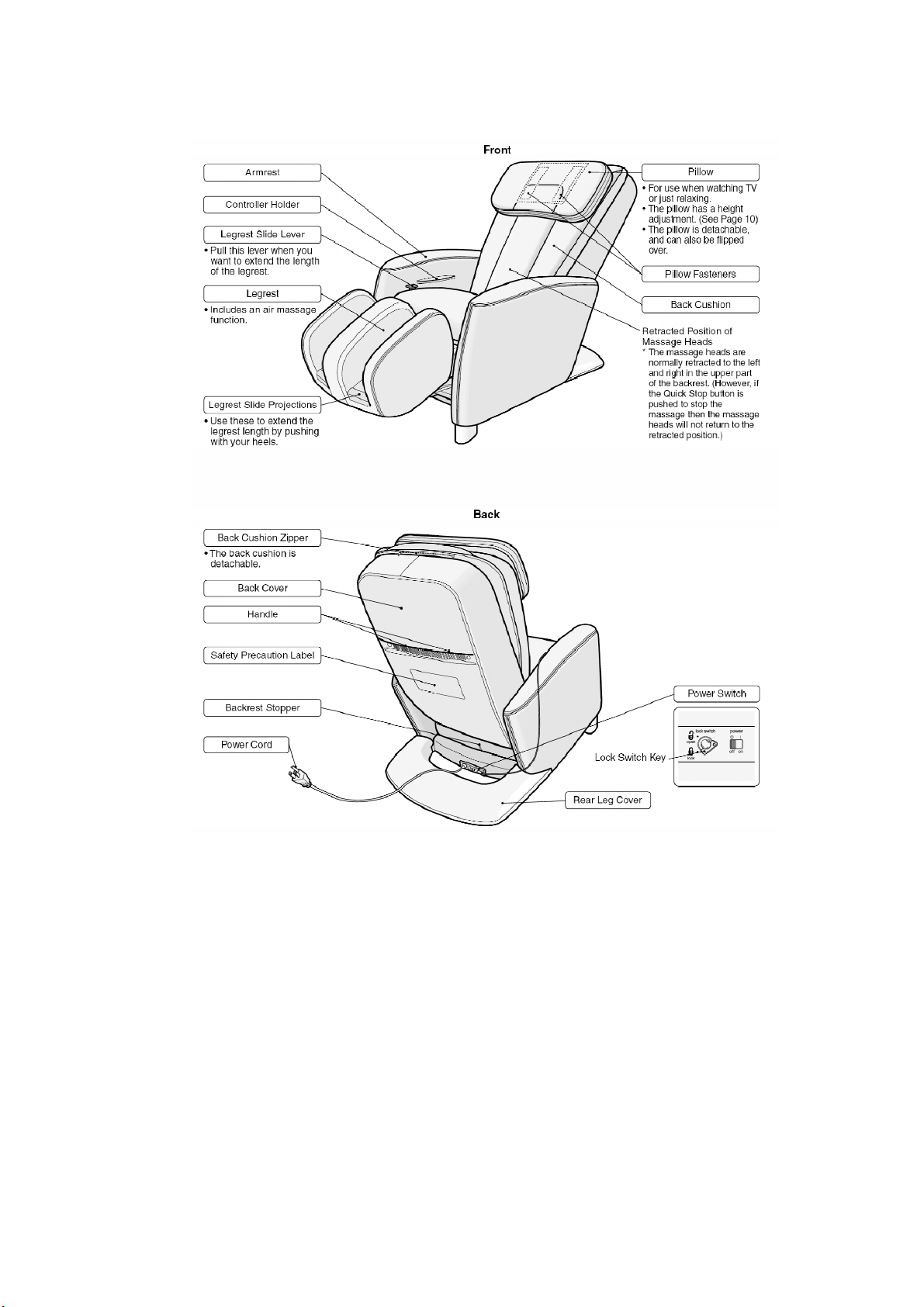

1.1.1. EP1273

2

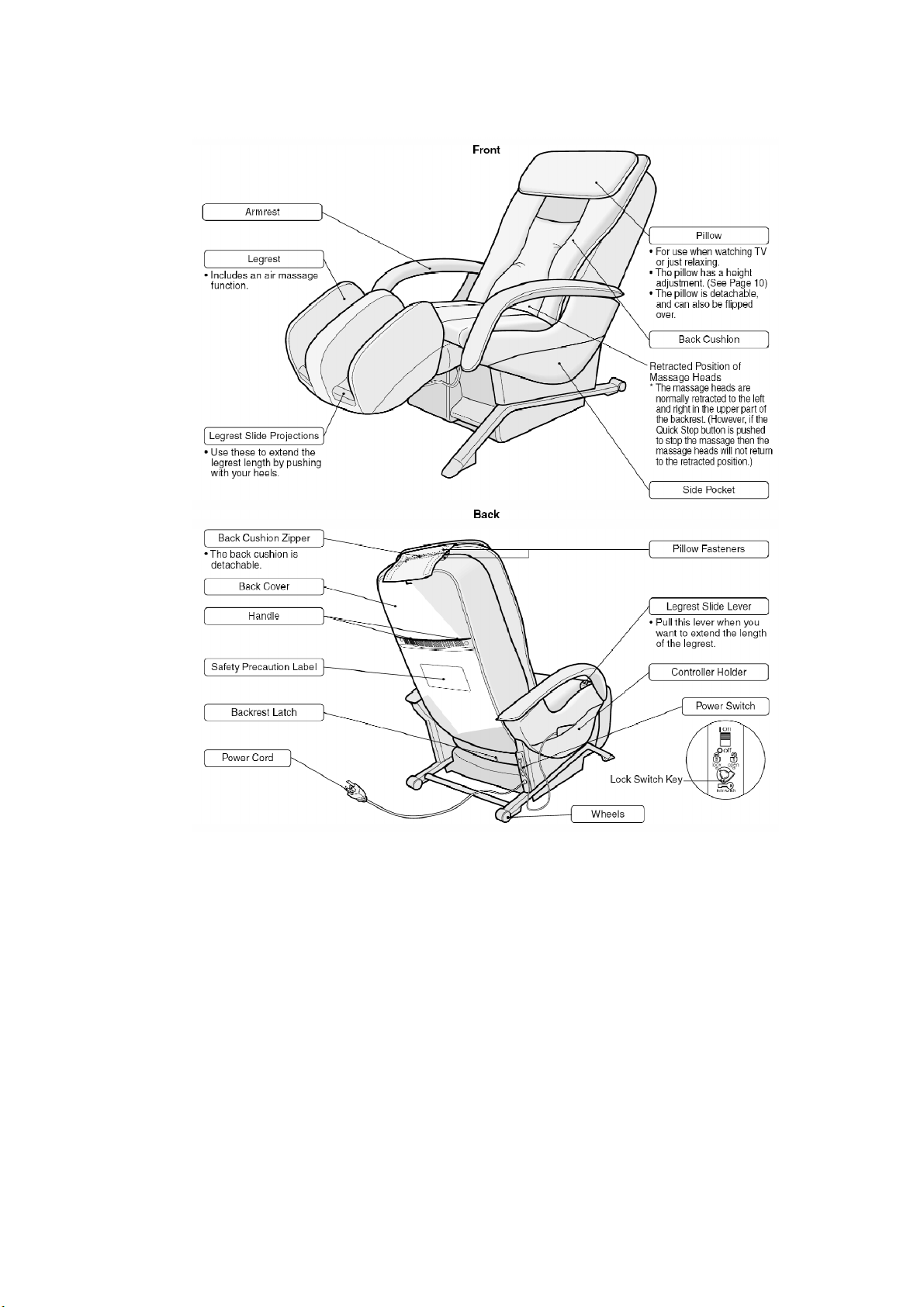

1.1.2. EP1272

3

1.2. Controller

4

2. KNEED, SWEDISH, CONPRESSION, HAWAIIAN,

SOFT SHIATSU, TAPPING, FULL ROLLING, AND

REGIONAL ROLLING

Widthadjustment

Approx.2-7in.(6.0-18.0cm)

Intensityadjustment

Kneed, Swedish, Conpression, Hawaiian, Soft Shiatsu, Tapping, Full rolling, and Regional

rolling (fromgentle tostrong)

5

3. TURNING ON THE POWER

3.1. Turning on the power

1. Plug the power plug into the power socket.

2. Turn the lock switch to the open position.

3. Turn on the power switch on the back of the unit.

-When the operating lock switch ispointing toward 'lock', the

power switch cannot be moved to the 'on' position.

6

Aftereachuse.

-Be sure toturnthe powerswitchto'off'.

-To prevent childrenfromusing this unit, lock the powerswitch

bymoving the operating lock switchtothe 'lock'position.

-As a furthercaution, unplug the powercordfromthe power

socket aftereachuse.

-Always keepthe keyina safe place.

Timer

Whenthe on/off button is pushed, a timerbegins toprevent overuse. Afterapproximately15

minutes, time expires and the massage wheel goes intostorage position.

4. REQUIRED TOOLS

7

5. ACTUAL WIRING DIAGRAM

8

6. DISPLAY METHOD OF MASSAGE BLOCK TOTAL

USE TIME

Total use time

While pushing the + and the - speedadjustment bottons simultaneously, turnon the power

switchand continue toholdthe buttons forapproximately3 seconds. Release afterthe LED

lights up.

9

Time (hour)

LED A 5

LED B 10

LED C 20

LED D 40

LED E 80

LED F 160

LED G 320

LED H 640

LED I 1,280

LED J 2,560

Displaymethod

Displayit byutilizing LEDs of Controller.

e.g. Inthe above case, 640 (LED H) + 5 (LED A) = 645 hours.

It is possible toindicate up to5,115 hours.

To readthe eachoperation function, pushthe following buttons afterreading the total use time.

You canreadthe eachoperation function use time as the same displaymethod of total use time.

Chart forreading eachfunction use time

10
