Panasonic KX-P7105 Manuale utente

This section contains information on printer panel, printer driver and printing a

document.

This section contains information on cleaning the printer, replacing supplies,

clearing jams, troubleshooting, error messages, repacking and speciﬁcations of

the printer, media to be used and interface.

This section contains the information to conﬁgure the printer in the network.

Settings and Printing (Print.pdf)

Maintenance and Speciﬁcations (Mainte.pdf)

Network (Network.pdf)

Laser Printer

Operating Instructions

Model No. KX-P7105 / KX-P7110

KX-P7110 comes standard with the network device. The Operating Instructions consist of the

following 3 ﬁles.

• Print.pdf

• Mainte.pdf

• Network.pdf

These ﬁles can be opened by clicking on their names below.The printer’s features are described on

the following pages of this ﬁle.

Please carefully read the Operating Instructions before operating.

Keep the printer CD-ROM in a safe place for future reference.

Do not expose the CD-ROM to direct sunlight or extreme heat and do not scratch or smudge the

surface of the CD-ROM.

Downloaded From ManualsPrinter.com Manuals

Features

Congratulations on your purchase of the KX-P7105 or KX-P7110. We are sure it will meet your

printing needs and give you many years of productive and efﬁcient use.

Printing in PCL and PostScript

[with the optional Upgrade Kit (for PostScript) installed]

In addition to printing in PCL or PostScript for Microsoft® Windows® operating system, provides

printing for PostScript for Macintosh. PageStyler II is the emulation of PostScript.

Paper handling

■ Media tray (universal cassette):

Enables to load 75 g/m2(20 lbs.) paper up to 250 sheets.

Transparency or envelope can be also loaded.

■ Manual feed:

Enables to load a media (paper, transparency, label or envelope) one by one.

Automatic Duplex Printing

[see

“Duplex Printing” on page 68

(Windows) or

page 119

(Macintosh) in “Settings and Printing]

Automatically prints your document on both sides of the paper.

Watermark Printing

(see

“Watermark Printing” on page 70

in “Settings and Printing”)

Overlaps a watermark (CONFIDENTIAL, DRAFT, etc.) over any document.

Overlay Printing

(see

“Overlay Printing” on page 71

in “Settings and Printing”)

Overlaps an overlay data (image or characters) over any document.

2 Up

/ 4 Up

(see

“Setting the Printer Driver” on page 38

(Windows) or

page 106

(Macintosh) in

“Settings and Printing”)

Prints 2 or 4 pages on a single sheet of paper to save paper.

Power Saving

(see

“Remote Control Panel” on page 23

in “Settings and Printing”)

Saves energy while the printer is idle.

(Continued)

Features

Downloaded From ManualsPrinter.com Manuals

Features

Remote Control Panel

(see

“Remote Control Panel” on page 23

in “Settings and Printing”)

Enables to change the printer’s setting when using an application software running in Microsoft®

MS-DOS® operating system.

Animated Help Feature

[see

“Status Display” on page 75

(Windows) in “Settings and

Printing”]

The Printer Status alerts the user of common operational errors. Click the Hbutton for animated

help.This feature will walk you through the steps required to get your printer running once again.

Bi-directional Parallel Interface or USB Interface

(see

“Parallel (IEEE1284) Interface” on page 57

“USB (Universal Serial Bus) Interface” on page 59

in “Maintenance and Speciﬁcations”)

Enables communication between the computer and the printer using the parallel interface or

USB.

Networking

(KX-P7110 only)

(see “Network” section)

Enables to print a data through the network. Support 10 Base-T and 100 Base-TX (KX-P7110 is

only available).

• DestinyTM and PageStylerTM and LaserActTM are trademarks of Destiny Technology Corporation.

• Microsoft, Windows and Windows NT are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• Adobe, the Adobe logo, Acrobat, the Acrobat logo, Adobe Type Manager, ATM and PostScript are

trademarks of Adobe Systems Incorporated.

• Apple, AppleTalk, LaserWriter, Mac, Macintosh and TrueType are trademarks of Apple Computer,

Inc.

As an ENERGY STAR®Partner, Panasonic has determined that this

product meets the ENERGY STAR®guidelines for energy efﬁciency.

(ENERGY STAR is a U.S. registered mark.)

Downloaded From ManualsPrinter.com Manuals

Features

• Netscape and Netscape Navigator are registered trademarks of Netscape Communications

Corporation in the United States and other countries.

• Pentium is a trademark of Intel.

• Dutch and Swiss are trademarks of Bitstream Inc.

• ITC Avant Garde Gothic, ITC Zapf Chancery and ITC Zapf Dingbats are trademarks of

International Typeface Corporation.

• Hewlett-Packard, HP, JetDirect and PCL are trademarks of Hewlett-Packard Company.

• Novell and NetWare are registered trademarks of Novell, Inc., in the United States and other

countries.

• IPX and IPX/SPX are trademarks of Novell, Inc.

• Avery and all other related brands and product names are trademarks of Avery Dennison

Corporation.

• Pentium is a trademark of Intel.

• UNIX is a trademark of X/Open Company Ltd.

• CorelDRAW is a registered trademark of Corel Corporation or Corel Corporation Limited in

Canada, the United States and/or other countries.

• 3M and 3M logo are trademarks or registered trademarks of 3M.

• NEC is a trademark of NEC Corporation.

• XEROX is a trademark of XEROX CORPORATION.

All other acknowledgments are trademarks or registered trademarks of their respective holders.

Screen shot(s) reprinted with permission from Microsoft Corporation.

LaserAct

PageStyler

End-user should not copy the program on the ROM in the printer.

End-user cannot be guaranteed against the program on the ROM in the printer by Wind River Co.,

Ltd.

The operating instructions are subject to change without notice.

Downloaded From ManualsPrinter.com Manuals

Settings and Printing

Settings and Printing NetworkMaintenance and Spec.

Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Printer Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Contents of Windows Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

About Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Loading Media and Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Remote Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Setting the Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Special Print Features . . . . . . . . . . . . . . . . . . . . . . . . . 68

Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Contents of Macintosh Section . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Loading Media and Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Setting the Printer Driver for PostScript . . . . . . . . . . . . . . . . . 106

Using the Special Print Feature . . . . . . . . . . . . . . . . . . . . . . . . . 119

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Downloaded From ManualsPrinter.com Manuals

Cautions

MacintoshWindows

Parts

To avoid machine malfunction, do not use the equipment under the following conditions:

Cautions

Ink jet media Not genuine toner

• Insert a stack of media into

the manual feed. (Insert a

media one by one.)

• Media for ink jet

(paper, transparency, etc.) or

transparency for color laser

printer; it may be wrapped

around the fuser roller and

cause damage.

• Any toner other than genuine

Panasonic toner; it may

damage the printer.

• Unstable or unlevel surfaces. • Directly in front of air

conditioning vents. • Liquids near the equipment.

• Areas of poor ventilation.

• Areas of high dust or chemical

fume concentration.

(solvent etc.)

• Direct exposure to sunlight.

• Extremely high or low

temperature [temperature

range: 10°C to 32.5°C

(50°F to 90.5°F)]

• Extremely high or low humidity.

(humidity range: 20% to 80%

RH)

• Condensation due to rapid

change of temperature.

Downloaded From ManualsPrinter.com Manuals

Cautions

MacintoshWindows

Parts

■

Static Electricity Damage

To prevent static electricity damage to any of the following components, touch a grounded

metal surface, such as the printer’s bare metal frame prior to touching the component.

•Interface connectors : parallel, USB, connector for 2nd feeder and network (KX-P7110

only)

•Electrical components, connectors inside the printer

■

Interface Cable

Always use a shielded interface cable. Use of an unshielded cable can result in radio

interference with data.

■

Power Source

Do not use a line conditioner, transient suppressor or surge protector as it may cause a

machine error.

■

Ventilation Space

The ventilation space is needed more than 20 mm (0.8

″

) between the printer and a wall.

Downloaded From ManualsPrinter.com Manuals

Part Names

MacintoshWindows

Parts

Front Side View

Rear SideView

Part Names

Manual feed

(see pages 9 , 19,

101)

Media tray

(see pages 9, 13,

93)

Printer panel

(see page 5)

Paper support

(seepages 17,19, 97,

101)

Output tray

Front cover

Paper level indicator

(see pages 15, 95)

USB interface connector

(see page 59 in

“Maintenance and

Speciﬁcations”)

Parallel interface connector

(see page 57 in

“Maintenance and

Speciﬁcations”)Rear cover (see pages 11,

17, 19, 91, 97, 101)

Jam release pan (see

“Clearing a Jam” on page

15 in “Maintenance and

Speciﬁcations”)

AC inlet

Power switch

Network interface

connector (RJ-45)

– KX-P7110 only

Connector for 2nd feeder

(option)

Downloaded From ManualsPrinter.com Manuals

Printer Panel

MacintoshWindows

Parts

Three indicators show the following printer’s status.

Printer Panel

Indicators

READY

ERROR

TONER/

DRUM UNIT

PRINT / RESET

PRINT / RESET button

Indicators

Printer Status

Printer is warming up (three indicators light one after another).

Printer is ready for printing or in the sleep mode.

Internal Error occurs. - - ->Turn the printer off and back on again.

If the problem persists, call for service on your printer.

Printer is receiving data printing or data remains in the memory.

Printer recoverable errors (media jam, media empty, etc.) occurred.

See “Maintenance and Specifications” for the troubleshooting.

Drum unit is not installed in the printer.

Drum unit is wearing out. Change the drum unit.

Toner is low.

Toner may be empty.

Life cycle of the drum unit has expired.

READY ERROR

TONER/

DRUM UNIT

✱1

: Indicator is lit.

: Indicator is turned off.

✱1

The status is varied depending on the condition.

: Indicator is blinking.

Downloaded From ManualsPrinter.com Manuals

Printer Panel

MacintoshWindows

Parts

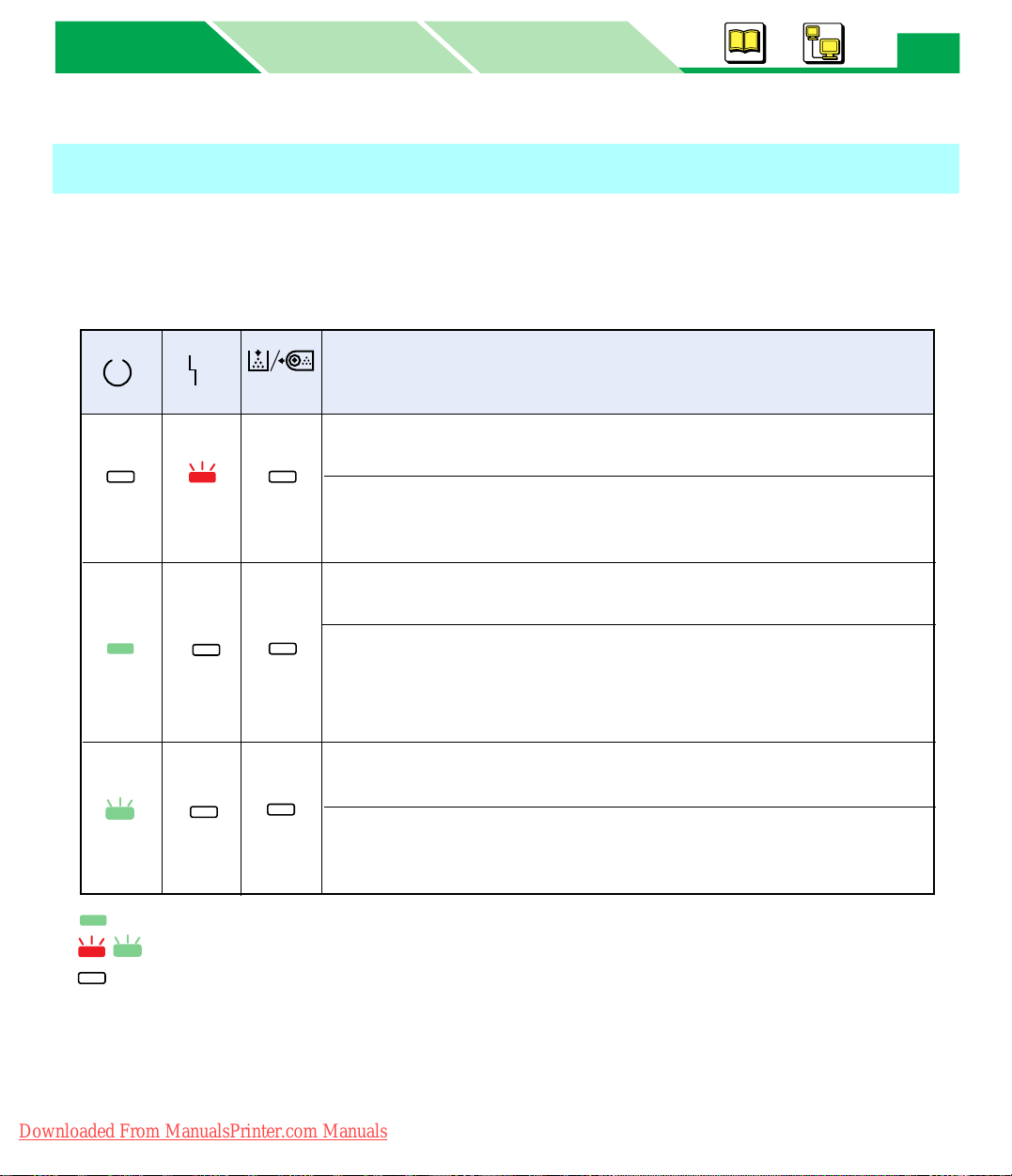

The printer executes the following action depending on the printer status by pressing this

button.

PRINT / RESET Button

Printer Status

To recover from the error status (overrun or memory overflow),

press the PRINT / RESET button less than 5 seconds.

READY ERROR

TONER/

DRUM UNIT

: Indicator is lit.

: Indicator is blinking.

: Indicator is turned off.

To print the configuration page, press the PRINT / RESET button

less than 5 seconds.

To print the demo page, press the PRINT / RESET button more

than 5 seconds until the ERROR indicator blinks fast, then

release it. The ERROR indicator is turned off and the demo page

will be printed.

To print the remaining data, press the PRINT / RESET button

less than 5 seconds.

To clear the remaining data, press the PRINT / RESET button

more than 5 seconds until the READY and ERROR indicator

blinks fast, then release it. The remainig data will be cleared.

*1The status is varied depending on the printer's condition.

To clear the remaining data, press the PRINT / RESET button

more than 5 seconds until the READY and ERROR indicator

blinks fast, then release it. The remainig data will be cleared.

Downloaded From ManualsPrinter.com Manuals

Altri manuali per KX-P7105

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Stampante

Panasonic

Panasonic KX-P1121E Manuale utente

Panasonic

Panasonic KX-CL400 Manuale utente

Panasonic

Panasonic JT-H340PR-E1 Manuale utente

Panasonic

Panasonic KX-P19 Manuale utente

Panasonic

Panasonic KX-P8420 Manuale utente

Panasonic

Panasonic AGEP50 - COLOR VIDEO PRINTER Manuale utente

Panasonic

Panasonic KX-P3200 - KX-P 3200 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic Jetwriter KX-P4440 Manuale utente

Panasonic

Panasonic KX-P3626 Manuale utente

Panasonic

Panasonic Panafax UF-8100 Manuale utente

Panasonic

Panasonic SP22P Manuale utente

Panasonic

Panasonic PV-PD2000 Manuale utente

Panasonic

Panasonic SP22P Manuale utente

Panasonic

Panasonic KX-P1150 - KX-P 1150 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic KX-P4410 Manuale utente

Panasonic

Panasonic KX-PS600 Manuale utente

Panasonic

Panasonic WORKIO DP-CL21 Istruzioni di installazione e manutenzione

Panasonic

Panasonic KX-P3123 - KX-P 3123 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic KX-MB1520FX7 Manuale utente

Panasonic

Panasonic KX-P1090 Manuale utente

Panasonic

Panasonic Jetwriter KX-P7305 Manuale utente

Panasonic

Panasonic KX-P3626 Manuale utente

Panasonic

Panasonic KX-P3196 - KX-P 3196 B/W Dot-matrix Printer Manuale utente

Panasonic

Panasonic KX-MC6020 Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
