Panasonic KX-P8415 Manuale di servizio

Settings and Printing Maintenance Specifications

Settings and Printing

About Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For Media Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For Multi-purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Loading Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the Media Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the Multi-purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . 7

Margins and Print Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the Printer Panel (Menu Mode) . . . . . . . . . . . . . . . . . . 11

Menu Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Outline for Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Outline for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Adjusting the Color Density (Bias Adjustment) . . . . . . . . . . 20

Printing a Color Calibration Page . . . . . . . . . . . . . . . . . . . . . 20

Adjusting the Density for All Colors Simultaneously . . . . . . . 23

Adjusting the Density for Each Color Independently . . . . . . 24

Setting the “Adjustment to Media” . . . . . . . . . . . . . . . . . . . . 26

Setting the Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Displaying the Panasonic KX-P8415 Properties Window . . . 28

Details Tab (Windows 95 / Windows 98) . . . . . . . . . . . . . . . 31

Color Management Tab (Windows 98) . . . . . . . . . . . . . . . . . 32

Sharing Tab (Windows 95 / Windows 98) . . . . . . . . . . . . . . . 33

Paper Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Quality Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Setup Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Option Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Displaying the Panasonic KX-P8415 printer Properties

Window (Windows NT 4.0 / Windows 2000) . . . . . . . . . . . . 43

(Continued)

Settings and Printing Maintenance Specifications

Ports Tab (Windows NT 4.0 / Windows 2000) . . . . . . . . . . . 44

Sharing Tab (Windows NT 4.0 / Windows 2000) . . . . . . . . . 45

Color Management Tab (Windows 2000) . . . . . . . . . . . . . . . 48

Printing on Transparency

(using Optional Transparency Tray) . . . . . . . . . . . . . . . . . . 49

Printing on Transparency, Label or Envelope

(using Multi-purpose Tray) . . . . . . . . . . . . . . . . . . . . . . . . . 52

Schema for Color Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

The Concept of “color” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Methods for Creating Colors . . . . . . . . . . . . . . . . . . . . . . . . . 57

Using the Agfa CMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Displaying the Adjustment Window . . . . . . . . . . . . . . . . . . . 59

Using the Brightness Adjustment . . . . . . . . . . . . . . . . . . . . . 62

Displaying the Adjustment Window . . . . . . . . . . . . . . . . . . . 62

Overlay Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Duplex printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Automatic Duplex Printing (with Auto duplex printing unit) . . 68

Manual Duplex Printing (using Microsoft Words

for Windows 95) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

BNovell and NetWare are registered trademarks of Novell, Inc., in the United States and other

countries.

BIPX is a trademark of Novell, Inc.

BMicrosoft, Windows and Windows NT are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

BCorelDRAW is a registered trademark of Corel Corporation or Corel Corporation Limited in

Canada, the United States and/or other countries.

BAvery and all other related brands and product names are trademarks of Avery Dennison

Corporation.

B4CC is a trademark of Stora Enso.

BAgfa is a registered trademark of Agfa-Gevaert, AG.

BAll other acknowledgements are trademarks or registered trademarks of their respective holders.

Screen shot(s) reprinted with permission from Microsoft Corporation.

Settings and Printing Maintenance Specifications

To print a document on a transparency using the Transparency tray, see “Printing on Transparency

(using Transparency Tray)” on page 49.

*1Recommended paper is as follows:

Letter/Legal: Hammermill LASERPRINT 90 g/m2(24 lbs.)

A4: 4CC 80 g/m2

About Media

Media Description

Laser paper*1

Transparency

B&W: 60 to 105 g/m2(16 to 28 lbs.)

Color: 75 to 105 g/m2(20 to 28 lbs.)

3M CG3710

About Media

For Media Tray

For Multi-purpose Tray

Media Description

Laser paper

Transparency*2

Single-sided printing: 75 to 165 g/m2(20 to 44 lbs.)

Manual duplex printing*1: 75 to 165 g/m2

(20 to 44 lbs.)

3M CG3710

Labels Avery 5163-5165, L7163, L7165-L7169

Envelope #10 [Black text only]

To print a document on a transparency, label or envelope using the multi-purpose tray, see

“Printing on Transparency, Label or Envelope (using Multi-purpose Tray)” on page 52.

*1When you perform the duplex printing, you should not expect the same print quality and reliability

that you get with single-sided printing. See the Specifications.

*2The print quality may not be stable. Use the media tray for best reliability.

For the notes and detailed media specification, refer to Specifications.

Cardstock Up to 165 g/m2

Settings and Printing Maintenance Specifications

The printer is shipped with a media tray (Letter paper or A4 paper) installed. Besides them, the

following media can be used with five different trays.

Each tray is designed and labeled for only paper or transparency. If you load the incorrect media type

in a tray, it may cause a jam.

NOTE

BIf you have the 2nd Cassette Feeder installed:

If you wish to use the automatic cassette-switching feature (a large print job, for

example), make sure that all trays in the printer are the same media type and size.

The transparency tray should only be inserted in the upper or middle tray slots.

Loading Media

Using the Media Tray

Legal Paper

Tray Size

A4 Paper

A4 Transparency

Letter Paper

Letter Transparency

210 mm x 297 mm (8.3″x 11.7″)

216 mm x 279 mm (8.5″x 11″)

216 mm x 356 mm (8.5″x 14″)

Loading Media

Upper tray slot

Middle tray slot

Settings and Printing Maintenance Specifications

Pull the media tray out of the printer.

To use an appropriate media tray, always check the label indication on the tray.

Push down on the metal plate until it clicks, locking it in place.

Fan the media (paper/transparencies), then tap it on a level surface to avoid

media jams or skewed printing.

NOTES

BBe careful not to leave fingerprints on the media, which can result in a smudged print.

BReusing media that has been fed through the printer once (for example, after jams) can

reduce the life of the consumables and paper path components.

Loading Media

Label

Settings and Printing Maintenance Specifications

Place the media with the print side down under the hooks in the tray.

The height of media should not exceed the limit mark on the tray, or it may cause a jam.

NOTES

Most media has instructions recommending the side to be printed first.

Do not mix different types or thicknesses of media in the media tray at one time; this may

cause a jam.

BWhen using transparency (3M CG3710), be sure to use the transparency tray and load it

with the leading tape side facing up (3M CG3710) and the taped end under the hooks.

Slide the media tray completely into the slot.

NOTE

BWhen using transparency with leading tape, remove the tape after printing.

Loading Media

Paper Transparency

Leading tape side up

Settings and Printing Maintenance Specifications

The multi-purpose tray (MPT) serves as an additional tray for loading any type of media that ranges in

size from 91 mm x 254 mm to 216 mm x 356 mm (3.6″x 10″to 8.5″x 14″).

■ Setting media thickness switch:

Because of the most reliable paper-picking for various media weights, media thickness can be

manually selected.

Open the left side door.

Move the media thickness switch to the desired setting.

Close the left side door.

Loading Media

Using the Multi-purpose Tray

Thin Middle Thick

Laser paper 91 to 123 g/m2(25 to 32 lbs.)

Transparency, Coated paper, Label

Laser paper 75 to 90 g/m2(20 to 24 lbs.)

Laser paper 124 to 165 g/m2(33 to 44 lbs.)

Envelope #10

Card stock up to 165 g/m2

Thin (Default)

Switch setting

Middle

Thick

Media

Settings and Printing Maintenance Specifications

■ Loading Media:

Set the media thickness switch.

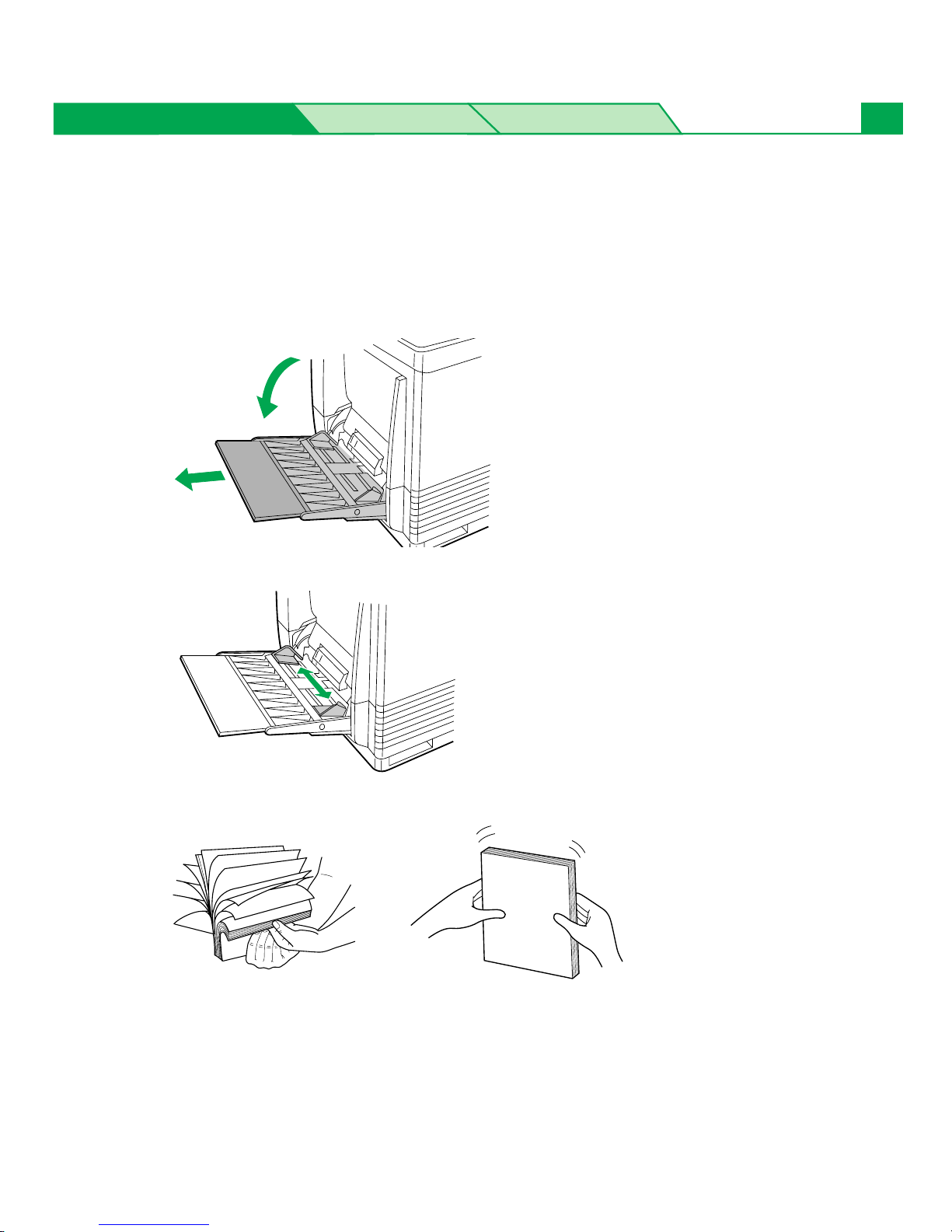

#Open the multi-purpose tray.

$Extend the media support.

Separate the media guides to the approximate width of the media.

Fan the media, and then tap it on a level surface to avoid media jams or

skewed printing.

NOTES

BReusing media that has been fed through the printer once (for example, after jams) can

reduce the life of the consumables and paper path components.

BWhen printing legal size using the multi-purpose tray, backside marking may occur. If this

occurs, use the legal paper tray.

Loading Media

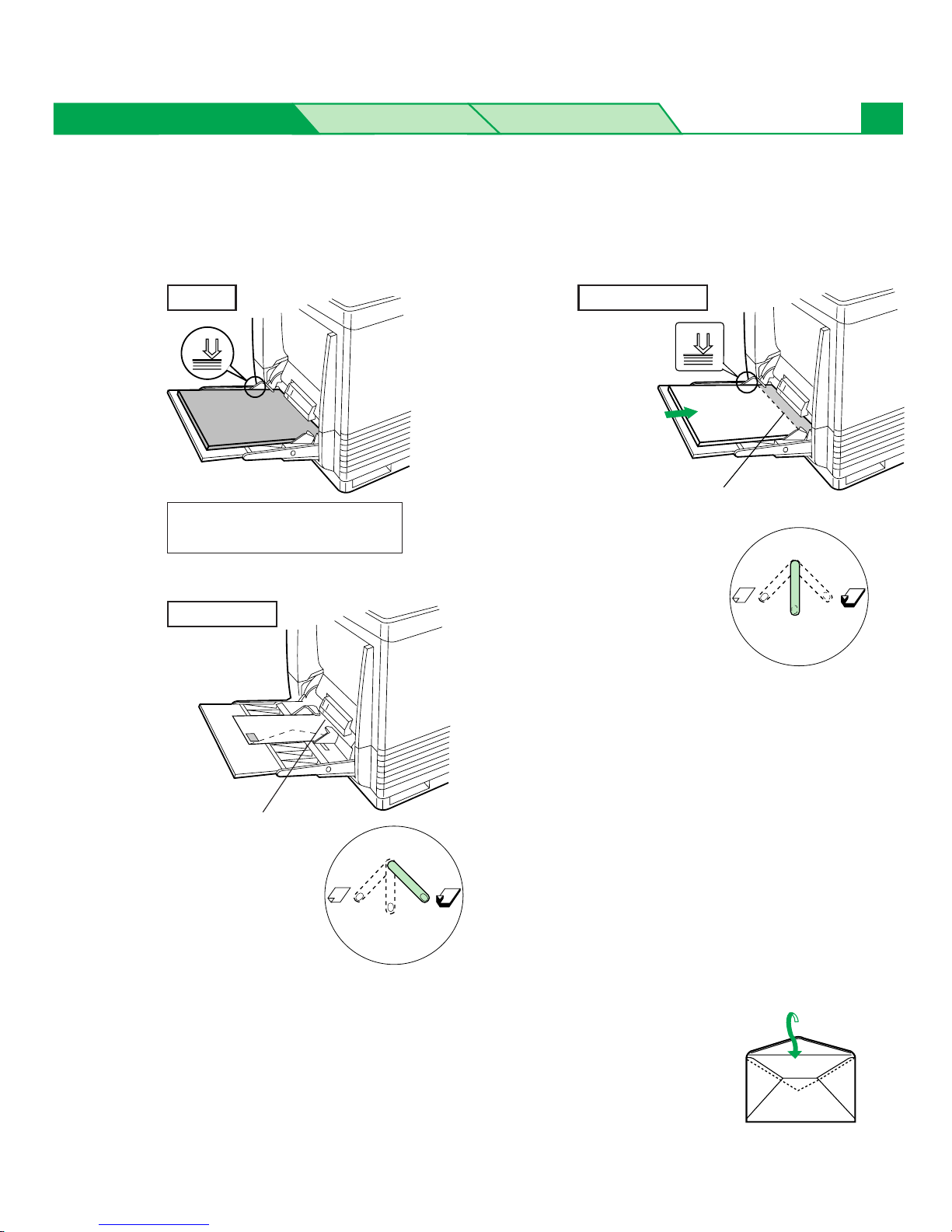

Insert the media with the printing side up into the multi-purpose tray.

The height of media should not exceed the limit mark on the left guide, or it may cause a

media jam.

Settings and Printing Maintenance Specifications

Loading Media

Taped side facing down

(3M CG3710)

Paper Transparency

Envelope

Short-end

NOTES

BPlace only one envelope in the multi-purpose tray at a time.

BWhen a wrinkle occurs, try printing with the flap inserted inside the

envelope as shown in figure.

Confirm the setting of the

media thickness switch.

Settings and Printing Maintenance Specifications

Adjust the media guides to the media size.

Use the printer driver to select the multi-purpose tray and media type.

(Refer to “Paper Tab” on page 34).

NOTE

BWhen using transparency with leading tape, remove the tape after printing.

The image (print area) is printed a bit smaller than the media size. You may need to adjust the page

margins in the application software to match the print area.

For detailed information, refer to Specifications.

Loading Media

Margins and Print Area
