Panasonic ET-LAL100 Manuale utente

Model No. ET-LAL100

ENGLISH

日本語

Operating Instructions

取扱説明書

Replacement lamp unit Commercial Use

交換用ランプユニット業務用

Thank you for purchasing this Panasonic product.

• Before using this product, please read the instructions carefully, and save this manual for

future use.

• Before using this product, be sure to read [Read this first!] (Page E-1).

このたびは、パナソニック製品をお買い上げいただき、まことにありがとうございます。

■この「取扱説明書」とプロジェクターの「取扱説明書」をよくお読みのうえ、正しく安全

に作業を行ってください。

■ この取扱説明書は大切に保管してください。

■ ご使用の前に「安全上のご注意」（z J-1 ページ）を必ずお読みください。

DPQX1194ZB/X1

Printed in China

Read this rst! Always follow these precautions

WARNING:

Do not disassemble the lamp unit.

If the lamp breaks, it could cause injury.

Lamp replacement

The lamp has high internal pressure. If improperly handled, an explosion and severe

injury or accidents will result.

• The lamp can easily explode if struck against hard objects or dropped.

• Before replacing the lamp, be sure to disconnect the power plug from the wall out-

let. Electric shocks or explosions can result if this is not done.

• When replacing the lamp, turn the power off and allow it to cool for at least 45 min-

utes before handling it otherwise it can cause burns.

CAUTION:

Do not use the old lamp unit.

If used it could cause lamp explosion.

If the lamp has broken, ventilate the room immediately. Do not

touch or bring your face close to the broken pieces.

Failure to observe this will cause the user to absorb the gas which was released

when the lamp broke and which

contains nearly the same amount of mercury as uorescent lamps, and the broken

pieces will cause injury.

• If you believe that you have absorbed the gas or that the gas has got into your

eyes or mouth, seek medical advice immediately.

• Ask your dealer about replacing the lamp unit and check the inside of the projector.

E-1

WARNING:

TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER.

NOTICE

For USA only

Hg-LAMP CONTAINS MERCURY, Manage in Accord with Disposal Laws,

See: www.lamprecycle.org or 1-888-411-1996

This lamp is used in projectors.

It is not intended to be used for indoor lighting of ordinary homes.

2009 / 125 / EC

ENGLISH

English

Manufactured by: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importer: Panasonic Connect Europe GmbH

Authorized Representative in EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Importer for UK:

Panasonic Connect UK,

a branch of Panasonic Connect Europe GmbH,

Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT

Français Fabriqué par: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japon

Importateur: Panasonic Connect Europe GmbH

Représentant autorisé dans l’UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hambourg, Allemagne

Español Fabricado por: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japón

Importador: Panasonic Connect Europe GmbH

Representante Autorizado para la UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgo, Alemania

Deutsch Hergestellt von: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importeur: Panasonic Connect Europe GmbH

Vertretungsberechtigter in der EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Deutschland

Italiano Fabbricato da: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Giappone

Importatore: Panasonic Connect Europe GmbH

Rappresentante autorizzato nell’UE: Panasonic Testing Centre

Winsbergring 15, 22525 Amburgo, Germania

Български Производител: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Япония

Вносител: Panasonic Connect Europe GmbH

Упълномощен представител в ЕС: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Германия

E-2

Čeština Vyrobil: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko

Dovozce: Panasonic Connect Europe GmbH

Oprávněný zástupce v EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburk, Německo

Dansk Fremstillet af: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importør: Panasonic Connect Europe GmbH

Autoriseret repræsentant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Eesti Tootja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Jaapan

Maaletooja: Panasonic Connect Europe GmbH

Volitatud esindaja ELis: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Saksamaa

Ελληνικά Κατασκευάστηκε από: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Ιαπωνία

Εισαγωγέας: Panasonic Connect Europe GmbH

Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Γερμανία

Hrvatski Proizvodi: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Uvoznik: Panasonic Connect Europe GmbH

Ovlašteni zastupnik u EU-u: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Njemačka

Latviešu Ražotājs: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japāna

Importētājs: Panasonic Connect Europe GmbH

Ociālais pārstāvis ES: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Vācija

Lietuvių Gamintojas: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonija

Importuotojas: Panasonic Connect Europe GmbH

Įgaliotasis atstovas ES: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgas, Vokietija

Magyar Gyártotta: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japán

Importőr: Panasonic Connect Europe GmbH

Hivatalos képviselő az EU-ban: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Németország

E-3

ENGLISH

Nederlands Geproduceerd door: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importeur: Panasonic Connect Europe GmbH

Bevoegde vertegenwoordiger in de EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Duitsland

Norsk Produsert av: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importør: Panasonic Connect Europe GmbH

Autorisert representant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Polski Wyprodukowano przez: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia

Importer: Panasonic Connect Europe GmbH

Upoważniony przedstawiciel w UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Niemcy

Português Fabricado por: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japão

Importador: Panasonic Connect Europe GmbH

Representante Autorizado na UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgo, Alemanha

Română Fabricat de: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia

Importator: Panasonic Connect Europe GmbH

Reprezentant autorizat în UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germania

Slovenčina Výrobca: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko

Dovozca: Panasonic Connect Europe GmbH

Autorizovaný zástupca v EÚ: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Nemecko

Slovenščina Proizvaja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonska

Uvoznik: Panasonic Connect Europe GmbH

Pooblaščeni zastopnik v EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Nemčija

Suomi Valmistaja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japani

Maahantuoja: Panasonic Connect Europe GmbH

Valtuutettu edustaja EU:ssa: Panasonic Testing Centre

Winsbergring 15, 22525 Hampuri, Saksa

E-4

Svenska Tillverkad av: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importör: Panasonic Connect Europe GmbH

Auktoriserad representant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Türkçe Tarafından Üretilmiştir: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonya

İthalatçı: Panasonic Connect Europe GmbH

AB Yetkili Temsilcisi: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Almanya

E-5

ENGLISH

Replacing the Lamp unit

CAUTION:

zWhen the projector is mounted on a ceiling, do not work with your face close to the

projector.

zAttach the lamp unit and the lamp cover securely.

zWhen you experience difculty in installing the lamp, remove it and try again. If you

use force to install the lamp, the connector may be damaged.

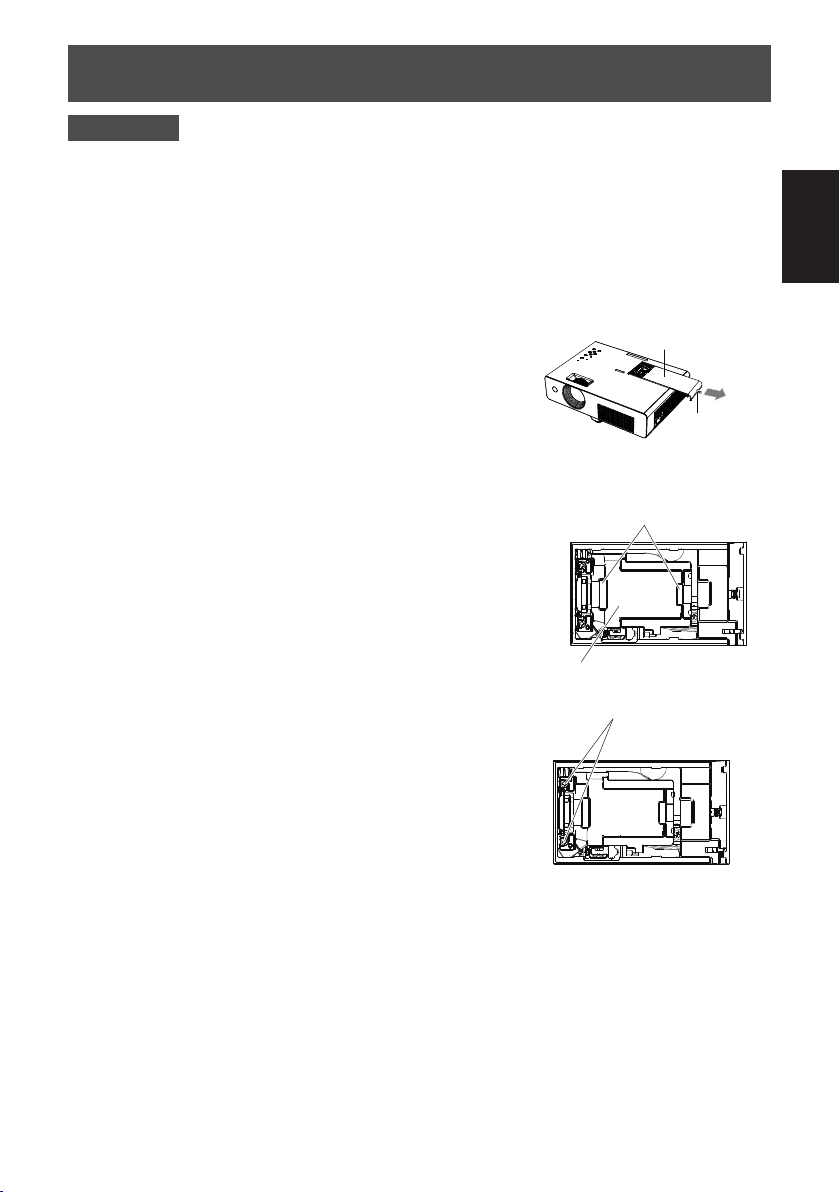

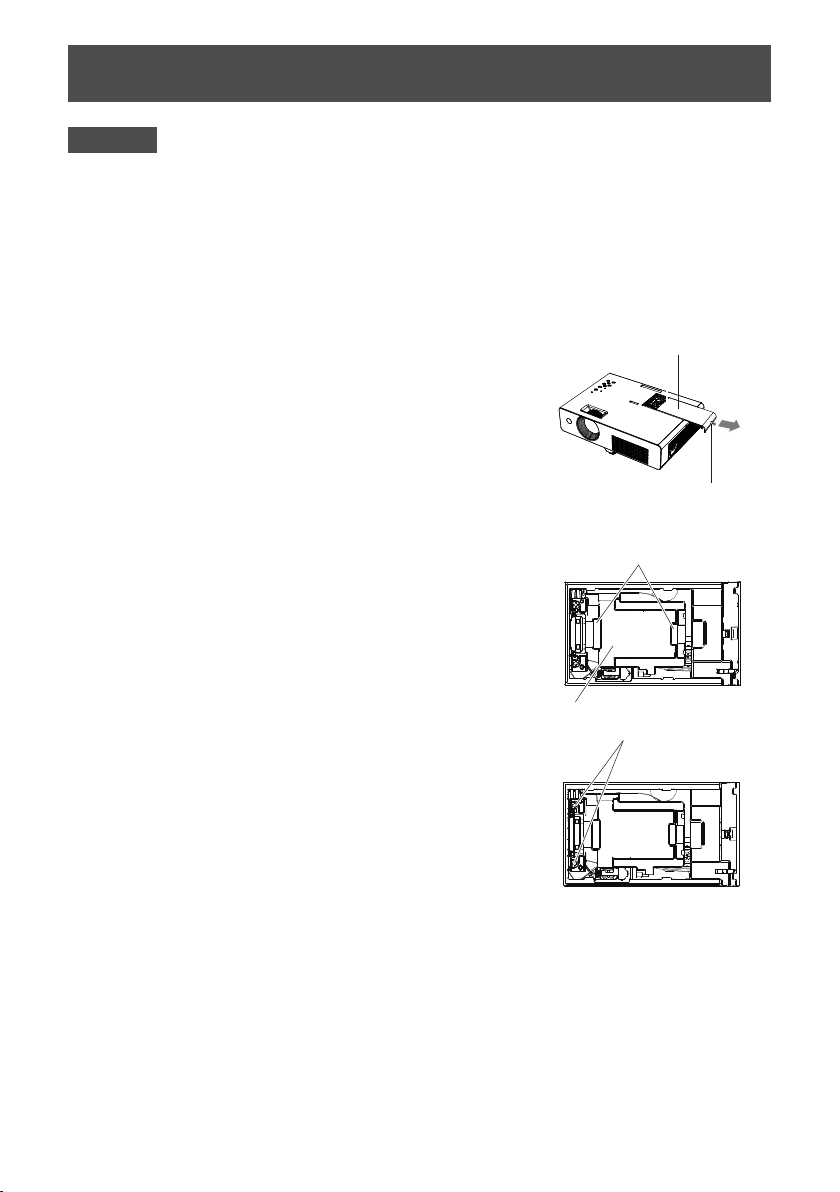

JReplacement procedure

1) Turn off the Power by following the procedure

in "Turning off the projector". Unplug the

AC power cord. Wait at least 45 minutes and

make sure the lamp unit and surroundings

are cool.

2) Use a Phillips screwdriver to loosen the lamp

cover xing screw and remove the lamp

cover.

zRemove the lamp cover by pulling it slowly toward

the direction of the arrow.

3) Use a Phillips screwdriver to loosen the two

lamp unit xing screws until the screws turn

freely. Hold the used lamp unit by its handles,

and pull it gently from the projector.

4) Insert the new lamp unit in correct direction.

Tighten the two lamp unit xing screws

securely with a Phillips screwdriver.

5) Attach the lamp cover, and tighten the lamp

cover xing screw securely with a Phillips

screwdriver.

zAttach the lamp cover by pushing it slowly opposite

to the direction of the arrow.

JResetting the Lamp Runtime

Be sure to reset the [Lamp runtime] after replacing the lamp.

Handles

Lamp unit

Lamp unit fixing screws

Lamp cover

fixing screw

Lamp cover

E-6

JNotes on replacing the lamp unit

• The light source lamp is a glass component. If it is hit on a hard object or dropped,

breakage may occur. Be careful when handling a light source lamp.

• A Phillips screwdriver is necessary when replacing the lamp unit. Hold the screwdriver

rmly.

• Grip the handle when you remove the lamp unit. Some parts of the lamp unit are

sharpened and may cause injury.

• The lamp contains mercury. Contact the local government ofce or distributor for the

correct disposal of the old lamp unit.

• If you continue to use a lamp after the replacement time, the lamp may break.

• Do not disassemble the lamp unit.

• When replacing the lamp because it has stopped illuminating, there is a possibility that

the lamp may be broken. If replacing the lamp of a projector which has been installed

on the ceiling, you should always assume that the lamp is broken, and you should

stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently.

Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass

get into your eyes or mouth, seek medical advice immediately.

LAMP NO. : ET-LAL100

E-7

Product Information (for Turkey only)

AEEE Yönetmeliğine Uygundur

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents

means that used electrical and electronic products must not be mixed with

general household waste.

For proper treatment, recovery and recycling of old products, please take them

to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and

prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local

authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance

with national legislation.

日本語

安全上のご注意必ずお守りください

警告

■ ランプユニットを分解しない



■ ランプユニットの交換は、電源を切り、ランプが冷えてから（45 分以上待ってから）

行う



■ ランプユニットの交換を行う前に、必ず電源プラグをコンセントから抜く



注意

■ ランプが破裂したときは、さわったり、顔を近づけたりしない





 



 

 



■ 誤った使い方をしたときに生じる危害や損害の程度を区分して、説明しています。

警告 

注意 

■ お守りいただく内容を次の図記号で説明しています。





J-1

ランプユニットの交換

お願い



z

     



z



z





z

Jランプユニットの交換

1) 「電源を切る」の手順に従い、プロジェクターの

電源を切る。電源コードを抜く。ランプユニット

とその周辺が冷めるのを少なくとも 45 分待つ

2) ランプカバー固定ねじをプラスドライバーで緩

めて、ランプカバーを取り外す



z



3) ランプユニット固定ねじ（2 本）をプラスドラ

イバーで緩めて、ランプユニットの取っ手部分

を持ち、ゆっくりと本体から引き出す

4) 新しいランプユニットを確実に挿入し、ランプ

ユニット固定ねじ（2 本）をプラスドライバー

でしっかりと締めつける

5) ランプカバーを取り付け、ランプカバーの

固定ねじをプラスドライバーでしっかりと締

めつける



z



取っ手

ランプユニット

ランプユニット固定ねじ

ランプカバー

固定ねじ

J-2

Jランプ使用時間のリセット



Indice

Lingue:

Altri manuali Panasonic Accessori per proiettori

Panasonic

Panasonic ET-SFD320C Manuale utente

Panasonic

Panasonic ET-LAA110 Manuale utente

Panasonic

Panasonic ET-LAV200C Manuale utente

Panasonic

Panasonic ET-LEC701 Guida

Panasonic

Panasonic ET-EMF510 Manuale utente

Panasonic

Panasonic ET-UW100 Manuale utente

Panasonic

Panasonic ET-MD77NT Manuale utente

Panasonic

Panasonic PressIT TY-WPSC1 Manuale utente

Panasonic

Panasonic ET-D3QW200 Manuale utente

Panasonic

Panasonic PressIT TY-WP2B1 Manuale utente

Panasonic

Panasonic ET-D75LE6 Manuale utente

Panasonic

Panasonic ET-ELW20 Manuale utente

Panasonic

Panasonic ET-LAD310A Manuale utente

Panasonic

Panasonic ET-LAX100 Guida

Panasonic

Panasonic ET-D3LEU100 Manuale utente

Panasonic

Panasonic ET-PFD465 Manuale utente

Panasonic

Panasonic ET-EMF320 Manuale utente

Panasonic

Panasonic ET-MWP100G Guida rapida

Panasonic

Panasonic ET-PKD75 Manuale utente

Panasonic

Panasonic PressIT TY-WPS1 Manuale utente

Panasonic

Panasonic ET-LAL331 Manuale utente

Panasonic

Panasonic ET-EMW200 Manuale utente

Panasonic

Panasonic ET-SFR330C Manuale utente

Panasonic

Panasonic ET-LAV100 Manuale utente

Manuali Accessori per proiettori popolari di altre marche

Optoma

Optoma BX-AL133B Manuale utente

PEERLESS

PEERLESS PE 1120 Guida

Osram

Osram SIRIUS HRI Series Manuale

Presentation Switchers

Presentation Switchers PS111 Manuale utente

Kramer

Kramer VIA GO Manuale utente

Yamaha

Yamaha PJL-112 Manuale elenco delle parti

Swedstyle

Swedstyle CL23AA02ZA25E Manuale utente

Mitsubishi Electric

Mitsubishi Electric 236CB Manuale del proprietario

Epson

Epson BrightLink 475Wi Manuale utente

Acer

Acer WP100 Manuale utente

i3 i3board Manuale utente

CHIEF

CHIEF HB-43E Manuale utente

Biamp

Biamp Modena Hub Manuale di servizio

NEC

NEC MP10RX Manuale utente

Panamorph

Panamorph DCR-S3 Manuale utente

Exact solutions

Exact solutions FRAME-EVO-P10 Manuale utente

CHIEF

CHIEF VCM103S Manuale utente

InFocus

InFocus LP70+ Guida
