Panasonic

Color Video Projection System

Operating Instructions

PT-51SX60

T-61SX60

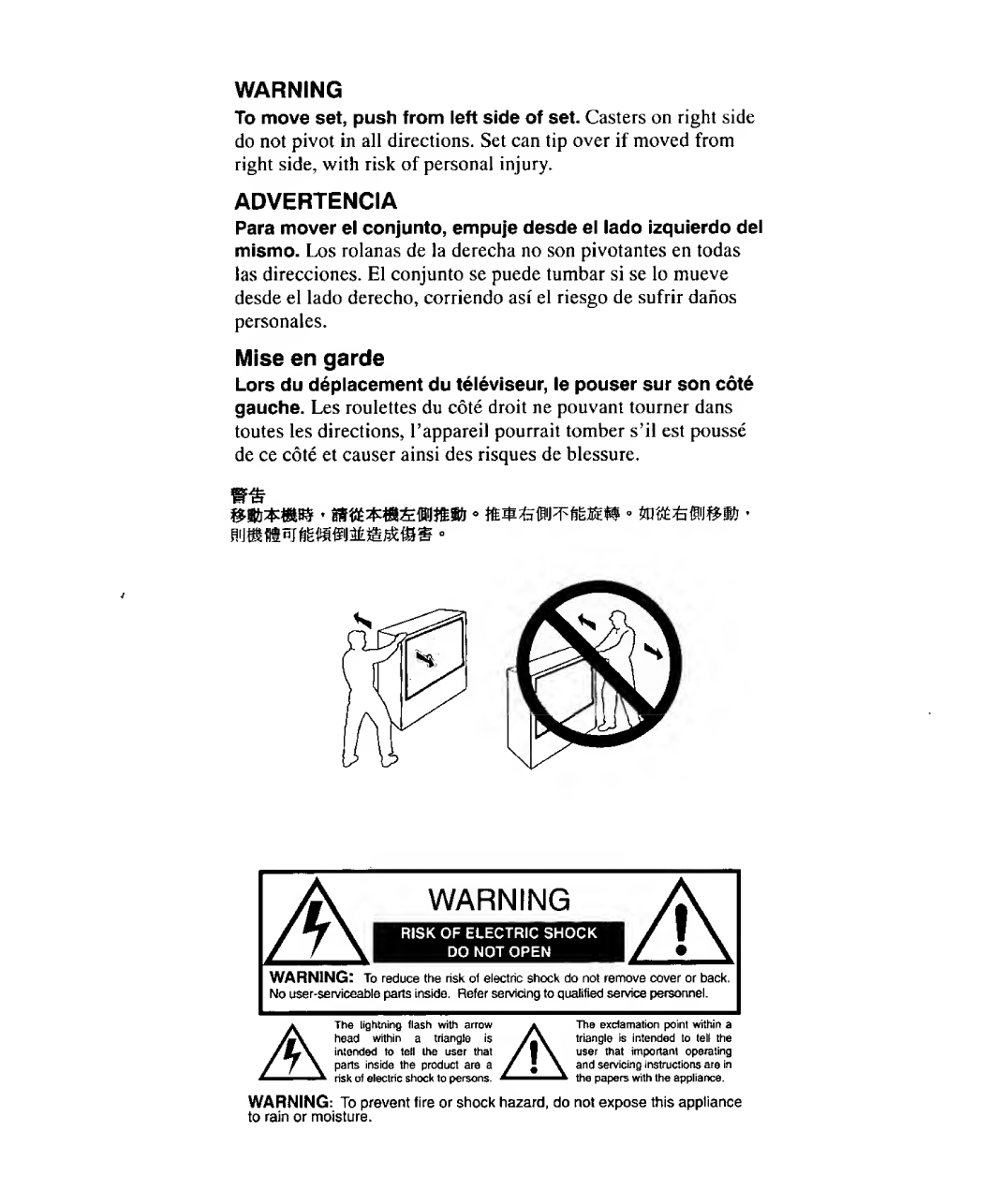

WARNING

To move set, push from left side of set. Casters on right side

do not pivot in all directions. Set can tip over if moved from

right side, with risk of personal injury.

ADVERTENCIA

Para mover el conjunto, empuje desde el lado izquierdo del

mismo. Los rolanas de la derecha no son pivotantes en todas

Jas direcciones. El conjunto se puede tumbar si se lo mueve

desde el lado derecho, corriendo asi el riesgo de sufrir danos

personales.

Mise en garde

Lors du deplacement du televiseur, le pouser sur son cote

gauche. Les roulettes du cote droit ne pouvant tourner dans

toutes les directions, l'appareil pourrait tomber s'il est pousse

de ce cote et causer ainsi des risques de blessure.

WARNING

WARNING: To reduce the risk of electric shock do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel.

AThe lightning flash with arrow aThe exclamation point within a

head within atriangle is triangle is intended to tell the

intended to tell the user that /1\user that important operating

parts inside the product are a/J\and servicing instructions are in

>risk of electric shock to persons. the papers with the appliance.

WARNING: To prevent fire or shock hazard, do not expose this appliance

to rain or moisture.

Table of Contents

Congratulations 2

Customer Record 2

Care and Cleaning 2

Specifications 2

Installation 3

Television Location 3

Optional Cable Connections 3

AC Power Supply Cord 3

Cable /Antenna 1and 23

Optional Equipment Connections 4

VCR Connection 4

Cable Box Connection 5

VCR and Cable Box Connection 6

Amplifier Connection (To Audio Amp) 7

Program Out Connection 7

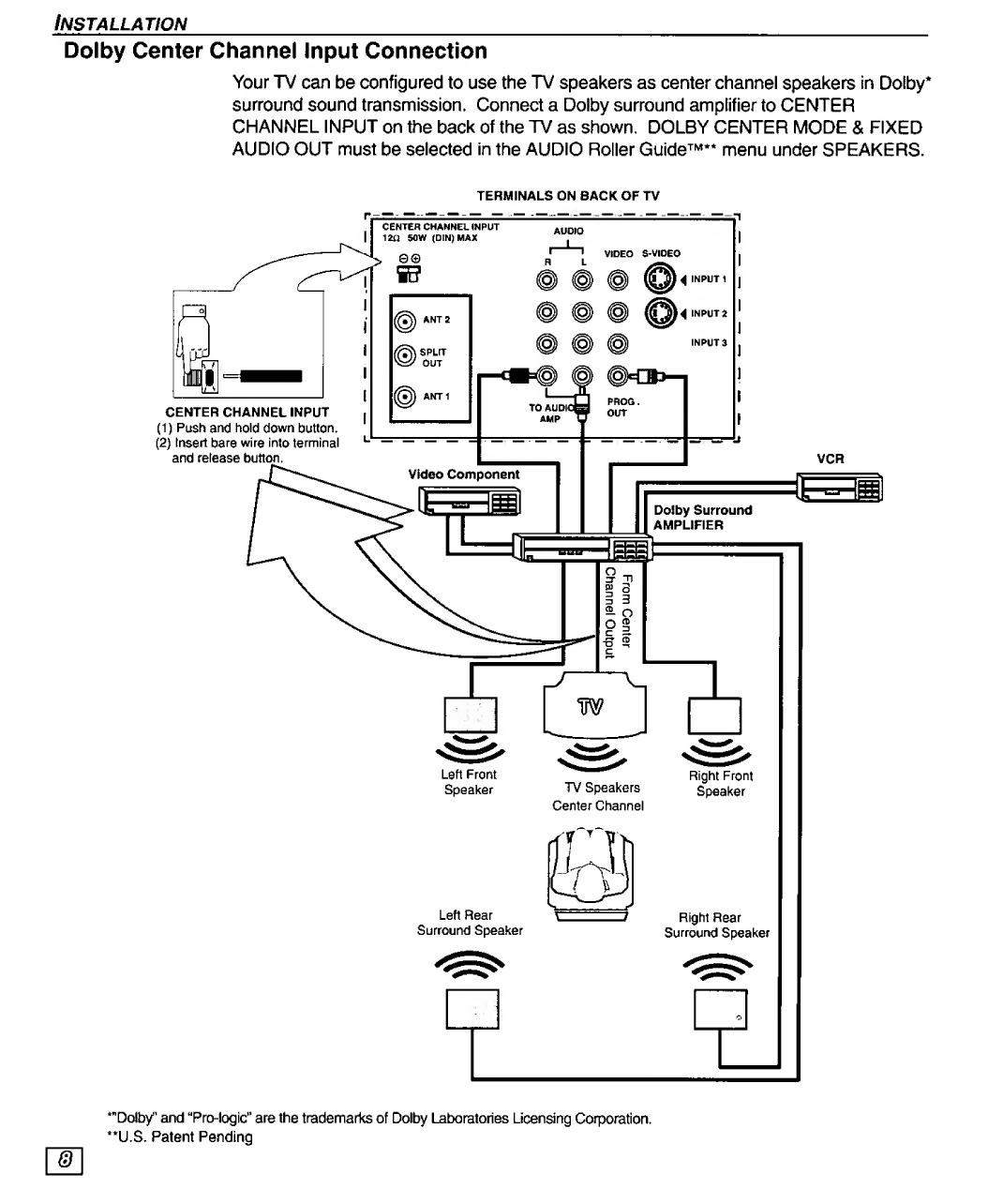

Dolby Center Channel Input Connection 8

Picture In Picture (PIP) Operation 9

Basic PIP Operation 9

PIP Operation with aCable Box 9

Roller Guide Menu™ 10

Basic Navigation 10

Remote Control Guide 10

Roller Guide Feature Chart 11

Special Features 14

Menu Languages 14

Program Channels 14

Closed Captioning 14

Closed Caption on Mute 15

Convergence 15

Sleep Timer 17

Timer 1and 217

Picture Adjustments 18

Dolby Center Mode &Fixed Audio Out 18

Favorite Channels and Captions 19

Lock 20

Troubleshooting Chart 21

Read these instructions completely before operating TV.

Contents are subject to change without notice or obligation.

Unauthorized copying and distribution is aviolation of law.

Congratulations

Your new Projection Television (PTV) features state-of-the-art technology for high

quality picture and sound with complete audio/video connections for your home

theater system. Your PTV is designed to give you many years of enjoyment. It was

thoroughly tested and tuned at the factory for best performance.

Customer Record

The model and serial number of this product are located on the back of the TV. You should

note the model and serial number in the space provided and retain as a permanent record

of your purchase. This will aid in identification in the event of theft or loss. Product

registraton for U.S. customers is available at: www.prodreg.com/panasonic.

Model I

Number I

Serial I

Number I

Care and Cleaning

Projection Screen (Turn PTV Off)

The projection screen is ahigh precision lens system which has aprotective screen.

The protective screen is fully washable with the following precautions:

Use amild soap solution or window cleaner and aclean cloth.

•DO NOT USE ABRASIVE CLEANERS.

•Do not use laundry detergent or automatic dishwasher soap.

•Do not use alcohol, ammonia, or petroleum based products.

Avoid excessive moisture and wipe dry.

Prevent solution from running into the receiver below.

Avoid bumping or scraping the screen.

Cabinet and Remote Control

For cabinets and remote control, use asoft cloth dampened with water or amild

detergent solution. Avoid excessive moisture and wipe dry.

Do not use benzene, thinner or other petroleum based products.

Specifications

Power Source

PT-51SX60 PT-61SX60 120V AC, 60Hz

Channel Capability -181 VHF-12; UHF-56; Cable-125

4Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type

8Audio Input Jacks 500mV RMS 47K Ohm

Video Output Jack 1Vp-p, 75 Ohm, Phono Jack Type

2Audio Output Jacks 0-2.0V RMS 4.7K Ohm

25-Video Input Jacks S-Video (Y-C) Connector

Specifications are subject to change without notice or obligation.

Installation

Television Location

This unit can be used as an entertainment center. Consult your dealer for available options.

Avoid excessive sunlight or bright lights, including reflections.

OKeep away from excessive heat or moisture. Inadequate ventilation may cause internal

component failure.

Fluorescent lighting may reduce remote control transmitting range.

Keep away from magnetic equipment, including motors, fans and external speakers.

Optional Cable Connections

Shielded audio and video cables should be used between components. For best results:

Use 75-ohm coaxial shielded cables.

Use appropriate input and output connectors, that match your component connectors.

Avoid long cables to minimize interference.

AC Power Supply Cord

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE APLUG WITH A

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE. FOR SOME MODELS THAT ARE

NON-POLARIZED, THE USE OF AN AC ADAPTOR CONNECTOR MAY

BE NECESSARY.

Polarized plug

Cable /Antenna 1and 2

For proper reception, either acable or antenna connection is required

Cable Connection

Connect the cable supplied by your local cable company.

Note: Acable converter box may be required for proper reception.

Check with your local cable company for compatibility

requirements.

Incoming Cable from

Cable Company

Antenna 1and 2Connections

75 Ohm VHF/UHF

on back of TV

For proper reception of VHF/UHF channels, an external antenna is required. For

best reception an outdoor antenna is recommended.

To use Antenna 1or Antenna 2, select ANT1 OR ANT2 and incoming cable irom

TV Mode in the SET UP menu under Prog Chan (Program Home Antenna

Channels).

(Cable Preset

Cable Mode is preset at the factory.

Antenna users must change to TV Mode in

the Set Up menu.

Installation

Optional Equipment Connections

VCR Connection

Follow this diagram when connecting your television to aVCR only. The S-VIDEO connection

provides higher quality picture. It overrides other VIDEO connections. Use INPUT 1or 2, AUDIO R

and Lwith S-VIDEO connection.

Note: The remote control must be programmed with supplied codes to operate the VCR. See

Programming the Remote Control in the Remote Control Quick Reference Guide.

Viewing atelevision program

Procedure

1.Select ANT1 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to the television program you want to view.

Viewing avideo

Procedure

Option A

1.Select ANT1 in the SET UP menu under Prog Chan (Program Channels).

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Begin the video.

OOption B

1.Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3or 4, depending on your VCR.

3. Begin the video.

Recording atelevision program

Procedure

OOption A(Recording and viewing the same program)

1.Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3or 4, depending on your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

Option B(Recording one program while viewing another program)

1.Select ANT1 in the SET UP menu under Prog Chan (Program Channels).

2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1,

VIDEO 2, etc.) connected to your VCR.

3. Using the VCR, tune to the television program you want to record.

4. Begin recording.

5. Press the TV/VIDEO button on the remote control to switch back to TV mode.

6. Tune the television to the television program you want to view.

Installation

Optional Equipment Connections (Cont.)

Open the door on the TV front panel to use the connections for your optional

equipment (Palmcorder, VCR, or other video components). Select input 4mode by

pressing TV/VIDEO button.

CONNECTIONS OF FRONT OF TV

Cable Box Connection

Follow this diagram when connecting your television to acable box only.

Cable Box TERMINALS ON BACK OF TV

Incoming Cable from

Cable Company

Note:

CENTER CHANNEL INPUT

120 50W (DIN) MAX

9©

us- SPUT

OUT

VIDEO S-VIDEO

4INPUT 1

iINPUT 2

TO AUDIO AMP PROG .

OUT

The remote control must be programmed with supplied codes to operate the cable

box. See Programming the Remote Control in the Remote Control Quick Reference

Guide.

Viewing apremium (scrambled) cable channel

Procedure

Note:

Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

Tune the television to Channel 3.

Using the cable box, tune to the premium cable channel you want to view.

To use special features such as Favorite Channels and Channel Captions (see Special

Features section for more information), ANT1 must be selected in the SET UP menu

under Prog Chan.

Installation

Optional Equipment Connections (Cont.)

VCR and Cable Box Connection

Follow this diagram when connecting your television to both aVCR and acable box.

VCR

Note: The remote control must be programmed with supplied codes to operate the VCR and

cable box. See Programming the Remote Control in the Remote Control Quick

Reference Guide.

Viewing apremium (scrambled) cable channel

Procedure

1.Select ANT2 in the SET UP menu under Prog Chan (Program Channels).

2. Tune the television to Channel 3.

3. Using the cable box, tune to the premium cable channel you want to view.

Note: To use special features such as Favorite Channels and Channel Captions (see Special

Features section for more information), ANT1 must be selected in the SET UP menu

under Prog Chan.

Recording apremium (scrambled) cable channel

Procedure

1.Select ANT2 in the SET UP menu under Prog Chan.

2. Press the TV/VIDEO button on the remote control to select the video input {VIDEO 1

VIDEO 2, etc.) connected to your VCR.

3. Turn the VCR ON.

4. Tune the VCR to Channel 3or 4, depending on your VCR.

5. Using your cable box, tune to the premium cable channel you want to record.

6. Begin recording.

Note: To view adifferent channel while recording:

Select ANT1 in the SET UP menu under Prog Chan.

•Press the TV/VIDEO button on the remote control to select TV mode.

Tune the television to atelevision program (except another premium cable channel).

Installation

Optional Equipment Connections (Cont.)

Amplifier Connection (TO AUDIO AMP)

To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP

inputs on back of television.

Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.

Audio Adjustments

1.Select SPEAKERS ON located in the on screen AUDIO menu .

2. Set amplifier volume to minimum.

3. Adjust TV volume to desired level.

4. Adjust amplifier volume to match the TV.

5. Select SPEAKERS OFF &VARIABLE AUDIO OUT from AUDIO menu to

control speakers from the TV or select FIXED AUDIO OUT to control

speakers from the external amplifier.

6. Volume, mute, bass, treble and balance are now controlled from the TV, if you

select VARIABLE AUDIO OUT mode.

Program Out Connection (PROG. OUT)

To use the TV audio and video with optional video equipment, use PROG. OUT and TO AUDIO

AMP terminals on the back of the TV.

Procedure

1. Connect optional video equipment to PROG. OUT video and TO AUDIO AMP R/L

Audio terminals.

2. PROG OUT terminal display is the same as the on screen display.

3. See optional equipment manual for further instructions for recording or monitoring.

TERMINALS ON BACK OF TV

r—-—~ ~ ———~—~- ~~—-~- "I

Installation

Dolby Center Channel Input Connection

Your TV can be configured to use the TV speakers as center channel speakers in Dolby*

surround sound transmission. Connect a Dolby surround amplifier to CENTER

CHANNEL INPUT on the back of the TV as shown. DOLBY CENTER MODE &FIXED

AUDIO OUT must be selected in the AUDIO Roller Guide™** menu under SPEAKERS.

TERMINALS ON BACK OF TV

CENTER CHANNEL INPUT

I]12£1 SOW (DIN) MAX

9©

CENTER CHANNEL INPUT

(1) Push and hold down button,

(2) Insert bare wire Into terminal

and release button.

isPLrr

OUT

Video Component VCR

Dolby Surround

AMPLIFIER

Left Front

Speaker TV Speakers

Center Channel

Right Front

Speaker

Left Rear

Surround Speaker Right Rear

Surround Speaker

"Dolby" and "Pro-logic" are the trademarks of Dolby Laboratories Licensing Corporation.

"U.S. Patent Pending

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Panasonic Proiettore

Panasonic

Panasonic PT-DZ21K Series Manuale utente

Panasonic

Panasonic PT-VZ570 Manuale utente

Panasonic

Panasonic PT-DW7000E-K Manuale utente

Panasonic

Panasonic PT-DZ770K Manuale utente

Panasonic

Panasonic PT-EX12KE Manuale utente

Panasonic

Panasonic PTLB20VU-EC Operating Manuale utente

Panasonic

Panasonic PT-EW630U Manuale utente

Panasonic

Panasonic PT-105 Manuale utente

Panasonic

Panasonic PT-CW330EA Manuale utente

Panasonic

Panasonic PT-F300 Series Manuale utente

Panasonic

Panasonic PT-AR100 Manuale utente

Panasonic

Panasonic PT-FW100 Manuale utente

Panasonic

Panasonic PT-M1083U Manuale utente

Panasonic

Panasonic PT-TW230 Manuale del sistema

Panasonic

Panasonic PT-EZ770Z Manuale utente

Panasonic

Panasonic PT-D10000E Manuale utente

Panasonic

Panasonic PT-JX200GBE Manuale utente

Panasonic

Panasonic PT-RQ32KU Manuale utente

Panasonic

Panasonic PT-FX500 Manuale utente

Panasonic

Panasonic PT-RQ13KU Istruzioni operative

Panasonic

Panasonic PT-L711E Manuale utente

Panasonic

Panasonic PT-AE900U Manuale utente

Panasonic

Panasonic PT-VX42Z Manuale utente

Panasonic

Panasonic PT-L6500E Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente
