SPEC FILE

Product Number : PT-AX100

Product Name : High Definition Home Cinema Projector

As of August 2006. Specifications subject to change without notice.

SPEC FILE

PT-AX100

High Definition Home Cinema Projector

As of August 2006 <2>

Specifications

Main Unit

LCD*1panel: Panel size:

Display method:

Drive method:

Pixels:

Pixel configuration:

Lamp*2:

Brightness:

Centre-to-corner uniformity ratio:

Contrast:

Lens:

Projection size:

Throw distance:

Optical axis shift*4:

Keystone correction range:

Installation:

Scanning frequency: S-Video/Video:

PC (RGB):

YPBPR(YCBCR):

Terminals: HDMI IN:

S-VIDEO IN:

VIDEO IN:

PC (RGB) IN:

R, G, B:

HD/SYNC, VD:

COMPONENT IN:

PB/PR(CB/CR):

SERIAL IN:

On-screen menu languages:

0.7˝ diagonal (16:9 aspect ratio)

Transparent LCD panel (x 3, R/G/B)

Active matrix

921,600 (1,280 x 720) x 3, total of 2,764,800 pixels

Stripe

220 W UHM™ lamp

2,000 lumens or more (high power mode)

85 %

6,000:1*3(full on/full off, dynamic iris on)

Manual zoom/focus lens (1:1 –1:2), F 1.9–3.1, f 21.7– 43.1 mm

40– 200 inches (1,016 – 5,080 mm) diagonally, 16:9 aspect ratio

1.2–12.4 m (3´11˝–40´8˝) (16:9 aspect ratio)

Horizontal: ±25%, vertical: ±63%

Vertical: approx. ±30°

Ceiling/floor,front/rear

fH15.75 kHz, fV60 Hz (NTSC, NTSC4.43, PAL-M, PAL60)

fH15.63 kHz, fV50 Hz (PAL, PAL-N, SECAM)

fH30–70 kHz, fV50– 87 Hz

480i (525i): fH15.75 kHz, fV60 Hz

480p (525p): fH31.5 kHz, fV60 Hz

576i (625i): fH15.63 kHz, fV50 Hz

576p (625p): fH31.25 kHz, fV50 Hz

720/50p (750/50p): fH45 kHz, fV60 Hz

720/60p (750/60p): fH37.5 kHz, fV50 Hz

1080/24p (1125/24p): fH27.0 kHz, fV24 Hz

1080/50i (1125/50i): fH28.125 kHz, fV50 Hz

1080/50p (1125/50p): fH56.3 kHz, fV50 Hz

1080/60i (1125/60i): fH33.75 kHz, fV60 Hz

1080/60p (1125/60p): fH67.5 kHz, fV60 Hz

19-pin HDMI connector x 1

Mini DIN 4-pin x 1, Y:1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

RCA pin x 1, 1.0 Vp-p, 75 ohms

D-sub HD 15-pin (female) x 1,

0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms

TTL, high impedance (positive/negative polarity)

RCA pin (Y, PB/CB, PR/CR)x1

1.0 p-p, 75 ohms

0.7 Vp-p, 75 ohms

Mini DIN 8-pin (female) x 1, for external control (RS-232C compliant)

English, French, German, Spanish, Italian, Chinese, Korean, Russian,

Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,

Thai

SPEC FILE

PT-AX100

High Definition Home Cinema Projector

As of August 2006 <3>

Power supply:

Power consumption:

Dimensions (W x H x D):

Weight:

Operating temperature:

Operating humidity:

Remote Control

Power supply:

Operating range:

Dimensions (W x H x D):

Weight:

Optional Accessories

100–240 V AC, 50/60 Hz

290 W (0.08 W in standby mode with fan stopped)

395 x 112 x 300 mm (15-17/32˝ x 4-13/32˝ x 11-25/32˝)*5

4.9 kg (10.8 lbs)

0°–40°C (32°–104°F)

20%–80% (no condensation)

3VDC (AA battery x 2)

Approx. 7 m (23´) (when operated directly in front of signal

receptor)

48 x 138 x 28 mm (1-7/8˝ x 7-27/32˝ x 1-3/32˝)

125 g (4.4 oz.)

Replacement lamp: ET-LAX100

Ceiling mount bracket: ET-PKX100

Serial adapter: ET-ADSER (DIN 8-pin/D-sub 9-pin)

Weights and dimensions shown are approximate.

Specifications subject to change without notice.

*1: The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technolo-

gy designed to provide one of the finest possible images. Occasionally,afew pixels may remain turned on (bright) or turned off (dark). Please

note that this is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.

*2: The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illu-

minate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on

individual lamp characteristics and usage conditions.

*3: In AI mode

*4: Shift range is limited during simultaneous horizontal and vertical shifting.

*5: Lens and legs not included.

SPEC FILE

PT-AX100

High Definition Home Cinema Projector

As of August 2006 <4>

271.1 (10-21/32)

112 (4-13/32)

121 (4-3/4)

69 (11/16)

300 (11-25/32)

395 (15-17/32)

102.5 (4-1/32)

unit : mm (inch)

NOTE: This illustration is not drawn to scale.

Dimensions

Terminals

RGB IN connector pin assignment

1Serial input

2 HDMI input

3 PC (RGB) input

4 Component (Y/PB/PR)Input

5S-Video input

6 Video input

no.

signal

GND

signal

GND

signal

GND

HD/SYNC

12 3 4 5

11615

510

D-sub HD 15-pin, female

SPEC FILE

PT-AX100

High Definition Home Cinema Projector

As of August 2006 <5>

Standard setting-up positions

Projected image

179

Ø49

Ø43

(1-15/16˝)

62 (2-7/16˝)

366 – 446

(14-13/32˝–

17-9/16˝)

Adjustable in

20 mm (25/32˝) steps

(2-9/16˝)

(2-3/4˝)

(1-11/16˝)

(7-1/16˝)

Projected image

Lower edge of projected image

unit : mm (inch)

NOTE:

Illustrations show the projector installed

using optional ceiling bracket ET-PKX100.

This illustration is not drawn to scale.

Values shown are approximate.

NOTE: The values of L shown above vary due to characteristics of the zoom lens. Images may slightly distort due to characteristics of the zoom

lens when the zoom lens is set to the minimum throw distance.

NOTE: The accuracy of calculated value by the formula shown above is ±5%.

Projection distance (screen aspect ratio 16:9))

Diagonal length

Projection size (16:9) Height from the

edge of screen to

center oflens

(E)

Widthfrom the

right edge of screento

center oflens

(W)

Projection distance(L)

Min (Wide) Max (Telephoto)

1.01 m

1.52 m

2.03 m

2.54 m

3.05 m

3.81 m

5.08 m

1.2 m

1.8 m

2.4 m

3.1 m

3.7 m

4.6 m

6.2 m

2.4 m

3.7 m

4.9 m

6.2 m

7.4 m

9.3 m

12.4 m

0.57 m

0.85 m

1.13 m

1.40 m

1.68 m

2.11 m

2.81 m

0.67 m

1.00 m

1.33 m

1.66 m

2.00 m

2.49 m

3.32 m

-0.07 m

-0.10 m

-0.13 m

-0.16 m

-0.19 m

-0.24 m

-0.32 m

0.22 m

0.33 m

0.44 m

0.55 m

0.67 m

0.83 m

1.11 m

–

40˝

60˝

80˝

100˝

120˝

150˝

200˝

3´11˝

5´10˝

7´10˝

10´2˝

12´1˝

15´1˝

20´4˝

7´10˝

12´1˝

16´

20´4˝

24´3˝

30´6˝

40´8˝

2.8˝

3.9˝

5.1˝

6.3˝

7.5˝

9.4˝

12.6˝

9˝

1´1˝

1´5˝

1´10˝

2´2˝

2´9˝

3´8˝

1´10˝

4´11˝

3´8˝

4´7˝

5´6˝

6´11˝

9´3˝

2´2˝

3´3˝

4´4˝

5´5˝

6´7˝

8´2˝

10´11˝

Projection distance (screen aspect ratio 4:3))

Diagonal length

Projection size (4:3) Height from the

edge of screen to

center oflens

(E)

Widthfrom the

right edge of screento

center oflens

(W)

Projection distance(L)

Min (Wide) Max (Telephoto)

1.01 m

1.52 m

2.03 m

2.54 m

3.81 m

1.5 m

2.3 m

3.0 m

3.8 m

5.7 m

3.0 m

4.5 m

6.0 m

7.6 m

11.4 m

0.62 m

0.93 m

1.24 m

1.55 m

2.32 m

0.63 m

0.94 m

1.26 m

1.57 m

2.35 m

-0.01 m

-0.02 m

-0.03 m

0.19 m

0.28 m

0.37 m

0.46 m

0.69 m

–

40˝

60˝

80˝

100˝

150˝

4´11˝

7´7˝

9´10˝

12´6˝

18´8˝

9´10˝

14´9˝

19´8˝

24´11˝

37´5˝

0.4˝

0.8˝

1.2˝

7˝

11˝

1´3˝

1´6˝

2´3˝

2´

3´˝

4´1˝

5´1˝

7´7˝

2´

3´1˝

4´2˝

5´2˝

7´9˝

Calculation of the projection distance

For a screen size different from the above, use the equation below to calculate the projection distance.

16 : 9 minimum L(m) = (diagonal screen size in inches) x 0.0311 - 0.056

maximum L (m) = (diagonal screen size in inches) x 0.0621 - 0.056

4:3 minimum L(m) = (diagonal screen size in inches) x 0.0381 - 0.046

maximum L(m) = (diagonal screen size in inches) x 0.0761 - 0.056

SPEC FILE

PT-AX100

High Definition Home Cinema Projector

As of August 2006 <6>

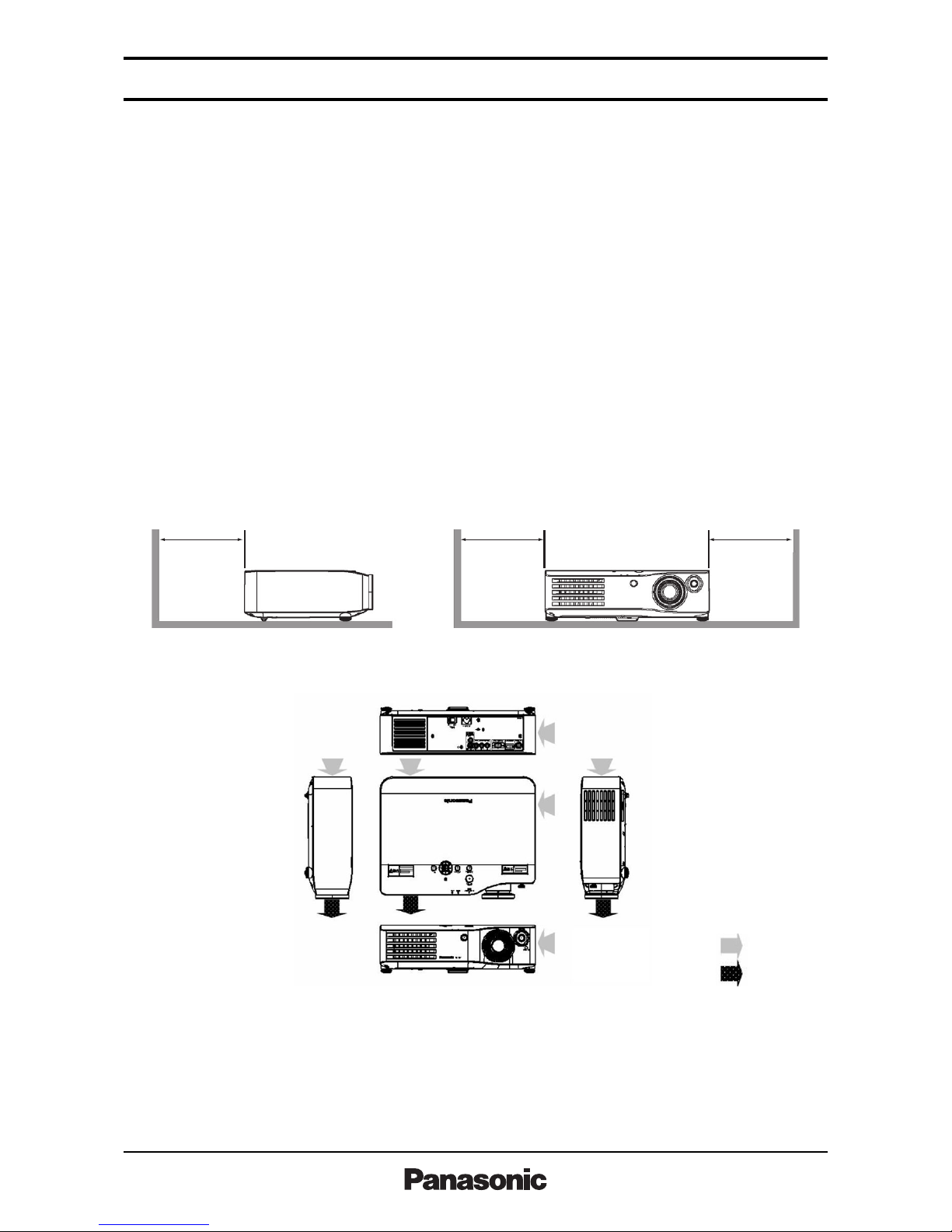

Notes on Projector Placement and Operation

The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the

following precautions.

1. Never place objects on top of the projector while it is operating.

2. Make sure there is an unobstructed space of 200 mm or more around the projector’s air intake

openings.

3. If the projector is placed in a box or enclosure, ensure the temperature of the air surrounding the

projector is between 0°C/32°F and 35°C/95°F. Also make sure the projector’s intake and exhaust

openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is

not sucked into the intake openings.

Operating the Projector Continuously

1. If the projector is to be operated continuously 10 hours or more, lamp replacement cycle duration

becomes shorter.

2. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short

periods.

Direction of Air Intake and Exhaust

Computer Data Compatibility

This projector accepts up to 70 kHz horizontal scanning frequency and 108 MHz dot clock.

See the list of compatible signals on the next page for details.

NOTE: The display resolution of this projector is 1280 x 720 pixels. If the display resolution indicated in the above data does not match this reso-

lution, the input signal will be converted to 1280 x 720 pixels (16:9 aspect ratio) or 960 x 720 pixels (4:3 aspect ratio).

200 mm (7-7/8˝)

or more

200 mm (7-7/8˝)

or more

200 mm (7-7/8˝)

or more

Intake

Exhaust

SPEC FILE

PT-AX100

High Definition Home Cinema Projector

As of August 2006 <7>

List of Compatible Signals

Mode

Display

resolution

(dots)

1. The “i” appearing after the resolution indicates an interlaced signal.

Scanning

frequency Dot clock

frequency

(MHz)


quality

2. The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A Signals are converted by the image processing circuit before picture is projected.

Format

(kHz)

NTSC/NTSC 4.43/

PAL-M/PAL60 720 x 480i 15.7 59.9 A VIDEO/S-VIDEO

PAL/PAL-N/SECAM 720 x 576i 15.6 50.0 A VIDEO/S-VIDEO

525i (480i) 720 x 480i 15.7 59.9 13.5 A YP

625i (576i) 720 x 576i 15.6 50.0 13.5 A YP

525p (480p) 720 x 483 31.5 59.9 27.0 A YP

/HDMI

625p (576p) 720 x 576 31.3 50.0 27.0 A YP

/HDMI

1,125 (1,080)/60i 1 920 x 1 080i 33.8 60.0 74.3 AA YP

/PC/HDMI

1,125 (1,080)/50i 1 920 x 1 080i 28.1 50.0 74.3 AA YP

/PC/HDMI

1,125 (1,080)/24p 1 920 x 1 080 27.0 24.0 74.3 AA YP

/HDMI

1,125 (1,080)/50p 1 920 x 1 080p 56.3 50.0 148.5 AA YP

/PC

1,125 (1,080)/60p 1 920 x 1 080p 67.5 60.0 148.5 AA YP

/PC

750 (720)/60p 1 280 x 720 45.0 60.0 74.3 AA YP

/HDMI

750 (720)/50p 1 280 x 720 45.0 50.0 74.3 AA YP

/HDMI

VGA480 640 x 480 31.5 59.9 25.2 A PC/HDMI

640 x 480 37.5 75.0 31.5 A PC

640 x 480 43.3 85.0 36.0 A PC

640 x 480 72.1 138.0 62.3 A PC

WIDE480 856 x 480 30.1 60.1 31.5 A PC

SVGA 800 x 600 35.2 56.3 36.0 A PC

800 x 600 37.9 60.3 40.0 A PC

800 x 600 48.1 72.2 50.0 A PC

800 x 600 46.9 75.0 49.5 A PC

800 x 600 53.7 85.1 56.3 A PC

WIDE600 1 072 x 600 37.2 59.9 51.4 A PC

WIDE720 1 280 x 720 45.1 60.1 76.5 AA PC

XGA 1 024 x 768 48.4 60.0 65.0 A PC

1024 x 768 56.5 70.1 75.0 A PC

1024 x 768 60.0 75.0 78.8 A PC

1024 x 768 68.7 85.0 94.5 A PC

1024 x 768 72.1 89.0 99.2 A PC

WIDE768 1 280 x 768 45.3 56.5 76.2 A PC

MXGA 1 152 x 864 64.0 71.2 94.2 A PC

1152 x 864 67.5 74.9 108.0 A PC

SXGA 1 280 x 1024 64.0 60.0 108.0 A PC

WIDE768-2 1 366 x 768 48.8 59.8 73.8 A PC

Altri manuali Panasonic Proiettore

Panasonic

Panasonic PT-VW355N Manuale utente

Panasonic

Panasonic PT-LB78V Guida all'installazione

Panasonic

Panasonic PT-L6510U Manuale utente

Panasonic

Panasonic PT-VW360 Manuale utente

Panasonic

Panasonic PT-RZ475U Manuale utente

Panasonic

Panasonic PT-JW130FWE Manuale utente

Panasonic

Panasonic PT-LB1VU Manuale utente

Panasonic

Panasonic PTL6500U - LCD PROJECTOR Manuale utente

Panasonic

Panasonic PTL557U - LCD PROJECTOR Manuale utente

Panasonic

Panasonic PTLB20SU - LCD PROJECTOR - MULTI-LANG Manuale utente

Panasonic

Panasonic PT-LX22EA Manuale utente

Panasonic

Panasonic PT-D10000 Series Manuale utente

Panasonic

Panasonic PT-L780E Manuale utente

Panasonic

Panasonic PT-LB75 Manuale elenco delle parti

Panasonic

Panasonic PT-F200NTU - LCD Proj XGA 400:1 3500 Lumens VGA Svid Wrls... Manuale utente

Panasonic

Panasonic PT-RZ475 series Manuale utente

Panasonic

Panasonic PTL711U - LCD PROJECTOR Manuale utente

Panasonic

Panasonic LB80U - XGA LCD Projector Manuale utente

Panasonic

Panasonic PT-DW5100EL Manuale utente

Panasonic

Panasonic PTDZ8700U - DLP PROJECTOR Manuale utente

Panasonic

Panasonic PT-LW271U Manuale utente

Panasonic

Panasonic PT-EZ570 Guida

Panasonic

Panasonic PT-LB20EA Manuale utente

Panasonic

Panasonic PT-LX26H Manuale del sistema

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente
