Panasonic PT-L711 Manuale utente

• One-Touch Auto Setup with digital keystone correction

• Extra short-throw lens allows display of larger images

• Quiet fans (28 dB*) and 2-mode lamp operation

• Index Window makes presentations easier to understand

• Ultrabright 1400 ANSI lumens

* in low power mode

- 1 -

Television Systems Division

S P E C F I L E

PRODUCT NO.: PT-L711

PRODUCT NAME: Portable LCD Projector

MAJOR FEATURES

PT-L711

Portable LCD Projector

S P E C F I L E

Specifications

Main Unit

Power supply: 100–240 V AC, 50/60 Hz

Power consumption: 240 W (during standby mode with fan stopped: 5 W)

Color system: NTSC/M-NTSC/PAL/PAL-M/PAL-N/SECAM

LCD panel: Panel size: 1.3˝ (diagonal)

Display method: Transparent LCD panel with Micro Lens Array (x 3, R/G/B)

Drive method: Active matrix

Pixels: 786,432 (1,024 x 768) x 3

Pixel configuration: Stripe

Screen aspect ratio: 4:3

Lens: Manual zoom/focus lens (1:1–1:1.3),

F 1.8–2.7, f 28.7–36.0 mm,

Lamp: DC type 160 W UHM lamps (x 2)

Colors: Full color (16,777,216 colors)

Brightness: 1400 ANSI lumens

Center-to-corner uniformity ratio: 90%

Contrast: 300:1 (all white/all black)

Resolution: RGB: 1024 x 768 pixels, Video: 760 TV lines

Scanning frequency:

RGB: Horizontal: 15–97 kHz, Vertical: 50–120 Hz

YPBPR: 480i: fH15.75 kHz, fV60 Hz

625i: fH15.63 kHz, fV50 Hz

480p: fH31.5 kHz, fV60 Hz

720p: fH45 kHz, fV60 Hz

1080i: fH33.75 kHz, fV60 Hz

S-Video/Video: NTSC/M-NTSC/PAL-M: fH15.75 kHz, fV60 Hz

PAL/PAL-N/SECAM: fH15.63 kHz, fV50 Hz

Screen size: 762–7,620 mm (30–300 inches) diagonally (aspect ratio: 4:3)

Optical axis shift: 9:1 (fixed)

Installation: Ceiling/desk, front/rear (menu selection)

Built-in speakers: Size: 28 mm (1.1˝) round type (x 2)

Output power: 1.0 W + 1.0 W (stereo)

Terminals: RGB1/YPBPRIN: D-sub HD 15-pin x 1

R, G, B: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75Ω

Y, PB, PR: Y: 1.0 p-p, 75Ω, PB/PR: 0.7 Vp-p, 75Ω

HD/VD/SYNC: TTL, high impedance (positive/negative polarity)

YPBPR/RGB2 IN: D-sub HD 15-pin x 1

Y, PB, PR: Y: 1.0 p-p, 75Ω, PB/PR: 0.7 Vp-p, 75Ω

R, G, B: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75Ω

HD/VD/SYNC: TTL, high impedance (positive/negative polarity)

S-VIDEO IN: Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ω

VIDEO IN: RCA jack x 1, 1.0 Vp-p, 75Ω

AUDIO IN: For RGB: stereo mini jack x 2 (RGB1/RGB2), 0.5 Vrms

For Video: RCA jack (L, R), 0.5 Vrms

AUDIO OUT: Stereo mini jack x 1, 0–2.0 Vrms (variable)

SERIAL: D-sub 9-pin x 1 (RS-232C)

Power cord length: 3 m (9´10˝)

Cabinet material: ABS/PC

Dimensions (W x H x D): 233 x 98 x 330 mm (excluding protrusions)

(9-3/16˝ x 3-7/8˝ x 12-15/16˝)

Weight: 3.8 kg (8.4 lbs.)

Operating environment:

Temperature: 0°–40°C (32°–104°F)

Humidity: 20%–80% (no condensation)

as of July 2000

PT-L711

Portable LCD Projector

S P E C F I L E

Specifications (continued)

Remote Control Unit

Power supply: 3 V DC (button battery x 1)

Operation range: Approx. 7 m (23´) when operated from directly in front of the

signal receptor)

Dimensions (W x H x D): 40 x 86 x 6.5 mm (1-2/16˝ x 3-3/8˝ x 1/4˝)

Weight: Approx. 17.5 g (0.039 lbs.) (including batteries)

Accessories

Supplied accessories: Remote control unit, Batteries for remote control unit, Power cord,

RGB cable, AV cable, Carrying bag

Optional accessories: Replacement lamp unit:ET-LA701

Ceiling mount bracket: ET-PK701

Full function wireless remote control: ET-RM100

Wide conversion lens: ET-LEC701

Weights and dimensions shown are approximate.

Specifications subject to change without notice.

as of July 2000

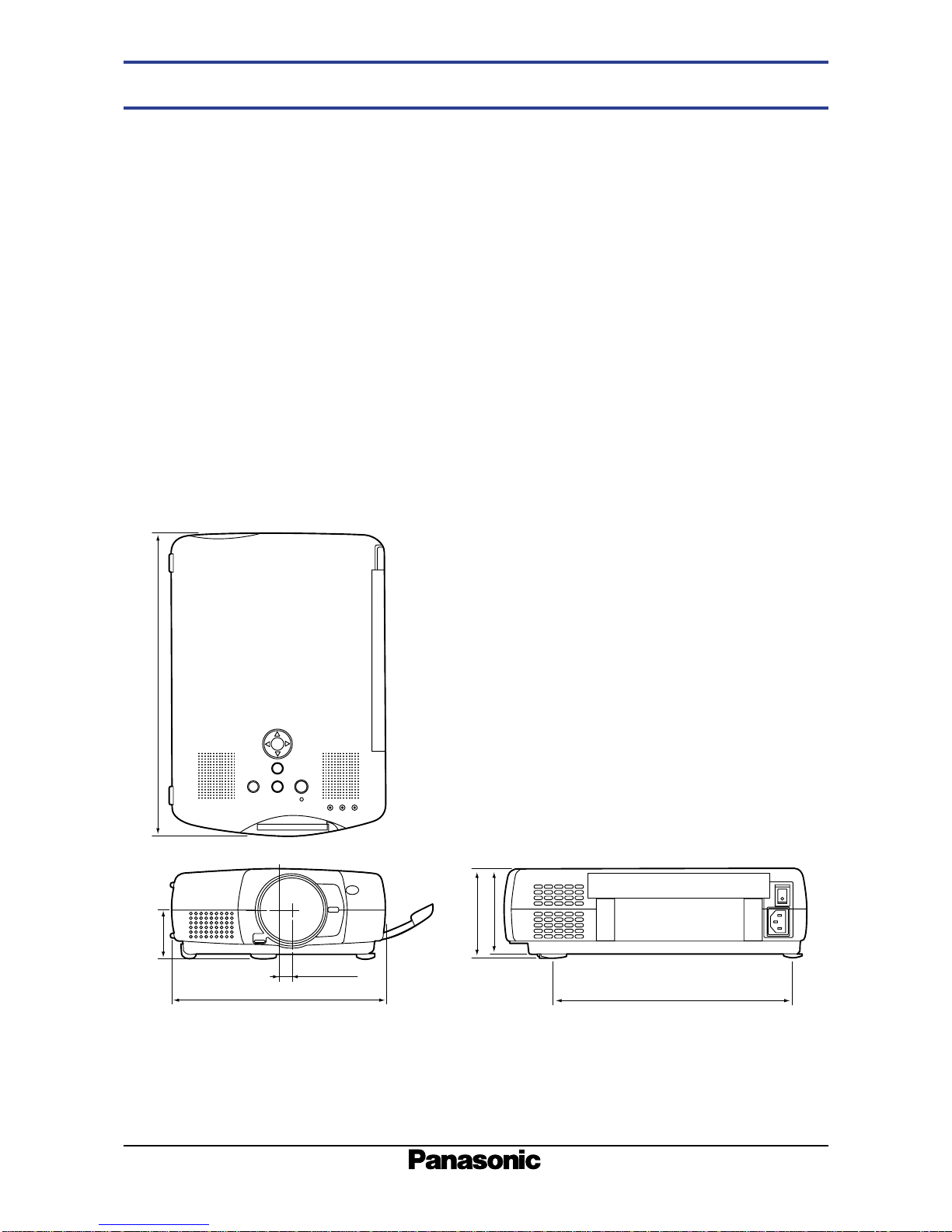

Dimensions

unit: mm

(Dimensions given in inches are approximate.)

255 (10-1/32)233 (9-3/16)

14.5 (9/16)

93 (3-21/32)

98 (3-27/32)

330 (12-15/16)

Note: This illustration is not drawn to scale.

Portable LCD Projector

S P E C F I L E

PT-L711

as of July 2000

OFF ON

MAIN

POWERS-VIDEO INVIDEO INRGB 2 INRGB 1 INAUDIO OUTSERIAL RGB

AUDIO IN AUDIO IN

L R

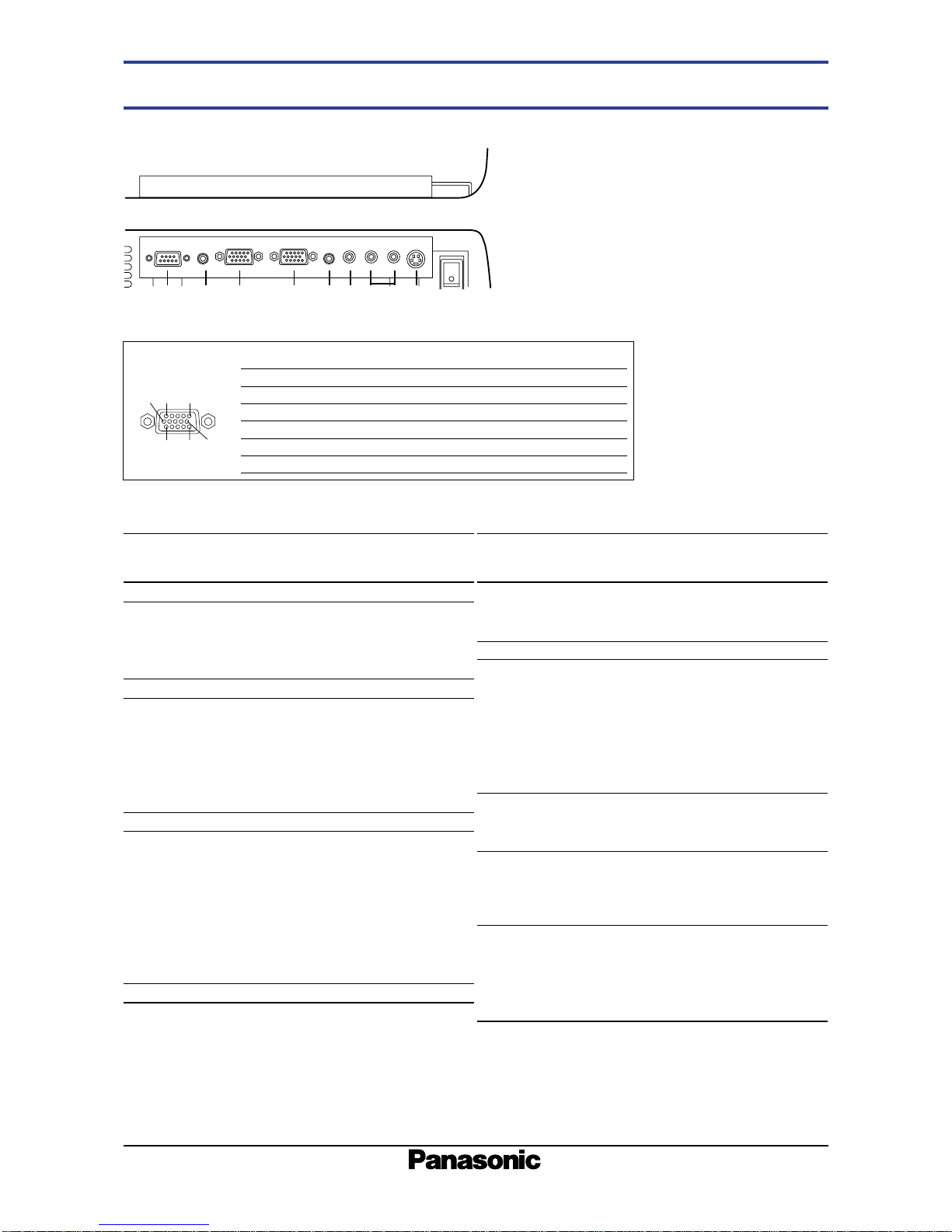

Terminals

RGB signal compatibility

RGB IN connector pin assignment

1 Serial terminal

2 Audio output terminal

3 RGB1 input terminal

4 RGB2 input terminal

5 Audio input terminal for RGB

6 Video input terminal

7 Audio input terminal for S-video/video

8 S-video input terminal

11 156

1105

no. signal

6 GND

7 GND

8 GND

9NC

10 GND

no. signal

11 NC

12 SDA

13 HD/SYNC

14 VD

15 SCL

no. signal

1 R/PR

2 G/Y

3 B/PB

4 GND

5 GND

123 45678

640 x 400

640 x 480

800 x 600

832 x 624

1024 x 768

1024 x 768 i

1024 x 768

VGA

VGA480

MAC13

SVGA

MAC16

XGA

MAC19

MXGA

MAC21

SXGA

UXGA

Video/S-video

YPBPR

31.5

37.9

37.5

43.3

35.0

32.1

35.2

37.9

48.1

46.9

53.7

49.7

48.4

56.5

60.0

65.5

68.7

35.5

80.0

96.7

60.2

70.1

59.9

72.8

75.0

85.0

66.7

51.1

56.3

60.3

72.2

75.0

85.1

74.6

60.0

70.1

75.0

81.6

85.0

87.0

100.0

120.0

74.9

71.2

75.0

85.0

75.1

50.0

60.0

66.3

72.0

75.0

86.9

89.1

60.0

70.0

75.0

50.0

59.9

50.0

59.9

60.0

64.0

67.5

76.7

68.7

52.4

64.0

72.3

78.2

80.0

46.4

47.6

75.0

87.5

93.8

15.7

15.6

15.7

15.6

31.5

15.0

33.75

1152 x 864

1152 x 870

1280 x 1024

1280 x 1024 i

1600 x 1200

960 x 1035 i

1280 x 720

NTSC/M-NTSC/

PAL-M

PAL/PAL-N/

SECAM

480i

625i

480p

720p

1080i

Display mode Resolution

(dots) Horizontal

frequency

(kHz)

Vertical

frequency

(Hz)

Display mode Resolution

(dots) Horizontal

frequency

(kHz)

Vertical

frequency

(Hz)

NOTE:

The display resolution of the PT-L711 is 1024 x 768 dots. If the display resolution indicated in the above data

does not match this resolution, the input signal will be converted to 1024 x 768 dots.

Display resolutions followed by a “i”indicate interlaced signals.

PT-L711

Portable LCD Projector

S P E C F I L E

as of July 2000

Standard setting-up positions

Edge of projected image

Projected image

136–141

(5-11/32–5-9/16)

339–419

(13-11/32–16-1/2)

Adjustable in 20 mm

(25/32) steps

70 (2-3/4)

14.5

(9/16)

(2-9/16)

Projected image

unit: mm

(Dimensions given in inches are approximate.)

NOTE:

Illustrations show the projector installed using optional celing bracket.

Screen size L H

(diagonal)

30˝1.1 m 5 cm

40˝1.2–1.5 m 6 cm

50˝1.5–1.9 m 8 cm

60˝1.8–2.3 m 9 cm

70˝2.1–2.7 m 11 cm

80˝2.4–3.1 m 12 cm

90˝2.7–3.5 m 14 cm

Screen size L H

(diagonal)

100˝3.1–3.9 m 15 cm

120˝3.7–4.6 m 18 cm

150˝4.6–5.8 m 23 cm

200˝6.2–7.8 m 30 cm

250˝7.7–9.8 m 38 cm

300˝9.3–11.7 m 46 cm

PS/2, VGA and XGA are trademarks of International Business Machines Corporation. Macintosh is a

registered trademark of Apple Computer, Inc. SVGA is a registered trademark of the Video Electronics

Standards Association. All other trademarks are the property of the various trademark owners.
