Panasonic PT-LB50NTE Manuale di istruzioni e di sicurezza
Wireless Function Edition
(PT-LB50NTE/PT-LB55NTE/PT-LB60NTE)
(PT-LB50NTU/PT-LB60NTU)
TQBH0168-1 (E/U)
M0306-1036
※ The projectors illustrated as examples are PT-LB50NTE.
2
Contents
(Wireless Function Edition)
Notes on Using Wireless
Connection ……………………… 4
What you can do with Wireless
Manager mobile edition 3.0 …… 6
Check your computer ………… 8
Software Installation …………… 9
System requirements …………………… 9
Contents on Provided CD-ROM ……… 10
Wireless Manager ME 3.0 …………… 10
DirectX 9.0c …………………………… 11
Installation free Wireless Manager
ME 3.0 set up …………………… 12
Connect …………………………… 13
Select Access Port window …………… 13
Easy Wireless Set Up ………………… 14
Connection error messages ………… 16
Connect without easy wireless set up
… 17
When logging on without administrator
authority ……………………………… 17
Connecting through the access point
… 19
Other operations for connection …… 20
Operations when password entry is
required for connection ……………… 20
Adding and deleting connections …… 20
Searching by projector’s ID ………… 21
Canceling the connection …………… 22
Various projection methods … 23
Description of the launcher …………… 23
Live mode ………………………………… 25
Multi live mode ………………………… 26
Switching from one style to another … 26
4-screen multi style …………………… 27
4-screen index style …………………… 28
16-screen index style ………………… 30
Multiple Source Live Mode …………… 31
Multiple Source Multi Live Mode …… 33
Useful Functions ……………… 35
Selective area transmission ………… 35
Secondary display transmission …… 36
Secondary viewer ……………………… 37
One shot function ……………………… 37
Motion streaming mode ……………… 38
Shutter function ………………………… 40
Pointer function ………………………… 40
Functions used with each projection
method …………………………………… 40
3
Please note the following.
• Panasonic cannot be held liable for any direct or indirect damages resulting from
the use or malfunction of this projector.
• Panasonic cannot be held liable for damages arising from data corruption or loss
as a result of using this projector.
Contents (Wireless Function Edition) (cont.)
Setting options ………………… 42
Setting option window ………………… 42
Transmission …………………………… 42
Key setting ……………………………… 43
Other …………………………………… 44
Version information …………………… 44
Network setting of the projector
… 45
Displaying the Wireless Menu ……… 45
Changing the network number ……… 46
Changing the projector name ………… 46
Password setting ……………………… 47
Verifying settings ……………………… 48
Returning to the Initial Settings ……… 48
[User] settings ………………………… 49
IP address settings …………………… 49
Wireless settings ……………………… 50
Default settings of [USER1]-[USER3] … 52
Using WebBrowser …………… 53
Before using the WEB control ……… 53
Accessing from the Web browser …… 56
Projector control window ……………… 57
Monitor information window ………… 58
Password changing window ………… 58
Network setting window ……………… 59
Software Uninstall ……………… 60 Wireless Manager ME 3.0 ……………… 60
Glossary ………………………… 61 Frequently Asked Questions … 63
4
Wireless connection function of the projector uses radio waves in the 2.4 GHz band.
A radio station license is not required, but be sure to read and fully understand the
following items before use.
Do not use near other wireless equipment.
The following equipment may use radio waves in the same band as the projector.
When the projector is used near these devices, radio wave interference may make
communication impossible, or the communication speed may become slower.
• Microwave ovens, etc.
• Industrial, chemical and medical equipment, etc.
• In-plant radio stations for identifying moving objects such as those used in factory
manufacturing lines, etc.
• Designated low-power radio stations
If at all possible, avoid the use of cellular phones, TV sets or
radios near the projector.
Cellular phones, TV sets, radios and similar devices use different radio bands from
the projector, so there is no effect on wireless communication or the transmission and
reception of these devices. However, radio waves from the projector may produce audio
or video noise.
Wireless communication radio waves cannot penetrate steel
reinforcements, metal, concrete, etc.
Communication is possible through walls and floors made from materials such as
wood and glass (except glass containing wire mesh), but not through walls and
floors made from steel reinforcements, metal, concrete, etc.
Notes on Using Wireless Connection
5
Notes on Using Wireless Connection (cont.)
Channels that can be used
The channels (frequency range) that can be used differ according to the country or
region. Refer to the table below.
Using the projector outside the country
It is forbidden to take the projector outside the country or region where you
purchased it, so use it only in the said country or region. Also, note that depending
on countries or regions there are restrictions on the channels and frequencies at
which you can use the wireless LAN.
Country or region Standard Channels used Frequency band
(Center frequency)
Japan ARIB STD-T66
1 - 13 2,412 MHz -
2,472 MHz
China SRRC
England, Germany,
France, Spain
Italy, Belgium,
Austria, Sweden,
Norway, Denmark,
Switzerland, Holland,
Finland, Portugal,
Greece, Thailand,
South Korea
ETSI 300.328
Singapore IDA
Australia,
New Zealand C-Tick
Malaysia SIRIM
United States FCC part 15 1 - 11 2,412 MHz -
2,464 MHz
Taiwan DGT
6
What you can do with Wireless Manager mobile edition 3.0
Wireless Transmission
If you install Wireless Manager mobile edition 3.0 (hereafter called “Wireless Manager
ME3.0”), you can connect the projector to a computer via the wireless LAN, and send
moving and still images.
• Easy Wireless Set Up (See page 14)
• When connecting without the administrator authority (See page 17)
• Sending data by wireless transmission while the projector is connected to the
wireless LAN. [When connecting through the wireless access point (hereafter called
“access point”※)] (See page 19)
※ “Glossary” (See page 61)

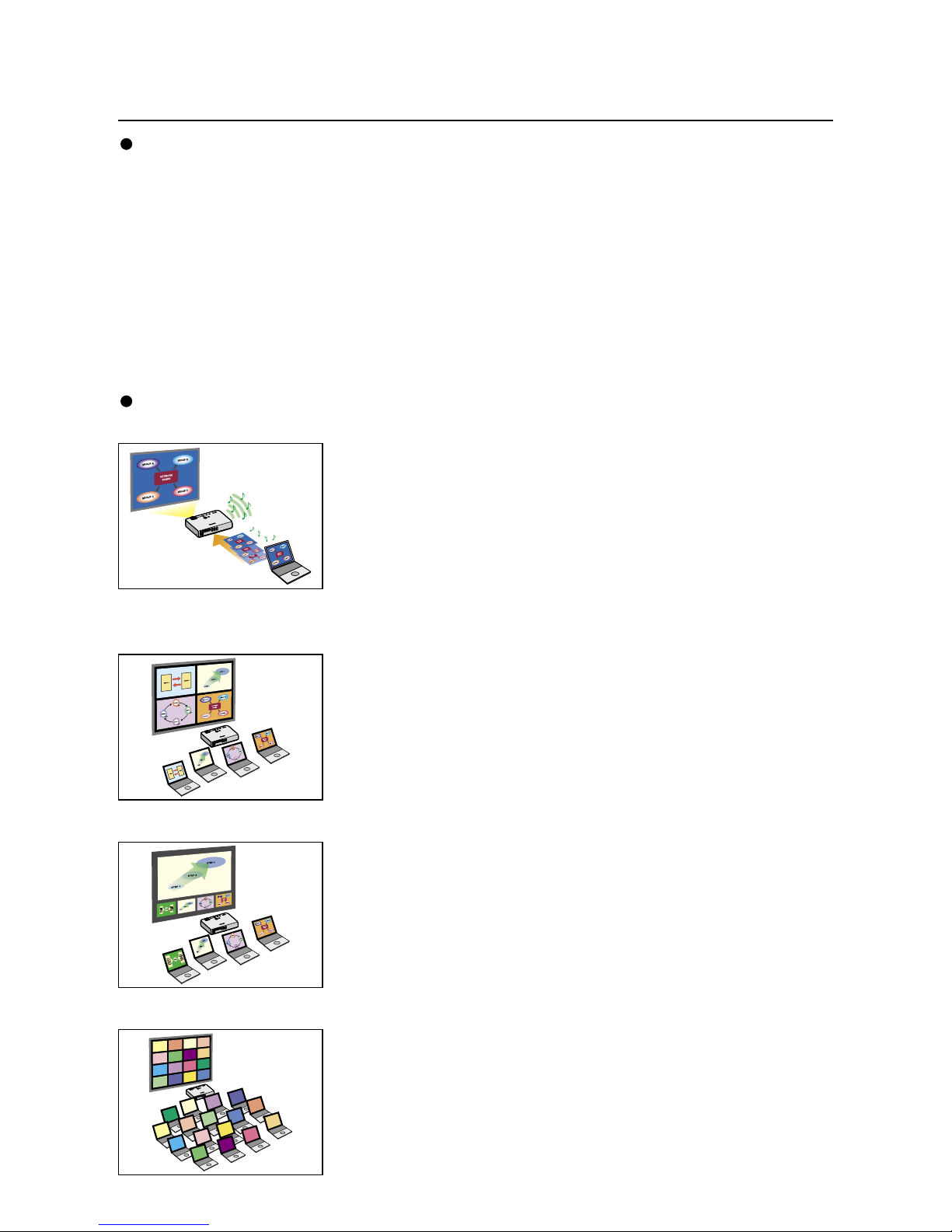

Project with various methods
<Live mode> (See page 25)
<Multi live mode>
<4-screen multi style> (See page 27)
Used for normal presentations.
Used for presentations involving multiple computers.
<4-screen index style> (See page 28)
This style is convenient in cases where you wish to
focus attention on one of four presentations displayed
simultaneously.
This style is convenient in cases where you wish to
display a large number of presentations as a list.
<16-screen index style> (See page 30)
7
What you can do with Wireless Manager mobile edition 3.0 (cont.)

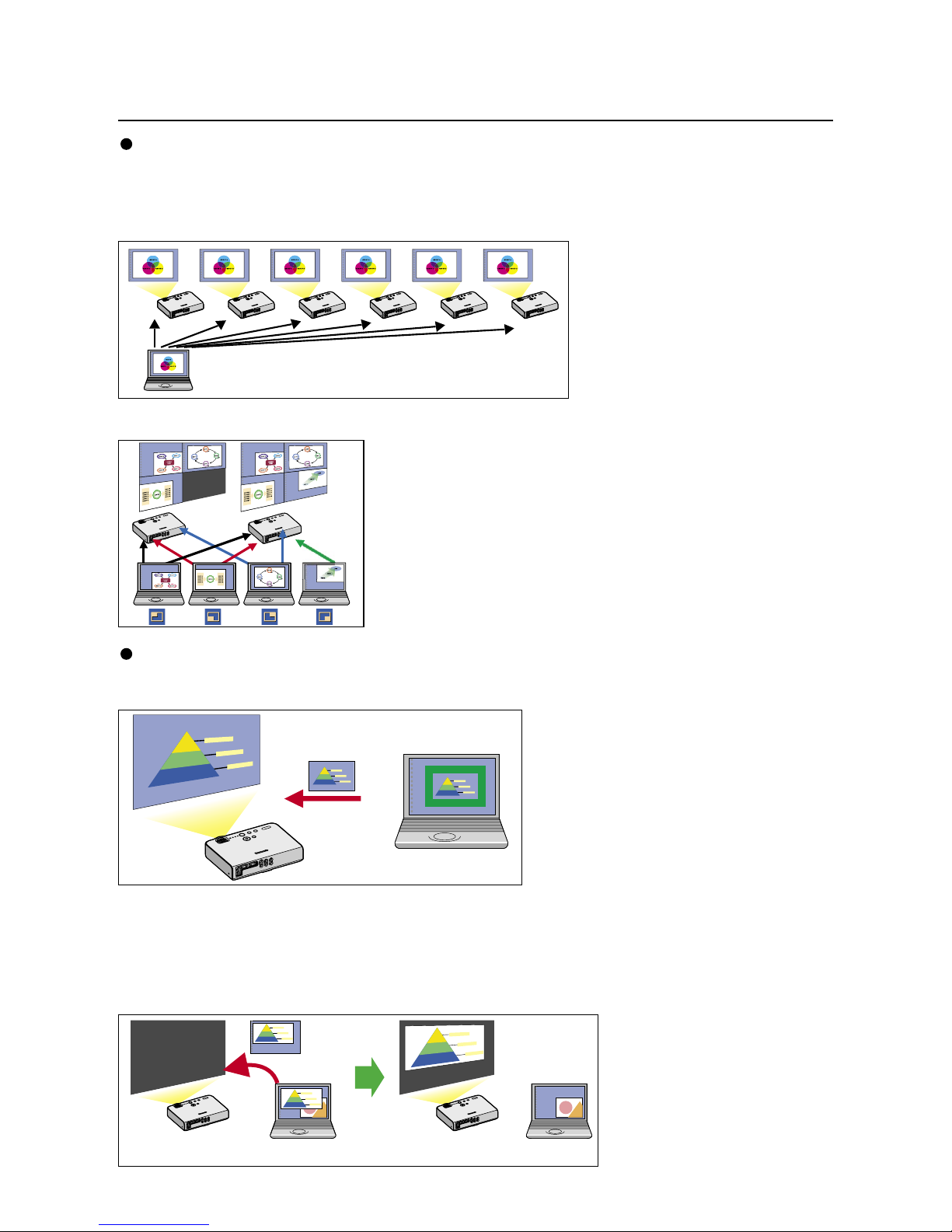

Project with multiple projectors
<Multiple source live mode> (See page 31)
This arrangement can be used when a number of projectors are installed in a large conference
room, or when holding simultaneous presentations in several conference rooms, for example.
Useful functions
<Selective area transmission> (See page 35)
<Secondary display transmission> (See page 36)
You can set the computer screen and the projector screen to the multi-monitor mode,
and use the computer screen as the primary monitor and the projector screen as
the secondary monitor. This is convenient for when holding a presentation using the
projector screen while displaying reference material on the computer screen.
<Multiple source multi live mode> (See page 33)
This arrangement can be used when you wish to
simultaneously display multiple presentations using
multiple projectors.
Moving the cursor outside the computer screen with the mouse
By using the selective area window,
you can specify the necessary
information alone from the
computer screen, and display it on
the projection screen.
8
Check your computer
• First, check your computer to see whether or not it has a built-in wireless LAN※
function. ※LAN : “Glossary” (See page 61)
• Before connecting the projector to the computer, be sure to check the following
settings.
• Operation is not guaranteed for all wireless cards and built-in wireless LAN adapters.
Check 1 Wireless LAN settings
<Computer with a built-in wireless LAN function>
• Is your wireless LAN switched on?
• If your computer has a built-in wireless LAN function, use the built-in wireless LAN.
Do not insert a different wireless LAN card.
<Computer without a built-in wireless LAN function>
• Is your wireless LAN card properly recognized?
• Is the wireless LAN card switched on?
• Install the wireless card driver beforehand. For details on how to install the driver,
refer to the instructions accompanying the wireless card.
• Refer to the following URL for the types of wireless LAN cards that system operation
capabilities are confirmed.
http://panasonic.co.jp/pavc/global/projector/
Check 2 Logon user’s settings
• Have you logged in as the Administrator?
Check 3 Computer’s settings
•
When security (firewall) software and utilities for network cards are installed, these
may prevent connection of the projector.
<Windows XP>
• Is Network Bridge enabled?
• Has your firewall been disabled?
Necessary environment for computers to be connected
• This manual describes how the computer is operated using Windows XP as the
operating system.
9
Software Installation
The computer must meet the following requirements in order to use the supplied
software.
OS: Microsoft Windows 2000 Professional/XP Home Edition/XP
Professional
CPU: Pentium III or faster or compatible processor (800 MHz or faster
is recommended when using live mode and 1 GHz or faster is
recommended when playing movies.)
RAM: 256 MB or more
Empty hard disk capacity:
60 MB or more
Hardware conditions:
CD or DVD drive (for software installation and viewing the user’s
manual)
An 802.11 b/g built-in wireless LAN system or an 802.11 b/g wireless
LAN card must be installed and running properly.
However, some 802.11 b/g wireless LAN may not allow connection to
802.11 g projectors.
Web browser:
Internet Explorer 6.0 or newer
Netscape Communicator 7.0 or newer
DirectX: Environment required for running DirectX 8.1b or newer
System requirements
Operation is not guaranteed for all computers
that meet the above conditions.
Note that operation is not guaranteed when used with system environments other than
the above or on homemade computers.
10
Software Installation (cont.)
This software is used to send screen images from a computer to the projector via a
wireless LAN.
Click [Wireless Manager ME 3.0].
Follow the instructions on the screen and install the software.
1

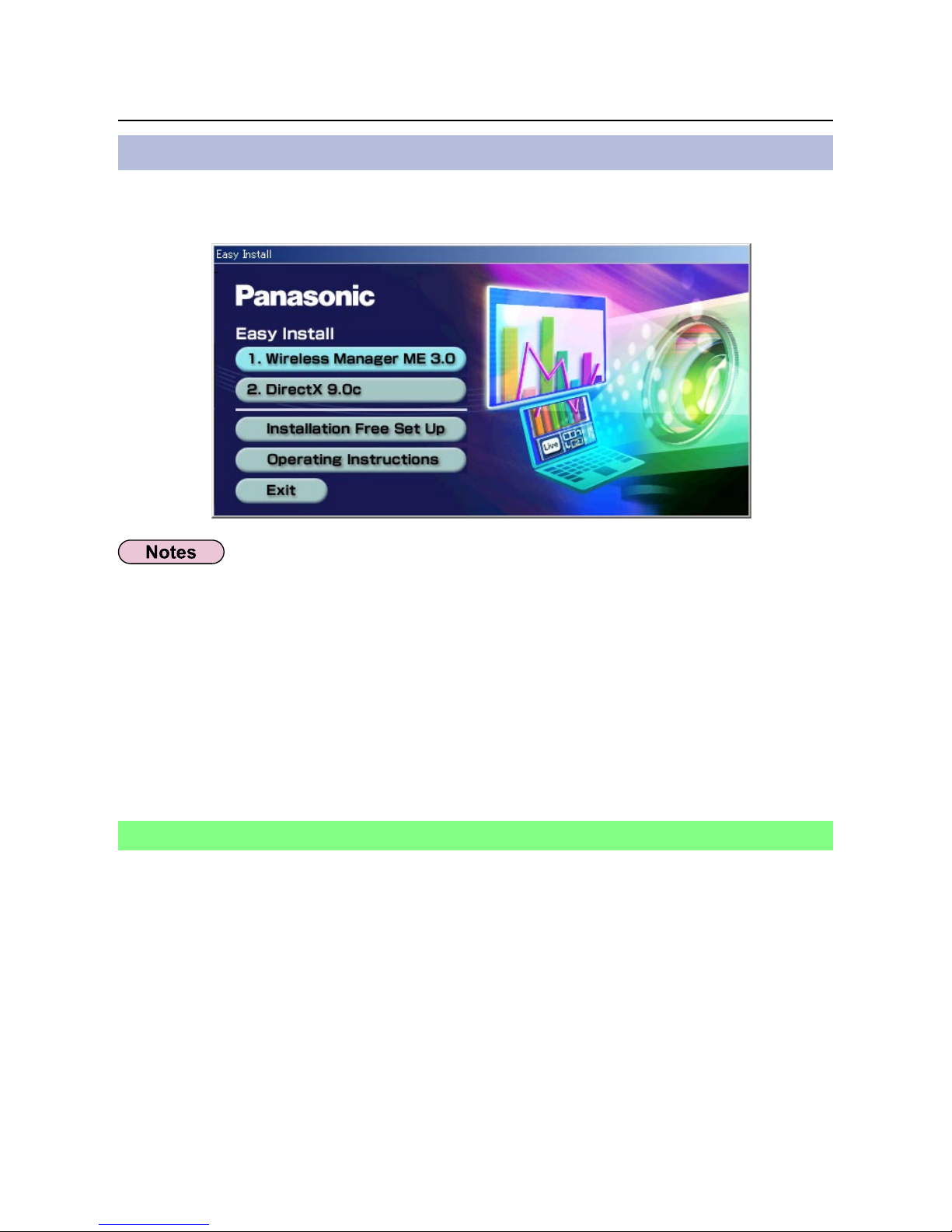

When inserting the provided CD-ROM into the computer, the installer starts up
automatically and the following screen appears.
Contents on Provided CD-ROM
Wireless Manager ME 3.0
• Shut down all software currently active on Windows. Otherwise, installation may not
be possible.
• Administrator authority is required for installation.
• If the installer does not start up automatically, double-click [EasyInstall] → [Easy_
Inst.exe] in the CD-ROM.
• If Wireless Manager ME 1.0 or 2.0 has been installed, uninstall it by following the
instructions on the screen.
Altri manuali per PT-LB50NTE
1
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Panasonic Proiettore
Panasonic
Panasonic PT-F100EA Manuale utente
Panasonic
Panasonic PT-EZ580 Manuale utente
Panasonic
Panasonic PT-RZ475 series Manuale utente
Panasonic
Panasonic PT-LB55NTE Manuale utente
Panasonic
Panasonic PT-AH1000E Manuale utente
Panasonic
Panasonic DLP PT-DZ6710 Manuale utente
Panasonic
Panasonic PT-LW375 Manuale utente
Panasonic
Panasonic PT-VW430 Guida
Panasonic
Panasonic PT-VX400NTU Manuale utente
Panasonic
Panasonic PT-VX41EA Manuale utente
Panasonic
Panasonic PT-DZ12000U - WUXGA DLP Projector Manuale utente
Panasonic
Panasonic PTL711U - LCD PROJECTOR Manuale utente
Panasonic
Panasonic PT-TW231R Manuale del sistema
Panasonic
Panasonic PT-LB3U Manuale utente
Panasonic
Panasonic PT-LB75EA Manuale utente
Panasonic
Panasonic PT-RW330 Guida
Panasonic
Panasonic PT-TW230E Manuale utente
Panasonic
Panasonic PTL795U - LCD PROJECTION Manuale utente
Panasonic
Panasonic PT-VW431D Manuale del sistema
Panasonic
Panasonic PTLC75U - LCD PROJECTOR Manuale utente
