Panasonic NR-A191SSX1 Manuale utente

NR-A191SSX1

NR-A191SMX1

NR-A191MMX1

NR-A191MAX1

NR-A191MFMX1

NR-A191MFAX1

ModelNo.

EBAP00001A

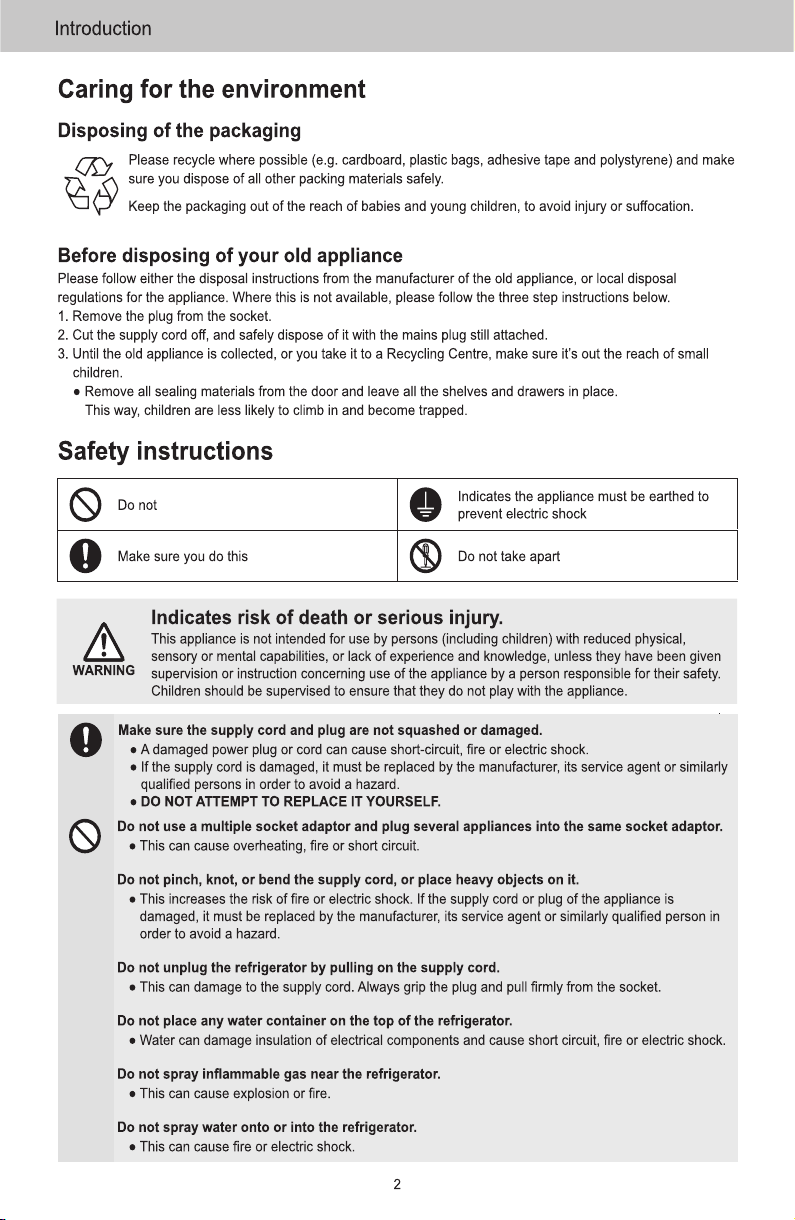

Caring for the environment --------------------------- 2

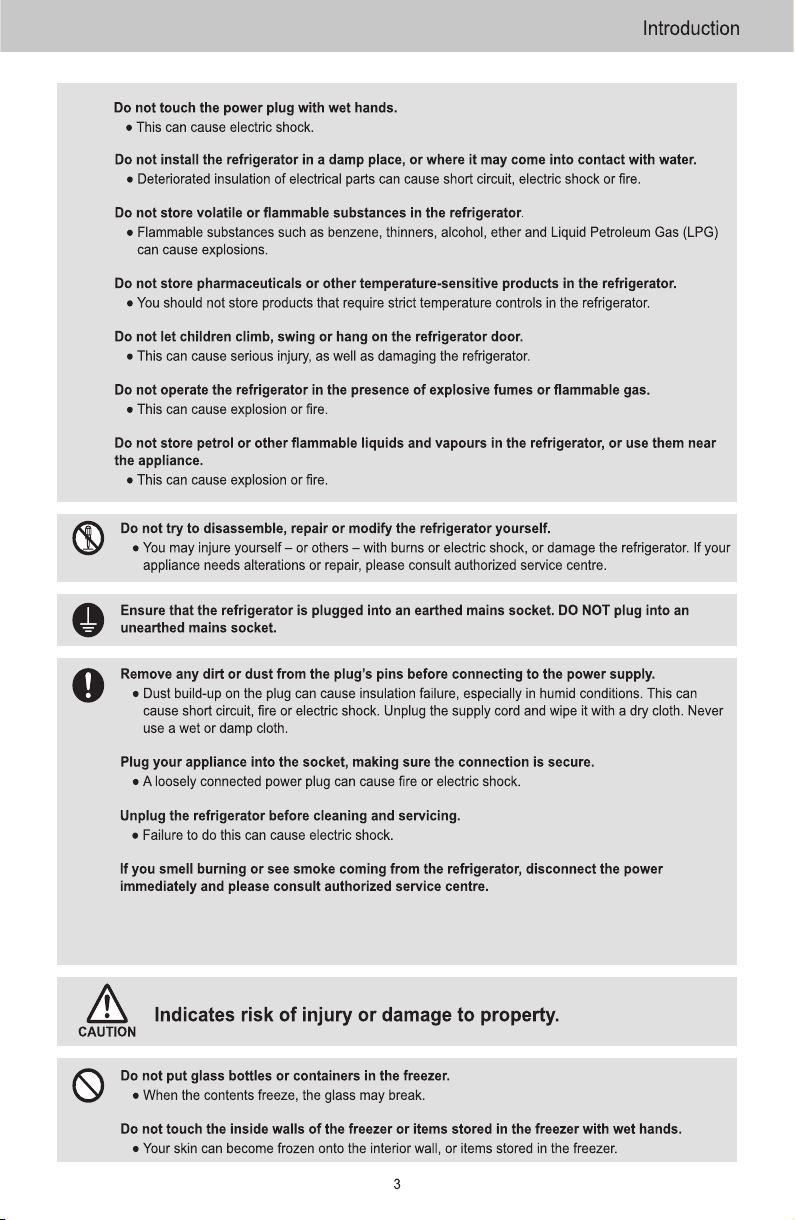

Safety instructions --------------------------------------- 2

Parts indication ------------------------------------------- 5

Installation -------------------------------------------------- 6

How to use thermostat knob--------------------------- 7

Correct use of your refrigerator---------------------- 8

Troubleshooting ------------------------------------------ 9

Speciﬁcations --------------------------------------------- 10

Appendix ---------------------------------------------------- 11

Certiﬁcate of Warranty ---------------------------------- 12

Supply.

This appliance is intended to be used in household and similar applications such as

staff kitchen areas in shops, ofﬁces and other working environments;

farm houses and by clients in hotels, motels and other residential type environments;

bed and breakfast type environments;

catering and similar non-retail applications.

When positioning the appliance, ensure the supply cord is not trapped or

damaged.

Do not locate multiple portable socket-outlets or portable power supplies

at the rear of the appliance

Refrigeratorcompartment

Large basket Middle basket

Egg basket

Chiller Tray

Freezer doorFreezer Frame

Glass Shelf

Lamp Cover

Small Basket

For the product improvement, the refrigerator that you purchased may have a little difference from this

speciﬁcations.

Please contact the plug with AC220-240V/50Hz power supply.

For ﬁrst using the fridge, please let the fridge run 2 hours before storing things in it.

High cooling

It is natural for moisture in the air to condense on the cold surface. This leads to a regular

build up of frost on the surface of the freezer and the cooling in the fresh food

compartment. The frost accumulation reduces the cooling effect, thereby reducing

efﬁciency. Therefore, periodic defrosting is necessary to ensure optimum performance.

● the water is the drain tray evaporates by natural evaporation if defrosting is done once

in two days. However, Due to varied conditions of usage it is desirable to check the

drain-tray occasionally and dispose of the of the water, if any, please ensure that the

chiller tray is in its correct position by pushing it to its correct position by pushing it to its

extreme. Otherwise the defrosting water may fall over the contents of the refrigerator.

● Manual Defrosting : However in some models, in case of defrosting or power failure the

water directly accumulates in chiller tray, dispose oﬀ water directly from chiller tray by

taking is out.

If water overﬂow from Tray Drip, Disassemble it and remove the water from it.

240V

Condensation on inner

Surface

Frequent opening of door may cause water

deposition on internal surfaces of fridge, which

is normal phenomena. It should be cleaned with

soft and dry cloth.

e parts dry

parts keep

knob off condition;

Knob setting as per temperature guide:

MODEL

NR-A191SSX1

MODEL

NR-A191SMX1

COLOR

Grey

COLOR

Maroon

TOTAL GROSS VOLUME

193 L

TOTAL GROSS VOLUME

193 L

TOTAL STORAGE VOLUME

181 L

TOTAL STORAGE VOLUME

181 L

STORAGE FRIDGE VOLUME

167.5 L

STORAGE FRIDGE VOLUME

167.5 L

STORAGE FREEZER VOLUME

13.5 L

STORAGE FREEZER VOLUME

13.5 L

PRODUCT DIMENSIONS

LENGHT X BREADTH X HEIGHT

64cm x 54.5cm x 1.2m

PRODUCT DIMENSIONS

LENGHT X BREADTH X HEIGHT

64cm x 54.5cm x 1.2m

NET WEIGHT

37 Kg

NET WEIGHT

37 Kg

RATED FREQUENCY

RATED VOLTAGE

50Hz

220~240V

RATED FREQUENCY

RATED VOLTAGE

50Hz

220~240V

REFRIGERANT

R134a

REFRIGERANT

R134a

BLOWING AGENT

Cyclopentane

BLOWING AGENT

Cyclopentane

MODEL

NR-A191MMX1

MODEL

NR-A191MAX1

COLOR

Brushed Hair line (Maroon)

COLOR

Brushed Hair line (Blue)

TOTAL GROSS VOLUME

193 L

TOTAL GROSS VOLUME

193 L

TOTAL STORAGE VOLUME

181 L

TOTAL STORAGE VOLUME

181 L

STORAGE FRIDGE VOLUME

167.5 L

STORAGE FRIDGE VOLUME

167.5 L

STORAGE FREEZER VOLUME

13.5 L

STORAGE FREEZER VOLUME

13.5 L

PRODUCT DIMENSIONS

LENGHT X BREADTH X HEIGHT

64cm x 54.5cm x 1.2m

PRODUCT DIMENSIONS

LENGHT X BREADTH X HEIGHT

64cm x 54.5cm x 1.2m

NET WEIGHT

37 Kg

NET WEIGHT

37 Kg

RATED FREQUENCY

50Hz

RATED FREQUENCY

50Hz

REFRIGERANT

R134a

REFRIGERANT

R134a

BLOWING AGENT

Cyclopentane

BLOWING AGENT

Cyclopentane

MODEL

NR-A191MFMX1

MODEL

NR-A191MFAX1

COLOR

Floral (Maroon)

COLOR

Floral (Blue)

TOTAL GROSS VOLUME

193 L

TOTAL GROSS VOLUME

193 L

TOTAL STORAGE VOLUME

181 L

TOTAL STORAGE VOLUME

181 L

STORAGE FRIDGE VOLUME

167.5 L

STORAGE FRIDGE VOLUME

167.5 L

STORAGE FREEZER VOLUME

13.5 L

STORAGE FREEZER VOLUME

13.5 L

PRODUCT DIMENSIONS

LENGHT X BREADTH X HEIGHT

64cm x 54.5cm x 1.2m

PRODUCT DIMENSIONS

LENGHT X BREADTH X HEIGHT

64cm x 54.5cm x 1.2m

NET WEIGHT

37Kg

NET WEIGHT

37 Kg

RATED FREQUENCY

50Hz

RATED FREQUENCY

50Hz

REFRIGERANT

R134a

REFRIGERANT

R134a

BLOWING AGENT

Cyclopentane

BLOWING AGENT

Cyclopentane
