Panasonic AK-HRP1000G Manuale utente

DVQP2688ZAW1121AM0 -PS

ENGLISH

For details of operating Remote Operation Panel AK-HRP1000G, please

visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.

html), and refer to the Operating Instructions (HTML or PDF).

Read this document when using the AK-HRP1000G Remote Operation Panel in

conjunction with AG-CX350 Memory Card Camera-Recorder.

Operating Guide

Remote Operation Panel

Model No. AK-HRP1000G

Connecting the Unit to AG-CX350 Cameras 3

Connections 3

Compatible Functions List 4

ROP Menu (during AG-CX350 Connection) 8

ROP menu list 8

01 SHUTTER SPEED 13

02 PEDESTAL 13

03 CHROMA 14

04 GAIN 14

05 COLOR TEMP 15

06 WHITE BALANCE 15

07 GAMMA 16

08 KNEE 17

09 WHITE CLIP 18

10 DRS 18

11 DETAIL 19

12 SKIN TONE DTL 20

13 MATRIX 21

14 COLOR CORRECTION 22

15 SYSTEM CAM 24

16 CAMERA MENU CONTROL 25

17 ROP SETTING 26

18 CONNECT SETTING 27

19 ROP IP SETTING 28

20 CAMERA IP SETTING 28

21 AUTO IRIS SETTING 28

22 SWITCHER LINK 28

23 AW CONTROLLER LINK 28

- 2 -

Table of Contents

Connecting the Unit to AG-CX350 Cameras

Connections

Use a LAN cable to connect the <REMOTE> connector at the rear of the AG-CX350 to the <LAN> connector of the AK-

HRP1000G.

Set the connection setting to “LAN(AG)” in the [CONNECT SETTING] menu.

ヤヰワワユヤヵチヴユヵヵリワヨ

ヒチバチヒヒ

ヤモヮヒヤモヮビヤモヮピヤモヮフヤモヮブヤモヮプヤモヮヘヤモヮベヤモヮペワヰワワヰワワヰワワヰワワヰワワヰワロモワドモヨナワヰワワヰワヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナ

- 3 -

Connecting the Unit to AG-CX350 Cameras

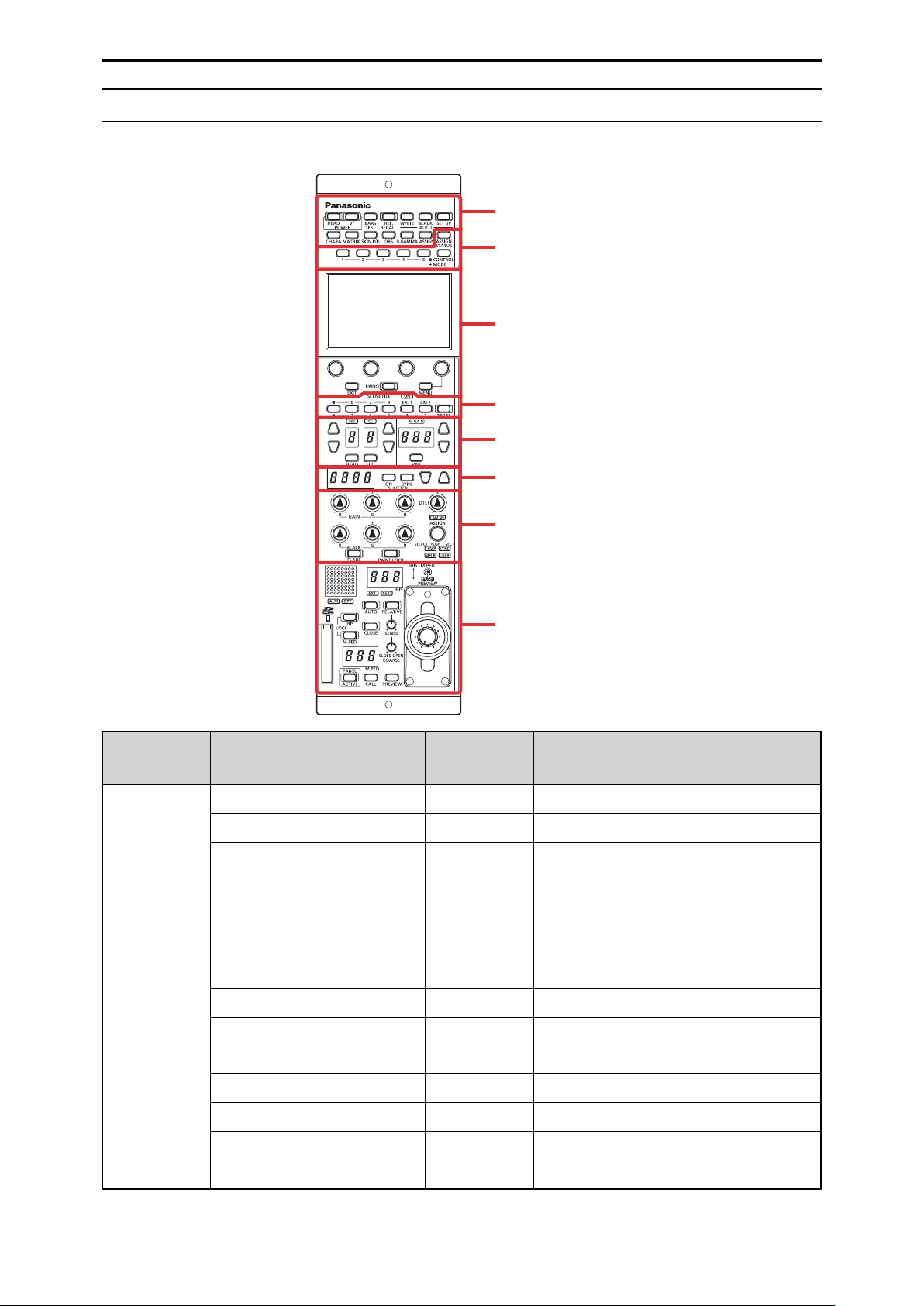

Compatible Functions List

When the unit is used in conjunction with an AG-CX350 Memory Card Camera-Recorder, a portion of the unit’s button, dial, and other con-

trol functions will be limited or disabled. Be sure to refer to the following table.

Front panel 1

Front panel 2

Front panel 3

Front panel 4

Front panel 5

Front panel 6

Front panel 7

Front panel 8

Front panel 9

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 1

[POWER HEAD] button ×

[POWER VF] button ×

[BARS/TEST] button ✓Only the ON/OFF for the color bar signal output will

function.

[REF. RECALL] button ×

[AUTO WHITE] button ✓This functions when the [WHITE BALANCE] >

[W.BAL SELECT] setting is “A” or “B”.

[AUTO BLACK] button ✓

[AUTO SET UP] button ×

[CHARA] button ✓

[MATRIX] button ✓

[SKIN DTL] button ×

[DRS] button ✓

[B.GAMMA] button ×

[ASSIGN] button ✓

- 4 -

Connecting the Unit to AG-CX350 Cameras

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 2

[ASSIGN STATUS] button ✓

Buttons [1] to [5] (CONTROL/MODE) ✓

[CONTROL/MODE] button ✓

Front panel 3

LCD panel ✓

[MENU] dial ✓

[EXIT] button ✓

[UNDO] button ×

[MENU] button ✓

Front panel 4

[ON] indicator (SCENE FILE) ✓This is always lit.

Scene file page switching button ×

[1/6], [2/7], [3/8], [4/EXT1], and

[5/EXT2] buttons (SCENE FILE)

✓Scenes 1 to 6 are enabled.

[STORE] button ✓When you press this at the same time as the [HEAD]

button, recording starts or stops.

Front panel 5

[ND] indicator ✓

[ND] setting buttons ✓

[ND] display ✓Displayed but cannot be adjusted.

[CC] indicator ×

[CC] setting buttons ×

[CC] display ×

[HEAD] button ✓When you press this at the same time as the

[STORE] button, recording starts or stops.

[ECC] button ×

[M.GAIN] indicator ✓

[M.GAIN] setting buttons ✓

[M.GAIN] display ✓Display varies depending on the selected mode.

When dB mode is selected:

Displays the dB setting value.

When ISO mode is selected:

Displays the ISO setting value (the last two digits

of the setting value are not displayed). A dot is

displayed at the bottom right.

[VAR] button ×

- 5 -

Connecting the Unit to AG-CX350 Cameras

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 6

[SHUTTER] display ✓Display varies depending on the shutter mode.

When auto shutter is selected:

Displays “AUTO”.

When fixed shutter is selected:

Displays the numerical value for the denom-

inator of the shutter speed.

When synchro scan (time display) is selected:

Displays the numerical value for the denom-

inator of the shutter speed. When the value is

four or more digits, the digits after the decimal

point are not displayed.

When synchro scan (shutter open angle dis-

play) is selected:

Displays the shutter open angle.

[ON] button (SHUTTER) ✓

[SYNC] button (SHUTTER) ✓Changes the shutter mode of the electronic shutter.

OFF:

Fixed shutter (FIX)

ON:

Synchro scan (SYNC)

[SHUTTER] setting buttons ✓

Front panel 7

[GAIN R], [GAIN G], and [GAIN B]

dials

✓[GAIN G] dial is disabled.

[BLACK R], [BLACK G], and [BLACK

B] dials

✓FLARE cannot be controlled. “-” is displayed.

[FLARE] button ✓

[PAINT LOCK] button ✓

[DTL] dial ✓

[CAM SEL] indicator ✓

[SELECT] dial ✓

[TEMP] indicator ✓

[SYNC] indicator ✓

[MFLR] indicator ×

[USER] indicator ✓

- 6 -

Connecting the Unit to AG-CX350 Cameras

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 8

[EXT] indicator ×

[D.EXT] indicator ×

[IRIS] lever ✓

[M.PED] dial ✓

[RELATIVE] button ✓

[SENSE] dial ✓

[COARSE] dial ✓

[IRIS] display ✓

[AUTO] button ✓

[CLOSE] button ×

[M.PED] display ✓

[IRIS LOCK] button ✓

[M.PED LOCK] button ✓

Front panel 9

Camera number/tally display ✓

[ALM] indicator ✓

[OPT] indicator ×

[PANEL ACTIVE] button ✓

[CALL] button ×

[PREVIEW] button ×

Memory card slot ✓

Memory card access indicator ✓

Torque adjustment screw ✓

- 7 -

Connecting the Unit to AG-CX350 Cameras

ROP Menu (during AG-CX350 Connection)

ROP menu list

When an AG-CX350 Memory Card Camera-Recorder is connected, the ROP menu will be as follows. For setting values related to the cam-

era, refer to the Operating Instructions for the camera.

For details on menu operations, refer to the following sections in the Operating Instructions.

“Displaying menus”

“Basic menu operations”

NOTE

To perform menu operations, upgrade the version of the unit system to 5.10-00-0.00 or later.

The setting values of functions that are not supported are indicated as “－”.

01 SHUTTER SPEED

SHUTTER “SHUTTER” (see page 13)

SPEED MODE “SPEED MODE” (see page 13)

SYNC TYPE “SYNC TYPE” (see page 13)

SPEED “SPEED” (see page 13)

AUTO SHUTTER “AUTO SHUTTER” (see page 13)

AUTO SHUTTER LIMIT “AUTO SHUTTER LIMIT” (see page 13)

AUTO SHUTTER POINT “AUTO SHUTTER POINT” (see page 13)

02 PEDESTAL

M.PED “M.PED” (see page 13)

OFFSET “OFFSET” (see page 13)

PED R “PED R” (see page 13)

PED G “PED G” (see page 13)

PED B “PED B” (see page 13)

03 CHROMA

LEVEL % “LEVEL %” (see page 14)

PHASE “PHASE” (see page 14)

04 GAIN

GAIN “GAIN” (see page 14)

AGC “AGC” (see page 14)

AGC LIMIT “AGC LIMIT” (see page 14)

AGC POINT “AGC POINT” (see page 14)

05 COLOR TEMP

COLOR TEMP “COLOR TEMP” (see page 15)

GAIN R “GAIN R” (see page 15)

AXIS G “AXIS G” (see page 15)

GAIN B “GAIN B” (see page 15)

06 WHITE BALANCE

W.BAL SELECT “W.BAL SELECT” (see page 15)

GAIN OFFSET “GAIN OFFSET” (see page 15)

GAIN R “GAIN R” (see page 15)

GAIN B “GAIN B” (see page 15)

ATW SPEED “ATW SPEED” (see page 15)

ATW TARGET R “ATW TARGET R” (see page 15)

ATW TARGET B “ATW TARGET B” (see page 15)

- 8 -

ROP Menu (during AG-CX350 Connection)

07 GAMMA

MODE “MODE” (see page 16)

GAMMA “GAMMA” (see page 16)

F-REC DYNMC LV “F-REC DYNMC LV” (see page 16)

F-REC BLK.S LV “F-REC BLK.S LV” (see page 16)

V-REC K.SLOPE “V-REC K.SLOPE” (see page 16)

V-REC K.POINT “V-REC K.POINT” (see page 16)

BLACK GAMMA “BLACK GAMMA” (see page 16)

B.GAMMA RANGE “B.GAMMA RANGE” (see page 16)

08 KNEE

MODE “MODE” (see page 17)

POINT “POINT” (see page 17)

SLOPE “SLOPE” (see page 17)

A. KNEE RSPNS “A. KNEE RSPNS” (see page 17)

HLG KNEE SW “HLG KNEE SW” (see page 17)

HLG KNEE POINT “HLG KNEE POINT” (see page 17)

HLG KNEE SLOPE “HLG KNEE SLOPE” (see page 17)

H.COLR SW “H.COLR SW” (see page 17)

09 WHITE CLIP

WHITE CLIP SW “WHITE CLIP SW” (see page 18)

WHITE CLIP LEVEL(%) “WHITE CLIP LEVEL(%)” (see page 18)

10 DRS

DRS “DRS” (see page 18)

EFFECT DEPTH “EFFECT DEPTH” (see page 18)

11 DETAIL

DTL “DTL” (see page 19)

CORING “CORING” (see page 19)

V.DTL LEVEL “V.DTL LEVEL” (see page 19)

FREQ. “FREQ.” (see page 19)

LEVEL DEPEND. “LEVEL DEPEND.” (see page 19)

KNEE APE LV “KNEE APE LV” (see page 19)

GAIN(+) “GAIN(+)” (see page 19)

GAIN(-) “GAIN(-)” (see page 19)

DTL SW “DTL SW” (see page 19)

12 SKIN TONE DTL

SKIN TONE DTL A “SKIN TONE DTL A” (see page 20)

SKIN TONE DTL B “SKIN TONE DTL B” (see page 20)

SKIN TONE DTL C “SKIN TONE DTL C” (see page 20)

DETECT TBL “DETECT TBL” (see page 20)

EFFECT “EFFECT” (see page 20)

I CENTER “I CENTER” (see page 20)

I WIDTH “I WIDTH” (see page 20)

Q WIDTH “Q WIDTH” (see page 20)

Q PHASE “Q PHASE” (see page 20)

13 MATRIX

TYPE “TYPE” (see page 21)

ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 21)

R-G “R-G” (see page 21)

R-B “R-B” (see page 21)

G-R “G-R” (see page 21)

G-B “G-B” (see page 21)

B-R “B-R” (see page 21)

B-G “B-G” (see page 21)

- 9 -

ROP Menu (during AG-CX350 Connection)

14 COLOR CORRECTION

SAT R “SAT R” (see page 23)

PHASE R “PHASE R” (see page 23)

SAT R-R-Mg “SAT R-R-Mg” (see page 23)

PHASE R-R-Mg “PHASE R-R-Mg” (see page 23)

SAT R-Mg “SAT R-Mg” (see page 23)

PHASE R-Mg “PHASE R-Mg” (see page 23)

SAT Mg “SAT Mg” (see page 23)

PHASE Mg “PHASE Mg” (see page 23)

SAT Mg-B “SAT Mg-B” (see page 23)

PHASE Mg-B “PHASE Mg-B” (see page 23)

SAT B “SAT B” (see page 23)

PHASE B “PHASE B” (see page 23)

SAT B-Cy “SAT B-Cy” (see page 23)

PHASE B-Cy “PHASE B-Cy” (see page 23)

SAT Cy “SAT Cy” (see page 23)

PHASE Cy “PHASE Cy” (see page 23)

SAT Cy-G “SAT Cy-G” (see page 23)

PHASE Cy-G “PHASE Cy-G” (see page 23)

SAT G “SAT G” (see page 23)

PHASE G “PHASE G” (see page 23)

SAT G-Yl “SAT G-Yl” (see page 23)

PHASE G-Yl “PHASE G-Yl” (see page 23)

SAT G-Yl-Yl “SAT G-Yl-Yl” (see page 23)

PHASE G-Yl-Yl “PHASE G-Yl-Yl” (see page 23)

SAT Yl “SAT Yl” (see page 23)

PHASE Yl “PHASE Yl” (see page 23)

SAT Yl-Yl-R “SAT Yl-Yl-R” (see page 23)

PHASE Yl-Yl-R “PHASE Yl-Yl-R” (see page 24)

SAT Yl-R “SAT Yl-R” (see page 24)

PHASE Yl-R “PHASE Yl-R” (see page 24)

SAT Yl-R-R “SAT Yl-R-R” (see page 24)

PHASE Yl-R-R “PHASE Yl-R-R” (see page 24)

15 SYSTEM CAM

TALLY CONTROL “TALLY CONTROL” (see page 24)

TALLY INPUT “TALLY INPUT” (see page 24)

TALLY SIGNAL “TALLY SIGNAL” (see page 24)

TALLY CONT MD “TALLY CONT MD” (see page 24)

16 CAMERA MENU CONTROL

MENU ON/OFF “MENU ON/OFF” (see page 25)

CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 25)

EXECUTE “EXECUTE” (see page 25)

MENU EXIT “MENU EXIT” (see page 25)

- 10 -

ROP Menu (during AG-CX350 Connection)

Altri manuali per AK-HRP1000G

Indice

Altri manuali Panasonic Telecomando

Panasonic

Panasonic CZ-RTC5B Manuale utente

Panasonic

Panasonic WH-0M1201A Manuale utente

Panasonic

Panasonic EUR646464 Istruzioni operative

Panasonic

Panasonic Palmcorder PV-DRC9 Manuale utente

Panasonic

Panasonic CZ-RD514C Manuale di installazione e funzionamento

Panasonic

Panasonic AW-RP120G Manuale utente

Panasonic

Panasonic EUR7622KB0 Manuale utente

Panasonic

Panasonic CZ-RTC2 Manuale utente

Panasonic

Panasonic AK-HRP1005G Manuale utente

Panasonic

Panasonic TX LXD6 Series Manuale utente

Panasonic

Panasonic EUR511170 Manuale utente

Panasonic

Panasonic AWRP50N - REMOTE CAMERA CONTROLLER Manuale utente

Panasonic

Panasonic EUR511155 Manuale utente

Panasonic

Panasonic AK-HRP1015G Manuale utente

Panasonic

Panasonic CZ-RTC6 Manuale utente

Panasonic

Panasonic EUR501455 Manuale utente

Panasonic

Panasonic OneRemote RMB4 Manuale utente

Panasonic

Panasonic AJ-RC5 Manuale utente

Panasonic

Panasonic WV-RC700 Manuale utente

Panasonic

Panasonic WVRC37 - CAMERA ACC Manuale utente

Panasonic

Panasonic CZ-RTC4 Manuale utente

Panasonic

Panasonic TX-28DT4 Manuale utente

Panasonic

Panasonic CZ-RTC5A Manuale utente

Panasonic

Panasonic EUR511151C Manuale utente

Manuali Telecomando popolari di altre marche

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione

Invacare

Invacare G91S Manuale utente
