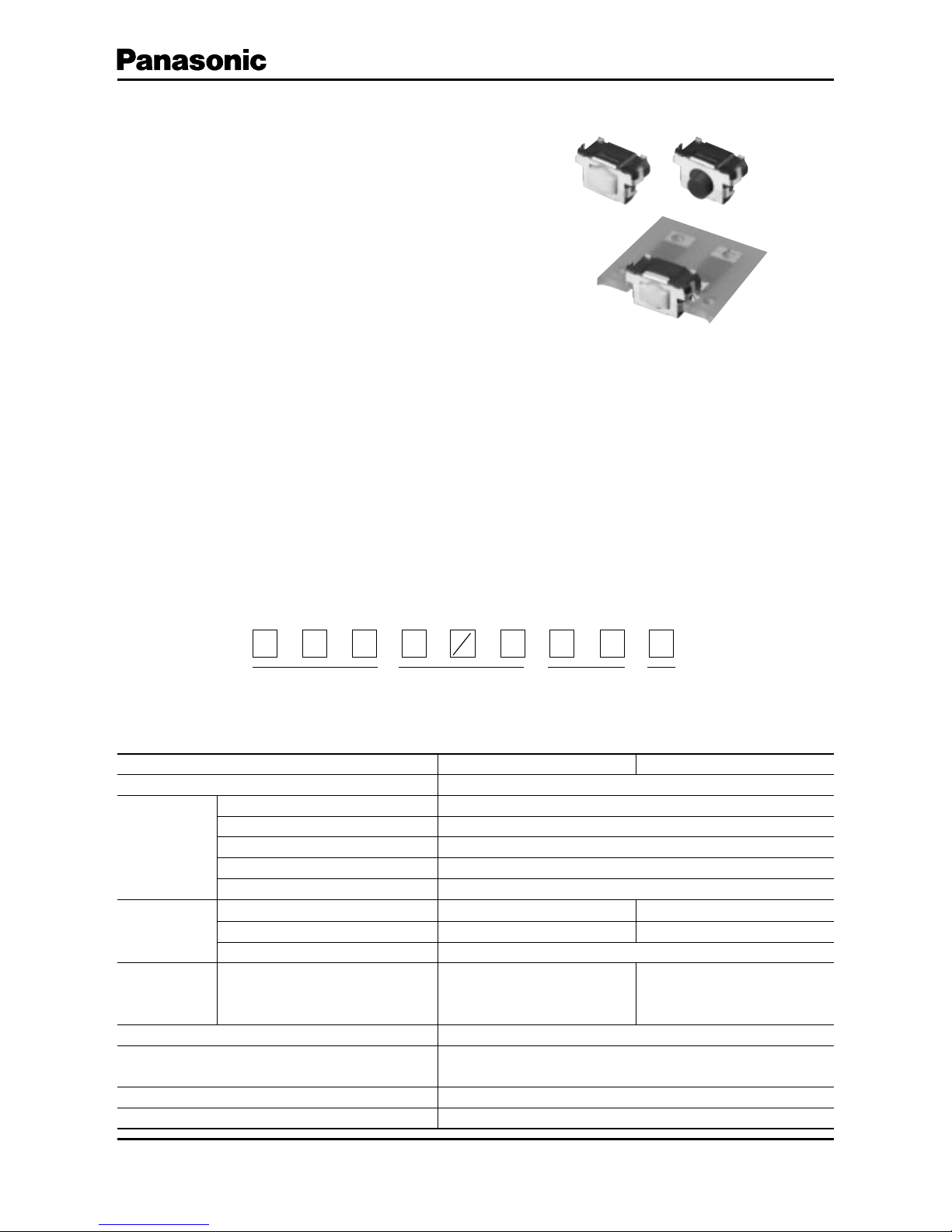

Panasonic Light Touch Switches EVQP4 Manuale utente

Light Touch Switches/EVQP4/P8

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

– ES109 –

4 5 6 7 8 9

P48

Product Code Type Height

Push Plate Color

■Features

●External dimensions : 6.2 mm҂2.55 mm (Excluding

the push plate), Height 3.5 mm (EVQP4 Type : Printed

circuit board being as low as 1.35 mm)

●Side-operational middle stroke type ( 0.7 mm )

with a high operating force (5.0 N)

●Improved soldering strength in the operating direction

when mounted on PC board edge

■Speciﬁcations

■Recommended Applications

●Operation switches for portable electronic equipment

(Mobile phones, Digital still cameras, Camcorders

Portable audio players, etc.)

●Keyless entry (car electronics)

●Car audio equipment

■Explanation of Part Numbers

6.2 mm҂2.5 mm Side-operational Edge Mount /

SMD Light Touch Switches

Type: EVQP4/EVQP8

Travel Type Middle Push Travel Short Push Travel

Type Snap action / Push-on type SPST

Electrical

Rating 10 µA 2 Vdc to 20 mA 15 Vdc (Resistive load)

Contact Resistance 100 m액max.

Insulation Resistance 100 M액min. (at 100 Vdc)

Dielectric Withstanding Voltage

250 Vac (1 minute)

Bouncing 10 ms max. (ON, OFF)

Mechanical

Operating Force 2.5 N, 3.5 N, 5.0 N 1.0 N, 1.6 N, 2.4 N, 3.5 N

Travel 0.70 mm±0.2 mm 0.25 mm –0.15 mm

Push Strength 50 N (1 minute)

Endurance Operating Life

2.5 N:1000000 cycles min.

3.5 N: 500000 cycles min.

5.0 N: 200000 cycles min.

1.0 N, 1.6 N: 1000000 cycles min.

2.4 N: 500000 cycles min.

3.5 N: 200000 cycles min.

Operating Temperature –40 °C to +85 °C

Storage Temperature –40 °C to +85 °C (Bulk)

–20 °C to +60 °C (Taping)

Minimum Quantity/Packing Unit 2500 pcs. Embossed Taping (Reel Pack)

Quantity/Carton 12500 pcs.

+0.05

Feb. 201201

Light Touch Switches/EVQP4/P8

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

– ES110 –

3.4 +0.2

2.5+0.2

_0.1

φ1.8

12P.W.B.

0.3 max.

3.1±0.1

6.0±0.1

7.0±0.1

5.8±0.1

0.45±0.1

1.65±0.1

1.25±0.1

0.05 max.

R0.5 max.

2.05±0.1

0.3 max.

0.1 max.

3.1±0.1

3.5+0.2

_0.1

0.4±0.1

✽1.35±0.1

4.8±0.1

2.7±0.1

2.55

5.7±0.1

6.2+0.4

_0.1

Circuit diagram

PWB land pattern for reference

5.1+0.1

6.2 +0.4

5.7±0.1

2.1+0.2

_0.1 2.55

2.7±0.1

3.0 +0.2

_0.1

φ2

4.8±0.1

2.6

1.6

✽1.35±0.1

0.4±0.1

3.5 +0.2

_0.1

3.1±0.1

0.1 max.

0.3 max.

2.05±0.1

R0.5 max.

0.05 max.

1.25±0.1

1.65±0.1

0.45±0.1

5.8±0.1

7.0±0.1

6.0±0.1

3.1±0.1

0.3 max.

P.W.B.

Circuit diagram

PWB land pattern for reference

5.1+0.1

■Dimensions in mm (not to scale)

No. 1

Part Numbers Operating Force Height Push Plate Color Operating Life

EVQP4HB3B2.5 N3.5 mm Blue 1000000 cycles

EVQP4KB3Q3.5 N3.5 mm Grey 500000 cycles

EVQP4MB3K5.0 N3.5 mm Black200000 cycles

Part Numbers Operating Force Height Push Plate Color Operating Life

EVQP40B3M 1.0 N 3.5 mm Natural 1000000 cycles

EVQP42B3M1.6 N3.5 mm Natural1000000 cycles

EVQP44B3M2.4 N3.5 mm Natural500000 cycles

EVQP46B3M 3.5 N 3.5 mm Natural 200000 cycles

No. 2

EVQP4

Middle push travel

EVQP4

Short push travel

✻ Height from surface of PCB : 1.35 mm

Feb. 201201

Light Touch Switches/EVQP4/P8

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

– ES111 –

6.2 +0.4

5.7±0.1

2.55

2.7±0.1

4.8±0.1

1.35±0.1

0.4±0.1

3.5+0.2

_0.1

φ1.8

2.5 +0.2

_0.1

3.4 +0.2

_0.1

Circuit diagram

PWB land pattern for reference

7.1±0.1

3.3±0.1

0.3±0.1

3.45±0.1

1.4±0.1

1.95±0.1

2.25±0.1

1.6

2.6

4.8±0.1

φ2

3+0.2

_0.1

2.7±0.1

2.55 2.1 +0.2

_0.1

5.7±0.1

+0.4

Circuit diagram

PWB land pattern for reference

6.2

7.1±0.1

3.3±0.1

0.3±0.1

3.45±0.1

1.4±0.1

1.95±0.1

2.25±0.1

3.5 +0.2

_0.1

0.4±0.1

1.35±0.1

■Dimensions in mm (not to scale)

No. 3

No. 4

Part Numbers Operating Force Height Push Plate Color Operating Life

EVQP8H03B2.5 N3.5 mm Blue 1000000 cycles

EVQP8K03Q3.5 N3.5 mm Grey 500000 cycles

EVQP8M03K5.0 N3.5 mm Black200000 cycles

Part Numbers Operating Force Height Push Plate Color Operating Life

EVQP8003M 1.0 N 3.5 mm Natural 1000000 cycles

EVQP8203M1.6 N3.5 mm Natural1000000 cycles

EVQP8403M2.4 N3.5 mm Natural500000 cycles

EVQP8603M 3.5 N 3.5 mm Natural 200000 cycles

EVQP8

Middle push travel

EVQP8

Short push travel

Feb. 201201

Light Touch Switches/EVQP4/P8

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

– ES112 –

P2P0

φD0

Feeding hole

Chip component Tape running direction

Chip pocket

Tape width=12.0 mm

180

260

MAX.

150

230

90±30 40±10

(Normal Temp.)

Operation Top (°C)

Soldering Time (s)

Fan or Normal Temp.

■Recommended Reﬂow Soldering Conditions

●Embossed Carrier Taping

●Standard Reel Dimensions in mm (not to scale)

Unit: mm

Part No. Height ABWFEP

1P2P0D0Dia. t1t2

EVQP4 3.5 6.5±0.2 3.9±0.2 12.0±0.3 5.5±0.1

1.75±0.10

8.0±0.1 2.0±0.1 4.0±0.1 1.5+0.1 0.4±0.1

3.75±0.20

EVQP8

3.65±0.20

–0

Item A B C D E

Rate (mm)

φ370.0±2.0 φ50.0 min. φ

13.0±0.5 φ21.0±1.0 2.0±0.5

Item W T t r

Rate (mm)

14.0±1.5 — 1.0 to 3.0 1.0±0.5

Feb. 201201
