Panasonic KX-TCA151AZV Manuale utente

ORDERNO. KM40308174C3

Telephone Equipment

KX-TCD500ALV / KX-TCA150AZV / KX-TCA151AZV

Digital Cordless Phone

Violet Version

(for Australia)

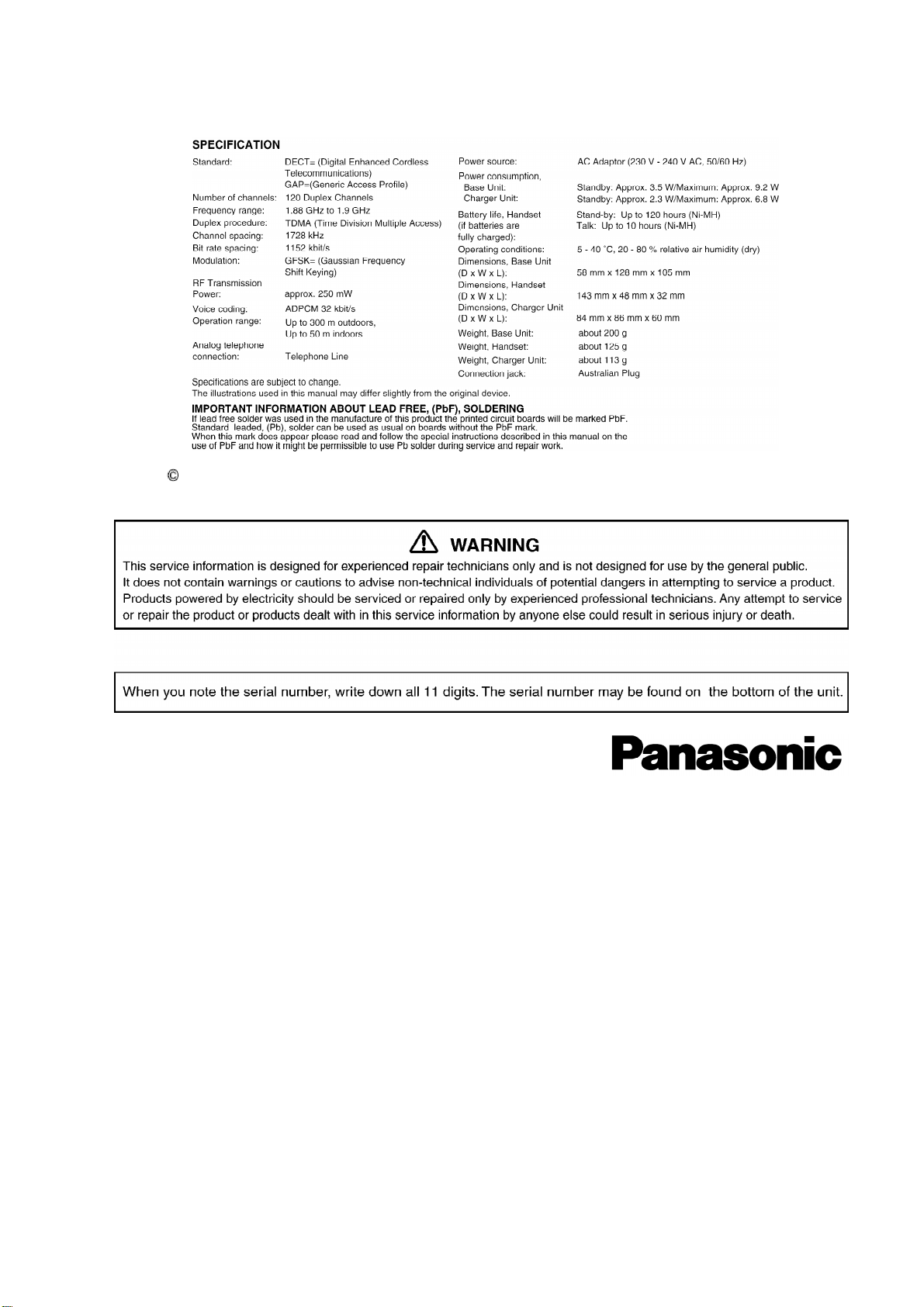

SPECIFICATIONS

Unauthorized copying and distribution isaviolation of law.

1. ABOUT LEAD FREE SOLDER (PbF: Pb free)

Note:

Inthe information below, Pb, the symbol forleadinthe periodic table of elements, will referto

standardsolderorsolderthat contains lead.

We will use PbF solderwhendiscussing the leadfree solderusedinourmanufacturing process

whichis made fromTin(Sn), Silver(Ag), and Copper(Cu).

This model, and others like it, manufacturedusing leadfree solderwill have PbF stampedon

the PCB. Forservice and repairwork we suggest using the same type of solderalthough, with

some precautions, standardPbsoldercanalsobe used.

Caution

-PbF solder has amelting point that is50°F ~70°F (30°C~ 40°C)

higher than Pb solder. Please use asoldering iron with

temperature control and adjust itto 700°F ± 20°F (370°C± 10°C). In

case of using high temperature soldering iron, please be careful

not to heat too long.

-PbF solder will tend to splash ifitisheated much higher than its

melting point, approximately1100°F (600°C).

-Ifyou must use Pb solder on aPCB manufactured using PbF

solder, remove as much of the original PbF solder as possibleand

be sure that anyremaining ismelted prior to applying the Pb

solder.

-When applying PbF solder to doublelayered boards, please check

the component side for excess which mayflow onto the opposite

side (See the figure below).

1.1. Suggested PbF Solder

There are several types of PbF solderavailable commercially. While this product is

manufacturedusing Tin, Silver, and Copper

(Sn+Ag+Cu), you canalsouse Tinand Copper(Sn+Cu) orTin, Zinc, and Bismuth(Sn+Zn+Bi).

Please check the manufac

turer’s specific instructions forthe melting points of theirproducts and anyprecautions for

using theirproduct withother

materials.

The following leadfree (PbF) solderwire sizes are recommendedforservice of this product:

0.3mm, 0.6mm and 1.0mm.

1.2. How to recognize that Pb Free solder isused

1.2.1. Base Unit PCB

(Component View)

(FlowSolderSide View)

Note:

The location of the “PbF“ mark is subject tochange without notice.

1.2.2. Handset PCB

(Component View)

(FlowSolderSide View)

Note:

The location of the “PbF“ mark is subject tochange without notice.

1.2.3. ChargerUnit PCB

Note:

The location of the “PbF“ mark is subject tochange without notice.

2. FOR SERVICE TECHNICIANS

ICs and LSIs are vulnerable tostatic electricity.

Whenrepairing, the following precautions will helpprevent recurring malfunctions.

1. Cover the plasticparts boxes with aluminum foil.

2. Ground the soldering irons.

3. Use aconductive mat on the worktable.

4. Donot touch ICor LSI pins with bare fingers.

3. CAUTION

Dangerof explosion if batteryis incorrectlyreplaced. Replace onlywiththe same orequivalent

type recommendencedbythe manufacturer.

Dispose of usedbatteries according tothe manufacture’s Instructions.

4. BATTERY

4.1. BatteryInstallation

Please ensure the batteries are insertedas shown. part shouldbe insertedfirst.

Close the coveras indicatedbythe arrow.

-When you replace the batteries, part shouldbe removed first.

4.2. BatteryCharge

At the time of shipment, the batteries are not charged. To charge, place the handset on the base

unit.

Please charge the batteries forabout 7 hours before initial use. During charging, the charge

LED will light as shownbelow.

The handset whichpoweris off will be turnedon automaticallywhenit is placedon the base

unit.

The handset will not operate while it is on the base unit.

If you do not recharge the handset batteryformore than15 minutes, the displaywill flash

NOTATION PUBLIC "-//ALDUS//NOTATION TAGGED IMAGE FILE FORMAT//EN"

ENTITY SYSTEM "_batflas.tif" whenthe

handset is liftedoff the base unit.

Note forService:

-The batterystrength maynot be indicated correctlyifthe batteryis

disconnected and connected again, even after itisfullycharged.

Inthat case, byrecharging the batteryas mentioned above, you

will get acorrect indication of the batterystrength.

-Confirmation of Antenna Pict ( ) indication:

IfAntenna Pict isindicated, charge time isabout 7hours.

However, ifAntenna Pict isflashing, charge time becomes long.

4.3. BatteryInformation

AfteryourPanasonic batteryis fullycharged:

Ni-MH Batteries (typical 700 mAh)

Operation Operating Time

While inuse (TALK) 10 hrs approx.

While not inuse (Standby) 120 hrs approx.

Ni-CdBatteries (typical 250 mAh)

Operation Operating Time

While inuse (TALK) 4 hrs approx.

While not inuse (Standby) 40 hrs approx.

-Times indicated are for peak performance.

-The batteryoperating time maybe shortened depending on usage

conditions and ambient temperature.

-Clean the charge contacts of the handset and the base unitwith a

soft, drycloth. Clean ifthe unitissubject to grease, dust or high

humidity.

Otherwise the batterymaynot charge properly.

-The batteries cannot be overcharged unless theyare repeatedly

removed and replaced.

-For maximum batterylife, itisrecommended that the handset not

be recharged until the batteryicon flashes

NOTATION PUBLIC "-//ALDUS//NOTATION TAGGED IMAGE FILE FORMAT//EN"

ENTITY SYSTEM "_batflas.tif" .

4.4. Replacing the Batteries

If the icon flashes aftera fewtelephone calls evenwhenthe handset batteries have

beenfullycharged, bothbatteries must be replaced.

-Charge new batteries for approximately7hours before initial use.

-When replacing the batteries, be sure to set up the batterytype

even ifyou install the same type of batteries to initialise battery

remaining memoryof your handset.

-The factorypreset is .

-To exitthe operation, press anytime.

-Donot use non-rechargeablebatteries. Ifnon-rechargeable

batteries are fitted and start charging, itmaycause the leakage of

the batteryelectrolyte.

-Press the notch on the cover firmlyand slide itas indicated bythe

arrow. Replace both batteries and close the cover then charge the

handset for about 7hours.

Please orderPanasonic HHR-4EPT(Ni-MH) orP-4NPT(Ni-Cd) batteries.

Note forService:

-When Ni-Cdbatteies are littled with the

NOTATION PUBLIC "-//ALDUS//NOTATION TAGGED IMAGE FILE FORMAT//EN"

ENTITY SYSTEM "_battyp.tif" setting

in , icon might disappear and stop charging

even ifthe handset ison the cradlefor avoiding overcharge.

5. LOCATION OF CONTROLS

5.1. Base Unit

5.2. Handset

6. SETTINGS

6.1. Connection

6.1.1. Base Unit

Plug inthe AC adaptorand the telephone line cordinorder1, 2, 3, 4.
