Panasonic KX-TS105B Manuale utente

ORDERNO. KM40212005C1

J01

Telephone Equipment

KX-TS105B

Integrated Telephone System

Black Version

(for U.S.A.)

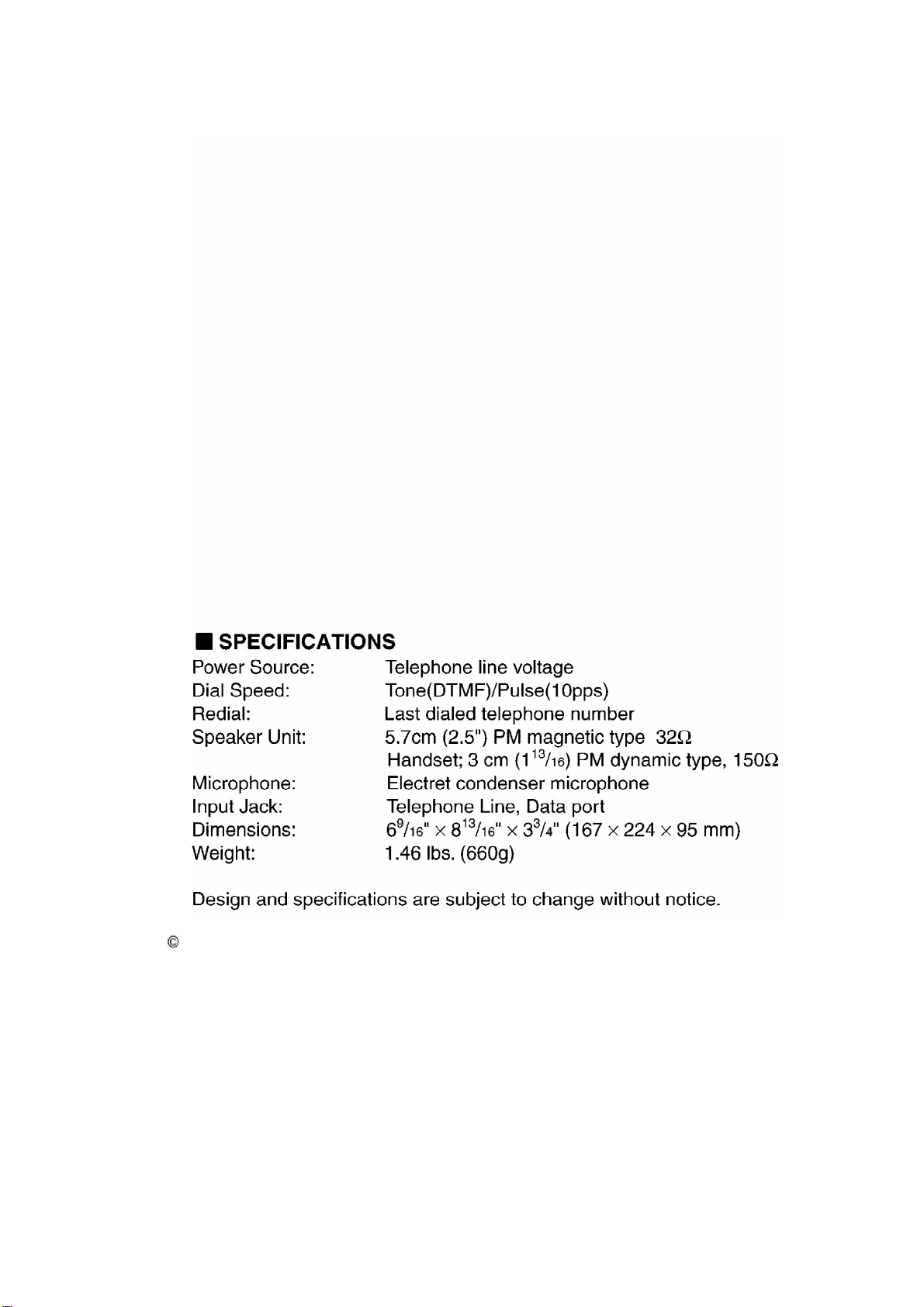

SPECIFICATIONS

1

2003 PanasonicCommunications Co., Ltd. All rights reserved.

Unauthorized copying and distribution isaviolation of law.

2

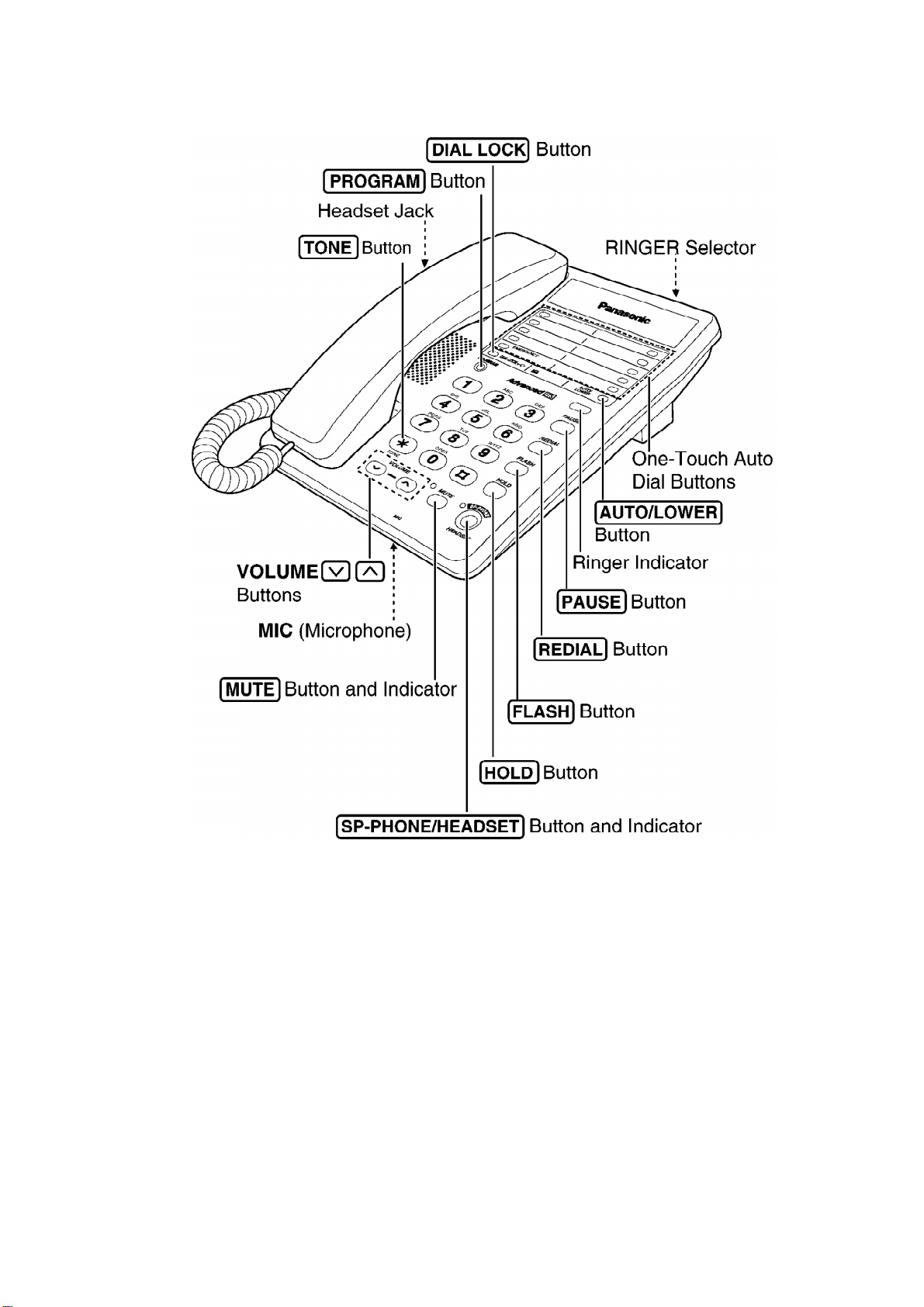

1. LOCATION OF CONTROLS

3

2. CONNECTION

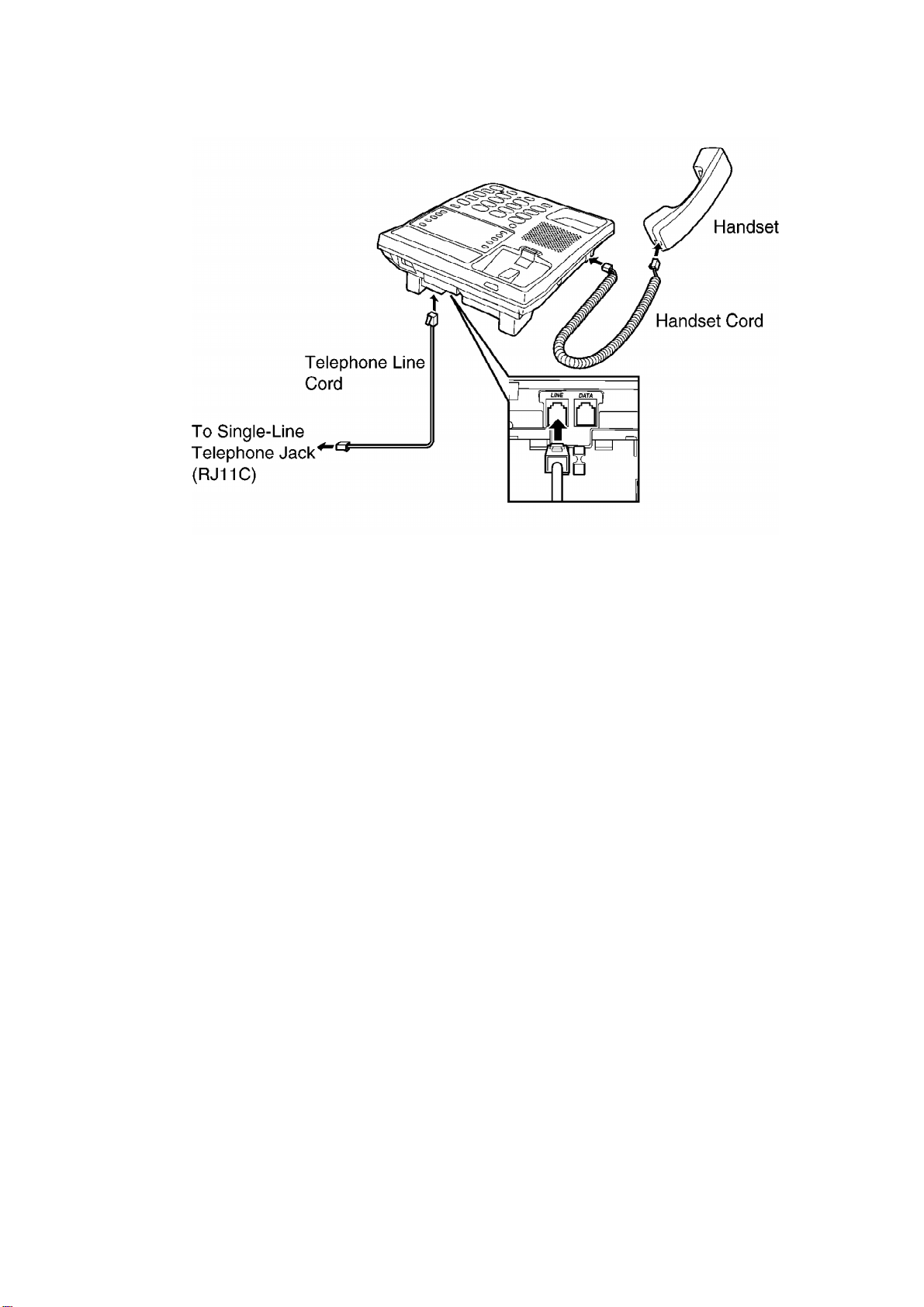

2.1. Connecting the Handset/Telephone Line Cord

Afterconnection, lift the handset tocheck fora dial tone.

4

-Use onlyaPanasonicHandset for the KX-TS105B.

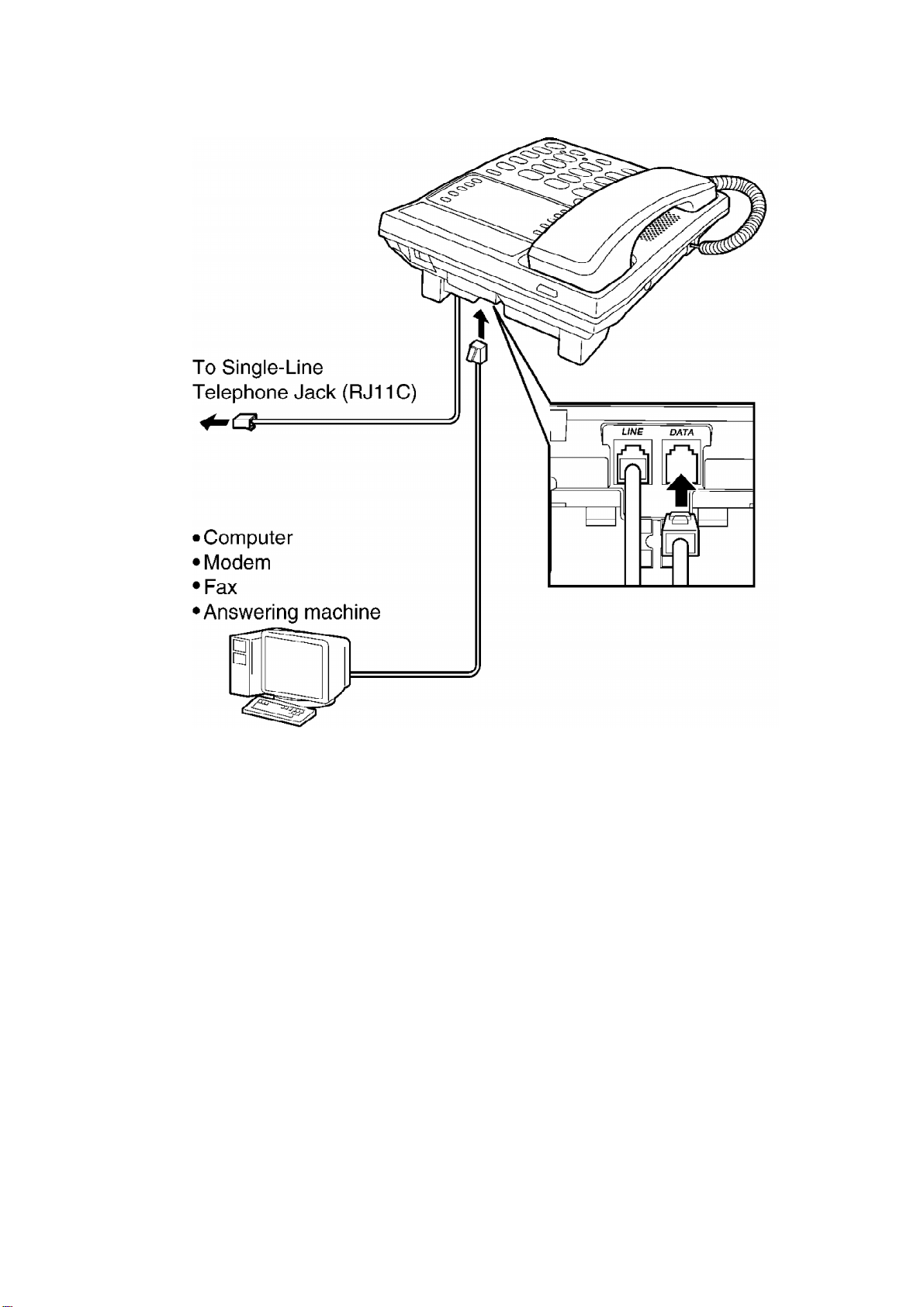

2.2. Connecting aCommunication Device

If you connect a communication device (computer, modem, fax, answering machine, etc.) tothe

telephone line, you canconnect it through this unit using the DATA jack.

Afterconnecting the handset and telephone line cord, connect the communication device

telephone line cordtothe DATA jack.

5

-Make sure the communication device isnot inuse before using

thisunit(making calls, storing phone numbers inmemoryetc.)or

the communication device maynot operate properly.

3. SETTINGS

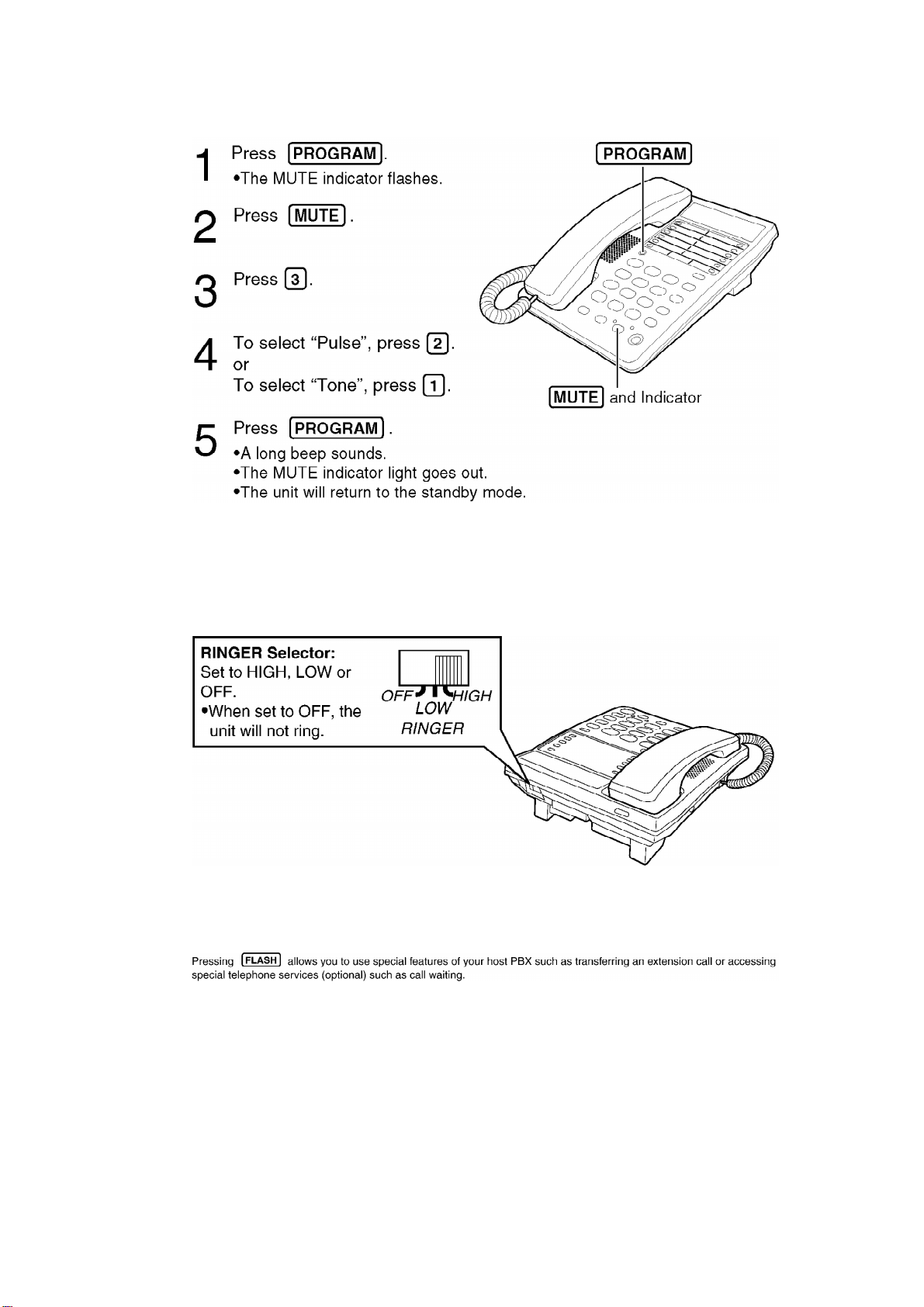

3.1. Dialing Mode

You canselect the dialing mode byprogramming. If you have touchtone service, set to"Tone".

If rotaryorpulse service is used, set to"Pulse". Yourphone comes fromthe factoryset to

"Tone".

Make sure that a call is not put on hold.

6

3.2. Ringer Volume

You canselect the ringervolume toHIGH, LOW orOFF. Yourphone comes fromthe factoryset

toHIGH.

4. SPECIAL FEATURES

4.1. FLASHButton

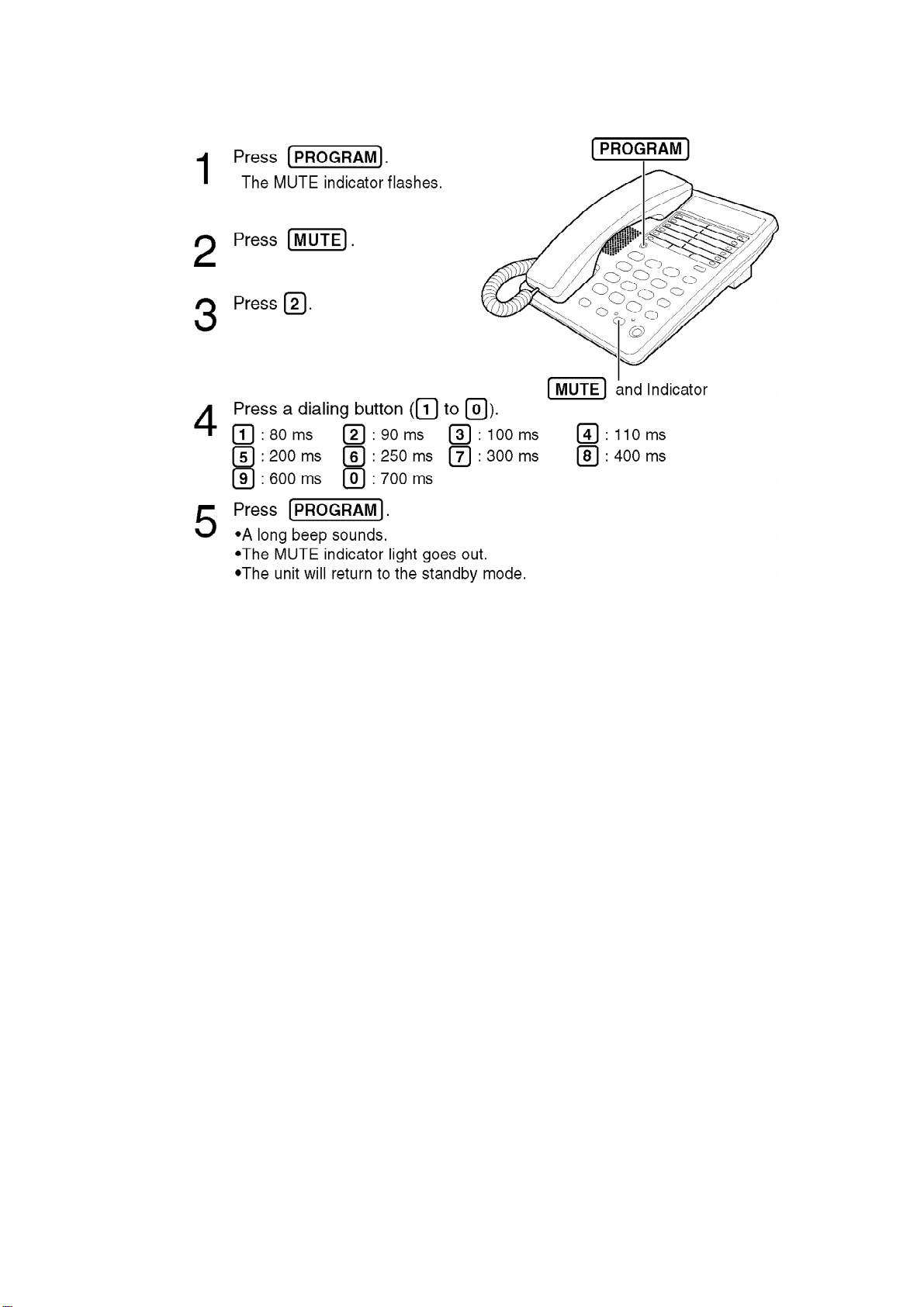

4.2. Selecting the Flash Time

The flashtime depends on yourtelephone exchange orhost PBX. You canselect the following

flashtimes: "80, 90, 100, 110, 200, 250, 300, 400, 600, 700 ms (milliseconds)". Yourphone comes

fromthe factoryset to"600 ms".

Make sure that a call is not put on hold.

7

-Ifyou are connected viaaPBX, alonger flash time maybe

necessaryto use PBXfunctions (transferring acall, etc.). Consult

your PBXinstaller for the correct setting.

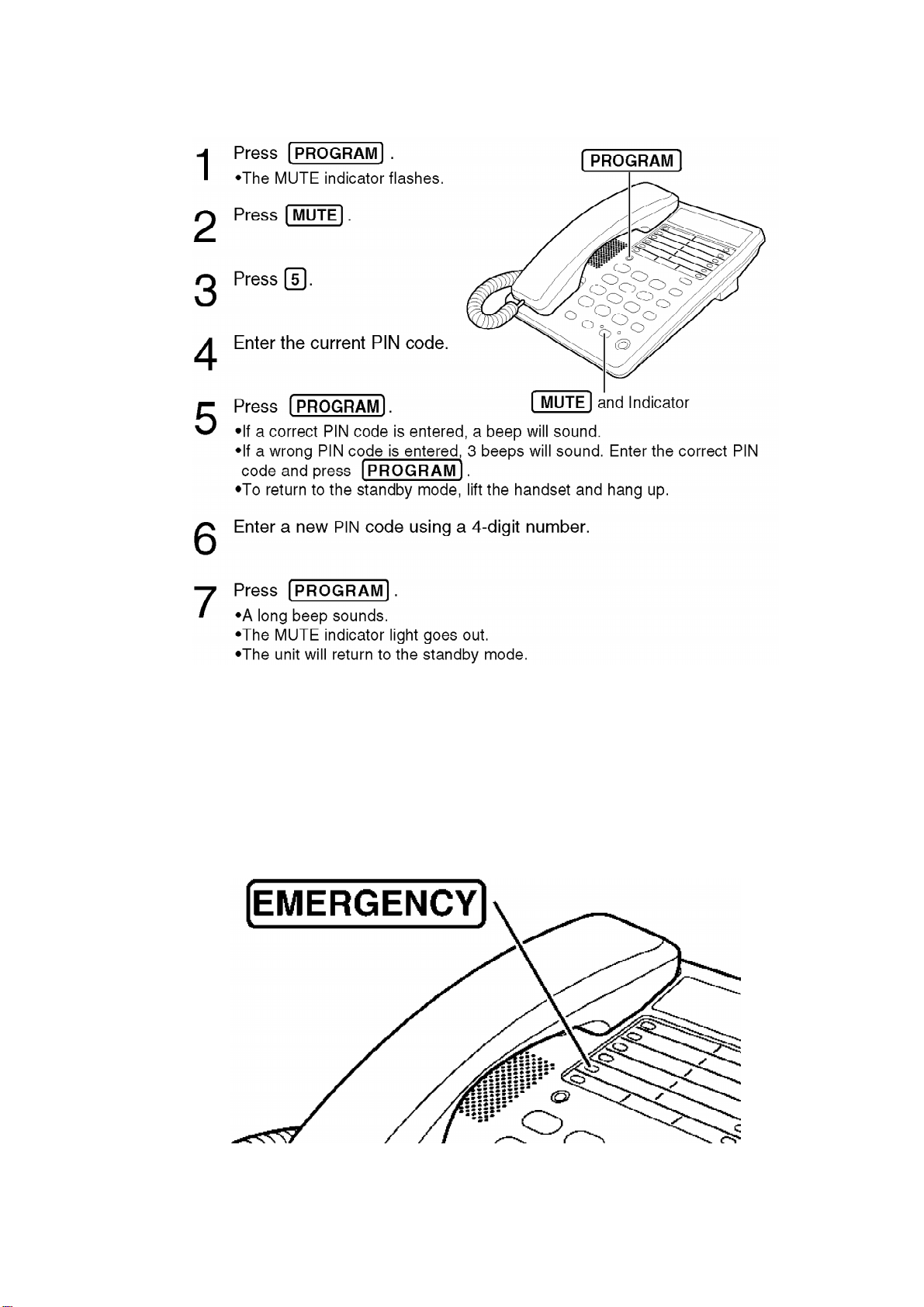

4.3. PINCode

A 4-digit PIN Code (Personal Identification Number) prevents unauthorizedpersons fromusing

yourunit. The PIN Code is requiredforthe dial lock and call restriction tobe set orcanceled.

The factorypreset PIN code is "1111".

Make sure that a call is not put on hold.

8

4.4. Dial Lock

You canprevent others frommaking a call toanynumberexcept the one pre-programmedin

the memoryof the EMERGENCY button. Once you lockedthe dialing buttons, evenemergency

numbers cannot be dialed. Onlyincoming calls are accepteduntil the dial lock is canceled.

Before using this feature, we recommend storing anemergencynumberinthe memoryof the

EMERGENCY button. Evenif the dialing buttons are locked, the numberstoredinthe button can

be dialed.

9

-Ifyou choose not to program emergencynumbers, but plan to use

the dial lock, anynumber programmed into the EMERGENCY

button can be accessed.

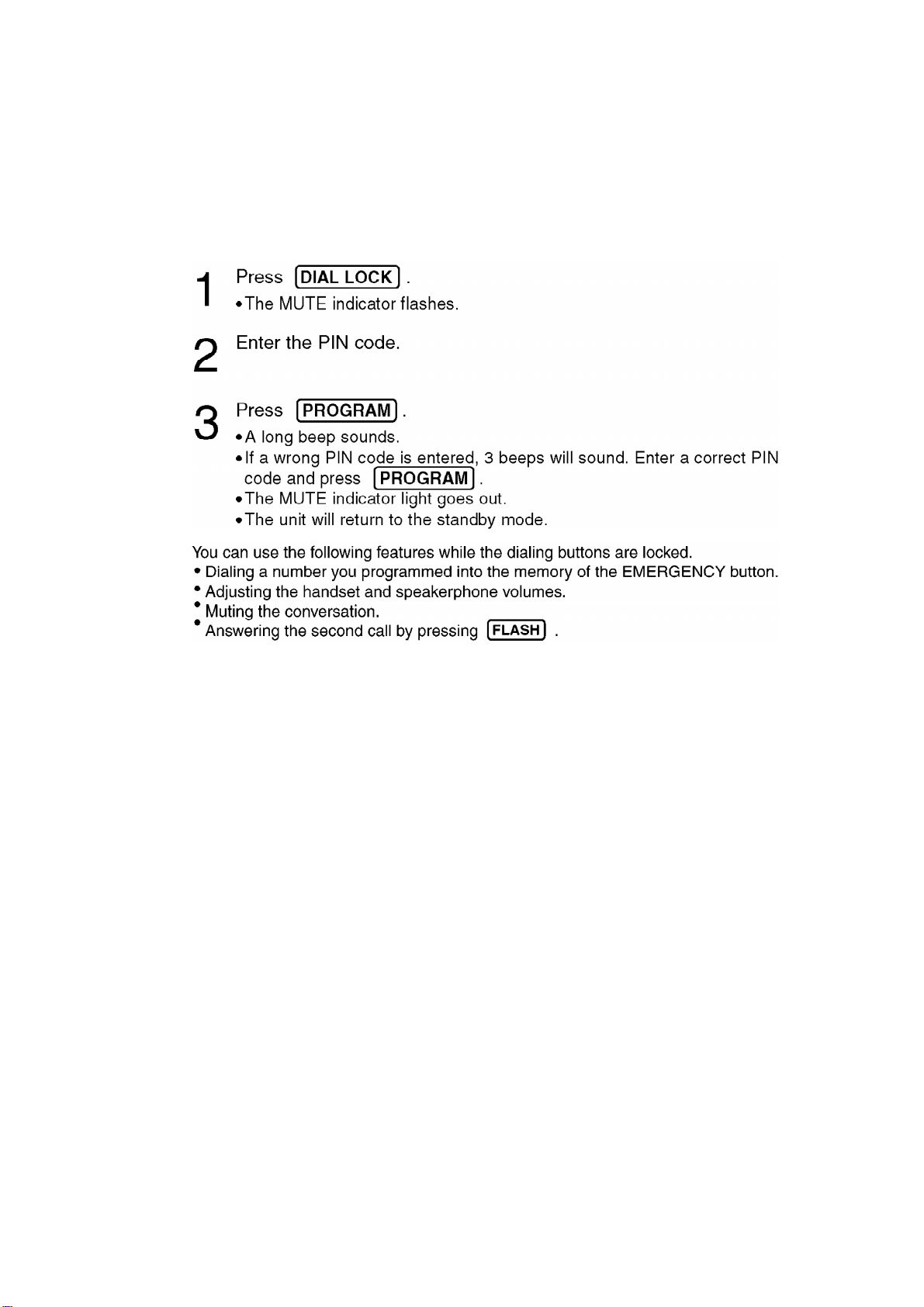

4.4.1. To Set the Dial Lock

4.4.2. To Cancel the Dial Lock

Followsteps 1 through 3 above again.

4.4.3. To Release the Establishment of Dial Lock

10
