Panasonic KX-T7020E Manuale utente

Digital Super Hybrid System

Reference

Guide

Proprietary Telephones and

DSS Console for Digital Super

Hybrid Systems

The KX-T7020E, KX-T7130E, KX-T7040E, and

KX-T7050E can perform most of the functions of

the systems. Please read before using.

Model

KX-T7000 Series

Issue 22

Thank you for purchasing this Panasonic Telephone System.

System Components________________________

Model KX-T7130E

Proprietary Telephone

with Display

KX-T7020E

Proprietary Telephone

with Speakerphone

KX-T7040E

DSS Console KX-T7250E

Proprietary Telephone

with Monitor

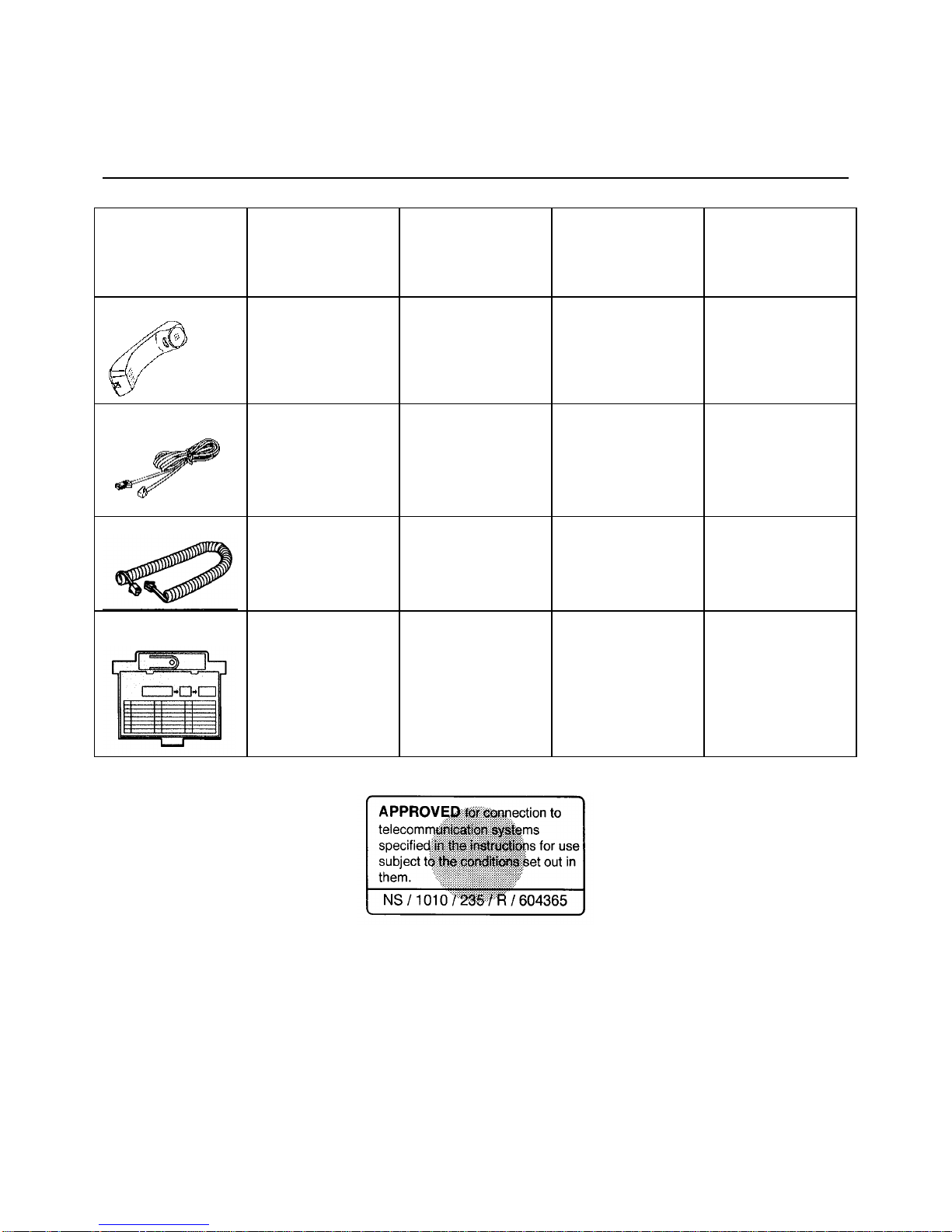

Included Accessories

Handset One One One

Telephone line cord One One One One

Handset cord One One One

Card holder with

memory station card One One One

Issue 23

Table of Contents________________________

Configuration

Location of Controls

Feature Button Descriptions

Initial Setting

Connection

Handset/Headset Selection

Display Contrast Control

Speaker Volume Control

Ringer Volume Control

Station Programming

Flexible Button Assignment

Full One-Touch Dialling Setting

Proprietary Telephone Features

Basic Operation

Absent Message Capability

Account Code Entry

Alternate Calling -- Ring/Voice

Automatic Call-back Busy (Camp-On)

Background Music (BGM)

Busy Station Signalling (BSS)

Call Forwarding -- All Calls

Call Forwarding -- Busy

Call Forwarding -- No Answer

Call Forwarding -- Busy/No Answer

Call Forwarding -- to Exchange line

Call Forwarding -- Follow Me

Call Hold

Call Park

Call Pickup, Exchange line

Call Pickup, Directed

Call Pickup, Group

Call Transfer to Extension

Call Waiting

Conference

Do Not Disturb (DND)

Do Not Disturb (DND) Override

External Feature Access

Full One-Touch Dialling

Message Waiting

Paging -- All

Paging -- External

Paging -- Group

Paging -- Answer

Paging and Transfer

Paralleled Telephone Connection

Pulse to Tone Conversion

Station Feature Clear

Redial, Last Number

Redial, Saved Number

Issue 24

Station Speed Dialling

System Speed Dialling

Timed Reminder

Trunk (Exchange line) Answer from Any Station

(TAFAS)

Voice Mail Integration

Feature Number List

Installing the Card Holder

DSS Console Features

Location of Controls

Connection

DSS (Direct Station Selection) Buttons

PF (Programmable Feature) Buttons

Wall Mounting

Cautions 22

Issue 25

Configuration___________________________

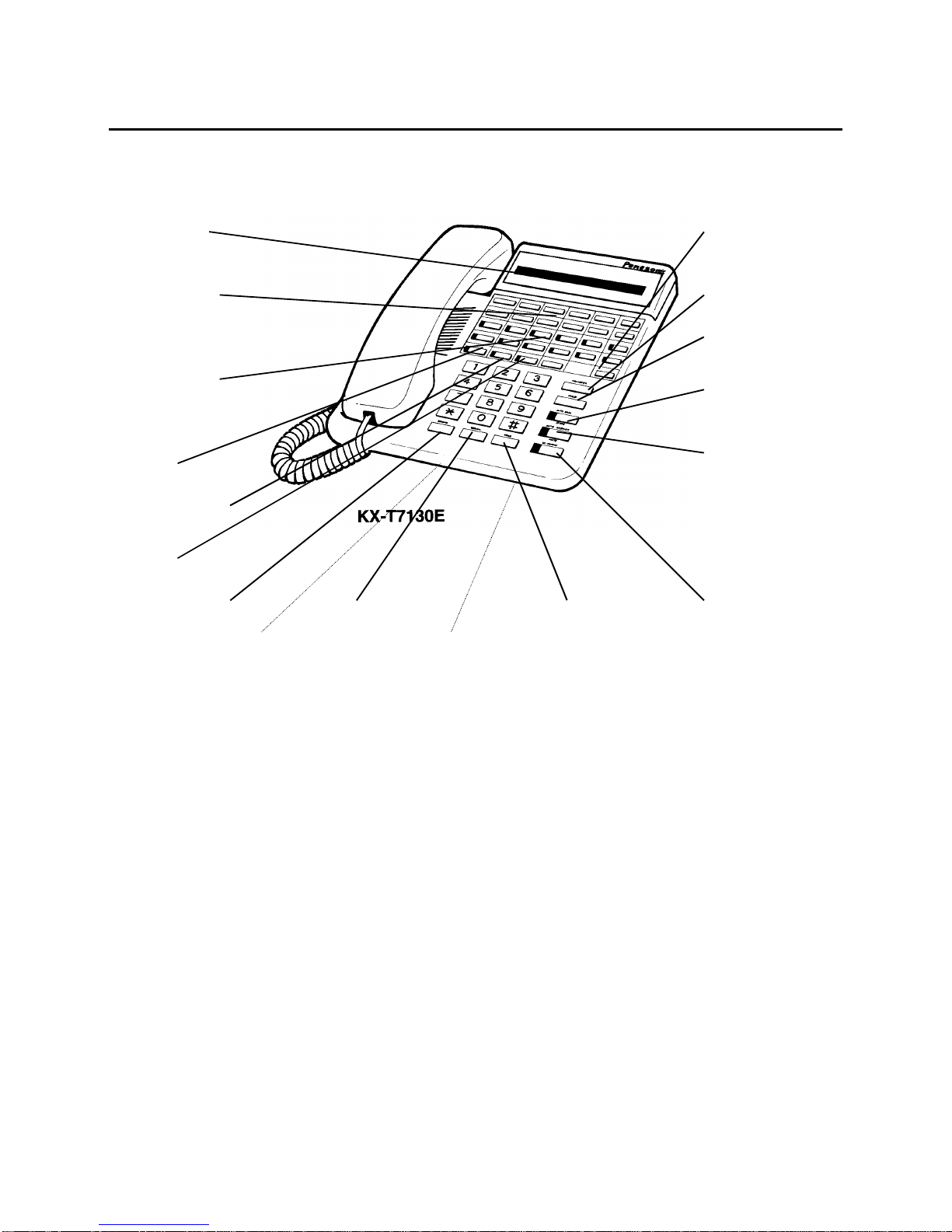

Location of Controls

- KX-T7130E -

Display (Liquid

Crystal Display)

Programmable

Function Buttons

(F1 through F12)

Flexible Exchange

line Buttons

(Exchange line 01

through Exchange line

12)

INTERCOM

Button

CONF (Conference)

Button

FWD/DND

Button

MESSAGE

Button

TRANSFER

Button

PROGRAM/PAUSE

Button

AUTO DIAL/STORE

Button

AUTO

ANSWER/MUTE

Button

REDIAL Button RECALL Button HOLD Button SP-PHONE Button

Card Holder with memory station card Microphone

Issue 26

Configuration_______________________________

Configuration

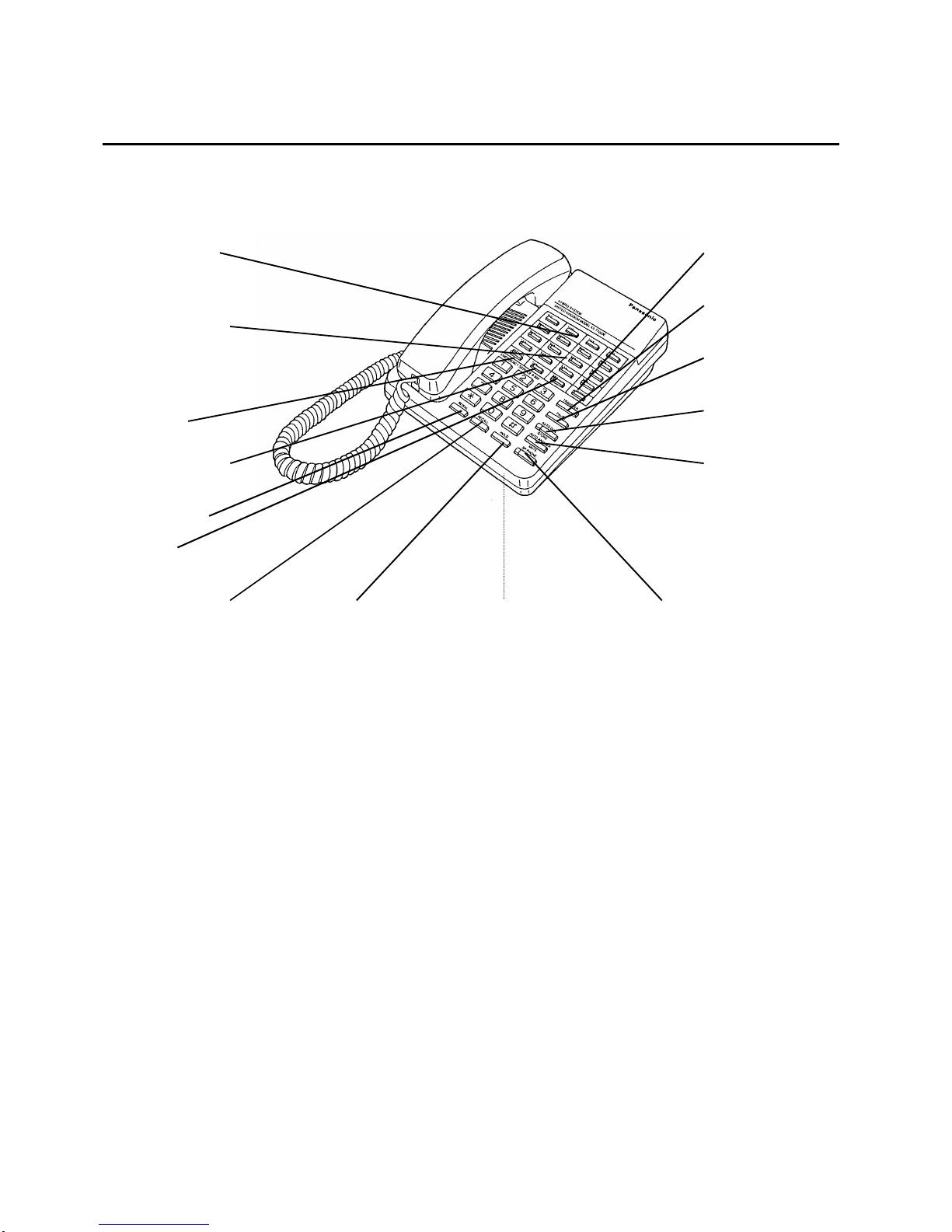

- KX-T7020E -

Programmable

Function Buttons

(F1 through F4)

Flexible Exchange

line Buttons

(Exchange line 01

through Exchange line

12)

INTERCOM

Button

CONF (Conference)

Button

REDIAL Button

FWD/DND

Button

MESSAGE

Button

TRANSFER

Button

PROGRAM/PAUSE

Button

AUTO DIAL/STORE

Button

AUTO

ANSWER/MUTE

Button

RECALL Button HOLD Button Microphone SP-PHONE Button

Issue 27

Configuration

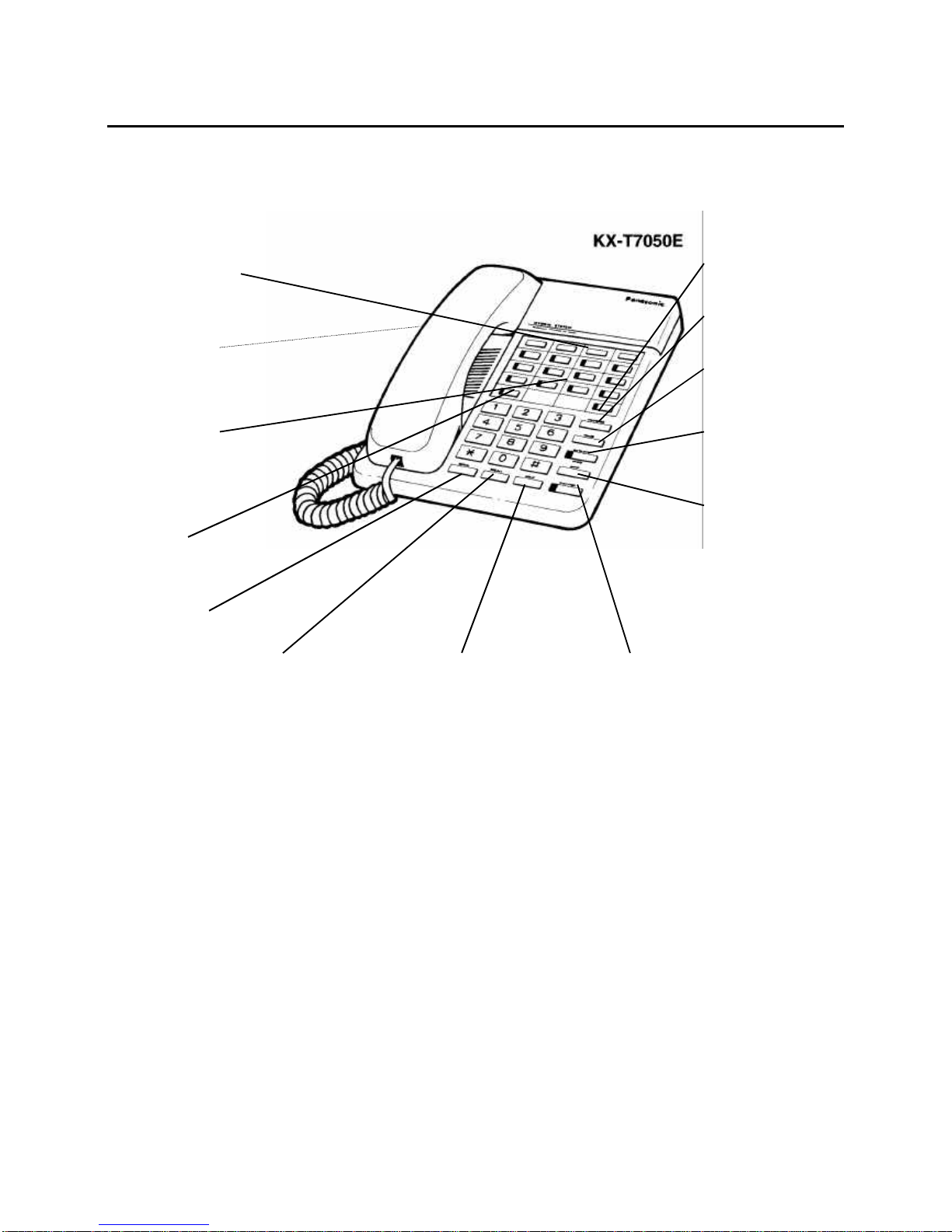

- KX-T7050E -

Programmable

Function Buttons (F1

through F4)

RINGER Volume

Selector

Flexible Exchange line

Buttons

(Exchange line 01

through Exchange line

12)

INTERCOM

Button

REDIAL Button

MESSAGE Button

TRANSFER Button

PROGRAM/PAUSE

Button

AUTO DIAL/STORE

Button

CONF (Conference)

Button

RECALL Button HOLD Button MONITOR Button

Issue 28

Configuration

Feature Button Descriptions

AUTO ANSWER/MUTE Button

Used for extension auto answer, it turns the microphone off

during a conversation.

AUTO DIAL/STORE Button

Used for System Speed Dialling and for storing program

changes.

CONF (Conference) Button

Used to establish a three-party conference.

Flexible Exchange line Button

Used to seize the Exchange line or access one of several

features.

Function (F1 through F12) Button

Used to perform the programmed function or operation.

FWD/DND (Call Forwarding/Do Not Disturb) Button

Used to program the Call Forwarding feature or set the Do

Not Disturb (DND) feature.

HOLD Button

Used to place a call on hold.

INTERCOM Button

Used to make or receive extension calls.

MESSAGE Button

Used to call back the message sender.

MONITOR Button

Used for handsfree dialling operation.

PAUSE / PROGRAM Button

Used to enter into Station Programming mode and to exit

from Station Programming mode.

Inserts a pause in speed dial numbers

or in other numbers

RECALL Button

Sends a Register Recall signal to the central office or to a

host PBX to access the system features. If a PBX is not being

used, this button can be used to disconnect the current call

and start another call without requiring that you hang up.

REDIAL Button

Used to redial the last external number.

SP-PHONE (Speakerphone) Button

Used for handsfree speakerphone operation.

TRANSFER Button

Transfers a call to another extension or to an external

destination.

VOLUME Control

Used to adjust the speaker volume.

SAVE Button

The current dialled number can be saved for later redialling

Issue 29

Initial Setting

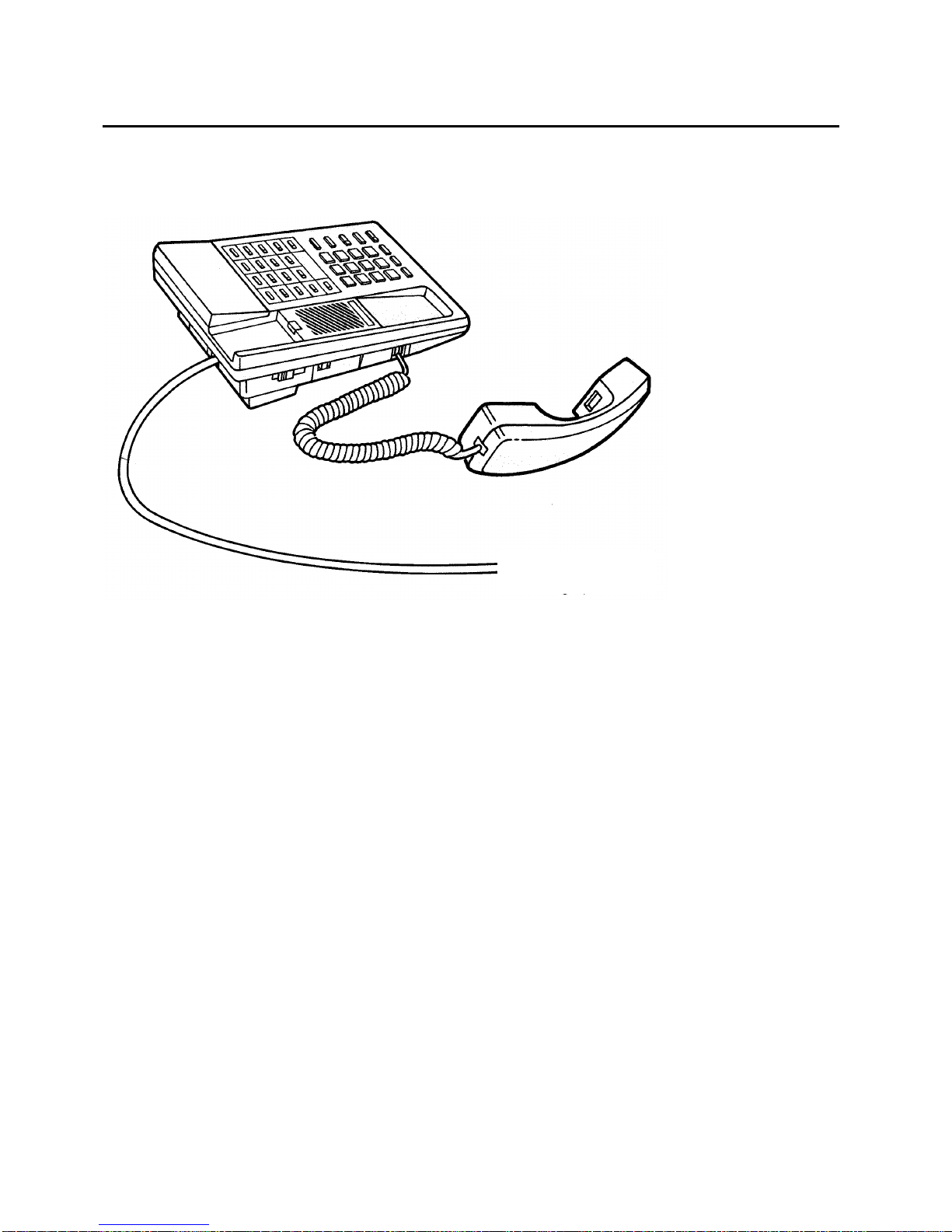

Connection (for KX-T7130E/KX-T7020E/KX-T7050E)

Connect as shown.

The included -> Connect to a Digital Super Hybrid System via a

telephone line Secondary Socket.

cord

Handset/Headset Selection for KX-T7130E

Set the HANDSET/HEADSET switch to either

1 HANDSET (Normal operation).

2 HEADSET (The SP-PHONE button operates the

headset).

Display Contrast Control for KX-T7130E

Set the CONTRAST switch to

1 HIGH

2 MID

3 LOW

MEMORY Switch

Not used on KX-TD1232E

VOLUME Control

To adjust the volume level of the speaker

MAX: Loud voice

MIN: Low voice

RINGER VOLUME Selector

To adjust the volume level of the ringer

HIGH: Loud ringer

LOW: Low ringer

OFF: No ringer

Issue 210

Station Programming

Before programming, you need to enter into Programming mode.

When the telephone is idle and Replace the handset or press SP-PHONE;

Press : PAUSE 9 9.

To exit from Programming mode.

Press : PAUSE .

Lift the handset.

Flexible Button Assignment

Press the desired Exchange line button.

Dial 1 - 7 , + desired number (such as phone number or feature number, if required).

-1 : DSS button

-2 + desired number :

One-Touch Dialling button

-3 : MESSAGE button

-4 : FWD/DND button

-5 : SAVE button

-6 : Account button

-7 : Conference (CONF) button

Press STORE button.

Note:

To erase an incorrect entry while assigning: press the TRANSFER button.

To clear the assignment : press the desired Exchange line button + 2 + STORE button.

Full One-Touch Dialling Setting

Dial 3.

Dial 1or 2 .

-1 : Off

-2 : On

Press STORE button.
