Panasonic KX-T7720E Manuale utente

Quick Reference Guide

Model No.

KX-T7720E/KX-T7730E/KX-T7750E

Important Information

Proprietary Telephones

When using the KX-T7700 series, keep the following in mind.

If there is any problem, unplug the extension and connect a known working phone. If the

known working phone operates properly, have the defective phone repaired by your

maintainer. If the known working phone does not operate properly, check the PABX

System and the internal extension wiring.

Keep the unit away from heating appliances and electrical noise generating devices such

as fluorescent lamps and motors.

The unit should be kept free of dust, moisture and vibration, and should not be exposed to

direct sunlight.

Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a

soft cloth.

Do not disassemble this unit. Dangerous electrical shock could result. The unit must only

be disassembled and repaired by qualified service technicians.

When a failure occurs which exposes any internal parts, disconnect the telephone line

and mains supply immediately and return the unit to your maintainer.

This unit is designed to be installed under controlled conditions of ambient temperature

and a relative humidity.

Avoid installing the unit in damp or humid environments, such as bathrooms or swimming

pools.

999 or 112 can be dialled on the product after accessing the CO line for the purpose of

making outgoing calls to the BT emergency (999) and (112) services.

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS

OBJECTS.

IMPORTANT NOTICE:

Under power failure conditions, this telephone may not operate. Please ensure that a

separate telephone, not dependent on local power, is available for use in an emergency.

Notes:

In this manual, the suffix of each model number is omitted.

For further information, refer to the Main Unit/PABX Manuals.

•

PSQW1804UA-VB.fm Page 1 Friday, January 8, 2010 10:07 AM

– 2 –

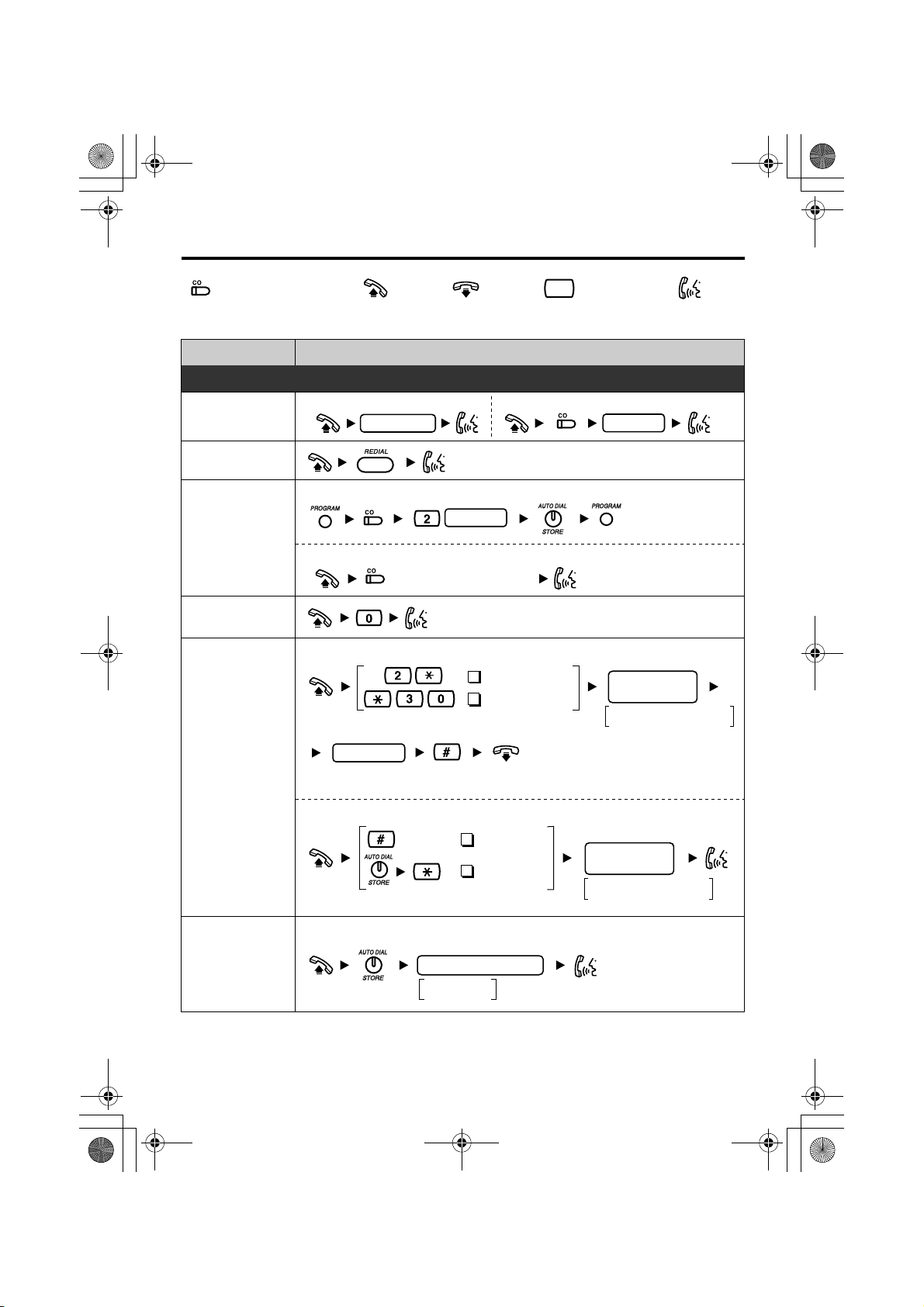

Features List

Off-hookOutside (CO) Line button On-hook Feature number Talk

"Location of Controls" is shown on page 8.

Desired Function Operation

Calling

To set

To dial

Redial

One-touch

Dialling

Calling an

operator

Personal Speed

Dialling

To an extension To an external party

extension no.

To program

To dial

–

assigned as a One-touch

dialling button

phone no.

(Check the type of your Main Unit.)

desired no.

(Check the type of your Main Unit.)

System Speed

Dialling

To dial

Making Calls

KX-TE Series

KX-TDA Series

phone no.

KX-TDA Series

(TE: max. 24 digits)

(TDA: max. 32 digits)

Personal speed

dial no.

System speed dial no.

TDA: 000-999

TE: 00-99

TDA: 00-99 (Default: 00-09)

TE: 0-9

Personal speed

dial no.

TDA: 00-99 (Default: 00-09)

TE: 0-9

PSQW1804VA.fm Page 2 Wednesday, May 13, 2009 9:10 AM

Features List

Desired Function Operation

Picking up

a call Group

Directed

extension no.

(Check the type of your Main Unit.)

extension no.

group no.

To set

While hearing a busy tone

To answer

If you hear callback ringing

Automatic

Callback Busy

When the Dialled Extension is Busy/No Answer

Sender

To leave a notification

To cancel a notification

extension no.

(Check the type of your Main Unit.)

Message

Waiting

Receiver

To call back

To clear all notifications

receiver's

extension no.

(Check the type of your Main Unit.)

Receiving Calls

While on-hook

Hands-free

answerback

(KX-T7720/T7730

only)

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

– 3 –

PSQW1804VA.fm Page 3 Wednesday, May 13, 2009 9:10 AM

Features List

Desired Function Operation

When the Dialled Extension is Busy/No Answer

Call Waiting

Set

Cancel

For outside calls

Set

Cancel

For intercom calls/doorphone calls

Receiver

Sender

While hearing a busy tone

Wait for an answer.

(Check the type of your Main Unit.)

For outside calls

Set

For intercom calls

Set

To talk to the new party

(While hearing the Call Waiting tone)

Terminating a current status

Holding a current status (outside call)

Holding a current status (extension)

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

Cancel

–

PSQW1804VA.fm Page 4 Wednesday, May 13, 2009 9:10 AM

Features List

Desired Function Operation

Holding To retrieve a call at the holding extension

To retrieve an outside call from another extension

To retrieve a call on exclusive holdHolding

extension no. to an extension

Announce.

phone no. to an external party

Holding a call

exclusively

Transferring

a call

Paging

Announce.

All extensions

Group

All external speakers

All extensions & external speakers

group no.

To answer an announced page

Through a telephone speaker

To page

group no.

During a Conversation

Useful Features

third party's no.

Three-party

conference

(Check the type of your Main Unit.)

KX-TE Series

KX-TDA Series

Announce.

You can make a voice announcement to extensions or external speakers or both

in the preset group simultaneously.

KX-TE Series

KX-TDA Series

–

PSQW1804VA.fm Page 5 Wednesday, May 13, 2009 9:10 AM

Features List

Desired Function Operation

Useful Features

Setting Absent

Message

message no.

parameter (if required)

message no.

(Check the type of your Main Unit.)

To an outside line

Cancel

Busy/No answer

All calls

extension no.

Follow Me

your extension no.

Follow Me Cancel

your extension no.

phone no.

line access

code

Clearing the

setting 7 9 0

(Check the type of your Main Unit.)

7 9 #

(Check the type of your Main Unit.)

Busy

Cancel

No answer

Busy/No answer

extension no.

All calls

extension no.

your extension no.

Follow Me

Follow Me Cancel

Forwarding

a call

Both calls

Outside calls

Intercom calls

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

– 6 –

PSQW1804VA.fm Page 6 Wednesday, May 13, 2009 9:10 AM

Features List

Desired Function Operation

Do Not Disturb

(DND)

Set

Cancel

Both calls

Outside calls Cancel

Set

Intercom calls

lock code lock code

lock code

Lock

Unlock

Locking your

extension

extension PIN

Lock

Unlock

7 7

7 7 #

Consult your dealer for more details about the feature access numbers.

Useful Features

ICD Group

extension no.

Log-in/Log-out

For Log-in

For Log-out

For Log-in

For Log-out

Specified

All

(Check the type of your Main Unit.)

ICD Group: Incoming Call Distribution Group

(Check the type of your Main Unit.)

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

KX-TE Series

KX-TDA Series

PIN: Personal Identification Number

(Check the type of your Main Unit.)

– 7 –

PSQW1804VA.fm Page 7 Wednesday, May 13, 2009 9:10 AM

Location of Controls

Headset Jack

LCD (Liquid Crystal Display)

RINGER Volume Selector

10 11

Microphone

* The KX-T7750 does not have a microphone.

* The display and headset jack are only available on the KX-T7730.

* Headset (not included)

Not available: KX-T7090

– 8 –

PSQW1804UA-VB.fm Page 8 Tuesday, January 10, 2012 5:05 PM

7AUTO DIAL/STORE: Used for speed

dialling or storing program changes.

8TRANSFER: Used to transfer a call to

another party.

9REDIAL: Used to redial.

HOLD: Used to place a call on hold.

SP-PHONE (Speaker Phone)

(KX-T7720/7730):

Used for the handsfree

operation.

MONITOR (KX-T7750): Used for

handsfree dialling. You can monitor the

other party's voice handsfree.

Navigator Key (KX-T7730): Used to

adjust the volume and the display contrast

or select desired items for each function.

Volume Key (KX-T7720/7750): Used to

adjust the volume.

PAUSE: Used to insert a pause during

dialling.

MESSAGE: Used to leave a message

waiting indication or call back the party

who left the message waiting indication.

Message/Ringer Lamp: The Message/

Ringer lamp informs you visually that you

have a message or a call.

• When you receive a call, the lamp flashes

depending on the ringing pattern. When

someone has left you a message, the

lamp is lit continuously.

When the ringing pattern is set to Single

(Slow flash), Double (Moderate flash), or

Triple (Rapid flash) in your PABX, the

lamp flashes. When the other ringing

patterns are set in your PABX, the lamp

may not flash. (e.g., S-Double, Call

Waiting Tone1).

Flexible Outside (CO) Line Button:

Used to make or receive an outside call.

Pressing this button seizes an idle outside

line automatically. (Button assignment is

required.) Also used as function buttons.

(Button assignment is required.)

6AUTO ANS (Auto Answer)

(KX-T7720/7730): Used to receive an

incoming call in the hands-free mode.

MUTE (KX-T7720/7730): Used to mute the

microphone during a conversation.

VOICE CALL (KX-T7750): Used to receive

a notification via monitor in place of ringing.

1PROGRAM: Used to enter and exit the

programming mode.

FWD/DND (Call Forwarding/Do Not

Disturb):

Used to perform Call Forwarding

or Do Not Disturb.

5FLASH/RECALL: Used for External

Feature Access or to disconnect the

current call and make another call without

hanging up.

2CONF (Conference): Used to establish a

multiple party conversation.

3INTERCOM: Used to make or receive

intercom calls.

–

Location of Controls

PSQW1804VA.fm Page 9 Wednesday, May 13, 2009 9:10 AM

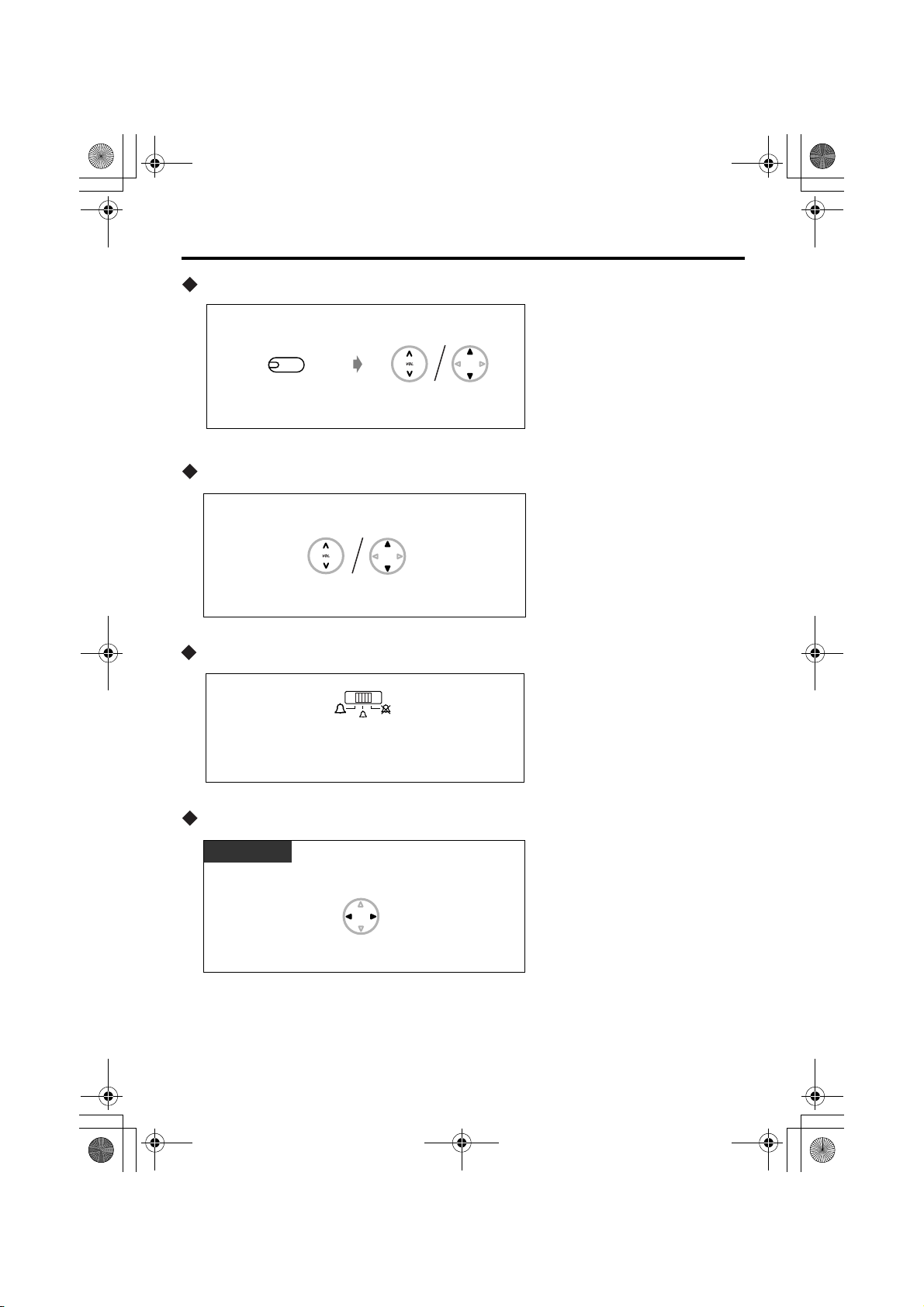

Initial Settings

Speaker volume

Press SP-PHONE. Press Up or Down.

While on-hook or during a conversation

Handset/Headset volume

Press Up or Down.

While using the handset or headset

Ringer volume

SP-PHONE

Display contrast

Press Left or Right.

While on-hook or receiving a call

KX-T7730

Slide the lever of the RINGER Volume Selector

to the desired setting (HIGH/LOW/OFF).

RINGER

* The above settings may return to default settings if the telephone line cord is

disconnected or the main unit's power is interrupted.

–

PSQW1804VA.fm Page 10 Wednesday, May 13, 2009 9:10 AM

Altri manuali per KX-T7720E

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Panasonic Telefono

Panasonic

Panasonic SUNCO DT546 Guida all'installazione

Panasonic

Panasonic KXDT321 - DIGITAL PROPRIETARY TELEPHONE Manuale utente

Panasonic

Panasonic T-Mobile KX-HDV130 Manuale utente

Panasonic

Panasonic KX-NS700 Manuale utente

Panasonic

Panasonic KX-TGE220AZ Manuale utente

Panasonic

Panasonic KX-TG2421W Manuale utente

Panasonic

Panasonic 4LINE KX-TGWA40 Manuale utente

Panasonic

Panasonic KXTD7690 - BTS 2.4 GHZ WIRELESS Manuale utente

Panasonic

Panasonic KX-T7565 Manuale utente

Panasonic

Panasonic HYBRID IP-PBX KX-TDA200 Manuale del proprietario

Panasonic

Panasonic KX-T2386BA Manuale utente

Panasonic

Panasonic KX-TS620EX Manuale utente

Panasonic

Panasonic KX-TDA50 Manuale del proprietario

Panasonic

Panasonic KX-T7420 Manuale utente

Panasonic

Panasonic KX-TCD510RUM Manuale utente

Panasonic

Panasonic KX-TGH260 Manuale utente

Panasonic

Panasonic KX-TS600MXB Manuale utente

Panasonic

Panasonic KX-TG6411BXS Manuale utente

Panasonic

Panasonic EASA-PHONE KX-T61650 Manuale utente

Panasonic

Panasonic DBS 96 Manuale utente

Panasonic

Panasonic 2LINE KX-TG6700 Manuale utente

Panasonic

Panasonic KX-DT543 Manuale utente

Panasonic

Panasonic KX-FPC91 Manuale utente

Panasonic

Panasonic KXTG2343F - 2.4 GHZ DIGITAL CDL Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente

Yealink

Yealink VP530 Manuale utente
