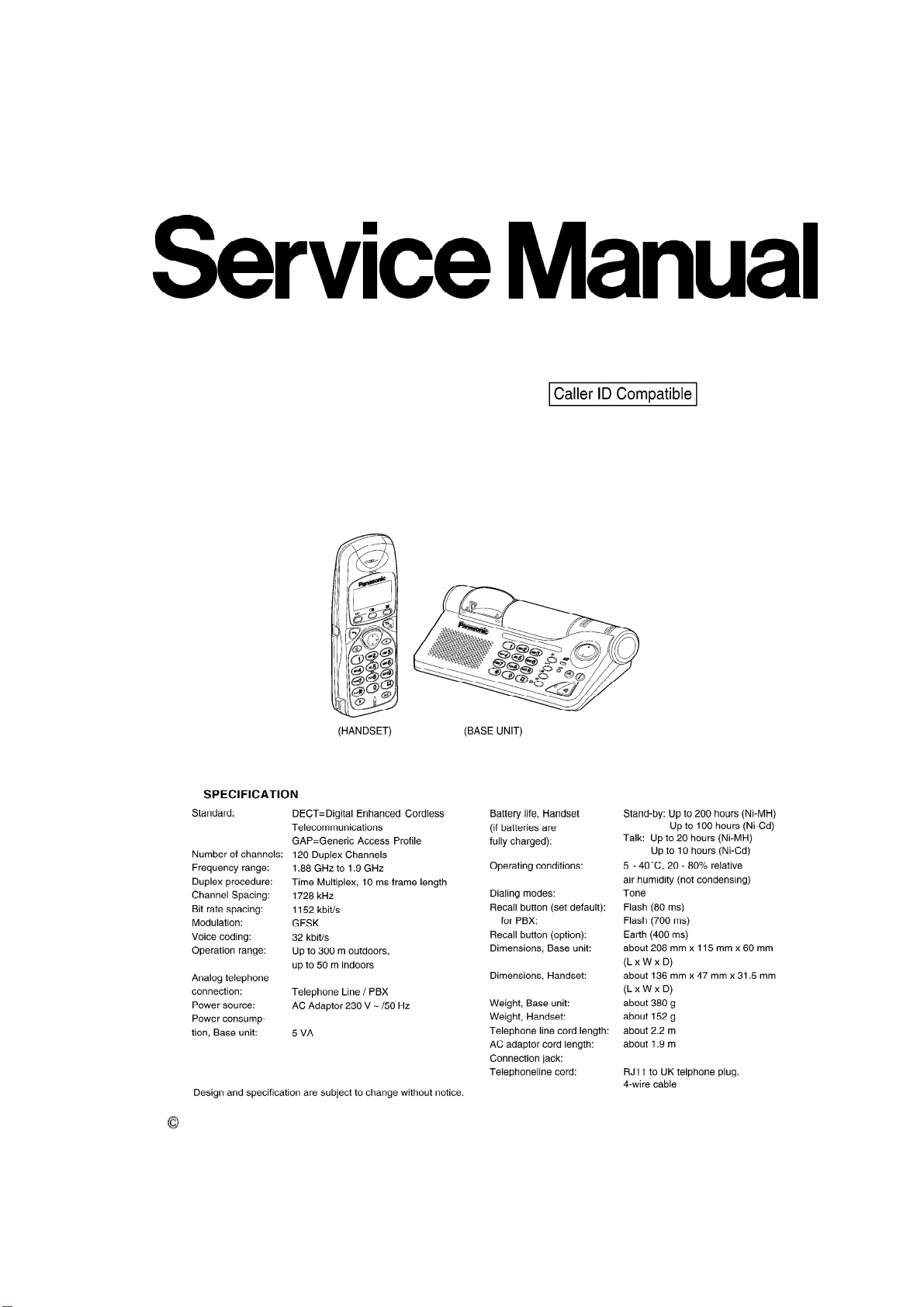

ORDERNO. KM40112745C2

Telephone Equipment

KX-TCD715EM

Digital Cordless Phone

MetallicGreyVersion

(for United Kingdom)

SPECIFICATIONS

2001 Kyushu Matsushita ElectricCo., Ltd. All rights reserved.

Unauthorized copying and distribution isaviolation of law.

1

1. LOCATION OF CONTROLS

1.1. Base Unit

2

1.2. Handset

3

2. DISPLAYS

2.1. Icons

4

2.2. Characters/Symbols

2.3. DisplayBacklight

2.4. Lighted Handset Keypad

3. DISASSEMBLY INSTRUCUTIONS

5

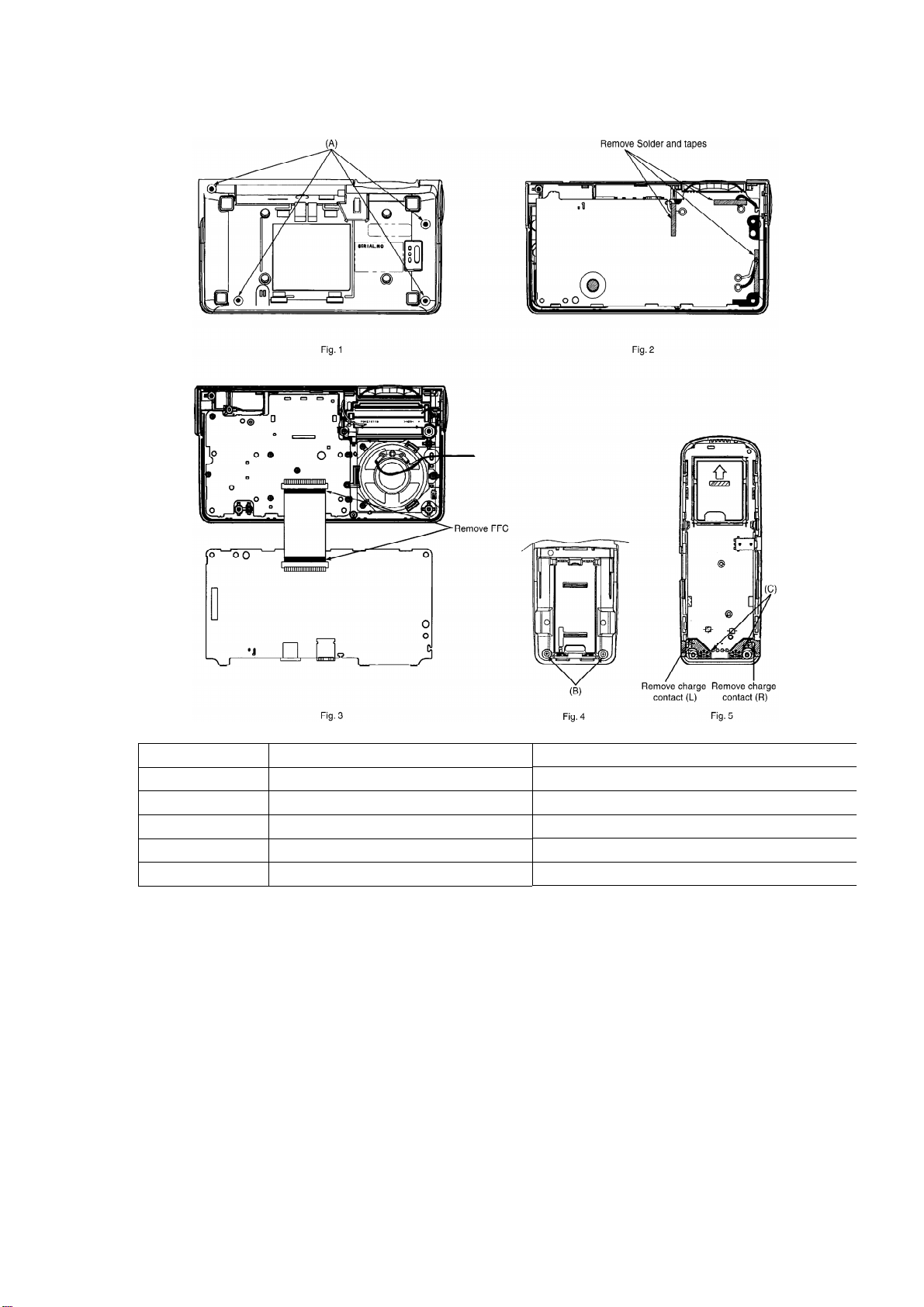

ShowninFig. To Remove Remove

1LowerCabinet Screws (2.6 × 14).................(A) × 4

2 MainP.C.B of base Remove solderand tapes

3 MainP.C.B of base FFC

4RearCabinet of handset Screws (2 × 8)......................(B) × 2

5 MainP.C.B of handset Screws (2 × 6)......................(C) × 2

3.1. Assemblythe LCD to P.C. Board (Handset)

6

4. SETTINGS

4.1. Connections

Plug inthe AC Adaptorand the telephone line cordtothe rearof the unit. Thenconnect the cord

as shown.

7

USE ONLY WITH Panasonic AC ADAPTOR PQLV1EZ.

-The AC Adaptor must remainconnected at all times. (Itisnormal

for the adaptor to feel warm during use.)

-Thistelephone has asingleterminal which must be connected to

an analog telephone line with aUK telephone connector.

-Ifyour unitisconnected to aPBXwhich does not support Caller ID

services, you cannot access those services.

-The telephone will not work during apower failure. We therefore

recommend you use astandard telephone and automaticchange-

over switch to connect thisDigital Cordless Phone to the line.

Your PanasonicSales Shop can offer you more information about

connection possibilities.

4.2. Using the BeltClip

You canhang the handset on yourbelt orpocket using the belt clip.

8

4.3. Batteries

4.3.1. Installing the Batteries inthe Handset

4.3.2. BatteryCharge

4.3.3. BatteryStrength

You cancheck the present batterystrengthon the display.

4.3.4. Recharge

4.3.5. BatteryInformation

Afteryourbatteries are fullycharged:

-Batteryoperation time maybe shortened depending on usage

conditions, such as:

-when viewing the Caller IDCaller List, or phonebook

-when talking inspeakerphone mode,

-ambient temperature.

-Clean the handset and base unitcharge contacts with asoft, dry

9

cloth.

Clean ifthe unitissubject to grease, dust or high humidity.

Otherwise the batteries maynot charge properly.

-Ifthe batteries are fullycharged, you do not have to place the

handset on the base unituntil” “flashes. Thiswill maximize the

batterylife.

-The batteries cannot be overcharged.

-Nickel cadmium (Ni-Cd) rechargeablebutteries (AA size) are

available.

When you replace the batteries, you must program the battery

type selection.

5. OPERATIONS

This section is intendedtoprovide a basic overviewforKX-TCD715EM.

Fora full explanation, refertothe Operating Instructions.

5.1. Turning the Power On

5.2. Making aCall

10
