Setting up

For further information, visit http://www.panasonic.com/phonehelp

Base unit CHARGE 7 HOURS

Handset

Noise filter (For DSL Service users)

Hook

(120 V AC, 60 Hz)

To single-line

telephone jack

(RJ11C)

“Click”

Charger

Press plug

firmly.

“Click”

(120 V AC, 60 Hz)

Charging

Use only the included Panasonic AC adaptor

PQLV1 or PQLV256.

Confirm

“Charging” is

displayed.

KX-TG5622/KX-TG5623

Confirm CHARGE

indicator is on.

Model No. KX-TG5621

KX-TG5622

KX-TG5623

Quick Guide

TG562x_QG(e).fm Page 1 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

all-guides.com

–2 –

Operating tips

{ }: shows button names.

Using the navigator key

After pressing {MENU}or {Phonebook}, the

handset navigator key can be used. Press {^}, {V},

{<}, or {>}to navigate through menus and to select

items shown on the display.

Adjusting audio volume

Press {^} or {V} repeatedly while talking.

Handset soft keys

The handset features 2 soft keys. By pressing a soft

key, you can select the feature shown directly above

it on the display.

{

Select},

{

Save},

{

OK}and additional other

functions are assigned to soft keys. Pay attention to

soft keys to find functions you need during handset

operation.

Adding items to the phonebook (Handset)

1{Phonebook}i{Add}

2Enter the name (max. 16 characters). i{Next}

3Enter the phone number (max. 32 digits). i{Next}i

{

Save}i{OFF}

For further information, visit http://www.panasonic.com/phonehelp or refer to

Operating Instructions.

{V}

{^}

{<}{>}

Rcvd Phone

calls book

TG562x_QG(e).fm Page 2 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

–3 –

Basic operation (Handset)

Feature Operation

Adjusting the receiver/

speaker volume

Press {^} or {V} repeatedly while talking.

Viewing the caller list and

calling back

Press {^} or {V} repeatedly to select the desired item. i

{C}

Ringer volume 1{MENU}i{1}{1}

2Select the desired volume. i

{

Save}

Answering call-waiting

call (2nd call)

Press {CALL WAIT}when you hear call waiting tone.

Voice Mail service

Voice Mail is an automatic answering service offered by your telephone service provider.

After you subscribe to this service, the telephone service provider’s Voice Mail system will

answer calls for you when you are unavailable to answer the phone or when your line is

busy. Messages are recorded by the telephone service provider, not your telephone.

Feature Operation

Storing the Voice Mail

(VM) access number

1{MENU}{0}{7}{1}

2Enter your access number (max. 32 digits). i{Save}

i{OFF}

Listening to Voice Mail

messages

1Press {C} or {s}, then press {VM}within 15 seconds.

2Follow the pre-recorded instructions.

3Press {OFF}when finished.

For further information, visit http://www.panasonic.com/phonehelp

TG562x_QG(e).fm Page 3 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

–4 –

Quick troubleshooting

Place the handset on the base unit,

then check if CHARGE indicator is on.

CHARGE indicator is OFF. CHARGE indicator

is ON.

Unplug and then plug AC

adaptor properly to both

the base unit and AC

outlet.

Unplug the AC adaptor of the base unit and remove the

battery from the handset, then plug in the AC adaptor

and insert the battery into the handset again. Try re-

registration as explained later in this guide.

Lift the handset, then try again.

If handset still shows the same

message, try re-registration as

explained later in this guide.

CHARGE indicator

is still OFF.

Re-registration

failed.

Re-registration

failed.

CHARGE

indicator is ON,

now.

Your telephone may need service. For further troubleshooting,

please visit http://www.panasonic.com/phonehelp

“No link to base. Move closer to base, try again.”

1Handset shows:

TG562x_QG(e).fm Page 4 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

–5 –

Quick troubleshooting

Lift up the handset from the base unit

or charger.

Press {C} (TALK) at the handset,

then check if the display shows

“Talk”.

Press {s} (SP-PHONE),

then check if the dial

tone is heard from the

speaker on the back.

No dial tone

Still no dial tone

Dial tone is heard.

Your telephone may need service.

Please visit http://www.panasonic.com/phonehelp for further

troubleshooting.

{C}

{s}

“No link to base.

Move closer to

base, try again.”

is displayed.

“Talk” is

displayed.

Check the telephone

cord is properly

connected to both

the base unit and

telephone jack on

the wall.

Try remedy for 1

on previous page.

Your telephone may

need service when

only back speaker

provides a dial tone.

2No dial tone is heard from handset.

No link to base.

Move closer to

base, try again.

Talk

(VE) Mute

TG562x_QG(e).fm Page 5 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

–6 –

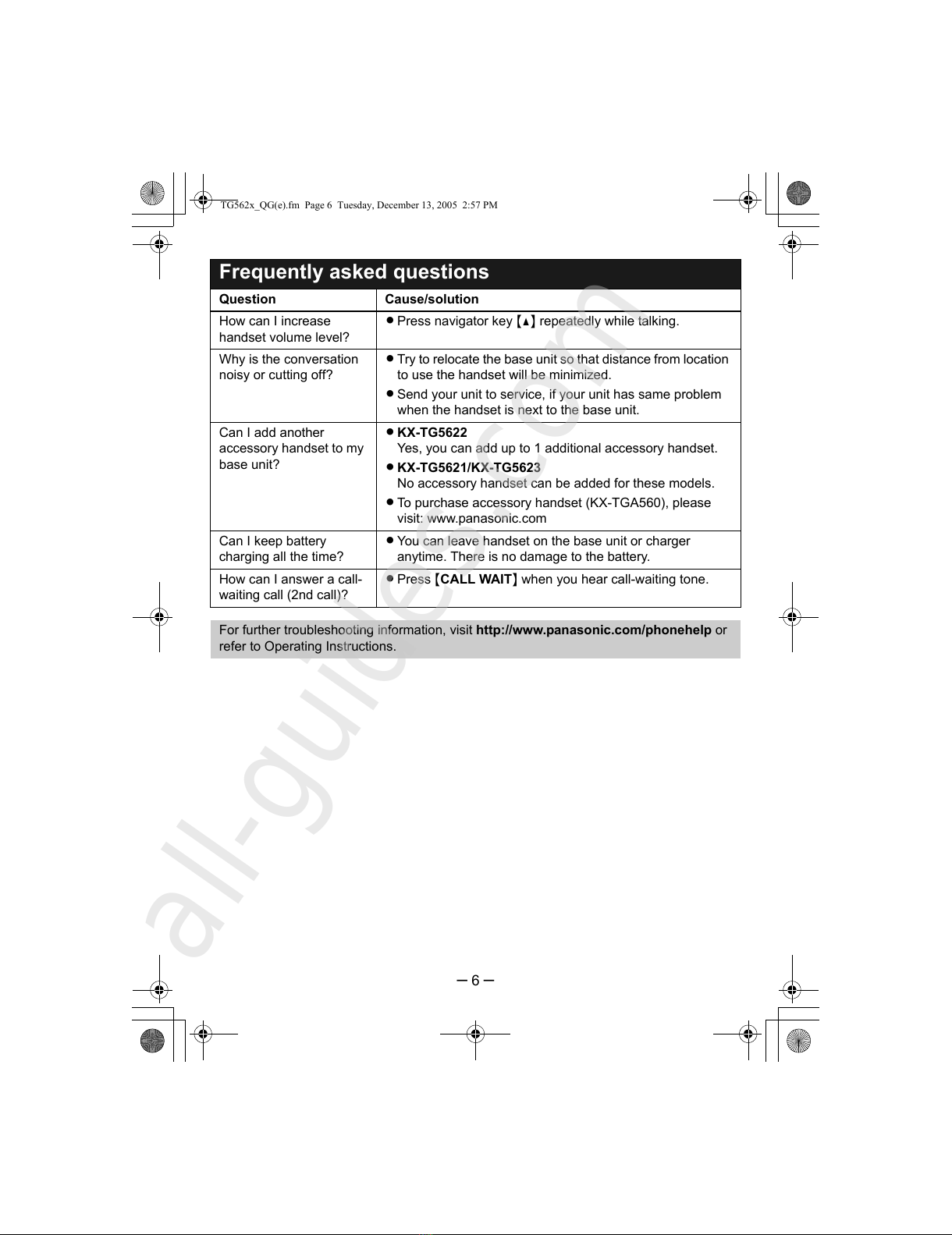

Frequently asked questions

Question Cause/solution

How can I increase

handset volume level?

LPress navigator key {^} repeatedly while talking.

Why is the conversation

noisy or cutting off?

LTry to relocate the base unit so that distance from location

to use the handset will be minimized.

LSend your unit to service, if your unit has same problem

when the handset is next to the base unit.

Can I add another

accessory handset to my

base unit?

LKX-TG5622

Yes, you can add up to 1 additional accessory handset.

LKX-TG5621/KX-TG5623

No accessory handset can be added for these models.

LTo purchase accessory handset (KX-TGA560), please

visit: www.panasonic.com

Can I keep battery

charging all the time?

LYou can leave handset on the base unit or charger

anytime. There is no damage to the battery.

How can I answer a call-

waiting call (2nd call)?

LPress {CALL WAIT}when you hear call-waiting tone.

For further troubleshooting information, visit http://www.panasonic.com/phonehelp or

refer to Operating Instructions.

TG562x_QG(e).fm Page 6 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

all-guides.com

–7 –

Registering a handset to base unit

The included handset and base unit are preregistered. If for some reason the handset is

not registered to the base unit, register the handset.

For further registration information, visit

http://www.panasonic.com/RegisterYourHandset

Handset

Press {MENU}, then press {0}{0}.

Handset

Press {OK}.

Base unit

LKX-TG5621

Press and hold {HANDSET LOCATOR}until

the CHARGE indicator flashes.

LKX-TG5622/KX-TG5623

Press and hold {1}, {2}, or {3}until the

CHARGE indicator flashes.

LComplete next step within 1 minute.

Refer to manual

to prepare base.

Then press OK

Refer to manual

to prepare base.

Then press OK

{MENU}

{OK}

TG562x_QG(e).fm Page 7 Tuesday, December 13, 2005 2:57 PM

All manuals and user guides at all-guides.com

1Read this Quick Guide or Operating

Instructions

LIf you lost Operating Instructions, you can download at

http://www.panasonic.com/phonehelp

2Visit our website:

http://www.panasonic.com/phonehelp

LFAQs and troubleshooting hints are available.

3Contact us via the web at:

http://www.panasonic.com/contactinfo

4Call us at:

1-800-211-PANA (1-800-211-7262)

LMonday - Friday 9:00am - 9:00pm (EST),

Saturday/Sunday 10:00am - 7:00pm (EST)

To order a replacement battery,

please call: 1-800-332-5368

Or visit:

http://www.panasonic.com/batterystore

IMPORTANT!

If your product is not

working properly. . .
