Panasonic KX-TS500HG Manuale utente

PQQX13969ZA F1003-0 D

Manufactured by Panasonic

Communications (Malaysia) Sdn. Bhd.

Senai Malaysia

For your future reference

Serial No.

(found on the bottom of the unit)

Date of purchase

Name and address of dealer

Integrated Telephone System

Operating Instructions

Model No. KX-TS500HG

Pulse-or-tone dialing capability

PLEASE READ BEFORE USE AND SAVE.

KX-TS500HGW

This equipment is designed for use on

Hungary only.

In the event of problems, you should contact

your equipment supplier in the first instance.

1999/5/EC

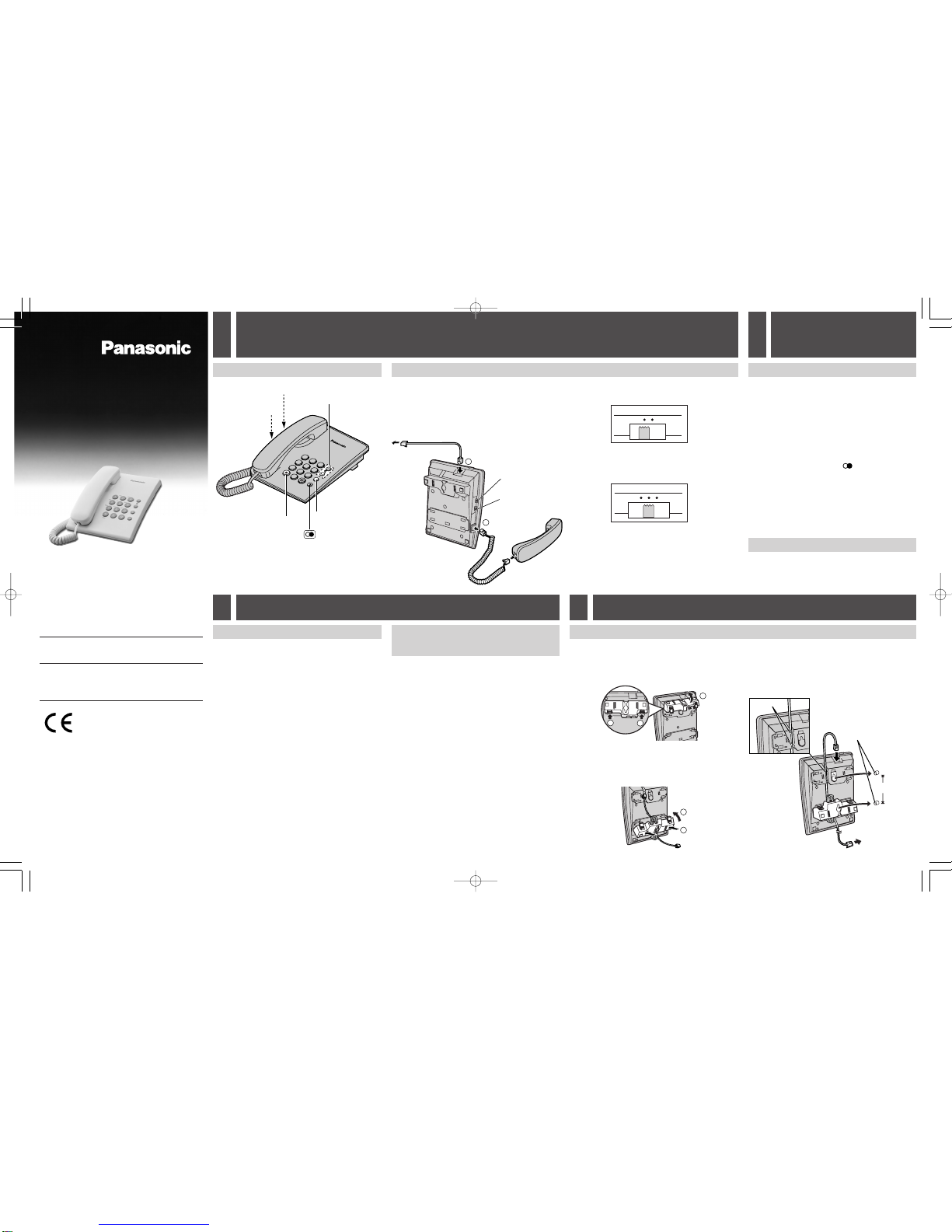

1Getting Started

1-A Location of controls 1-B Settings

ABC

DEF

JKL

MNO

GHI

TUV

WXYZ

PQRS

TONE

($) Button (3-B) (R) Button

(3-A)

RINGER Selector

(1-B)

Button (2-A)

DIALING MODE Selector

(1-B)

VOLUME (^), (_)

Buttons (2-A)

1Connect the telephone line cord (1).

2Connect the handset cord (2), then confirm

the dial tone.

To Single-Line

Telephone Jack

Handset Cord

Handset

Telephone Line Cord

RINGER Selector

DIALING MODE

Selector

TONE PULSE

DIALING MODE

HIGH OFF

RINGER

3Set the DIALING MODE selector to TONE.

≥If you cannot dial, set to PULSE.

4Set the RINGER selector to HIGH, LOW or

OFF.

(Ex. “LOW” is selected.)

∑Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . one

∑Handset Cord . . . . . . . . . . . . . . . . . . . . . . . . . one

∑Telephone Line Cord . . . . . . . . . . . . . . . . . . . one

Accessories (included)

≥When set to OFF, the unit will not ring.

2Operation

2-A Making Calls

1Lift the handset.

2Dial a phone number.

≥If you misdial, hang up and start again from

step 1.

3When finished talking, hang up.

To redial the last number dialed

Lift the handset. ➡Press .

To adjust the receiver volume (6 levels)

while talking

To increase, press (^).

To decrease, press (_).

≥After hanging up, the volume level will be saved.

(\\\)

4Things You Should Know

“

Things You Should Know3Special Features

3-A

Recall Button

Pressing (R) allows you to use special features

of your host PBX such as transferring an

extension call or accessing special telephone

services (optional) such as call waiting.

2-B Answering Calls

1When the unit rings, lift the handset.

2When finished talking, hang up.

3-B Temporary Tone Dialing

(For Rotary or Pulse Service Users)

Press ($) before entering access numbers

which require tone dialing.

≥The dialing mode changes to tone. You can enter

numbers to access answering services, electronic

banking services, etc. When you hang up, the

mode will return to pulse.

≥Access numbers entered after pressing ($) will not

be included when redialing.

4-A Wall Mounting

To Single-Line

Telephone Jack

Screws

8.3 cm

Hooks

The unit can be mounted on a wall.

1Press the tabs in the direction of the arrows

(1), then remove the wall mounting adaptor

(2).

3Install screws using the wall template below.

Connect the telephone line cord. Mount the

unit, then slide down.

≥Fasten the cord to prevent it from being

disconnected.

2Tuck the telephone line cord inside the wall

mounting adaptor, and push it in the direction

of the arrow (1and 2).

≥The word “UP WALL”should face upward.

EPQQX13969ZA03.10.102:43PMページ1

“

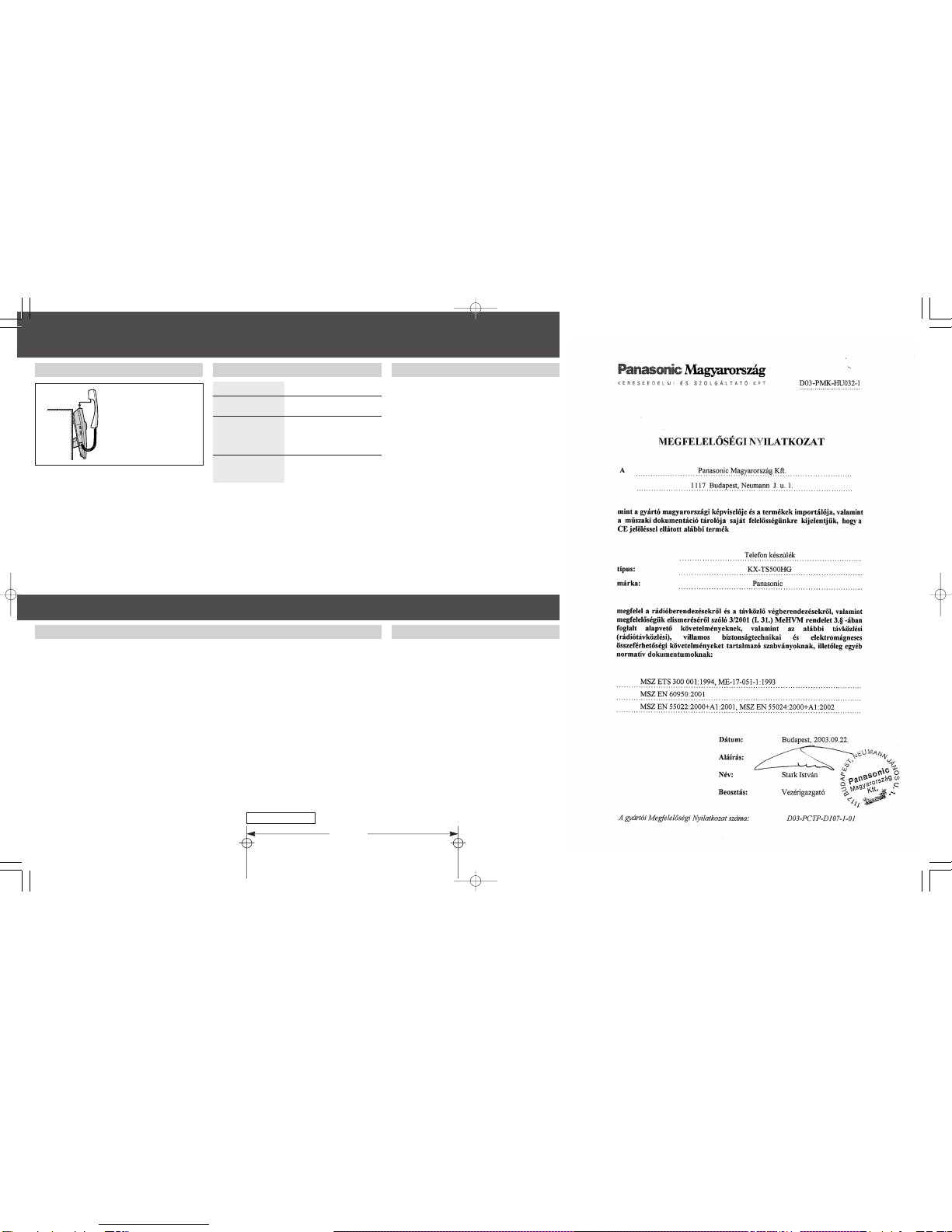

Things You Should Know

4-B Troubleshooting

Problem

The unit does not

work.

The call cannot be

connected even if

you dialed

correctly.

The unit does not

ring.

Remedy

≥Check the settings (1-B).

≥Check whether the

DIALING MODE selector

setting is correct or not

(1-B).

≥The RINGER selector is

set to OFF. Set to HIGH

or LOW (1-B).

To temporarily set the

handset down during

a conversation, place

it as shown here.

4-C Safety Instructions

Take special care to follow the safety suggestions

listed below.

Installations

Environment

1) Do not use this unit near water—for example,

near a bathtub, washbowl, sink, etc. Damp

basements should also be avoided.

2) The unit should be kept away from heat sources

such as radiators, kitchen range, etc. It also should

not be placed in rooms where the temperature is

less than 5oC or greater than 40oC.

Placement

1) Do not place heavy objects on top of this unit.

2) Care should be taken so that objects do not fall

onto, and liquids are not spilled into the unit. Do not

subject this unit to excessive smoke, dust,

mechanical vibration or shock.

3) Place the unit on a flat surface.

4-D Specifications

Power Source: From telephone line

Dimensions (H x W x D):

Approx. 96 mm x 150 mm x 200 mm

Mass (Weight): Approx. 475 g

Dialing Mode: Tone (DTMF)/Pulse

Operating Environment: 5 °C –40 °C

Specifications are subject to change without notice.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR ANY

TYPE OF MOISTURE.

If trouble occurs, disconnect the unit from the

telephone line and connect to a known working

phone. If the known working phone operates

properly, do not reconnect the unit until the trouble

has been repaired. If the known working phone does

not operate properly, consult your telephone

company.

Lightning surge

This unit has already been equipped with a built-in

lightning protection circuit. However, we recommend

that you install lightning protection on the telephone

line, if your area has a high incidence of lightning

strikes.

To install the above option, please contact your local

sales shop.

≥Lightning damage is not covered in the warranty

even if lightning protection is installed.

8.3 cm

Wall Template

EPQQX13969ZA03.10.102:43PMページ2
