Operating Instructions

Integrated Telephone System

Model No. KX-TS560ML

This unit is compatible with Caller ID. You must subscribe to the appropriate service offered

by your service provider/telephone company.

Please read these operating instructions before using the unit and save them for future

reference.

Model shown is KX-TS560ML

KX-TS560ML.book Page 1 Monday, November 10, 2008 2:29 PM

Accessory information.......................3

For your safety................................... 4

Important safety instructions ............. 4

For best performance ........................5

Controls .............................................6

Display...............................................7

Battery installation and

replacement....................................... 8

Connections ......................................9

Connecting a communication

device .............................................. 10

Symbols used in these operating

instructions ...................................... 11

Setting up the unit before use ......... 12

Date and time ............................. 12

Dialling mode ............................. 12

Storing your area code............... 12

Programmable settings ................... 13

Special instructions for

programmable settings .................... 14

Call restriction ............................ 14

Changing the unit password....... 14

Making calls..................................... 15

Answering calls ............................... 16

Useful features during a call............ 17

Handset mute ............................. 17

Flash .......................................... 17

For call waiting service users ..... 17

Temporary tone dialling (for rotary/

pulse service users) ................... 17

Dial lock........................................... 18

Phonebook ......................................19

Chain dial ........................................20

Using Caller ID service....................21

Caller list..........................................22

Wall mounting..................................23

Troubleshooting ...............................24

Specifications ..................................26

Index................................................27

Introduction

Preparation

Programming

Making/Answering Calls

Phonebook

Caller ID Service

Useful Information

Index

Table of Contents

KX-TS560ML.book Page 2 Monday, November 10, 2008 2:29 PM

Thank you for purchasing a new Panasonic integrated telephone.

For your future reference

We recommend keeping a record of the following information to assist with any repair under

warranty.

Serial No. Date of purchase

(found on the bottom of the unit)

Name and address of dealer

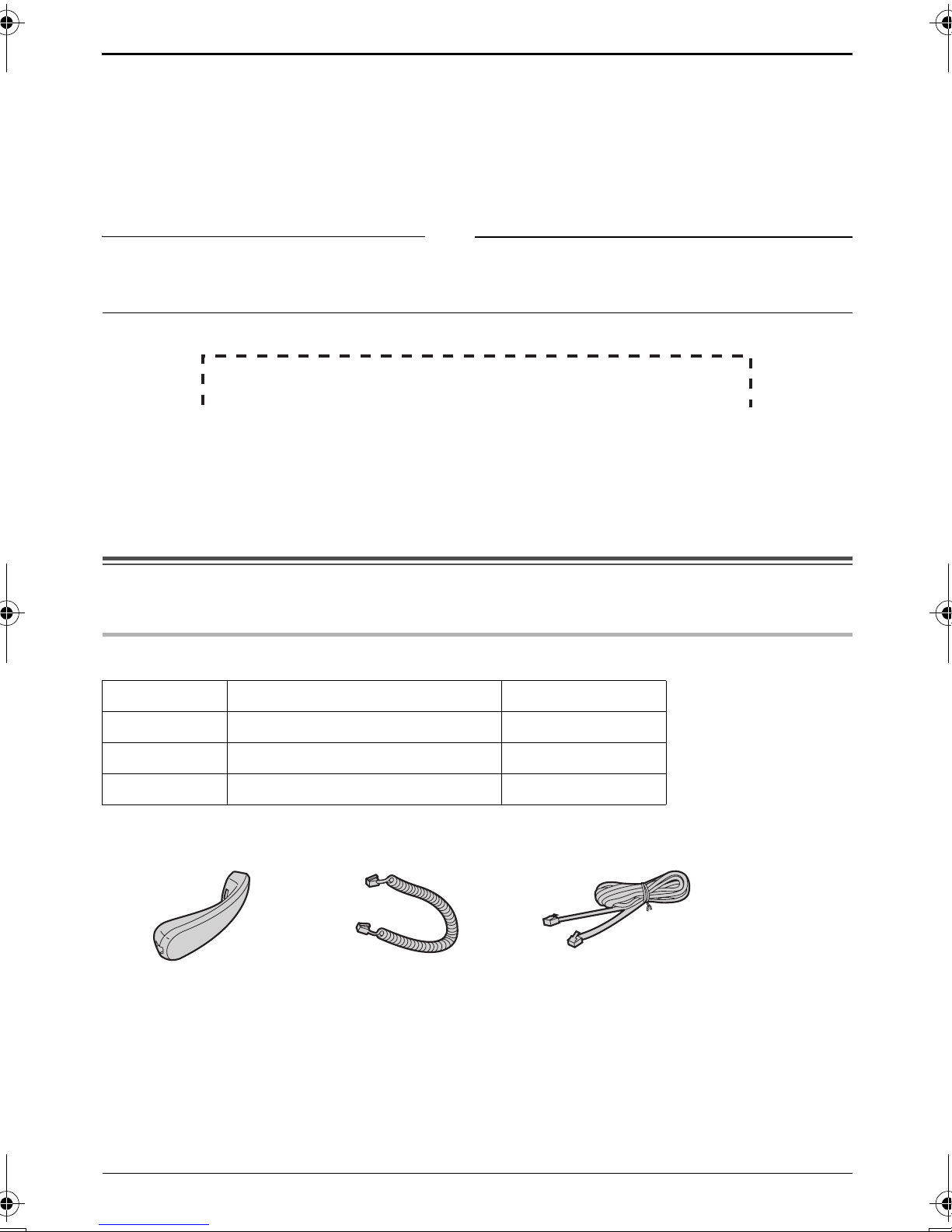

Accessory information

Supplied accessories

No. Accessory item Quantity

1Handset 1

2Handset cord 1

3Telephone line cord 1

123

Attach your purchase receipt here.

Introduction

KX-TS560ML.book Page 3 Monday, November 10, 2008 2:29 PM

Introduction

For your safety

To prevent severe injury and loss of life/

property, read this section carefully before

using the product to ensure proper and safe

operation of your product.

WARNING

Installation

≥To prevent the risk of fire or electrical shock, do

not expose the product to rain or any type of

moisture.

Operating safeguards

≥Do not disassemble the product.

≥Do not spill liquids (detergents, cleansers, etc.)

onto the telephone line cord plug, or allow it to

become wet at all. This may cause a fire. If the

telephone line cord plug becomes wet,

immediately pull it from the telephone wall jack,

and do not use.

CAUTION

Installation and relocation

≥Never install telephone wiring during an

electrical storm.

≥Never install telephone line jacks in wet

locations unless the jack is specifically

designed for wet locations.

≥Never touch uninsulated telephone wires or

terminals unless the telephone line has been

disconnected at the network interface.

≥Use caution when installing or modifying

telephone lines.

≥This product is unable to make calls when:

sthe dial lock feature is turned on.

sthe call restriction feature is turned on (only

phone numbers stored in the unit as

emergency numbers can be called.)

Battery

≥We recommend using the batteries noted on

page 8.

≥Do not mix old and new batteries.

Important safety instructions

When using your product, basic safety

precautions should always be followed to

reduce the risk of fire, electric shock and

injury to persons, including the following:

1. Do not use this product near water, for

example, near a bathtub, washbowl, kitchen

sink or laundry tub, in a wet basement or near

a swimming pool.

2. Avoid using a telephone (other than a cordless

type) during an electrical storm. There may be

a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak

in the vicinity of the leak.

4. Use only the batteries indicated in this

manual. Do not dispose of batteries in a fire.

They may explode. Check with local codes for

possible special disposal instructions.

SAVE THESE INSTRUCTIONS

KX-TS560ML.book Page 4 Monday, November 10, 2008 2:29 PM

Introduction

For best performance

Environment

≥The product should be kept free from

excessive smoke, dust, high temperature, and

vibration.

≥The product should not be exposed to direct

sunlight.

≥Do not place heavy objects on top of the

product.

≥The product should be kept away from heat

sources such as radiators, cookers, etc. It

should not be placed in rooms where the

temperature is less than 5°C or greater than

40°C. Damp basements should also be

avoided.

Routine care

≥Wipe the outer surface of the product with a

soft moist cloth.

≥Do not use benzine, thinner, or any abrasive

powder.

Notice for product disposal, transfer, or

return

≥This product can store your private/confidential

information. To protect your privacy/

confidentiality, we recommend that you erase

the information such as phonebook or caller list

entries from the memory before you dispose of,

transfer, or return the product.

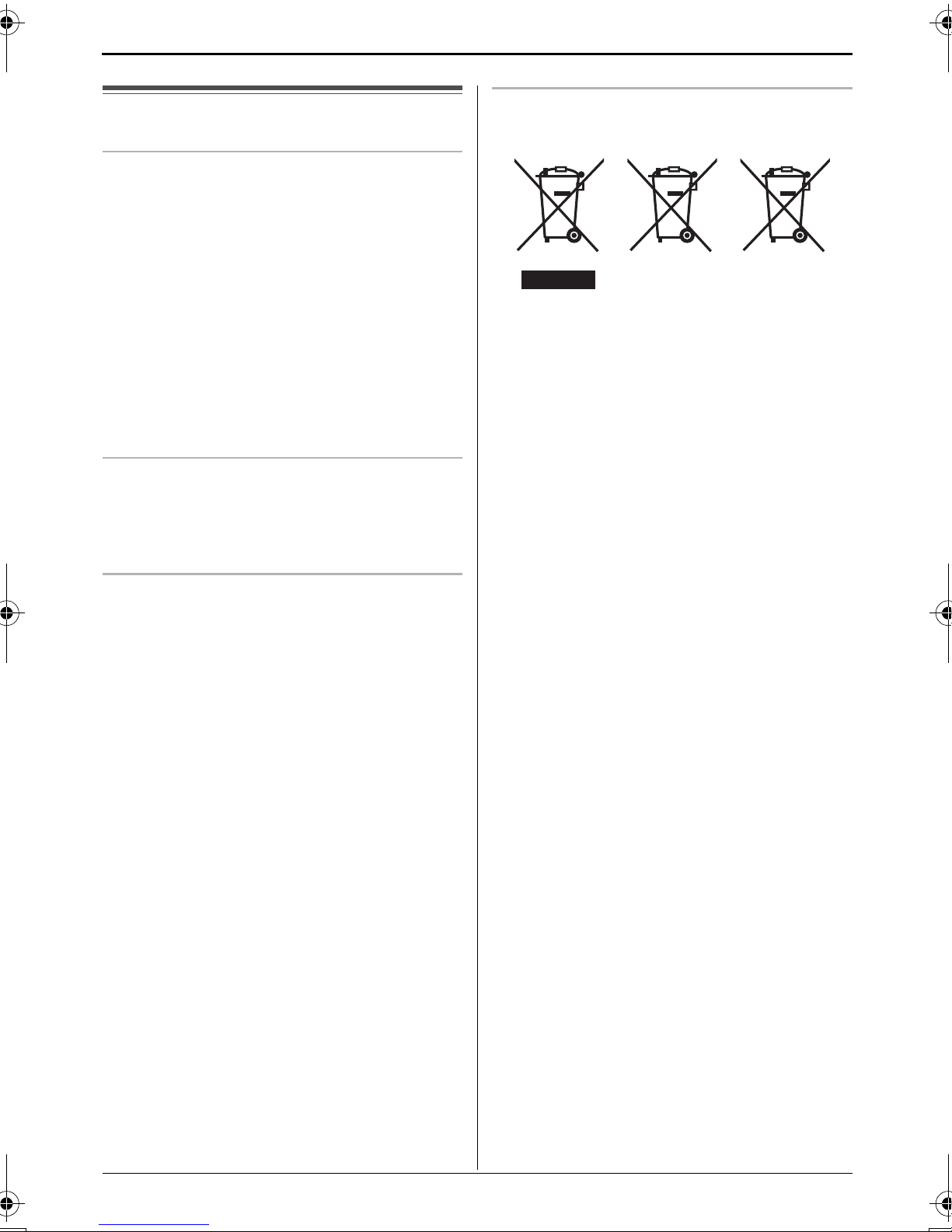

Information on Disposal in other

Countries outside the European Union

These symbols are only valid in the

European Union. If you wish to discard

these items, please contact your local

authorities or dealer and ask for the correct

method of disposal.

KX-TS560ML.book Page 5 Monday, November 10, 2008 2:29 PM

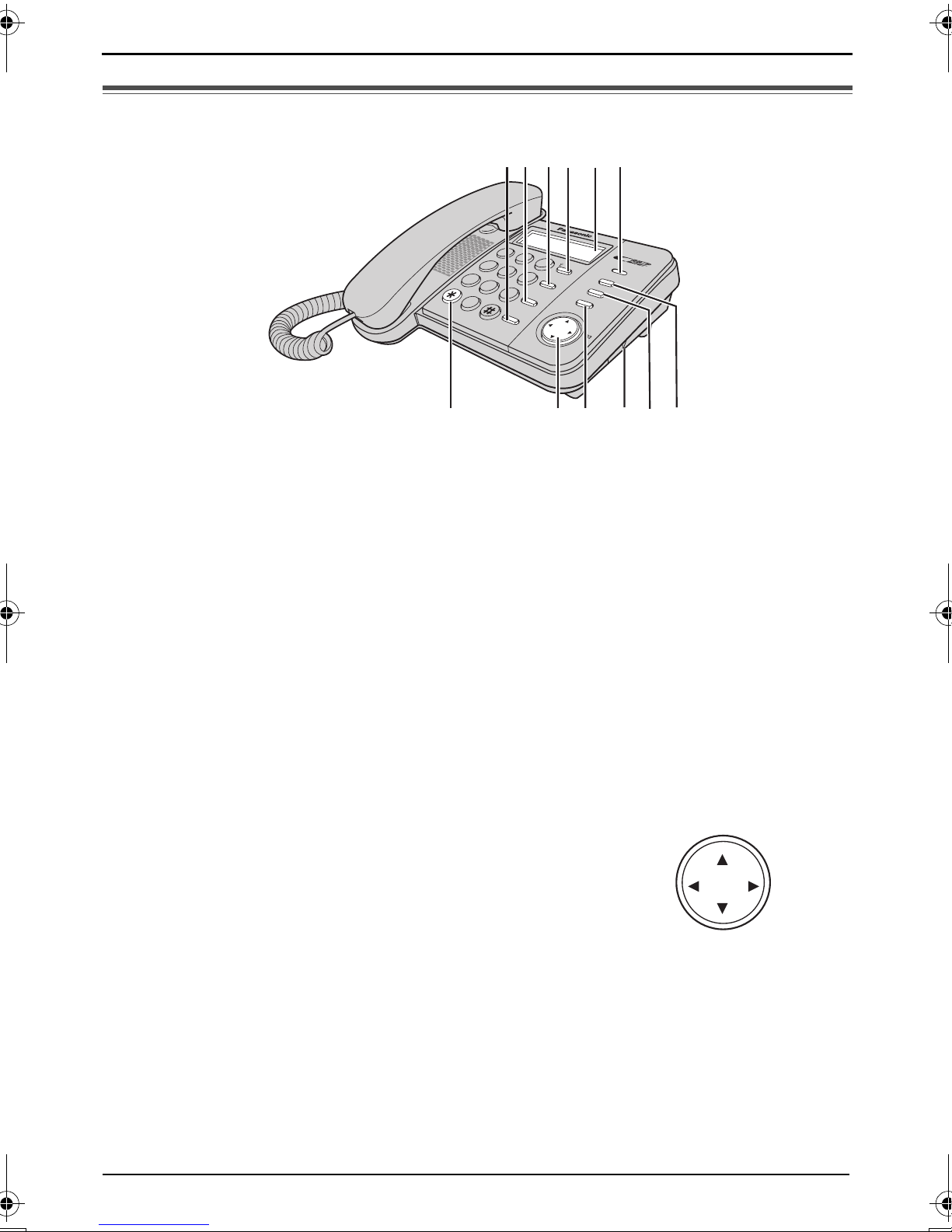

Controls

FUNCTION

EXIT

FLASH

ABC DEF

JKL

GHI

MNO

TUV

PQRS

WXYZ

TONE

EDIT

ENTER

LOUD/

REDIAL

PAU SE

CLEAR

CDE

KIJ

DIALLOCK

HANDSET MUTE

1Display (page 7)

2Ringer indicator (page 16)

3{FUNCTION}(page 12, 13, 19)

{EXIT}(page 12, 13, 15, 19, 22)

4{HANDSET MUTE}(page 17)

{CLEAR}(page 14, 15, 20)

5RINGER selector (page 16)

6{ENTER}(page 12, 13, 18, 19, 22)

7Navigator key ({3},{4},{2},{1})

{LOUD/SEARCH}{kEDIT}

(page 20, 22)

8{£}{TONE}(page 17)

9{REDIAL}(page 15)

:{PAU SE}(page 7, 15)

;{FLASH}(page 7, 17)

<{PDIAL LOCK}(page 18)

Using the navigator key

The navigator key can be used to navigate through menus

and to select items shown on the display by pressing {3},

{4}, {2}or {1}.

To adjust the volume, press {3}to increase volume, or

press {4}to decrease volume repeatedly while talking.

LOUD/

Preparation

KX-TS560ML.book Page 6 Monday, November 10, 2008 2:29 PM

Preparation

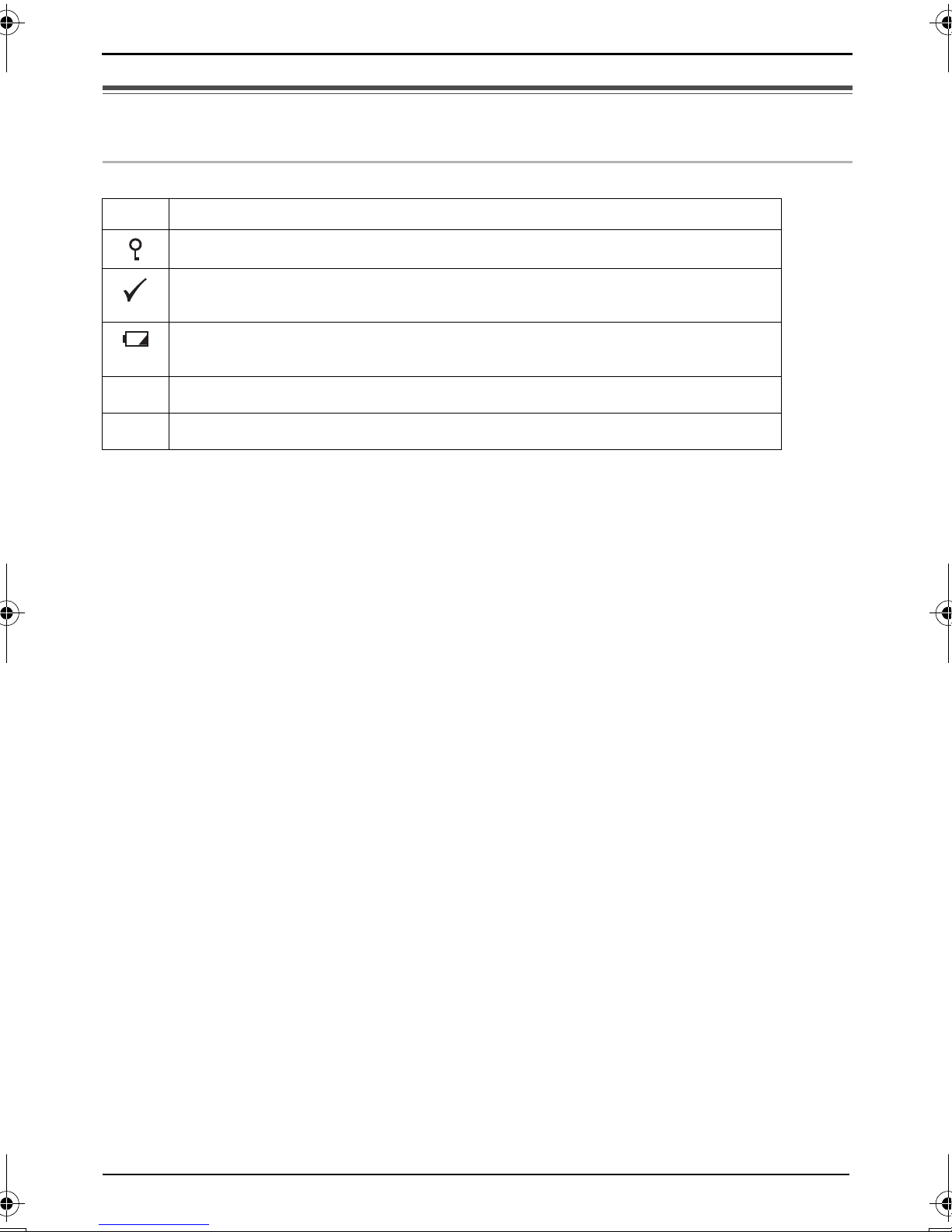

Display

Display items

Item Meaning

The dial lock mode is set (page 18).

You have checked this caller information, answered the call or called back

the caller from the caller list (page 22).

The display flashes when the battery power is low. To replace the

batteries, see page 8.

{PAUSE}was pressed while dialling or storing phone numbers.

{FLASH}was pressed while storing phone numbers.

KX-TS560ML.book Page 7 Monday, November 10, 2008 2:29 PM

Preparation

Battery installation and

replacement

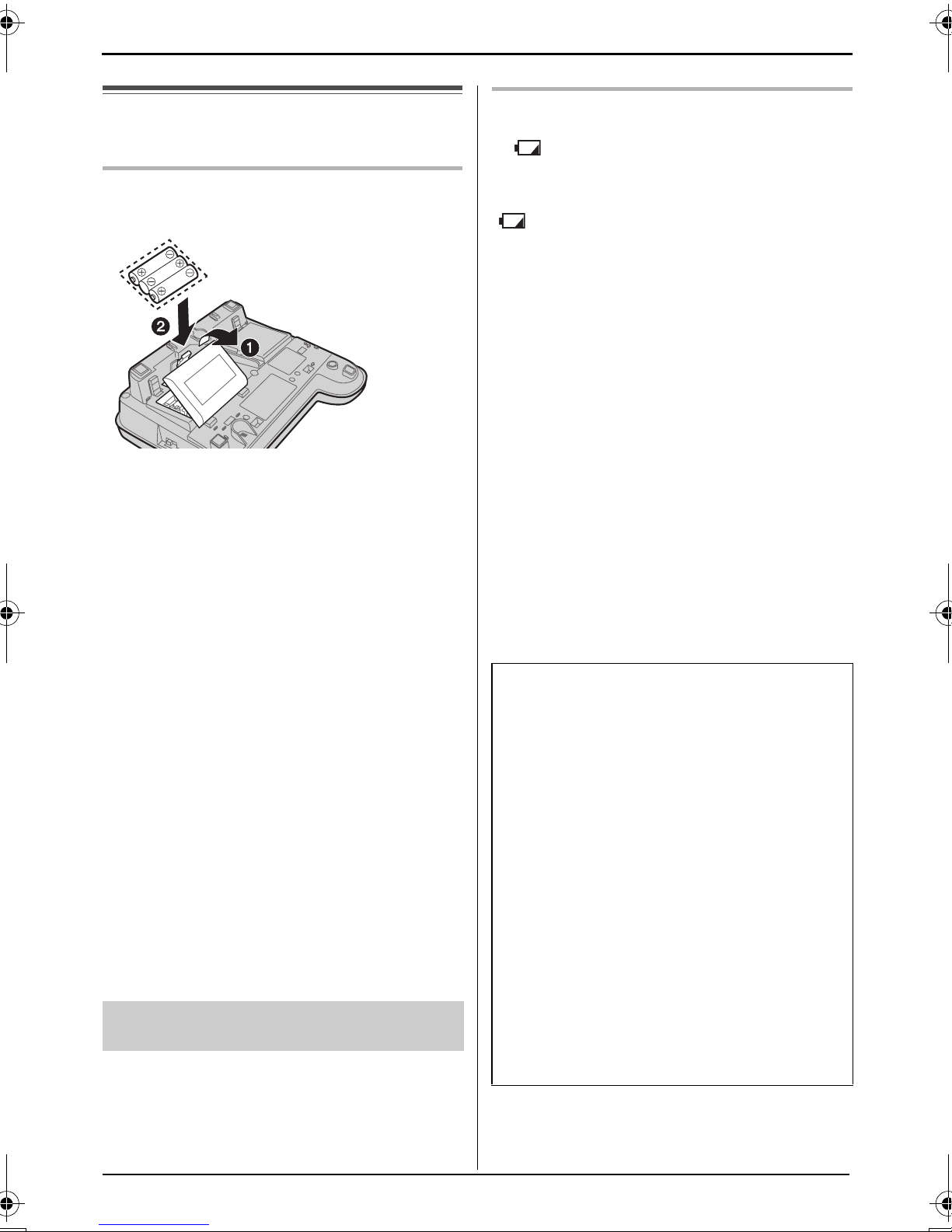

Installing the batteries

1Press down in the direction of the arrow

and open the cover (1).

2Install the batteries in the proper order

as shown (2), matching the correct

polarity.

3Close the battery cover.

≥After battery installation, the unit will reset

and “

SET CLOCK

” will always display until

the time is set.

≥To set the clock, see page 12.

≥Batteries are not included with the unit.

≥Install three high quality “AA” size Alkaline

(LR6) or Manganese (R6, UM-3) batteries. We

recommend to use Panasonic batteries.

Battery life is: jabout six months when using

Alkaline batteries.

jabout three months when

using Manganese batteries.

≥Battery life may depend on usage conditions

and ambient temperature.

≥Make sure batteries were inserted properly

inphase to ensure the functionality of this unit.

Replacing the batteries

If “ ” flashes, the battery power is low.

Install new batteries as soon as possible.

If batteries are not replaced even after the

“ ” is displayed, the unit may not work

properly.

≥Store the desired items in the phonebook,

because after the battery replacement, the

information stored in the redial list will be

cleared.

1Disconnect the telephone line cord from

the unit.

2Press down in the direction of the arrow

and open the cover.

3Replace the batteries with new ones

using correct polarity (+, –), and close

the cover.

4Connect the telephone line cord to the

unit.

THE UNIT MAY NOT WORK PROPERLY

WITHOUT BATTERIES.

Battery precautions:

The batteries should be used correctly,

otherwise the unit may be damaged by

battery leakage.

sdo not mix different types of batteries.

sdo not charge, short-circuit, disassemble,

heat or dispose of in fire.

sremove all the batteries when replacing.

Note:

sif you do not install the batteries or if the

battery power is low, the display will become

blank. Readjust the time after the battery

replacement.

sreplace all the batteries every six months if

using Alkaline batteries, or misoperation may

occur. (When you use Manganese batteries,

replace all of them every three months.)

sdo not use nickel-cadmium batteries.

KX-TS560ML.book Page 8 Monday, November 10, 2008 2:29 PM

Preparation

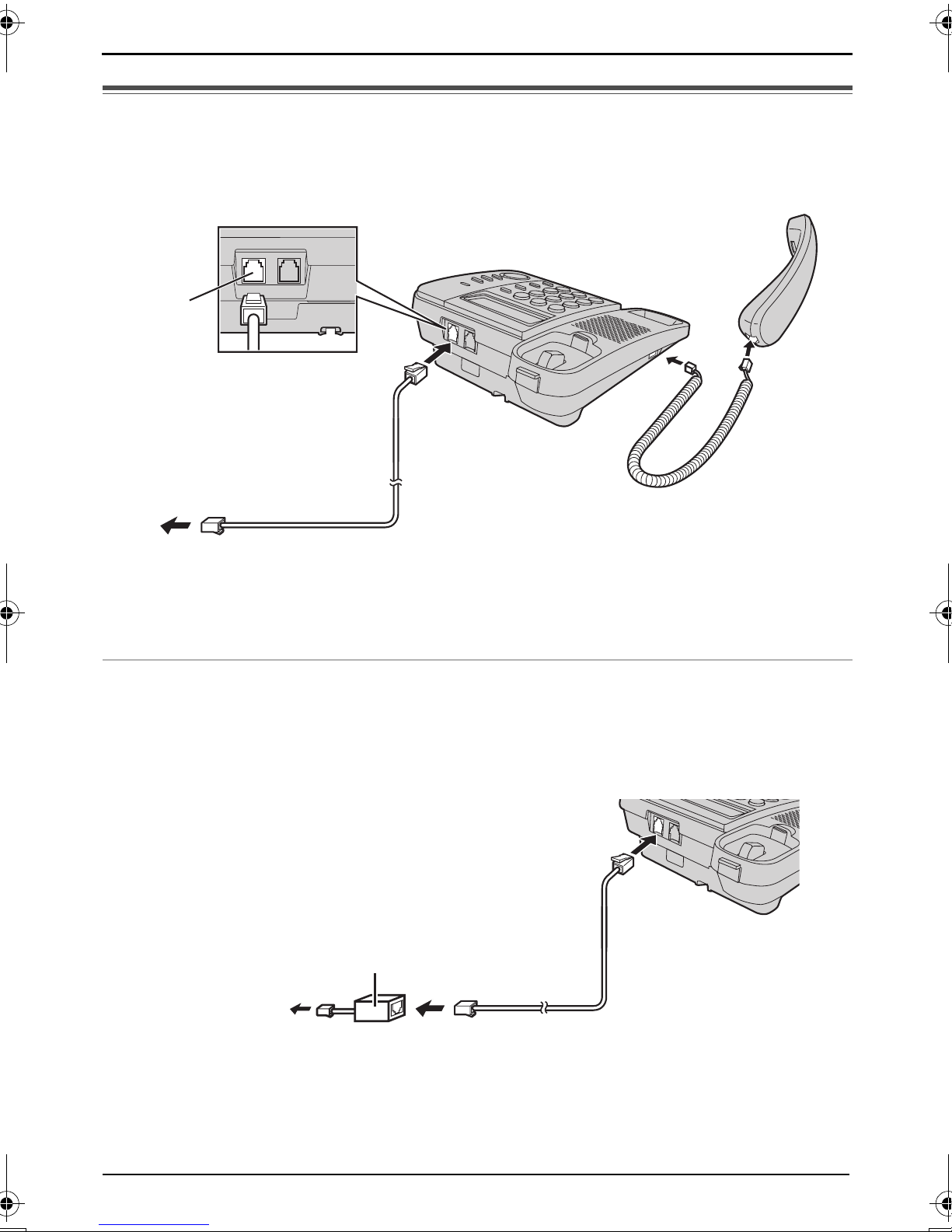

Connections

Connect the handset cord (1) to the handset and the unit. Connect the telephone line cord

until it clicks into the unit and telephone line jack (2).

After line connection, lift the handset to check for a dial tone.

≥Use only a Panasonic handset for KX-TS560ML.

≥Use only the supplied telephone line cord. Using another telephone line cord may not allow the unit

to work properly.

If you subscribe to a DSL /ADSL service

Please attach a DSL /ADSL filter (contact your DSL /ADSL provider) to the telephone line

between the unit and the telephone line jack in the event of the following:

snoise is heard during conversations.

sCaller ID features (page 21) do not function properly.

LINE

To single-line telephone jack

D S L / A D S L f i l t e r

To single-line

telephone jack

KX-TS560ML.book Page 9 Monday, November 10, 2008 2:29 PM

Preparation

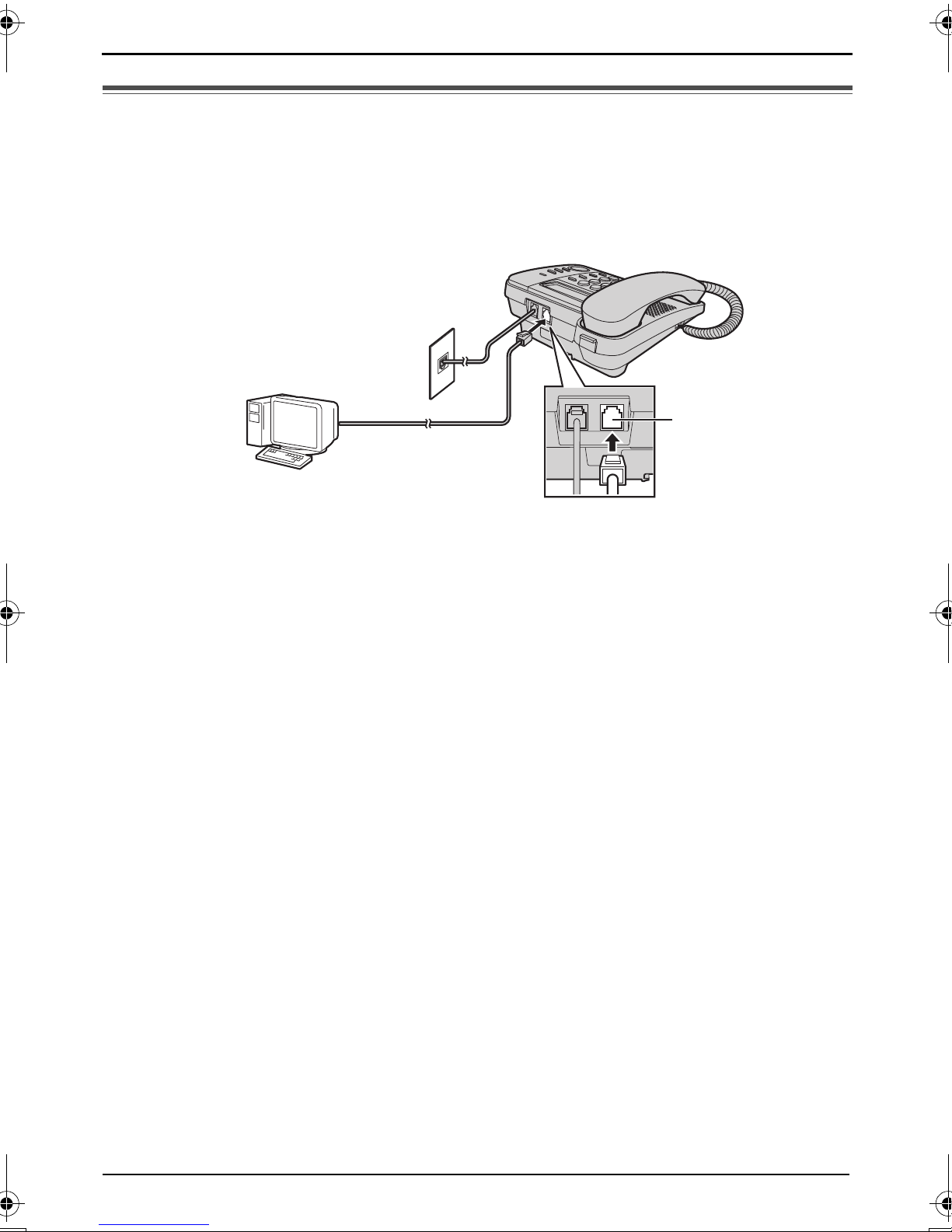

Connecting a communication device

If you connect a communication device (computer, modem, fax, answering machine etc.) to

the telephone line, you can connect it through this unit using the DATA jack.

After connecting the handset and telephone line cord, connect the communication device

telephone line cord to the DATA jack.

≥Make sure the communication device is not in use before using this unit (making calls, storing phone

numbers in memory etc.) or the communication device may not operate properly.

≥Computer

≥Modem

≥Fax

≥Answering machine

DATA

KX-TS560ML.book Page 10 Monday, November 10, 2008 2:29 PM

Indice

Altri manuali Panasonic Telefono

Panasonic

Panasonic KX-TGA290B - 2.4 GHz FHSS GigaRange Cordless... Manuale utente

Panasonic

Panasonic KX-FKN523 Manuale utente

Panasonic

Panasonic KX-UT113 Manuale utente

Panasonic

Panasonic KX-TC1701B - 900 MHz Cordless Phone Manuale utente

Panasonic

Panasonic KX-TG6582T Manuale utente

Panasonic

Panasonic KX-TS580LX, KX-TS560LX Manuale di istruzioni

Panasonic

Panasonic KX-TGE463 Manuale utente

Panasonic

Panasonic KX-TG6323CPK Manuale utente

Panasonic

Panasonic DBS Series Guida all'installazione

Panasonic

Panasonic BB-GT1500C Manuale utente

Panasonic

Panasonic ICX Manuale utente

Panasonic

Panasonic KX-TG2511ALM Manuale utente

Panasonic

Panasonic KX-TPA65 Manuale utente

Panasonic

Panasonic KX-TDA30 Manuale del proprietario

Panasonic

Panasonic Section750 Manuale utente

Panasonic

Panasonic EASA-PHONE KX-T123230D Manuale utente

Panasonic

Panasonic KX-TA824 Manuale utente

Panasonic

Panasonic KX-T7220E Manuale utente

Panasonic

Panasonic CPC-EX Manuale utente

Panasonic

Panasonic KX-TGF352 Manuale utente

Panasonic

Panasonic KX-A114EX/E Manuale utente

Panasonic

Panasonic KX-TDA15 Manuale utente

Panasonic

Panasonic PanaVoice Courier Manuale utente

Panasonic

Panasonic KX-T7400 Series Manuale operativo e di manutenzione

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente

Yealink

Yealink VP530 Manuale utente
