Vacuum Cleaner

Model No. MC-CG711

TABLE OF CONTENTS PAGE PAGE

1 Specifications ----------------------------------------------------- 2

2 Circuit Diagram --------------------------------------------------- 2

3 Wiring Connection Diagram ---------------------------------- 3

4 Disassembly and Assembly Instruction------------------ 4

4.1. Disassembly of Upper and Lower Body ------------- 4

4.2. Disassembly of Motor Case Set ----------------------- 5

4.3. Disassembly of Cord Reel Unit ------------------------ 6

4.4. Disassembly of Rail Base Unit------------------------- 6

4.5. Disassembly of Fan Motor Unit ------------------------ 7

4.6. Disassembly of P.C.B. Ass’y---------------------------- 8

5 Trouble Shooting Chart ---------------------------------------- 9

6 Exploded View and Replacement Parts List -----------11

6.1. Exploded View --------------------------------------------11

6.2. Attachment Exploded View ----------------------------12

6.3. Packing Instruction---------------------------------------13

6.4. Replacement Parts List ---------------------------------14

1 Specifications

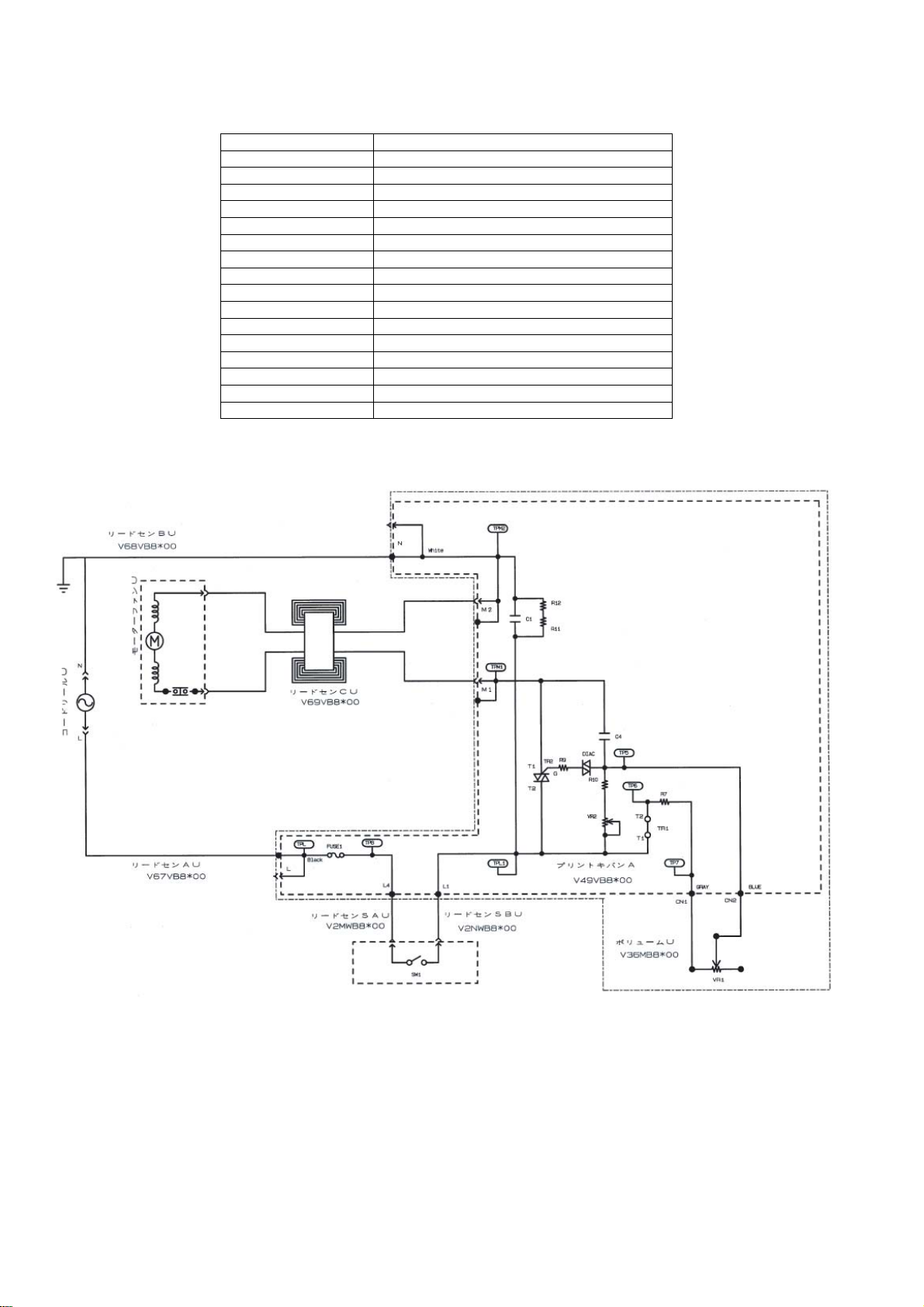

2 Circuit Diagram

Model MC-CG711

Power Source 220V~240V~50/60Hz

Input Power (Max) 1900W

Input Power (IEC) 1500-1800W

Power Control SLIDE

Dust Capacity 6.0L

Automatic Cord Rewind 0

Vac Gauge 0

Exhaust Filter ANTI-BACTERIA

Extension Wands METAL TELESCOPIC WAND

Blower Operation 0

Floor Nozzle 2-STEP

Dust Bag CLOTH

Dimension (H x W x L) mm 265mm X 320mm X 500mm

Net Weight 6.5 KG

Cord Length 5.0 M

Cleaning Tools CREVICE TOOL / DUSTING BRUSH

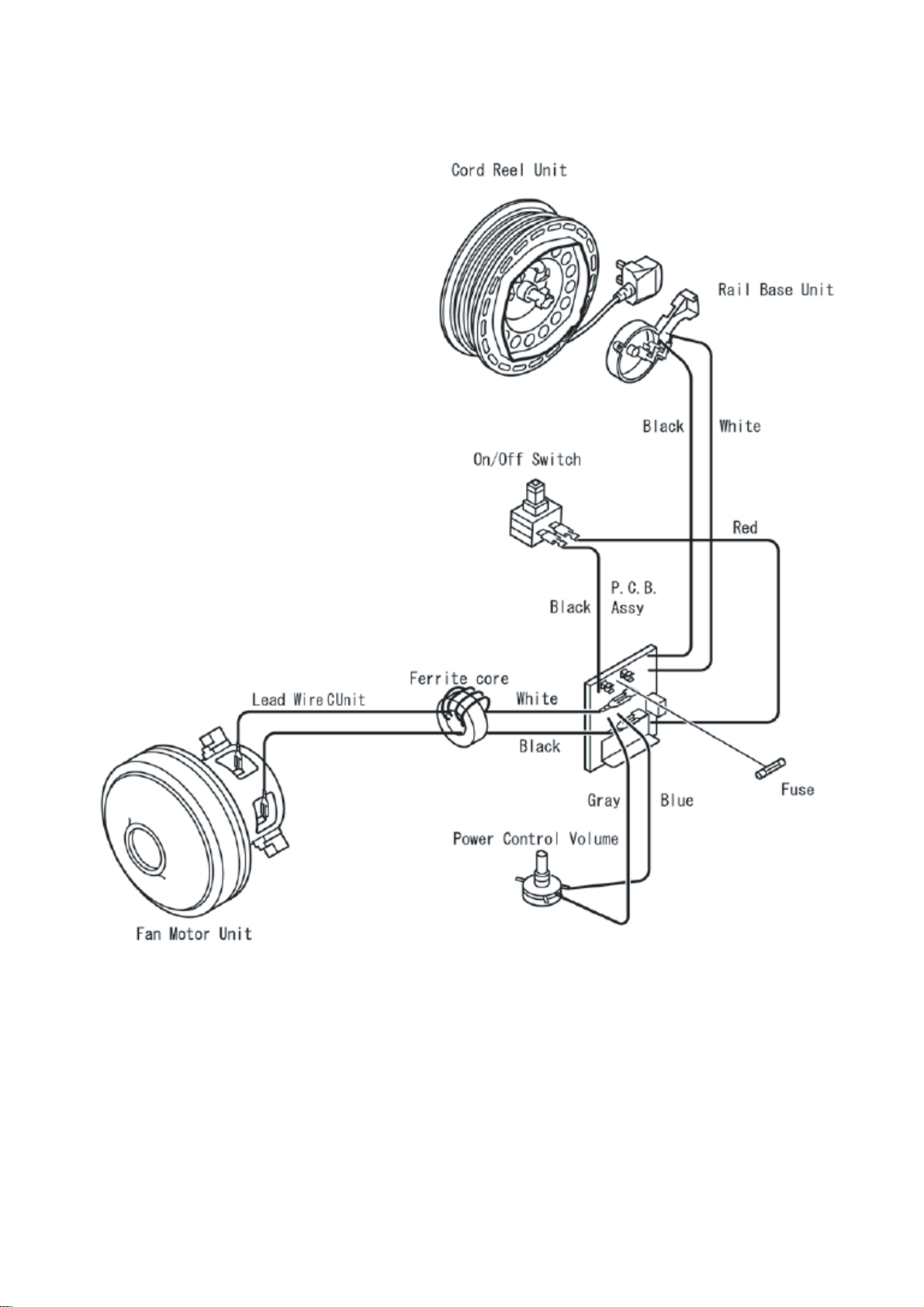

3 Wiring Connection Diagram

4 Disassembly and Assembly Instruction

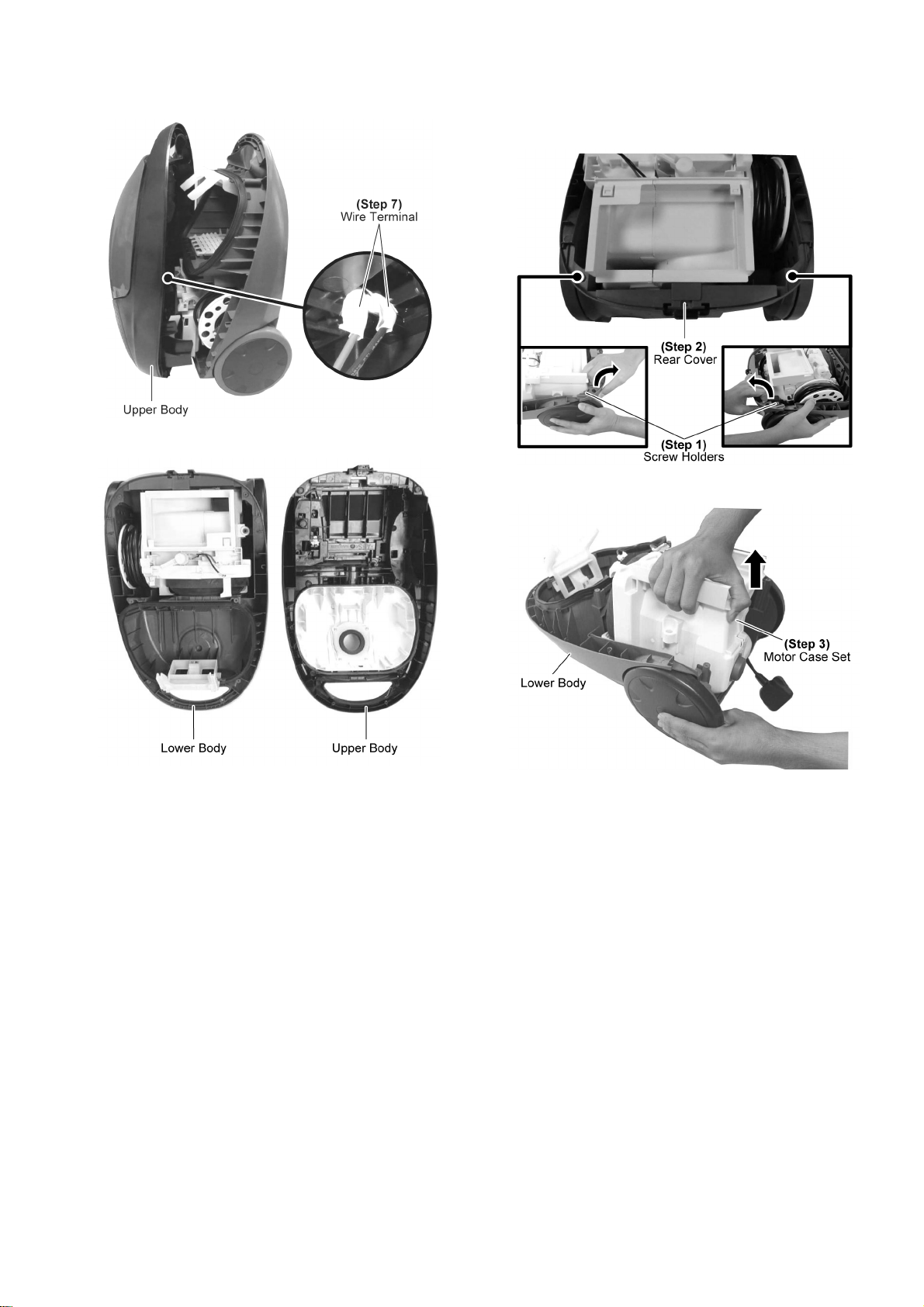

4.1. Disassembly of Upper and

Lower Body

Step 1 Open the Dust Cover.

Step 2 Remove the Dust Bag.

Step 3 Remove 4 screws from the front side and 2 screws from

bottom side of the body.

Step 4 Pull out the Exhaust Cover.

Step 5 Remove 3 screws from back side of the body.

Step 6 Hold the Upper Body and 1 of the wheel to lift up the

Upper Body.

Step 7 Place the set as diagram shown and disconnect the

Wire Terminal from switch at the Upper Body.

Step 8 Remove the Upper Body from Lower Body.

4.2. Disassembly of Motor Case Set

Step 1 Release Rear Cover from Screw Holders.

Step 2 Remove Rear Cover.

Step 3 Pull up the Motor Case Set from the Lower Body.

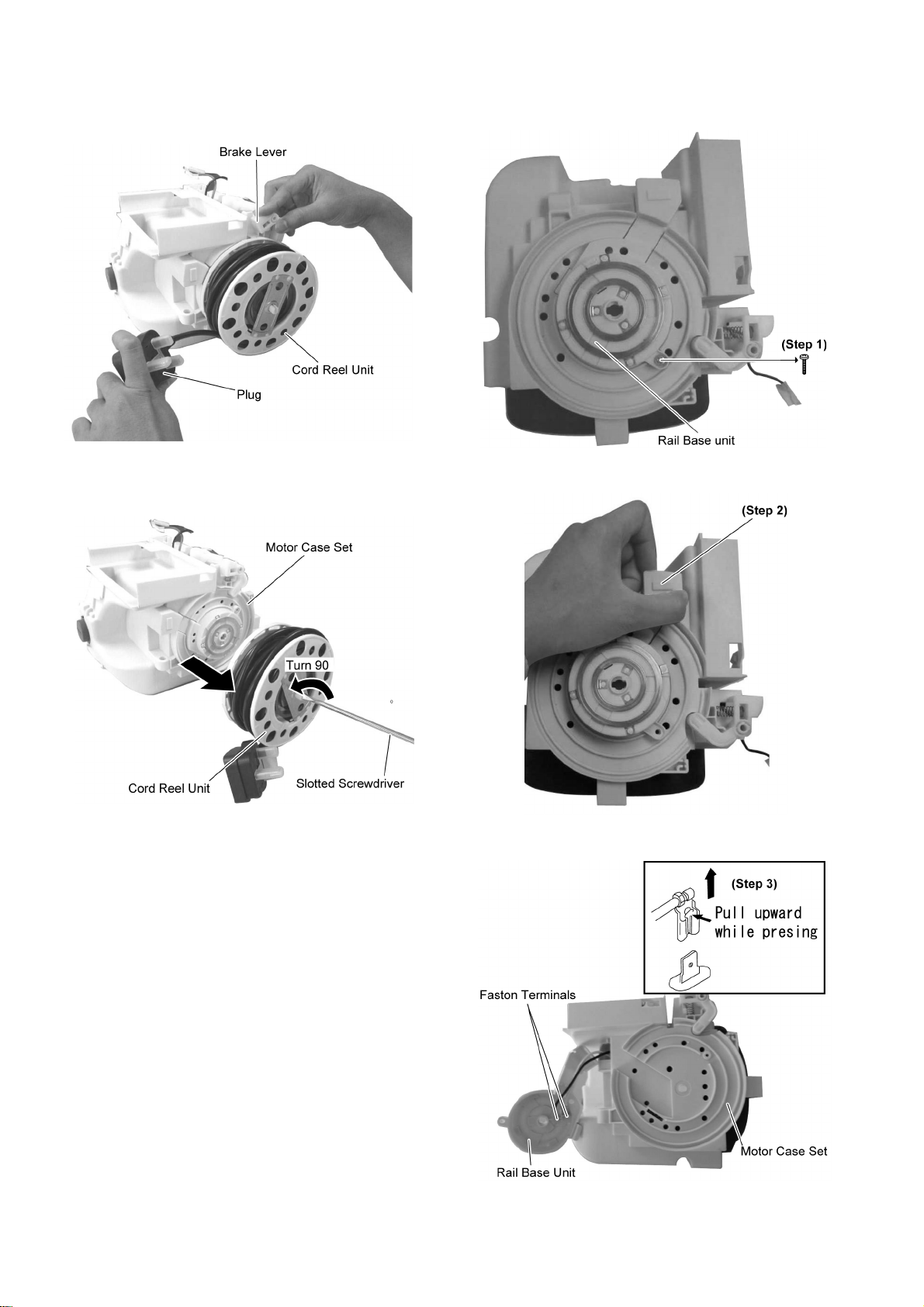

4.3. Disassembly of Cord Reel Unit

Step 1 Release the pretension of the Cord Reel Unit slowly by

holding on the Power Plug and pressing on the Brake Lever.

Step 2 Remove the Cord Reel Unit from the Motor Case Set by

inserting a slotted screwdriver into the shaft of the Cord Reel

Unit and turning it 90°counter-clockwise.

To assemble:

Step 1 Assemble in reverse order of the disassembly.

Step 2 Pretension the Cord Reel Unit.

-Turn the Cord Reel Unit holding on the plug

-Number of turns for pretension of the Cord is engraved on the

steel at the side of Cord Reel Unit.

4.4. Disassembly of Rail Base Unit

Step 1 Remove 1 screw.

Step 2 Release the Catch and pull upward.

Step 3 Remove the Faston Terminals on the Rail Base Unit.

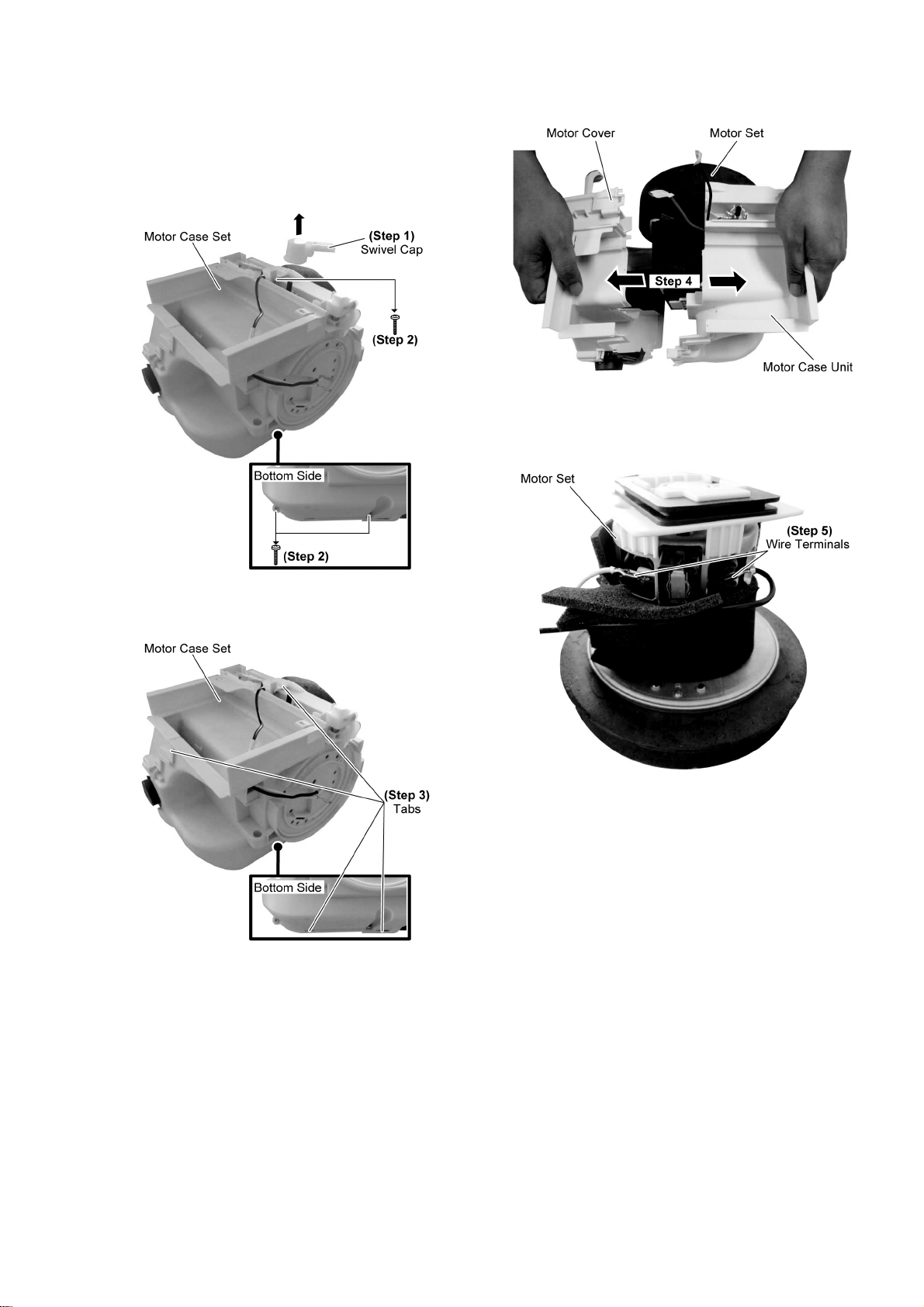

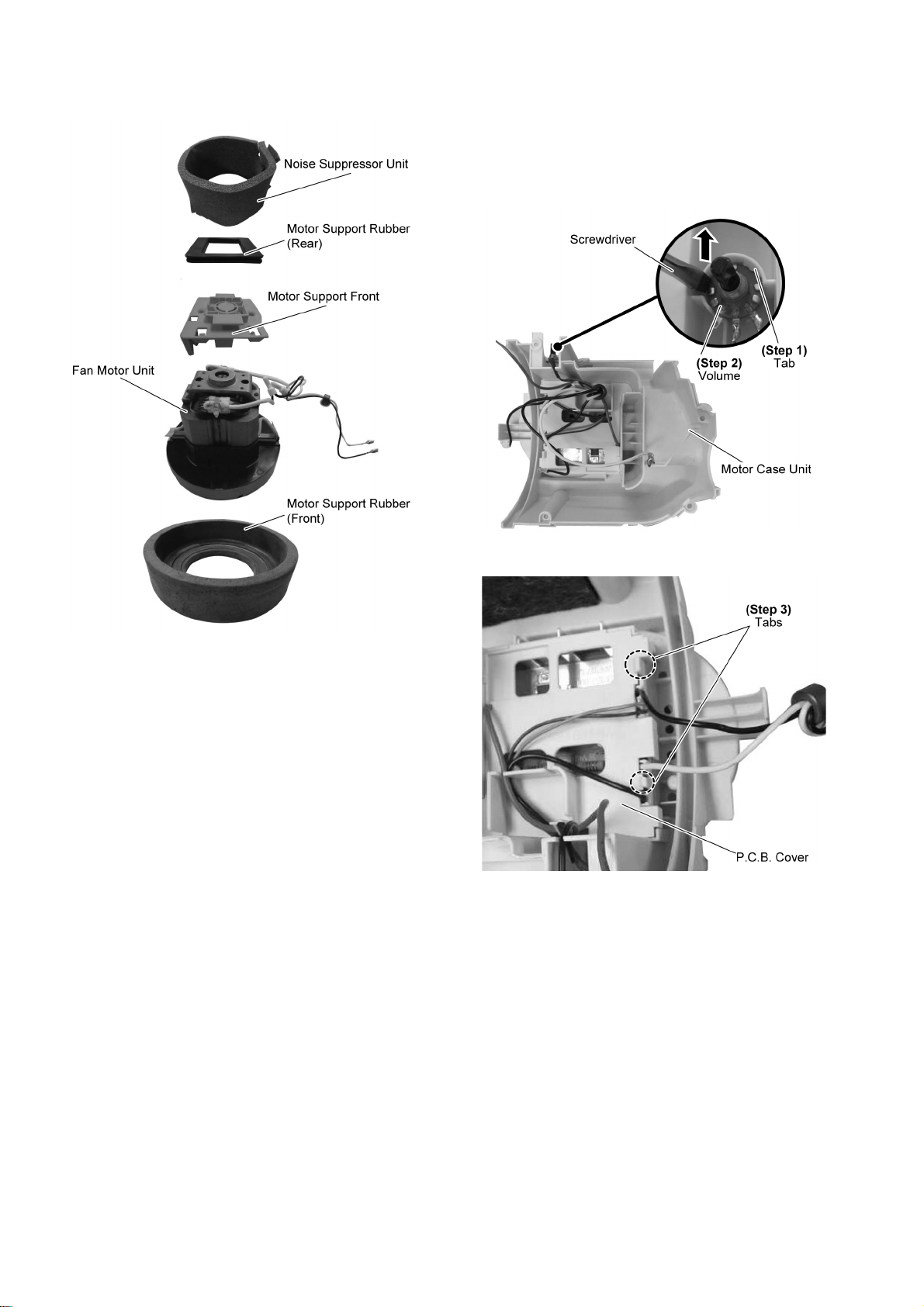

4.5. Disassembly of Fan

Motor Unit

Step 1 Remove the Swivel Cap.

Step 2 Remove 1 screw from top and 2 screws bottom Motor

Case Set.

Step 3 Remove the Tabs.

Step 4 Lift up the Motor Case Unit

Step 5 Disconnect the Wire Terminal and remove the Motor

Set.

Step 6 Remove the Noise Supprassor Unit and Motor Support

Rubbers. 4.6. Disassembly of P.C.B.

Ass’y

Step 1 Disassemble the Volume by widening the Tab using

Screwdriver.

Step 2 Remove Volume Upward.

Step 3 Release Tabs and remove P.C.B. Cover.

To reassemble the unit, reverse the disassembly proce-

dure above.

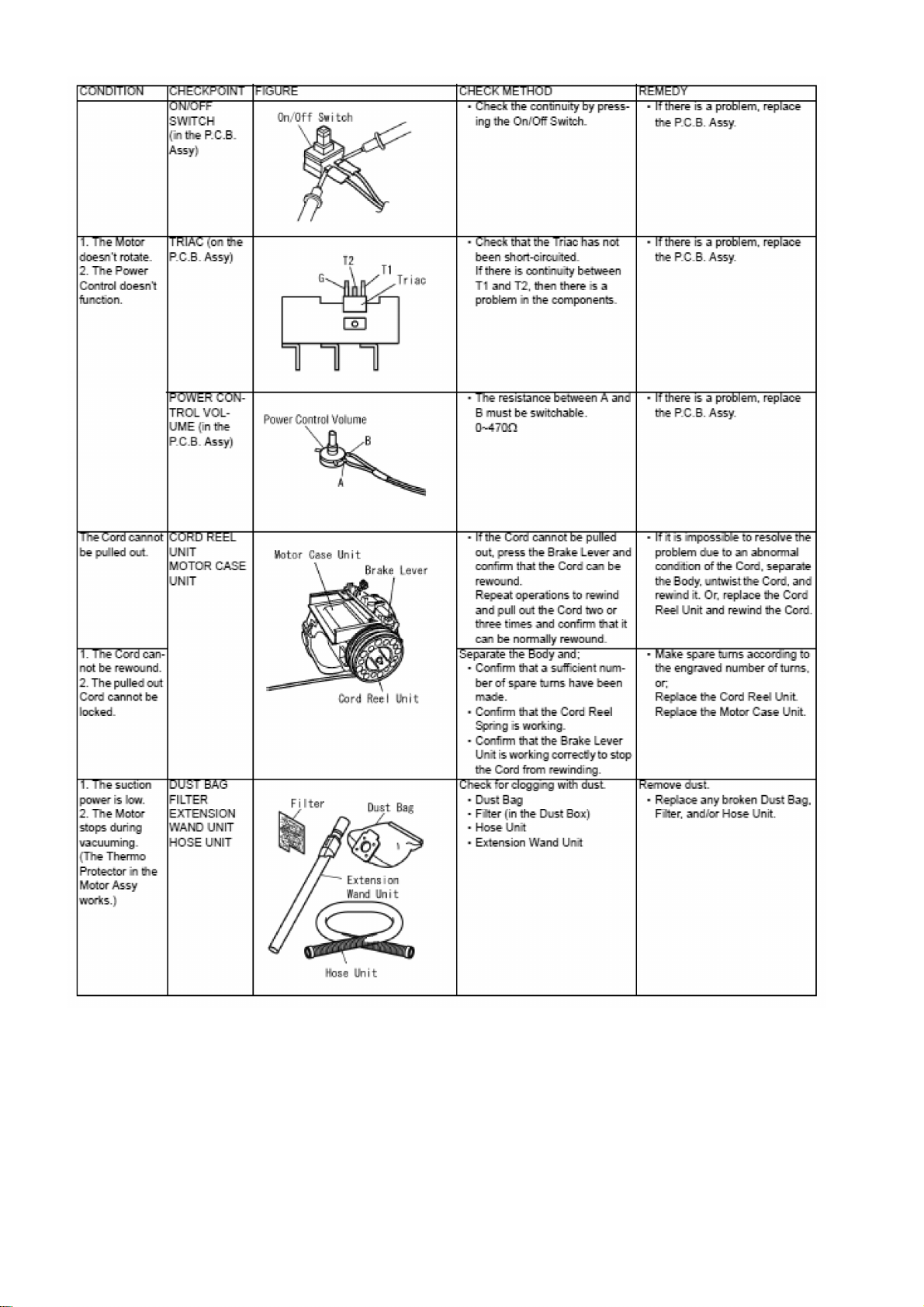

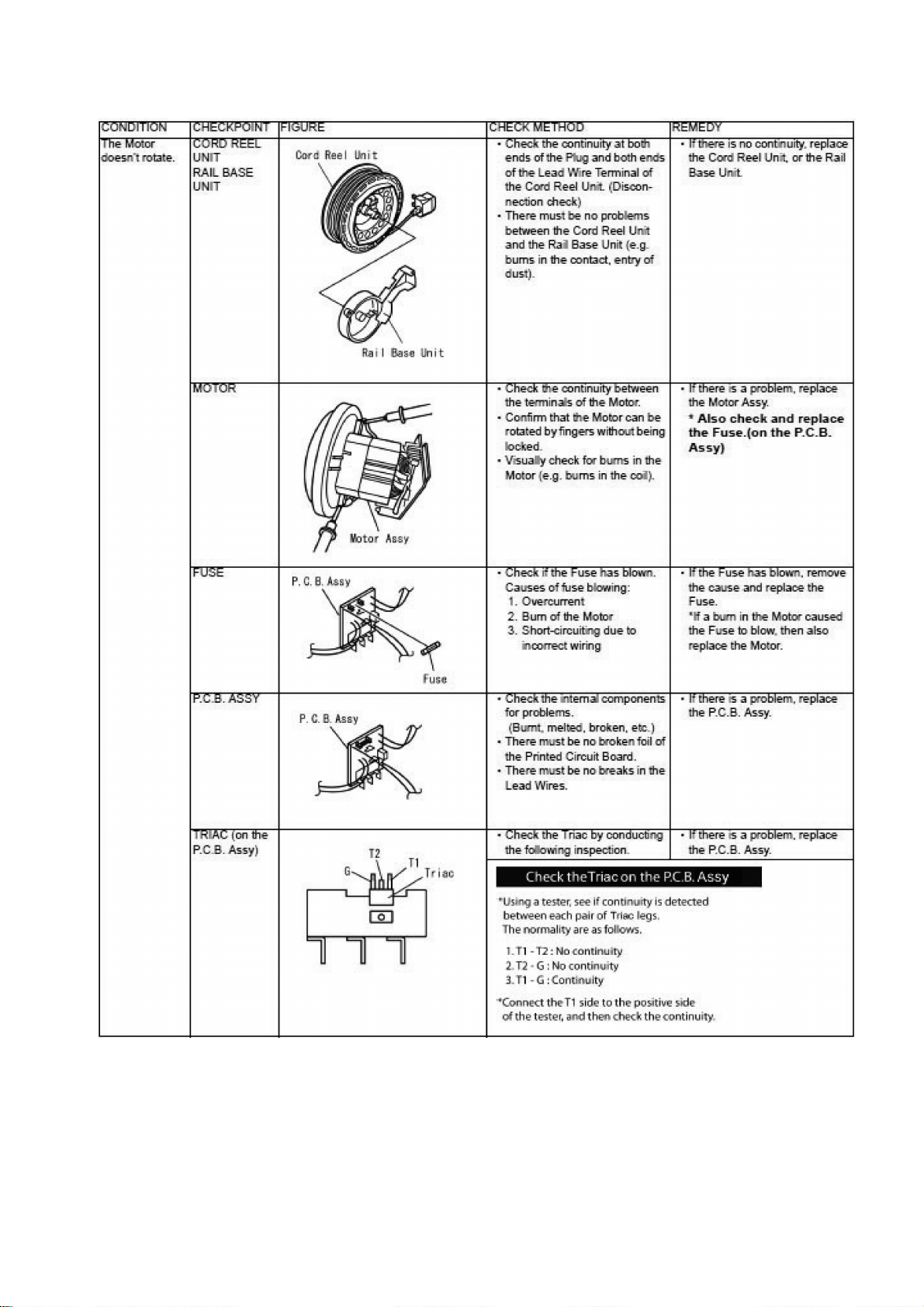

5 Trouble Shooting Chart
