HDCRT

PA24849A01

REV: 04 7-2005

FIBER OPTIC CONNECTOR REMOVAL TOOL

OPERATION INSTRUCTIONS

HDCRT

ERGONOMIC GRIPS

THUMB SCREWS FOR

EFFECTOR

REPLACEMENT

(See Page 2)

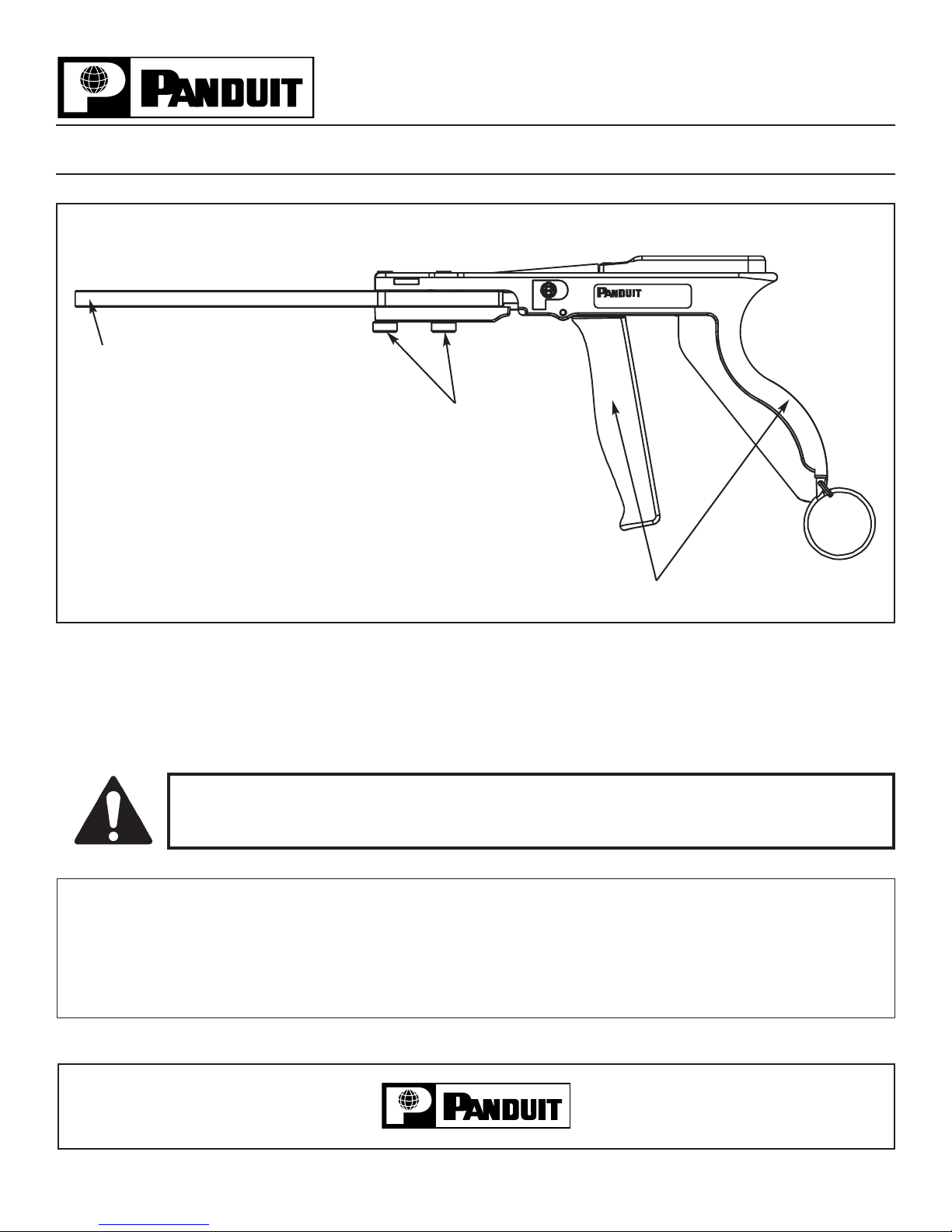

FIGURE 1

HDCRT

Fiber Optic Connector

Removal Tool

• HDCRT can be used by either right or left handed operators

• HDCRT is supplied with LC Effector assembly and is used with LC Fiber Optic

Connectors

(See Page 2 for additional kits (available separately)

WARNING: When using this tool (as with any tool) in a static sensitive area, the

operator should use an industry approved, standard grounding wrist

strap system.

EXTENDED EFFECTORS

WITH ANTI-SNAG TIPS

OPERATION

1. igure 1 above illustrates the HDCRT iber Optic Connector Removal Tool

2. The open effectors allow the operator to pass over fiber optic cabling that interferes with

connector accessibility.

Website: www.panduit.com

E-mail: [email protected]

Technical Support:

888-506-5400, ext. 6914

Fax: 708-444-6993

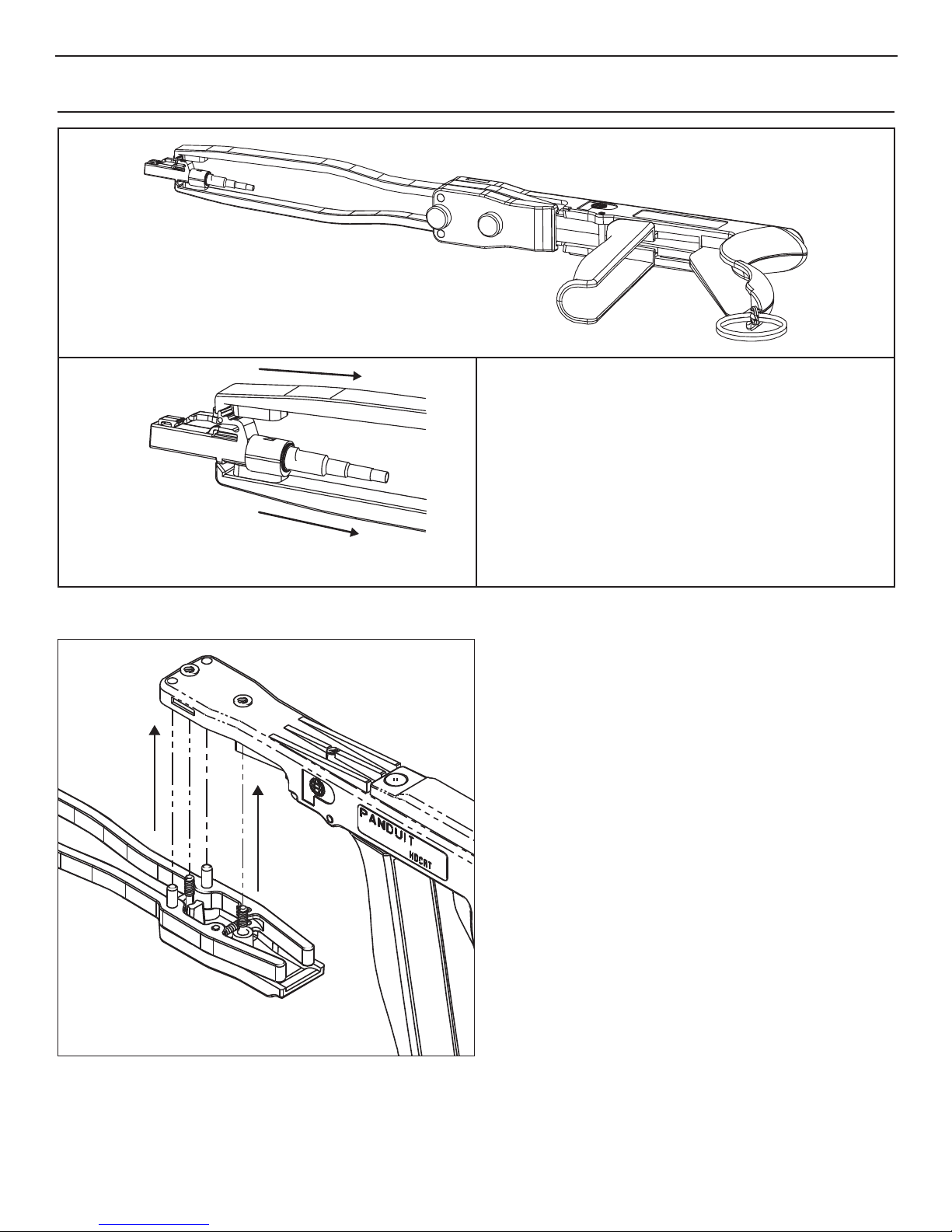

Page: 2 of 2

EFFECTOR REPLACEMENT

FIGURE 4

HDCRT FIBER OPTIC CONNECTOR REMOVAL TOOL

OPERATION INSTRUCTIONS

HDCRT

REPLACEMENT KITS AND ACCESSORIES:

(Sold Separately)

• KHDCRT-LCE - Effector Kit for LC Fiber

Optic Connectors

• KHDCRT-SCE - Effector Kit for SC Fiber

Optic Connectors

• KHDCRT-FL - Flashlight Kit for HDCRT

Fiber Optic Connector

Removal Tool

3. The effectors are placed on the connector (see

igure 3), and the tool grip is squeezed to obtain a

firm grip on the connector.

4. Pulling the tool in a rearward direction will remove

the connector from the adapter.

5. To install connectors, place connector in effectors,

squeeze grip (tool will hold connector), and push

connector into adapter with polarizing tab located

properly.

LC CONNECTOR SHOWN

WITH LC EFFECTORS

FIGURE 3

FIGURE 2
