Paradox TM40 Manuale utente

To Arm System

Press and hold for 3 seconds (if enabled) or

Press once and release then enter 4 digit arming code.

System will now arm if all zones are closed.

To Disarm System

Press once and release then enter 4 digit dis-arming code.

System will now Dis-arm.

All manuals and user guides at all-guides.com

To iew Zones

Press once and release

Press home to take you back to home screen

Press ‘Open’ to see Zone information

Shows all open Zones Shows all closed zones Shows all zones

An open Zone is where the detector, reed etc has not been sealed

(ie: a door is left open, or something is still moving in a room)

To iew Troubles

Press once and release

Press home to take you back to home screen

Press to see current Alarms in memory

Press to see any problems with the system

Simply follow

the on screen

prompts to see

what actions

required to

clear the

troubles

These 2 (alarm memory and troubles) are the most common used.

Under troubles it is usually time and date (which can be fixed by

pressing the line and setting the time and date.

All other troubles may require a service technician to fix.

All manuals and user guides at all-guides.com

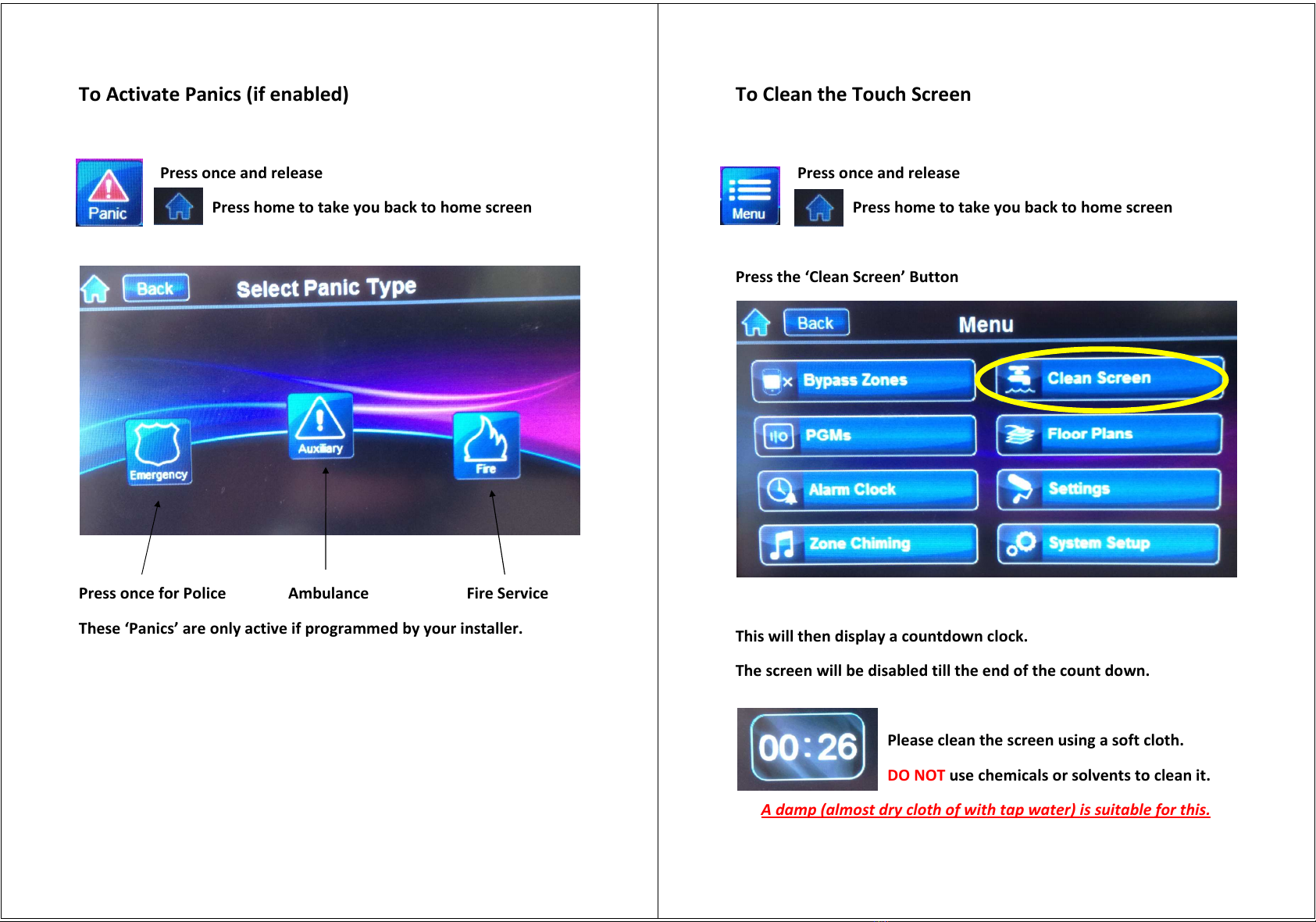

To Activate Panics (if enabled)

Press once and release

Press home to take you back to home screen

Press once for Police Ambulance Fire Service

These ‘Panics’ are only active if programmed by your installer.

To Clean the Touch Screen

Press once and release

Press home to take you back to home screen

Press the ‘Clean Screen’ Button

This will then display a countdown clock.

The screen will be disabled till the end of the count down.

Please clean the screen using a soft cloth.

DO NOT use chemicals or solvents to clean it.

A damp (almost dry cloth of with tap water) is suitable for this.

All manuals and user guides at all-guides.com

To Adjust screen Brightness

Press once and release

Press home to take you back to home screen

Press the ‘Settings button’ Button

Then Press ‘Screen’

Brightness of screen

Time for auto dim

diabled = no dimming

How dull the auto dim will dull screen down to - (0=off, 1= low)

To Activate Picture Slide Show

Press once and release

Press home to take you back to home screen

Press the ‘Settings button’ Button

Then Press ‘Slide Show’

Turns on/off slide show

How long to display picture

Shuffle pictures around

All manuals and user guides at all-guides.com

To Add pictures to slide show.

•To remove the memory card from the bottom left of the touch

screen, simply push the card in till it clicks then release.

•Place card into SD card adaptor or similar so the card can be

read on your computer.

•Insert card into computer

(the following relates to a Windows 7 machine)

And select ‘X’ to close window

Locate and Right Click on the image you wish to add to slide show and

open with ‘PAINT’ :

All manuals and user guides at all-guides.com

Once opened in paint, Click on the Resize button

Change setting to Pixels

Change Horizontal to 480

Change vertical to 272

Uncheck maintain ration

Image can not be larger than

480 x 272

Then click ok.

Select ‘Save as’

Then select

BMP picture

All manuals and user guides at all-guides.com

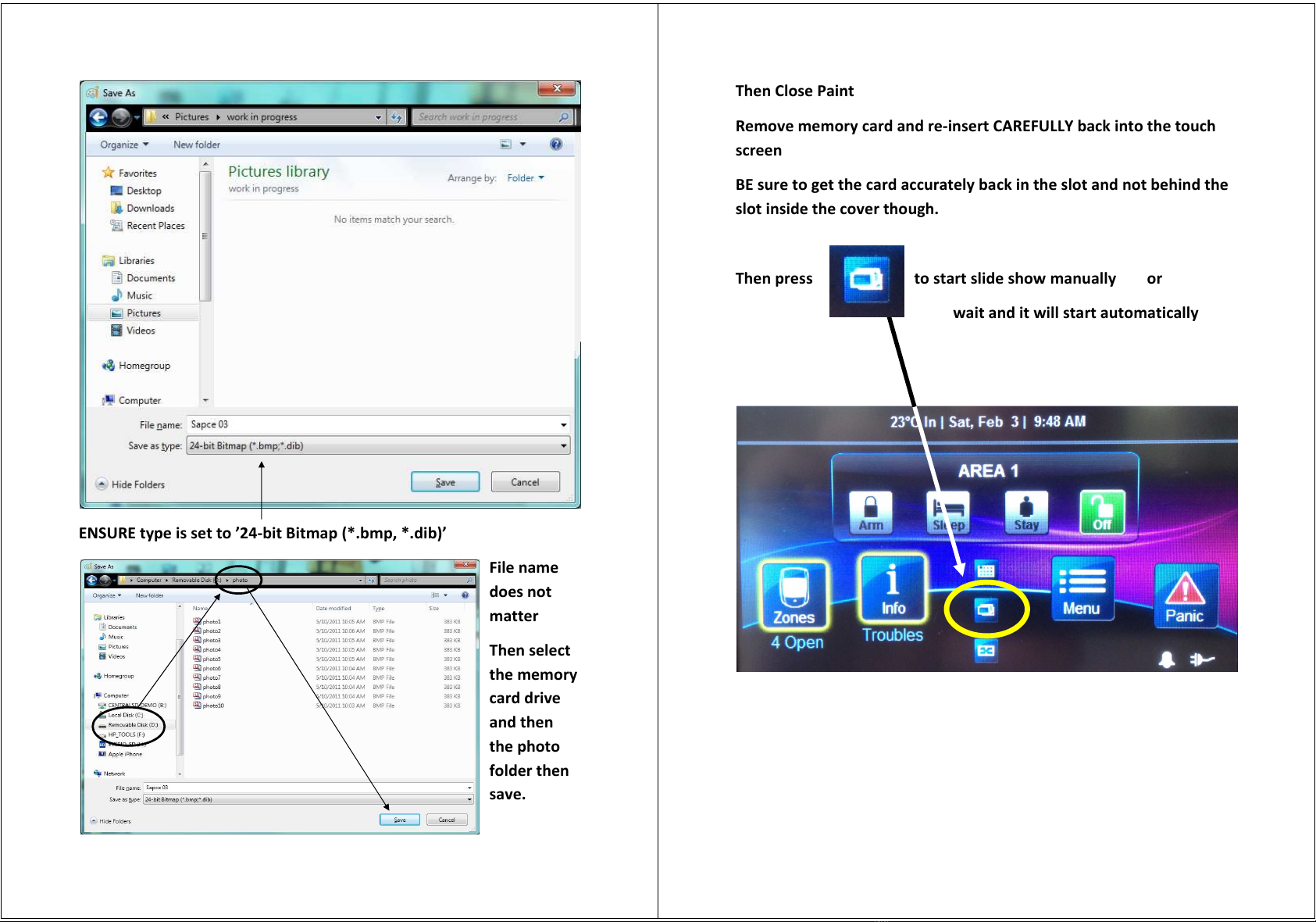

ENSURE type is set to ’24-bit Bitmap (*.bmp, *.dib)’

File name

does not

matter

Then select

the memory

card drive

and then

the photo

folder then

save.

Then Close Paint

Remove memory card and re-insert CAREFULLY back into the touch

screen

BE sure to get the card accurately back in the slot and not behind the

slot inside the cover though.

Then press to start slide show manually or

wait and it will start automatically

All manuals and user guides at all-guides.com

To Change Date & Time.

Press once and release

Press home to take you back to home screen

Then Press

‘System Setup’

After which you will

need to enter your

Master Code

Once you have

entered your master

code a new screen will

appear :

Press Time and Date

Re press ‘Set Time & Date’ line

Set time using up and down

arrows then click save in the top

right hand corner of the screen.

All manuals and user guides at all-guides.com

Once the date is also

set then press the

save button in the

top right hand corner

of the screen. Once

this is done then click

the home button (top

left button that looks

like a house)

To Edit Users

Press once and release

Press home to take you back to home screen

Then Press

‘System Setup’

After which you will

need to enter your

Master Code

All manuals and user guides at all-guides.com

Once you have

entered your master

code a new screen will

appear :

Press Users

From this screen you can edit codes and remote controls for all users

Press either Down arrows to select user

Delete user

Add a user

Edit a user

If adding simply enter the 4 digit code then press save

Re-enter 4 digit code to confirm the code and press save

At this point either press Skip or follow screen prompts if you have a

remote control to learn in also. (generally press ‘SKIP’)

To Turn off Fire Alarm

Simply press the

OFF button then a

new screen will

appear

All manuals and user guides at all-guides.com
