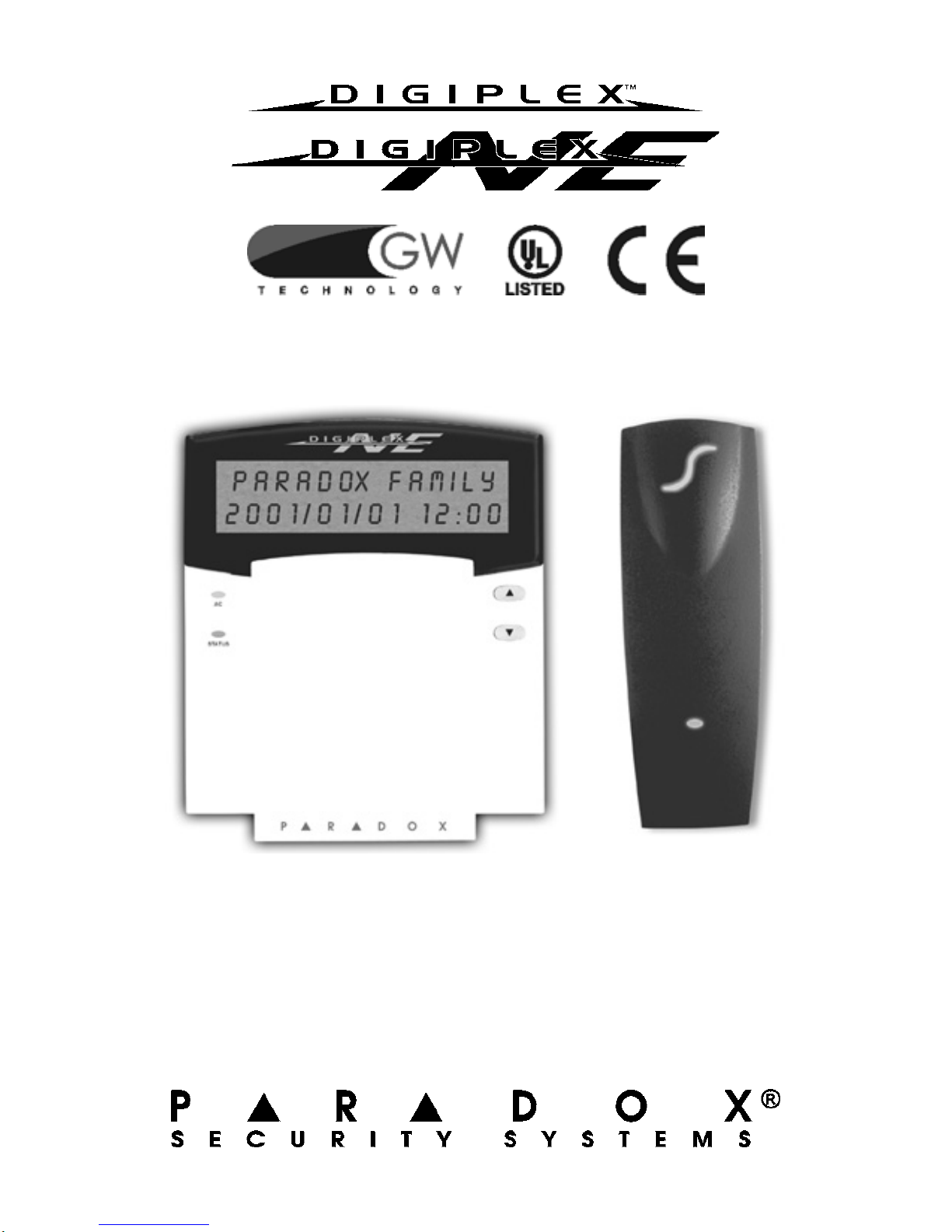

Paradox DGP2-641 Manuale utente

LCD & Access Control LCD Keypad (V1.0)

DGP2-641 / DGP2-641AC

Reference and Installation Manual

DGP-641

Digiplexand DigiplexNE are trademarks of Paradox

SecuritySystems

PosiPINis a trademark of Position Technology

TABLE OF CONTENTS

1.0 INTRODUCTION ........................................................... 4

1.1 Specifications ....................................................................5

2.0 INSTALLATION ............................................................. 6

2.1 Connecting Keypad Zones ................................................6

2.2 Programmable Output .......................................................7

3.0 PROGRAMMING ....................................................... 12

3.1 Entering Module Programming Mode .............................12

3.2 Programming Methods ....................................................13

3.2.1 Feature Select Programming ..............................................13

3.2.2 Decimal Programming .........................................................13

3.3 Module Broadcast ...........................................................13

4.0 SYSTEM OPTIONS .................................................... 14

4.1 Partition Assignment .......................................................14

4.2 Display Access Code Entry .............................................14

4.3 Display Exit Delay Timer .................................................14

4.4 Display Entry Delay Timer ...............................................15

4.5 Confidential Mode ...........................................................15

4.6 Confidential Mode Timer .................................................16

4.7 Time Display Option ........................................................16

4.8 Muting .............................................................................17

4.9 Beep on Exit Delay ..........................................................17

4.10 Chime on Zone Closure ................................................17

4.11 Beep on Trouble ............................................................18

4.12 Keypad Tamper Enable ................................................18

4.13 Network Voltmeter .........................................................19

5.0 FEATURES FOR DGP2-641 ONLY ............................20

5.1 PGM State .......................................................................20

5.2 PGM Deactivation Mode .................................................20

5.3 PGM Base Time ..............................................................21

5.4 PGM Override .................................................................21

5.5 PGM Timer ......................................................................21

5.6 PGM Activation Event .....................................................22

5.7 PGM Deactivation Event .................................................22

6.0 FEATURES FOR DGP2-641AC ONLY .......................23

6.1 Assigning Doors To Partitions .........................................23

6.2 Reader’s Options ............................................................23

6.2.1 Reader’s LED To Follow Partition’s Status ..........................24

6.2.2 Reader’s Beep To Follow Partition's Status .........................24

6.2.3 Reader Feedback ................................................................24

6.2.4 Reader's LED Options Upon Access Granted .....................25

6.3 Door Lock Options ..........................................................25

6.3.1 Unlock on REX (Request For Exit) ......................................25

6.3.2 Door Unlocked Period ..........................................................25

6.3.3 Door Unlocked Period Extension .........................................26

6.3.4 Relock Door .........................................................................26

6.3.5 Door Unlocked Schedule .....................................................26

6.3.6 Card Activates Door Unlocked Schedule .............................27

6.4 Door Left Open Options ..................................................28

6.4.1 Door Left Open Access Alarm .............................................28

6.4.2 Door Left Open Interval Before Access Alarm .....................29

6.4.3 Door Left Open Pre-Alarm ...................................................29

6.4.4 Door Left Open Pre-Alarm Timer .........................................29

6.4.5 Door Left Open Alarm Feedback .........................................30

6.4.6 Beep Timer For Door Left Open Alarm ...............................31

6.5 Door Forced Open Options .............................................31

6.5.1 Door Forced Open Access Alarm ........................................31

6.5.2 Door Forced Open Feedback ..............................................32

6.5.3 Beep Timer For Door Forced Open Alarm ..........................32

6.6 Access Control PIN Entry Option ....................................32

6.6.1 Configuring The PosiPIN’s Keypad .....................................33

7.0 MESSAGE PROGRAMMING ..................................... 34

7.1 Special Function Keys .....................................................35

8.0 GLOSSARY ................................................................ 37

4 Reference & Installation Manual

1.0 INTRODUCTION

Thank you for choosing Paradox®Security Systems. The Digiplex™/

DigiplexNE Security Systems are advanced technology security

systems that will provide reliable security protection and powerful

features that are easy to use. The elegant and user-friendly

Digiplex™/DigiplexNE LCD Keypad will allow easy access to the

security system's functions and information at the touch of a button.

Since all programming is accomplished through the keypad, please

read this manual carefully.

As well as normal security system functions, the Digiplex/DigiplexNE

Access Control LCD Keypad (DGP2-641AC) can also be used for

access control. Access Control is designed to monitor and control the

access for up to 32 designated doors without the need of an

additional control panel. The events that occur on an Access Control

door can be logged in the control panel’s Event Buffer and can be

viewed through the keypad.

Each door to become an Access Control door requires an Access

Control LCD Keypad (DGP2-641AC), a reader (suggestion: PosiProx

CR-R880-A or PosiPIN CR-R885-BL), a REX device (suggestion:

Paradoor 460), a door contact, and a locking device.

If desired, door contacts can also be assigned to zones in the control

panel to link the doors to the Digiplex/DigiplexNE Alarm system. This

will allow you to use the same door for the Access Control system

and the alarm system. Only two of the Access Control features

require that the Access Control door's door contact be assigned to a

zone: Burglar Alarm on Forced Door and Access to Armed Access

Control Doors (refer to the Digiplex or DigiplexNE Reference &

Installation Manual).

Digiplex/DigiplexNE LCD Keypad 5n

1.1 SPECIFICATIONS

Power input: 12 to 16 Vdc, 80mA maximum

PGM current limit: 50 mA

Number of inputs: 1 (DGP2-641)

2 (DGP2-641AC)

Power indication: Yellow LED on

Locate indication:

Green and yellow LEDs flash simultaneously

Network fault

indication: Red and yellow LEDs flash alternately

Tamper Switch: Yes (also used to deactivate locate)

LCD: Super Twisted Nematic display (STN), wide

viewing angle, 2 lines of 16 characters, backlight

and contrast adjustable

Compatibility: DGP2-641: Any Digiplex/DigiplexNE Control

Panel

DGP2-641AC: Any DigiplexNE control panel or

Digiplex control panel V2.20ACC and higher

6 Reference & Installation Manual

2.0 INSTALLATION

The LCD keypads (DG2P-641 and DGP2-641AC) are connected to

the control panel's network in a star and/or daisy chain configuration.

This 4-wire communication network provides power and two-way

communication between the control panel and all modules connected

to it. Connect the four terminals labeled red, black, green and yellow

of each keypad to the corresponding terminals on the control panel

(refer to Figure 1 on page 8). Refer to the Digiplex or DigiplexNE

Reference & Installation Manual for the maximum allowable

installation distance from the control panel.

See Figure 4 on page 10 for connection drawings for the REX

device, reader, locking device and door contact to the desired DGP2-

641AC keypad. A typical installation is shown in Figure 2 on page 9.

The door contact follows the control panel’s EOL

definition. When EOL is enabled and the door contact is

not used, place a 1k

Ω

resistor across the keypad’s Z1

and BLK input terminals. If EOL is not enabled, use a

jumper. If the REX device is not used, place a jumper

across the keypad’s Z2 and BLK input terminals.

2.1 CONNECTING KEYPAD ZONES

Each keypad has one traditional hardwired input terminal, allowing

you to connect one detector or door contact directly to the keypad.

For example, a door contact located at the entry point of an

establishment can be wired directly to the input terminal of the entry

point keypad instead of wiring the door contact all the way to the

control panel.

Connect the device to the keypad's input terminal as shown in Figure

1 on page 8. In order to communicate its status to the control panel,

devices connected to the keypad's input terminal must be assigned

Digiplex/DigiplexNE LCD Keypad 7n

to a zone in the control panel and the zone's parameters must be

defined. For more information on zone assignment, please refer to

the Digiplex or DigiplexNE Reference & Installation Manual. Please

note that even with the ATZ (zone doubling) feature enabled, the

keypad supports only one detection device.

2.2 PROGRAMMABLE OUTPUT

Each keypad has one on-board PGM. A PGM is a programmable

output that toggles to its opposite state (i.e. a normally open PGM will

close) when a specific event has occurred in the system (see section

5.0 on page 20). Upon activation, the PGM can provide 50mA to any

device connected to it. If the current drawn is to exceed the current

limit, a relay should be connected to the PGM as shown in Figure 1.

With the DGP2-641AC keypad, the PGM is reserved for the door lock

(refer to Figure 4 on page 10).

8 Reference & Installation Manual

Figure 1: Connecting the Keypad and Keypad Zone
