Paradyne 6310 Manuale utente

Hotwire®ReachDSL™v1 (MVL®) Modem,

Model 6310-A4, with Inline Phone Filter

Installation Instructions

Document Number 6310-A2-GN12-00

September 2001

Contents

Hotwire 6310 ReachDSL v1 (MVL) Modem Overview .................................. 1

Getting Started .............................................................................................. 4

Installing the Hotwire 6310 ReachDSL v1 Modem ....................................... 5

Power-On ...................................................................................................... 8

Troubleshooting ............................................................................................. 9

HomeLink (for ReachDSL v1 Modems Only) ................................................ 10

Increasing the Number of End-User Systems .............................................. 10

Cables & Connectors .................................................................................... 11

Optional ReachDSL Modem Wall Placement ............................................... 13

Technical Specifications for Hotwire 6310 ReachDSL v1 Modem ................ 15

Important Safety Instructions ........................................................................ 16

Warranty, Sales, Service, and Training Information ...................................... 21

Hotwire 6310 ReachDSL v1 (MVL) Modem Overview

The Hotwire®6310 ReachDSL™version 1 (formerly MVL®) Modem is a component in

the Hotwire ReachDSL System and interoperates with the Hotwire 8310 MVL, or

Hotwire 8312/8314 ReachDSL Card in the DSLAM (Digital Subscriber Line Access

Multiplexer) system. This system provides high-speed Internet or corporate LAN access

over traditional twisted-pair copper telephone wiring.

The ReachDSL technology:



Utilizes an inline phone filter on the ReachDSL modem’s PHONE jack.



Operates over existing copper wire with existing telephone jacks.



Includes a second line pass-through from the ReachDSL modem’s LINE jack to

PHONE jack to accommodate an attached 2-line telephone.



Provides rate adaptive data rates to dynamically adapt and allocate bandwidth to

optimize applications.

In addition, the ReachDSL v1 technology:



Transforms a single copper pair into multiple virtual lines to support multiple

services simultaneously.



Supports simultaneous multiple access of four ReachDSL v1 modems with up to

254 end-user systems sharing one common WAN interface.



Features HomeLink, which provides peer-to-peer communications, including print

and file sharing applications (see

HomeLink (for ReachDSL v1 Modems Only)

page 10).

Hotwire ReachDSL System

Copper pairs run from the central office (CO) to the customer premises (CP) to create

the local loop. The local loop terminates on the customer premises at the demarcation

point.

NOTES:

In this document:

—A telephone is used to represent any equipment that plugs into a phone jack

and uses the POTS line, such as a phone, modem, or fax machine.

—End-user system is used to represent any PC with an Ethernet connection and

ReachDSL-based service.

—RJ11 wall jack is used to represent either an RJ11 or an RJ14 wall jack. The

RJ14 wall jack is used for a phone with two lines.

—Service provider is used to represent any Internet Service Provider (ISP) or

remote LAN access provider.

01-17005

Customer Premises (CP)

DSL/POTS

Ethernet

Crossover

Cable Ethernet

Cable

Central

Office

(CO)

Local Loop

Hub

DSL –Digital Subscriber Lines

POTS –Plain Old Telephone Service

End-user

Systems

(up to 32)

Network

Service

Provider

(NSP)

Demarcation

Point

ReachDSL

Modem

Phone Filter

Depending on the type of phone handset and the quality of the home or business wiring,

a phone filter is recommended to minimize background noise during a phone

conversation. An internal phone filter is included with the Hotwire 6310 ReachDSL v1

Modem. If additional telephones are used on the same phone line as the ReachDSL

modem, install one phone filter on each telephone.

There are two Hotwire phone filters:



Hotwire 6035 Universal Phone Filter is designed for use with a tabletop phone.



Hotwire 6040 Universal Wall Jack Phone Filter is designed for use with a wall

phone.

Product-Related Documents

To install a phone filter, refer to the appropriate document:

Contact your sales or service representative to order additional product documentation.

Paradyne documents are available on the World Wide Web at www.paradyne.com.

Select

Library

→

Technical Manuals

→

Hotwire DSL Systems.

Document

Number Document Title

6035-A2-GN11

Hotwire 6035 Universal Phone Filter Installation Instructions

6040-A2-GN11

Hotwire 6040 Universal Wall Jack Phone Filter Installation

Instructions

PHONELINE

ETHERNET

POWER

PHONELINE

ETHERNET

POWER

01-17006

RJ11

Wall Jack

RJ11

Wall

Jack

ReachDSL Modem

Customer

Premises (CP)

FAX

ReachDSL

Modem

6035

Phone Filter

6040

Wall Jack

Phone

Filter

Getting Started

Before beginning your modem’s installation, make sure that you have all the equipment

that you need.

Package Checklist

Verify that your package contains the following:

❑Hotwire 6310 ReachDSL v1 Modem

❑DSL interface cable with RJ11 connectors

❑Power cord with power transformer

Be sure to register your warranty at www.paradyne.com/warranty.

Wiring and Cables You Need

The following wiring and standard connectors are used with this product:

❑Standard RJ11 (or RJ14) wall jack for the ReachDSL modem cabling.

❑Standard Ethernet 8-pin, non-keyed modular plug for a PC or workstation. An

Ethernet straight-through or crossover cable is used.

—Refer to

Installing the Hotwire 6310 ReachDSL v1 Modem

on page 5 for

Ethernet installation details.

—Refer to

Cables & Connectors

on page 11 for ReachDSL modem and Ethernet

cable pin assignments.

Installing the Hotwire 6310 ReachDSL v1 Modem

Place the ReachDSL modem on a flat surface with clearance for the rear connectors.

Procedure

1. If a telephone is connected at the RJ11

wall jack where the modem will be installed,

unplug the telephone line from the wall jack.

2. Connect a telephone to the modem.

(Optional –go to Step 3 if you are not

connecting a telephone to the ReachDSL

modem.)

Plug the existing telephone interface cable

that was unplugged in Step 1 into the jack

labeled PHONE.

3. Use the supplied RJ11 6-pin interface cable for theLINE connection. Insert one end

of the cable into the jack labeled LINE. Insert the other end of the cable into the

RJ11 wall jack.

NOTE:

If you are installing a POTS splitter with another telephone, connect the

telephone to the jack labeled PHONE, then connect the jack labeled LINE to a

wall jack. Do NOT plug any cable into the POTS splitter jack labeled either

MODEM or DSL. In particular, make NO connections between a POTS splitter

and the modem.

01-17015a

RJ11

Wall Jack

01-17015

RJ11

Wall Jack

PHONE LINE

ETHERNET

POWER

RJ11

6-pin

Interface Cable

PHONE LINE

4. Use an 8-pin Ethernet cable for the Ethernet connection. Insert one end of the cable

into the jack labeled ETHERNET.

—Use a straight-through cable and connect the other end to an Ethernet hub.

(To connect to a hub’s Uplink connection, use an Ethernet crossover cable).

–or–

—Use an Ethernet crossover cable and connect the other end to a PC with an

Ethernet Network Interface Card (NIC) installed.

PHONE LINE

ETHERNET

POWER

01-17008

Ethernet

Line

Ethernet

Hub

87654321

Ethernet

Straight-Through

Cable

01-17009

Ethernet

Line

PC with Ethernet

Network Interface

Card

Ethernet

Crossover

Cable

PHONE LINE

ETHERNET

POWER

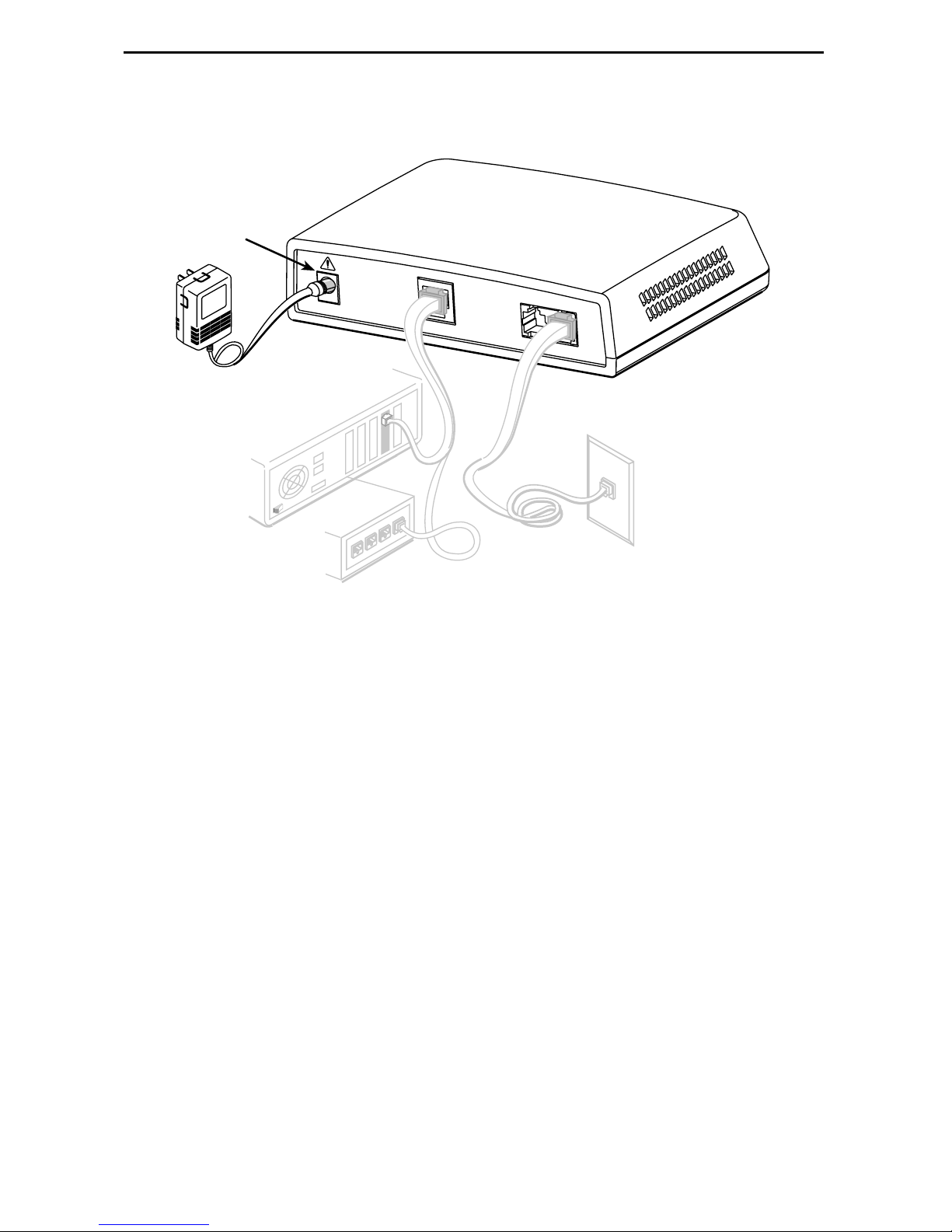

5. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the

transformer into an AC outlet.

The ReachDSL modem hardware installation is now complete. When the power cord is

installed, the ReachDSL modem goes through a power-on self-test.

PHONE LINE

ETHERNET

POWER

01-17010

Power

Jack

Transformer

Power-On

When power is applied, the ReachDSL modem performs self-diagnostics and the PWR

LED is on. The self-diagnostics includes a power-on self-test and all of the LEDs turn on

for one second.

Status LEDs

All of the LEDs turn on and off during the power-on self-test. After a successful self-test,

the LEDs should appear as indicated in BOLD in the Condition column below.

Refer to

Troubleshooting

on page 9 for LED indications requiring action.

LED Condition Status

PWR ON ReachDSL modem has power.

ALM OFF

No active alarms.

An alarm condition exists.

TST OFF

No active tests.

The TST LED is on during the power-on self-test and

during a test initiated by the service provider.

LINE ON

OFF

The DSL link is active and ready to transmit and receive

data.

The DSL link has not been established.

TX/RX ON

OFF

Data transmission is in progress on the DSL line.

The modem is not transmitting or receiving data.

ETHERNET ON

OFF

The Ethernet connection to the Ethernet hub or PC is

active.

No Ethernet 10BaseT device is detected.

ReachDSL

TST LINE ETHERNET

ALMPWR TX/RX

01-17003

Power –green

Alarm –red

Test –yellow

Transmit/Receive –green

Ethernet Link –green

DSL Line –green

Troubleshooting

LED Symptom Action

All LEDs are on. If LEDs remain on after ten minutes, the modem is not

functional. Contact the service provider.

ALM LED remains

on. The power-on self-test may have failed. Unplug the unit and

reapply power. If the alarm LED is still on, contact the service

provider.

ALM and TST LEDs

are blinking. Firmware download may be in progress. If firmware download is

not in progress or the LEDs continue blinking after ten minutes,

contact the service provider.

Ethernet LED is off. Verify that the Ethernet cable is securely installed at both ends,

and at least one PC is connected and powered on.

Verify that the correct straight-through or crossover cable is

installed. Refer to

Installing the Hotwire 6310 ReachDSL v1

Modem

on page 5.

LINE LED is off. Verify that the LINE cable is securely installed on both ends. If

the problem continues, contact the service provider.

Verify that the line has dial tone. If there is no dial tone, contact

the service provider.

LINE LED is on and

there is no data

transmission.

The DSL link has been established but there is no data

transmission. Verify the Ethernet connection. If the problem

persists, contact the service provider.

LINE and Ethernet

LEDs are on and

there is no data

transmission.

The DSL line and Ethernet links have been established but

there is no data transmission. If the problem continues, contact

the service provider.

PWR LED is off. Check that the power cord is securely installed on both ends.

If no LEDs are on, the power supply may be defective. Test the

outlet to verify power. If the problem persists, contact the

service provider.

If other LEDs are on, the PWR LED may be burned out. Unplug

the unit and reapply power; watch all LEDs during the power-on

self-test to verify if the PWR LED is functioning.

TST LED is on. A test initiated by the service provider may be active. Wait five

minutes. If the TST LED does not go off, contact the service

provider.

To improve data transmission throughput and minimize background noise during a

telephone conversation, make sure that:



The Hotwire 6310 ReachDSL v1 Modem is always powered on, even when not in

use, and



A Hotwire phone filter is installed on every telephone on the same line as the

Hotwire 6310 ReachDSL v1 Modem (see

Phone Filter

on page 3).

HomeLink (for ReachDSL v1 Modems Only)

HomeLink is a feature that provides peer-to-peer communications for PCs attached to

different Hotwire 6310 ReachDSL v1 modems at the customer premises.

For example, PCs that are not connected to the same physical Ethernet LAN can now

take advantage of the resources of the primary office computer. With the Microsoft

Windows operating system, multiple end-user systems can share resources, including:



File sharing



Print sharing



Secondary computer backup

To enable the sharing of resources and review security considerations, see Microsoft’s

Web site at www.microsoft.com.

In this example of HomeLink, the PC in the family room could use the office printer.

Increasing the Number of End-User Systems

A single end-user system is attached to the Hotwire 6310 ReachDSL v1 Modem by

using an Ethernet crossover cable. To increase the number of end-user systems,

connect all the PCs to an Ethernet hub using a straight-through cable.

On one line, the ReachDSL v1 system provides the capability to use up to four Hotwire

6310 ReachDSL v1 modems and 32 end-user systems in any combination.

PHONELINE

ETHERNET

POWER

PHONELINE

ETHERNET

POWER

01-17012

RJ11

Wall

Jack

ReachDSL v1

Modem

Office

Hub

FAX

Ethernet

Cable Printer

RJ11

Wall

Jack

ReachDSL v1

Modem

Family Room

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Paradyne Modem

Paradyne

Paradyne COMSPHERE 3910 Manuale utente

Paradyne

Paradyne HOTWIRE 7925 Manuale utente

Paradyne

Paradyne COMSPHERE 3910 Manuale utente

Paradyne

Paradyne 3920 Guida rapida

Paradyne

Paradyne COMSPHERE 3920PLUS Series Istruzioni per l'uso e l'installazione

Paradyne

Paradyne COMSPHERE 3910 Manuale del proprietario

Paradyne

Paradyne 6310 MVLT Manuale utente

Paradyne

Paradyne COMSPHERE 3800PLUS Manuale di istruzioni

Paradyne

Paradyne StormPort 610 Manuale utente

Paradyne

Paradyne COMSPHERE 3911 Manuale utente

Paradyne

Paradyne COMSPHERE 3920PLUS Series Manuale utente

Paradyne

Paradyne COMSPHERE 3920PLUS Series Manuale utente

Paradyne

Paradyne StormPort 1020 Manuale utente

Paradyne

Paradyne Hotwire 7974 Manuale utente

Paradyne

Paradyne BitStorm 6200 Manuale utente

Paradyne

Paradyne Hotwire 6211 Manuale utente

Paradyne

Paradyne 6218-A1-200 Manuale utente

Paradyne

Paradyne Comsphere 3400 Series Manuale utente

Paradyne

Paradyne HOTWIRE 7925 Manuale utente

Paradyne

Paradyne StormPort DSL Modem Manuale utente

Paradyne

Paradyne COMSPHERE 3610 Manuale di istruzioni

Paradyne

Paradyne COMSPHERE 3920PLUS Series Manuale del prodotto

Paradyne

Paradyne COMSPHERE 3910 Manuale di istruzioni

Paradyne

Paradyne KeepInTouch 3760 Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente

Zoom

Zoom 1070 Series Manuale utente
