Paradyne COMSPHERE 3810 Manuale utente

COMSPHERE 3800

SERIES MODEMS

MODELS 3810, 3811, AND 3820

QUICK REFERENCE

Document No. 3810-A2-GL10-00

Printed in U.S.A.

Notice

This publication is protected by federal copyright law. No part of this publication may be

copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated

into any human or computer language in any form or by any means, electronic,

mechanical, magnetic, manual or otherwise, or disclosed to third parties without the

express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo,

FL 33773.

Paradyne Corporation makes no representation or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for a particular purpose. Further, Paradyne Corporation reserves the right to

revise this publication and to make changes from time to time in the contents hereof

without obligation of Paradyne Corporation to notify any person of such revision or

changes.

Changes and enhancements to the product and to the information herein will be

documented and issued as a new release to this manual.

Warranty, Sales, and Service Information

Contact your local sales representative, service representative, or distributor directly for

any help needed. For additional information concerning warranty, sales, service, repair,

installation, documentation, training, distributor locations, or Paradyne worldwide office

locations, use one of the following methods:

Via the Internet: Visit the Paradyne World Wide Web site at

http://www.paradyne.com

Via Telephone: Call our automated call system to receive current information via

fax or to speak with a company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A., call 1-727-530-2340

Trademarks

All products and services mentioned herein are the trademarks, service marks,

registered trademarks or registered service marks of their respective owners.

Document Feedback

We welcome your comments and suggestions about this document. Please mail them

to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773,

or send e-mail to [email protected]. Include the number and title of this

document in your correspondence. Please include your name and phone number if you

are willing to provide additional clarification.

COMSPHERE 3800 Series

Modems

Models 3810, 3811, and 3820

Quick Reference

Document Number 3810-A2-GL10-00

October 1998

Electronic User Documentation

For more information, see the

COMSPHERE 3800 Series Modems, Models 3810,

3811, and 3820, User’s Guide

(Document No. 3810-A2-GB30). The User’s Guide is

provided on diskette. It may be installed on a PC using Microsoft Windows 3.1 or

above, then browsed or printed using the Adobe Acrobat Reader. The Reader is

available at no charge at Adobe’s World Wide Web site:

http://www.adobe.com

If it does not already exist, install the Adobe Acrobat Reader on your PC.

Installing the Documentation

The user documentation may be in a compressed format. Before installation, please

read the

aboutdoc.txt

file on the diskette for appropriate installation instructions.

Using the Adobe Acrobat Reader

For best viewing:

1. Use your operating system’s file manager to copy the PDF file to your hard disk,

then use the Adobe Acrobat Reader to open the file from your hard disk. This is not

required, but makes browsing through the document smoother and faster.

2. Maximize the Adobe Acrobat window so that it occupies the full screen.

3. Use the bookmarks along the left side to move around in the guide, the Index to

find specific topics, and the Find tool to search for particular text.

4. Once you find the topic you wish to read about, use the View menu to select Page

Only and Fit Visible.

Models 3810 and 3820 Installation

496-13096-02

EIA-232-D

INTERFACE

NMS

DIAL/LEASED (3820)

PHONE/LEASED (3810)

AC POWER IN

ON/OFF

STATUS

INDICATORS AC TRANSFORMER

LCD AND KEYPAD

DIAGNOSTIC

CONTROL

PANEL

SPEAKER

Customer-Supplied Equipment for Models 3810 or 3820

The following customer-supplied equipment is required to complete a data

communications system using either the Model 3810 or Model 3820 modem:

A DTE with an available EIA-232-D serial port.

A standard EIA-232-D male-to-female cable with a male DB-25-S connector at one

end to attach to the modem.

One of the following modular dial or leased network interfaces:

— RJ11C for dial permissive applications

— An 8-position to 6-position crossover cable for JM8 leased-line applications

only

Model 3810 or 3820 Telephone Connection

Use the following procedures to connect the modem to a telephone:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled

PHONE/LEASED (3810).

2. Insert the other end of the modular cord into the telephone.

Dial Network Management System Connection

For Model 3810 and 3820 modems, use the following procedures to connect the

modem to the network management system interface:

1. Insert the subminiature 4-conductor modular plug of the 3600 Hubbing Device into

the jack labeled NMS.

2. Connect the 3600 Hubbing Device to the network management system.

Refer to the

3600 Hubbing Device, Feature Number 3600-F3-300, Installation

Instructions

(3610-A2-GZ45) for more information. Installation for the Model 3810 and

3820 modems is the same as for the 3610 DSU.

AC Power Transformer Connection

Use the following procedures to connect the modem to an ac power outlet:

1. Make sure the modem’s power switch is in the Off position.

2. Insert the power transformer’s 5-pin DIN male connector into the modem’s rear

panel ac power receptacle.

3. Insert the power transformer into a grounded ac power outlet.

Model 3810 Dial Connection

For the Model 3810, use the following procedures to connect the modem to the dial

network interface:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED

(3820).

2. Insert the other end of the modular cord into the network interface.

Model 3810 Leased Line Connection

Use the following procedures to connect a Model 3810 to the 2-wire or 4-wire

leased-line network interface:

1. Insert the 8-position, 8-conductor modular plug into the jack labeled

PHONE/LEASED (3810).

2. Insert the other end of the modular cord into the leased-line network interface.

PHONE DIAL NMS DTE

PWR

LEASED

(3820)

LEASED

(3810)

98-13070-02

8-POSITION,

8-CONDUCTOR PLUG

FOR LEASED LINE

NETWORK OPERATION

(CONNECTS WITH

JM8 TYPE JACK)

6-POSITION,

4-CONDUCTOR PLUG

FOR TELEPHONE SET

6-POSITION, 4-CONDUCTOR PLUG FOR

PERMISSIVE DIAL NETWORK OPERATION

(CONNECTS WITH RJ11C TYPE JACK)

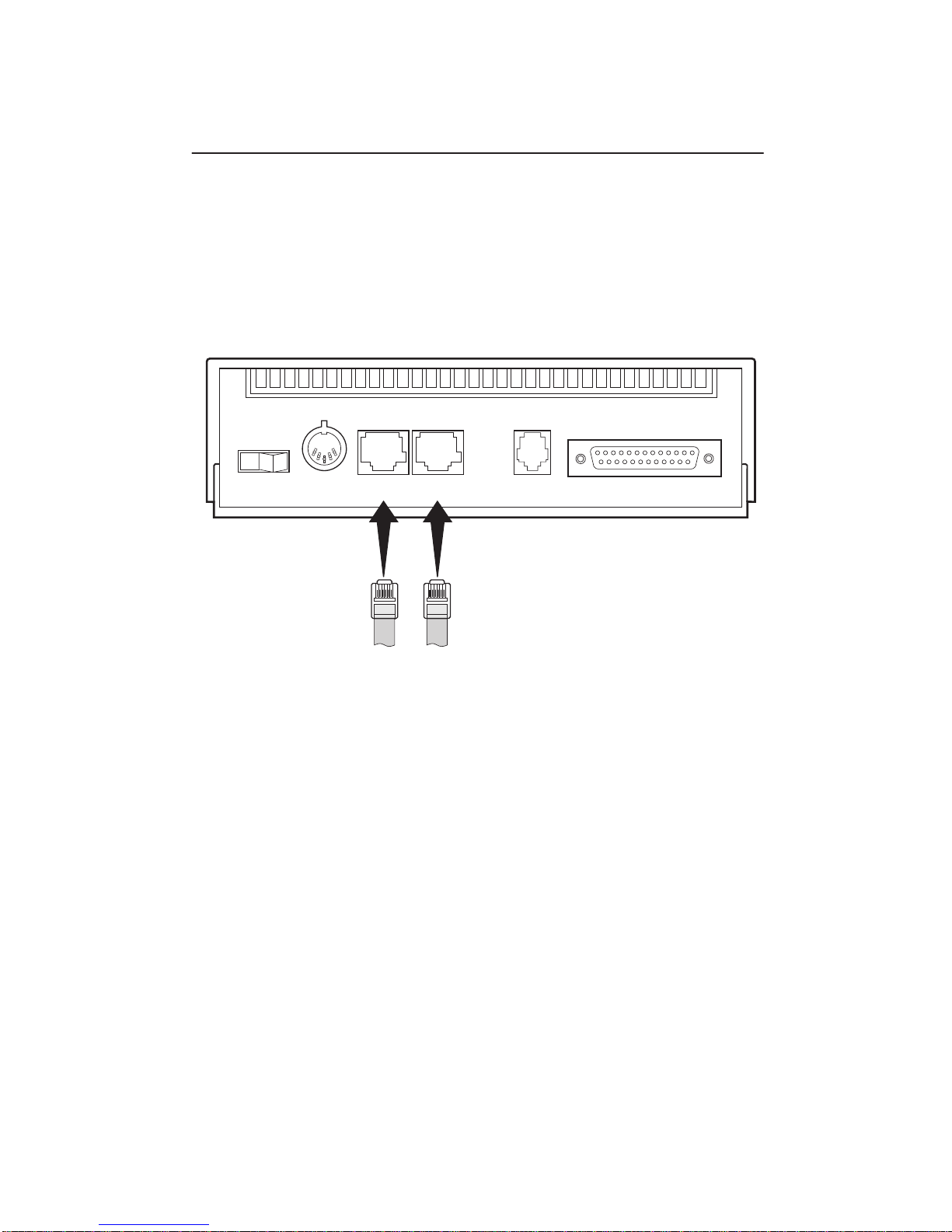

Model 3820 Network Connection

Use the following procedures to connect a Model 3820 to the dial or 2-wire leased-line

network interface:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED

(3820).

2. Insert the other end of the modular cord into the network interface.

PHONE DIAL NMS DTE

PWR

LEASED

(3820)

LEASED

(3810)

98-13071-02

6-POSITION,

4-CONDUCTOR PLUG

FOR TELEPHONE SET

6-POSITION, 4-CONDUCTOR PLUG FOR

PERMISSIVE DIAL NETWORK OPERATION

(CONNECTS WITH RJ11C TYPE JACK)

2-WIRE LEASED-LINE NETWORK OPERATION

(CONNECTS WITH 6-POSITION CENTER PAIR

LEASED JACK)

– OR –

DTE Connection

Use the following procedures to connect the EIA-232-D cable and ferrite choke from

the modem to the DTE:

1. Make sure the modem’s rear panel power switch is Off.

2. Connect the DB-25 plug on the cable to the DB-25 socket labeled DTE on the

modem’s rear panel. Use a small screwdriver to fasten the cable to the modem.

3. Connect the other end of the cable to the DTE. Use a small screwdriver to fasten

the cable to the DTE.

To ensure compliance with FCC Part 15 Regulations, a ferrite choke must be installed

on the EIA-232-D interface cable.

1. Open the ferrite choke and place it around the DTE cable as close as possible to

the connector attached to the modem.

2. Close the two halves around the cable and snap the ferrite choke shut, pressing

down on the plastic latch to secure it.

3. Install a cable tie behind the ferrite choke to prevent it from sliding along the cable.

98-13144-01

Ferrite

Choke

DTE

Connector

Cable Tie

Model 3811 Installation

496-13155-02

TXD

RXD

RTS

CTS

DSR

DTR

LSD

103

104

105

106

107

108

109

Pwr

Alrm

Test

Dial

Busy

Serv

Status

Front Panel

3811

142

125

Spkr

FACEPLATE

EIA-232/V.24

EDGE CARD

CONNECTOR

RS-366A/V.25

EDGE CARD

CONNECTOR

EIA-232/V.24

CONNECTOR

RS-366A/V.25

CONNECTOR

V.35

(3600/3500)

RS366A/V.25

(3800)

EIA232/V.24

REAR

CONNECTOR

PLATE

Customer-Supplied Equipment for Model 3811

The following customer-supplied equipment is required for the installation of a

Model 3811 modem:

A COMSPHERE 3000 Series Carrier.

A male-to-female 50-pin mass termination cable. One Network Interface Module

(NIM) for modems installed in Slots 1–8 and one NIM for modems installed in Slots

9–16 (required for dial-line applications).

One of the following modular or 50-pin dial or leased network interfaces:

— RJ11C for single line dial permissive applications

— RJ21X for multiple line dial permissive applications

— 66 punchdown block or other demarcation device

One 6-position to 6-position modular cord (required for network management

applications).

A Shared Diagnostic Unit (SDU) (required for network management applications).

Model 3811 Installation

The Model 3811 is designed for installation in a COMSPHERE 3000 Series Carrier

which supplies operating power and the dial and/or leased-line network connections.

For correct power, DTE, dial-line, leased-line, NIM, and network management cabling

information, refer to the

COMSPHERE 3000 Series Carrier, Installation Manual

Document No. 3000-A2-GA31.

The installation of a Model 3811 varies slightly if an SDCP is installed on the front of the

carrier. To install a Model 3811 modem into the carrier without an SDCP, perform the

following steps:

CAUTION

If the Model 3811 is removed from the carrier, always use a ground

strap when handling the modem. Always store the Model 3811 in an

antistatic bag when it is removed from the carrier.

Altri manuali per COMSPHERE 3810

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Paradyne Modem

Paradyne

Paradyne COMSPHERE 3911 Manuale utente

Paradyne

Paradyne Hotwire 6211 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

Paradyne

Paradyne COMSPHERE 3811Plus Manuale utente

Paradyne

Paradyne Hotwire 6310 MVL Manuale utente

Paradyne

Paradyne COMSPHERE 3920PLUS Series Istruzioni per l'uso e l'installazione

Paradyne

Paradyne Hotwire 6390 Manuale utente

Paradyne

Paradyne COMSPHERE 3810 Manuale

Paradyne

Paradyne Hotwire 6390 Manuale utente

Paradyne

Paradyne Hotwire 7974 Manuale utente

Paradyne

Paradyne COMSPHERE 3910 Manuale di istruzioni

Paradyne

Paradyne StormPort 1020 Manuale utente

Paradyne

Paradyne COMSPHERE 3800PLUS Manuale utente

Paradyne

Paradyne COMSPHERE 3825Plus Manuale utente

Paradyne

Paradyne COMSPHERE 3825Plus Manuale utente

Paradyne

Paradyne COMSPHERE 3910 Manuale del proprietario

Paradyne

Paradyne Hotwire 6205 Manuale utente

Paradyne

Paradyne COMSPHERE 3800PLUS Manuale di istruzioni

Paradyne

Paradyne HotWire 5170 Manuale utente

Paradyne

Paradyne COMSPHERE 3810 Manuale del proprietario

Paradyne

Paradyne COMSPHERE 3800 Series Manuale per l'uso e la cura

Paradyne

Paradyne HotWire 7914 Manuale utente

Paradyne

Paradyne Hotwire 7975 Manuale utente

Paradyne

Paradyne COMSPHERE 3830 Manuale dell'operatore

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente

Zoom

Zoom 1070 Series Manuale utente
