COMSPHERE
3800 SERIES MODEMS
MODELS 3810, 3811, AND 3820
JAPAN SUPPLEMENT
Document No. 3810-A2-GB93-30
ASeptember 1998 3810-A2-GB93-30
COMSPHERE
3800 Series Modems
Models 3810, 3811, and 3820
User’s Guide
Japan Supplement
3810-A2-GB93-30
4th Edition (September 1998)
Changes and enhancements to the product and to the information herein will be documented and issued as a new release to
this manual.
Warranty, Sales, and Service Information
Contact your sales or service representative directly for any help needed. For additional information concerning warranty,
sales, service, repair, installation, documentation or training, use one of the following methods:
•Via the Internet: Visit the Paradyne World Wide Web site at http://www.paradyne.com
•Via Telephone: Call our automated call system to receive current information via fax or to speak with a company
representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 727-530-2340
Trademarks
All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered service marks of their
respective owners.
COPYRIGHT 1998 Paradyne Corporation. All rights reserved.
Thispublicationis protected by federalcopyright law. Nopart of this publication maybe copied or distributed,transmitted, transcribed, stored ina retrieval system,
ortranslatedintoanyhumanorcomputerlanguageinanyformorbyanymeans,electronic,mechanical,magnetic,manualorotherwise,ordisclosedtothirdparties
without the express written permission of Paradyne Corporation, 8545 126th Avenue North, P.O. Box 2826, Largo, Florida 33779-2826.
ParadyneCorporationmakesnorepresentationorwarrantieswithrespecttothecontentshereofandspecificallydisclaimsanyimpliedwarrantiesofmerchantability
orfitness for aparticular purpose.Further,ParadyneCorporation reserves the right to revise this publication and tomake changesfrom timeto timein thecontents
hereof without obligation of Paradyne Corporation to notify any person of such revision or changes.
Printed on recycled paper
i3810-A2-GB93-30 September 1998
Table of Contents
1. Introduction
Overview 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Equipment List 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Installation
Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3800 Series Modem Package 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model 3810 or Model 3820 Modem Installation 2-1. . . . . . . . . . . . . . . .
Model 3810 or Model 3820 Dial-Line Connection 2-3. . . . . . . . . .
Model 3810 4-Wire/2-Wire Leased-Line Connection 2-3. . . . . . . .
Model 3810 2-Wire Leased-Line Connection 2-3. . . . . . . . . . . . . .
AC Power Transformer Connection 2-3. . . . . . . . . . . . . . . . . . . . .
Model 3811 Modem Installation 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. Restrictions and Configuration Options
Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restrictions 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Table 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
COMSPHERE 3800 Series Modems
ii September 1998 3810-A2-GB93-30
List of Tables
Table Page
1-1 Technical Specifications for Japan 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 Equipment List for Japan 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1 Configuration Options for Japan 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-13810-A2-GB93-30 September 1998
Introduction
Overview
This supplement highlights all safety warnings, installation procedures, features, and functions that
are unique to COMSPHERE 3800 Series modems installed in Japan. This document is intended to
be used in conjunction with the COMSPHERE 3800 Series Modems, Models 3810, 3811, and
3820, User’s Guide, Document No. 3810-A2-GB30. Please consult the User’s Guide for overall
operation of the 3800 Series modem.
This document consists of three chapters. Chapter 1 contains safety warnings, technical
specifications, and an equipment list. Chapter 2 provides installation procedures for Model 3810,
3811, and 3820 modems installed in Japan. Chapter 3 lists configurations options that differ from
what is described in the COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820,
User’s Guide.
Safety Warnings

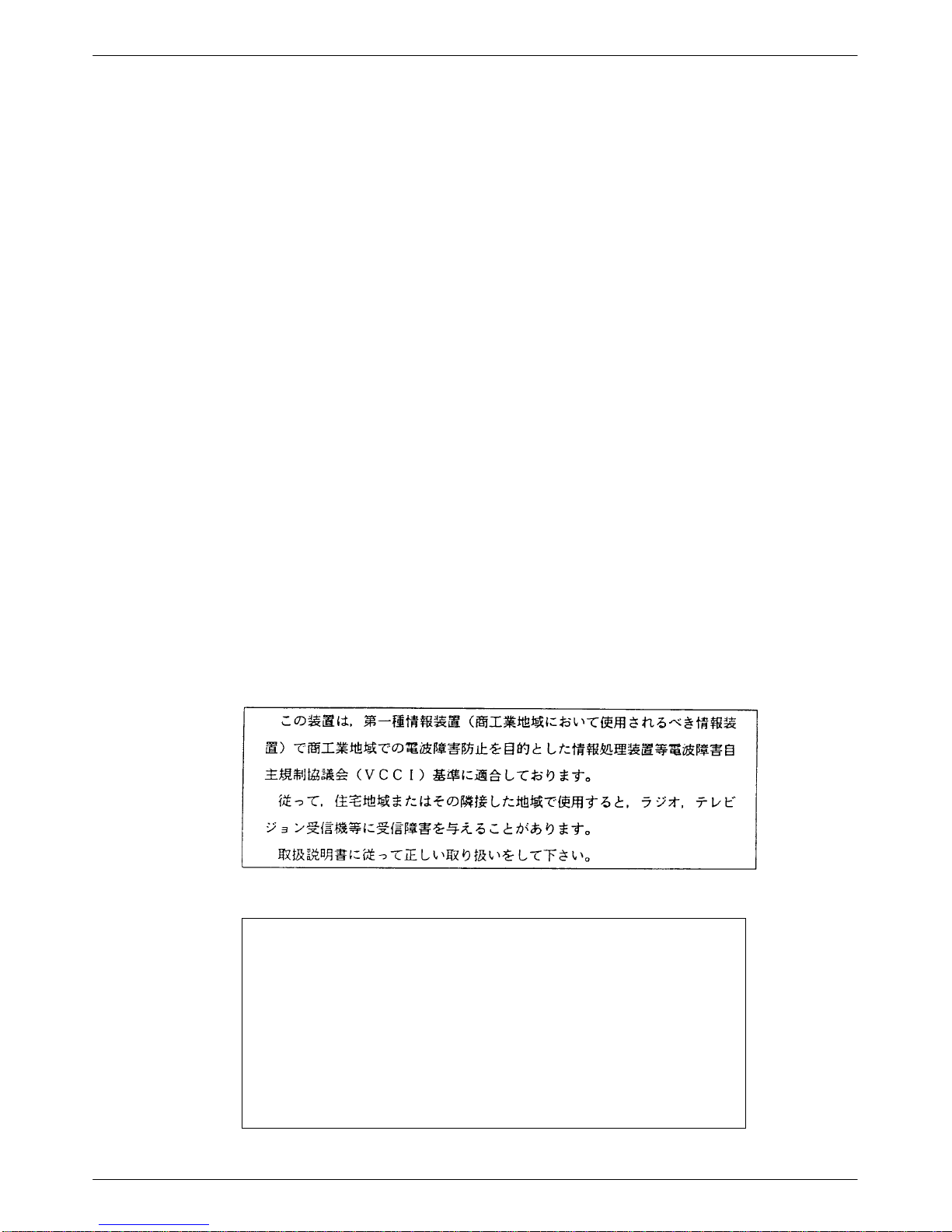

The following warning applies to 3800 Series modems installed in Japan.
THIS EQUIPMENT IS IN THE 1ST CLASS CATEGORY (INFORMATION
EQUIPMENT TO BE USED IN COMMERCIAL AND/OR INDUSTRIAL AREAS)
AND CONFORMS TO THE STANDARDS SET BY THE VOLUNTARY
CONTROL COUNCIL FOR INTERFERENCE BY DATA PROCESSING
EQUIPMENT AND ELECTRONIC OFFICE MACHINES AIMED AT
PREVENTING RADIO INTERFERENCE IN COMMERCIAL AND/OR
INDUSTRIAL AREAS.
CONSEQUENTLY, WHEN USED IN A RESIDENTIAL AREA OR IN AN
ADJACENT AREA THERETO, RADIO INTERFERENCE MAY BE CAUSED
TO RADIOS AND TV RECEIVERS, ETC.
READ THE INSTRUCTIONS FOR CORRECT HANDLING.
1
COMSPHERE 3800 Series Modems
1-2 September 1998 3810-A2-GB93-30
Technical Specifications
Table 1-1 shows technical specifications that are unique to 3800 Series modems installed in Japan.
Table 1-1
Technical Specifications for Japan
Specification Description
AC POWER
REQUIREMENTS 100 Vac 10%, 50/60 Hz
DIAL AND LEASED
TRANSMIT LEVEL Adjustable transmit level from –1 dBm to –15 dBm (Dial) and
0 dBm to –15 dBm (Leased)
TELEPHONE INTERFACE
Dial-Line Connectivity
Leased-Line Connectivity
RJ11C (Model 3810 and Model 3820)
RJ21X 50-pin connector (Model 3811)
RJ11C Service Line (Model 3811)
JM8 (Model 3810 requires 8-position to 6-position
crossover cable)
6-pin center pair leased jack (Model 3820)
50-pin mass termination (Model 3811)
Equipment List
Table 1-2 shows a list of modems and telephone cords available for use in Japan.
Table 1-2
Equipment List for Japan
Equipment Model/
Part Number
Model 3810 (90–110V) 4-wire/2-wire standalone
Model 3811 4-wire/2-wire carrier card
Model 3820 (90–110V) 2-wire standalone
6-position, 4-wire modular cord, 7-foot length
8-position to 6-position crossover modular cord
3810-A1-603
3811-B1-003
3820-A1-603
125-0067-0031
125-0054-1531
2-13810-A2-GB93-30 September 1998
Installation
Overview
This chapter provides installation procedures for the Model 3810, 3820, and 3811 modems
installed in Japan.
3800 Series Modem Package
After opening the modem’s package, check for damage and verify that the following items are
present:
For the standalone models
•Manual and Quick Reference
•Model 3810 or Model 3820 modem
•Power transformer
•One 6-position, 4-wire modular cord (Model 3810 and Model 3820)
•One 8-position to 6-position crossover modular cord (Model 3810 only)
For the carrier-mounted model
•Manual and Quick Reference
•Model 3811 modem
•Rear connector plate with two DB-25-P edge card connectors
If any hardware components are damaged, notify your sales representative.
Model 3810 or Model 3820 Modem Installation
The following procedures describe how to connect the standalone modem to the dial line, leased
line, and ac power transformer.
Before installing your modem, make sure your installation site is clean and well-ventilated. Allow
space around the modem for installing cables and telephone cords, and make sure the modem is
located within reach of the ac power outlet. The distance between your modem and DTE should be
minimized if DTE data rates exceed 19,200 bps. Also, low capacitance cables may be necessary
for speeds greater than 19,200 bps or distances greater than 50 feet.
Figure 2-1 and Figure 2-2 show how Model 3810 and Model 3820 modems are connected to
certain TELCO jack types using the supplied cables.
2
COMSPHERE 3800 Series Modems
2-2 September 1998 3810-A2-GB93-30
Figure 2-1. Model 3810 Rear Panel
Figure 2-2. Model 3820 Rear Panel
Chapter Title
2-33810-A2-GB93-30 September 1998
Model 3810 and Model 3820 Dial-Line Connection
Use the following procedure to connect the modem to the dial network interface:
1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED
(3820). See Figure 2-1.
2. Insert the other end of the modular cord into the dial network interface.
Model 3810 4-Wire/2-Wire Leased-Line Connection
Use the following procedure to connect a Model 3810 to the leased-line network interface:
1. Insert the 8-position modular plug into the jack labeled PHONE/LEASED (3810). See
Figure 2-1.
2. Insert the 6-position modular plug into the leased-line network interface.
3. If the Model 3810 has a dial backup line, follow the steps listed in the Model 3810 and
Model 3820 Dial-Line Connection section.
Model 3820 2-Wire Leased-Line Connection
Use the following procedure to connect a Model 3820 modem to the 6-pin, center pair, leased-line
network interface:
1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED
(3820). See Figure 2-2.
2. Insert the other end of the modular cord into the leased-line network interface.
COMSPHERE 3800 Series Modems
2-4 September 1998 3810-A2-GB93-30
Model 3810 and Model 3820 DTE Connection
Use the following procedure to connect the modem to a DTE:
1. Make sure the modem’s rear panel power switch is Off.
2. Connect the DB-25 plug on the cable to the DB-25 socket labeled DTE on the modem’s
rear panel. Use a small screwdriver to fasten the cable to the modem.
3. Connect the other end of the cable to the DTE.
To ensure compliance with FCC Part 15 Regulations, a ferrite choke must be installed on the
EIA-232-D interface cable. See Figure 2-3.
1. Open the ferrite choke and place it around the DTE cable as close as possible to the
connector attached to the modem.
2. Close the two halves around the cable and snap the ferrite choke shut, pressing down on the
plastic latch to secure it.
3. Install a cable tie behind the ferrite choke to prevent it from sliding along the cable.
98-13144-01
Ferrite
Choke
DTE
Connector
Cable Tie
Figure 2-3. Model 3810 and Model 3820 Ferrite Choke Installation
