13610-A2-GZ41-70 April 1999

Ferrite Choke

Installation Instructions

Document Number 3610-A2-GZ41-70

April 1999

Overview

This document describes the procedure for installing a

ferrite choke onto a cable, and accompanies at least one

ferrite choke.

One ferrite choke is provided with every:

•Model 3511, 3611, and 3616 DSU with a Dial

Backup Module (DBM). Attach the ferrite choke to

the DTE cable.

•DBM shipped as a separate feature. Attach the

ferrite choke to the DTE cable for a carrier

installation, and discard it for a standalone unit.

Two or more ferrite chokes are provided with every:

•Model 3000 Carrier assembly with an ac power

transformer unit. Attach one ferrite choke to the ac

power cord and one to each network cable.

•Model 3611 MUX circuit card. Attach one ferrite

choke to each DTE cable.

•Six-Port MUX Adapter module. Attach one ferrite

choke to each DTE cable.

CAUTION

All ferrite chokes that are

supplied must be installed

following these instructions

to ensure compliance with

FCC Part 15 Rules.

Installation

To install the ferrite choke on the DTE interface,

network, or power cable:

Procedure

1. Pull up on the latch to open the ferrite choke.

2. Place the ferrite choke around the cable as close to

the cable connector as possible.

3. Close the two halves around the cable and snap

the ferrite choke shut.

496-14820-01

Ferrite Choke

Tie

Wrap Plastic

Latch

4. Press down on the plastic latch to secure the ferrite

choke in place around the cable.

5. For the ac power cable or other thin cable, secure

the ferrite choke in place with a cable tie wrap.

Refer to Figure 1 on the next page for examples of

installed ferrite chokes.

2April 1999 3610-A2-GZ41-70

99-15235-02

PORT 1

PORT 2

PORT 3

PORT 4

PORT 5

PORT 6

Ferrite

Choke

Cable

Tie Wrap

for AC

Power Cable

Ferrite Choke for

V.32 DBM

or DBM-V

V.35

Cable

6-Port

MUX

Adapter

NIM

EIA-232

Interface

3600

V.35

Interface

Network Cable

DTE

Connector

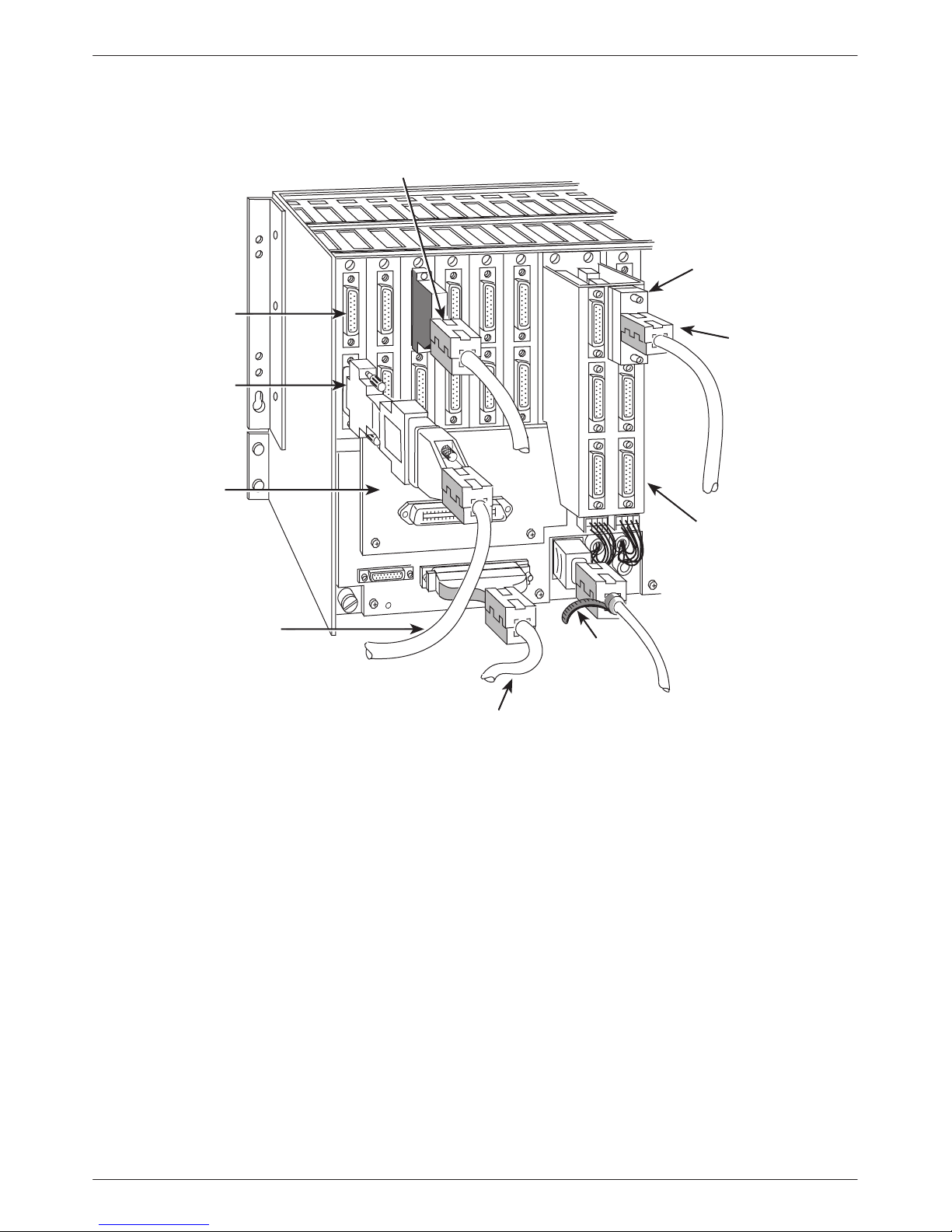

Figure 1. Examples of Installed Ferrite Chokes, Carrier Rear View



*3610–A2–GZ41–70*
