Paradyne COMSPHERE 3610 Manuale utente

COMSPHERE

3600 SERIES

DATA SERVICE UNITS

TIME DIVISION MULTIPLEXER,

MULTICHANNEL MULTIPOINT,

AND DIGITAL BRIDGE OPTIONS

QUICK REFERENCE

Document No. 3610-A2-GL12-00

Printed in U.S.A.

Notice

This publication is protected by federal copyright law. No part of this publication may be

copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated

into any human or computer language in any form or by any means, electronic,

mechanical, magnetic, manual or otherwise, or disclosed to third parties without the

express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo,

FL 33773.

Paradyne Corporation makes no representation or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for a particular purpose. Further, Paradyne Corporation reserves the right to

revise this publication and to make changes from time to time in the contents hereof

without obligation of Paradyne Corporation to notify any person of such revision or

changes.

Changes and enhancements to the product and to the information herein will be

documented and issued as a new release to this manual.

Warranty, Sales, and Service Information

Contact your local sales representative, service representative, or distributor directly for

any help needed. For additional information concerning warranty, sales, service, repair,

installation, documentation, training, distributor locations, or Paradyne worldwide office

locations, use one of the following methods:

Via the Internet: Visit the Paradyne World Wide Web site at

http://www.paradyne.com

Via Telephone: Call our automated call system to receive current information via

fax or to speak with a company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A, call 1-727-530-2340

Document Feedback

We welcome your comments and suggestions about this document. Please mail them

to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773,

or send e-mail to [email protected]. Include the number and title of this

document in your correspondence. Please include your name and phone number if you

are willing to provide additional clarification.

Trademarks

All products and services mentioned herein are the trademarks, service marks,

registered trademarks or registered service marks of their respective owners.

COMSPHERE 3600 Series Data Service Units

Time Division Multiplexer, Multichannel Multipoint,

and Digital Bridge Options

Quick Reference

Document Number 3610-A2-GL12-00

November 1998

Product Documentation on the World Wide Web

We provide complete product documentation at www.paradyne.com. This lets you

search the documentation for specific topics and print only what you need, reducing the

waste of surplus printing. It also helps us maintain competitive prices for our products.

Select

Service & Support

→

Technical Manuals

→

Subrate Digital Access Devices

Then select the following documents:

3610-A2-GB46

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, User’s Guide

3610-A2-GB48

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611 Time Division Multiplexer, Multichannel Multipoint, and

Digital Bridge Options, Supplement

To request a paper copy of a Paradyne document:

Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

Outside the U.S.A., call 1-727-530-8623

Things to Know Before Installation

The COMSPHERE Model 3610 DSU with the TDM or MCMP option is delivered with

default hardware settings, factory default configuration option settings, and

factory-installed software.

Port 1 of the DSU is preconfigured to operate with the TDM or MCMP capability

enabled. The DSU includes the factory default configuration option settings for

FacT with some defaults based on hardware.

For the Model 3610, all additional ports are disabled and preconfigured for EIA-232

port interface operation. Each port configured for V.35 needs an interconnect cable

(Feature Number 3000-F1-510).

Once a DSD model is powered up, you can verify the port interface switch setting

through the right side of the back panel.

— If set for EIA-232, you will see a green light.

— If set for V.35, you will see a yellow light.

496-15149

Installing the DSU

The Model 3610 DSU is designed for desktop operation.

Place the DSU in the planned location.

Allow 1 to 2 feet of clearance for cable connections, space for the ventilation slots

on the sides, and clearance at the rear for the cable connections.

Hardware Settings

!HANDLING PRECAUTIONS FOR STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from

damage due to electrostatic discharge (ESD) during normal

operation. When performing installation procedures,

however, take proper static control precautions to

prevent damage to equipment. If you are not sure

of the proper static control precautions, contact

your nearest sales or service representative.

TDM/Flex and MCMP/Flex models are available with two or six ports. When your

firmware version is 6.33 or greater, each port can be set individually for either EIA-232

or V.35 using the front panel, an async terminal, or an NMS.

Based on your model, you may need to perform one of following procedures. Use ID

from the Status branch to obtain the firmware version.

If your

model is a

6-port . . .

And the

EIA-232

setting . . . Then . . .

TDM/Flex or

MCMP/Flex Is correct Go to

Powering Up the DSU

, page 9.

MCMP/Flex

with firmware

6.33 or

greater

Needs to be

changed Go to

Powering Up the DSU

, page 9, and

Reconfiguring Ports

, page 10.

TDM/Flex or

MCMP/Flex

Is correct Go to

Powering Up the DSU

, page 9.

MCMP/Flex

with firmware

less than

6.33

Needs to be

changed Change the S1 switch setting on the TDM/Flex or

MCMP/Flex circuit card to the On position for V.35 or

Off position for EIA-232.

TDM/DSD or

Is correct Go to

Powering Up the DSU

, page 9.

TDM/DSD or

MCMP/DSD Needs to be

changed Change the option card to set all six ports. Start with

the next section,

Opening the DSU

NOTE:

If the unit is already installed, disconnect all cables, including the power source,

before opening the DSU.

Opening a Model 3610 DSU without MUX

Follow this procedure to separate the DSU cover from the base.

Procedure

1. Turn the unit upside down and release the four snap tabs using a small flat-blade

screwdriver. Tabs release when you push in and up with the screwdriver.

2. Turn the unit upright and bring the cover toward the front panel. Do not allow any

cables to pull free from the inside front panel connectors.

496-14706-02

Snap Tabs

THISDIGITAL APPARATUSDOES NOT EXCEED THE CLASS A LIMITS FOR RADIO NOISE

EMISSIONSFROM DIGITAL APPARATUSSET OUT IN THE RADIO INTERFERENCE

REGUAALTIONSOF THE CANADIAN DEPARTMENT OF COMMUNICATIONS

FOR USE WITHA CERTIFIED CLASS 2 POWER SUPPLY FOUR UTILISER AVEC LINE

ALIMENTATIONCERTIFEE

EN CLASSE 2.

THISDEVICE COM;OIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO

THEFOLLOWING TWO CONDITIONS (1) THIS DEVICE MAY NOT CAUSE HARMFUL

INTERFERENCEAND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED

INCLUDINGINTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

FCC ID: NOTAPPLICABLE

PEC MFGDATE

MODEL

NO. SER.NO

COMMCODE

MADE IN USA

Snap Tabs

Snap

Tabs

COMSPHERE 3610

Opening a Model 3610 DSU with MUX

Follow this procedure to separate the MUX DSU cover from the base and to separate

the DSU circuit card from the MUX circuit card.

Procedure

1. Use a small flat-blade screwdriver to release the four snap tabs holding the base in

place. Tabs release when you push in and up with the screwdriver. Remove the

cover toward the front panel. Do not allow any cables to pull free from the inside

front panel connectors.

496-14707-01

With TDM

or MCMP

Snap Tabs

COMSPHERE 3610

2. Disconnect the LCD flat cable by working the cable free of the connector.

3. Disconnect the keypad flat cable from the DSU circuit card by

squeezing the

latches

on each side of the cable connection and pulling up on the keypad flat

cable.

4. Disconnect the TDM/MCMP flat cable.

5. Unscrew the three screws holding the DSU circuit card in place.

6. Lift the DSU circuit card from the base and set aside.

LCD

Flat

Cable

Keypad

Flat

Cable

DSU

Circuit

Card

Expanded

Base

Snap

Tabs

TDM or MCMP

Flat Cable

Screw

98-13846d

Snap

Tabs

Screw

Assembling and Disassembling a TDM or MCMP DSU

Changing the EIA-232 or V.35 Interface

Follow this section to change a TDM/DSD or MCMP/DSD model from:

HEIA-232 interface to V.35 interface, or

HV.35 interface to EIA-232 interface

Separating the DSU from the TDM or MCMP

Follow this procedure to separate the DSU circuit card from the TDM or MCMP.

"Procedure

1. Disconnect the keypad flat cable from the DSU circuit card by

squeezing the

latches

on each side of the cable connection and pulling up on the keypad flat

cable.

2. Disconnect the LCD flat cable by working the cable free of the connector.

3. Disconnect the TDM or MCMP flat cable.

4. Unscrew the three screws holding the DSU circuit card in place.

5. Lift the DSU circuit card from the base and set aside.

Changing the DSD Option Card Setting

For the TDM/DSD or MCMP/DSD model, use the following procedure to change the

setting from EIA-232 to V.35 or from V.35 to EIA-232.

"Procedure

1. Work the option card free of its connector.

Option

Card

Rear

Panel LED 2

(Yellow

V.35)

LED 1

(Green

EIA-232)

496-13845-03

THIS SIDE FACES REAR FOR V.35

2. Turn the card around and re-insert. In the example above, the card reads THIS

SIDE FACES REAR FOR V.35.

Adding the MCMP/TDM Flex Option to a

Model 3610 DSU

An MCMP/TDM circuit card assembly (CCA) can be added to an installed DSU. The

MUX CCA must be physically and electrically connected to the DSU. The Model 3610 is

installed into a larger base.

The MCMP/TDM Flex model is designed so that each port can be set individually to

either EIA-232 or V.35 by using either the front panel, an async terminal, or an NMS.

The firmware version must be 6.33 or greater.

Adding a MUX CCA

To upgrade a 3610 DSU with a MUX CCA:

Procedure

1. Fold the TDM/Flex or TDM/Flex flat cable over the side of the new expanded base.

2. Position the DSU over the expanded base.

3. Proceed to

Reassembling the DSU

on page 8.

Replacing an Installed MUX CCA

To replace an existing MUX CCA:

Procedure

1. Release the two snaplocks holding the MUX CCA in the base. Remove the MUX

CCA.

Snaplocks

496-15229

TDM/MCMP

Flat Cable

2. Place the new CCA into the two snaplocks in the base.

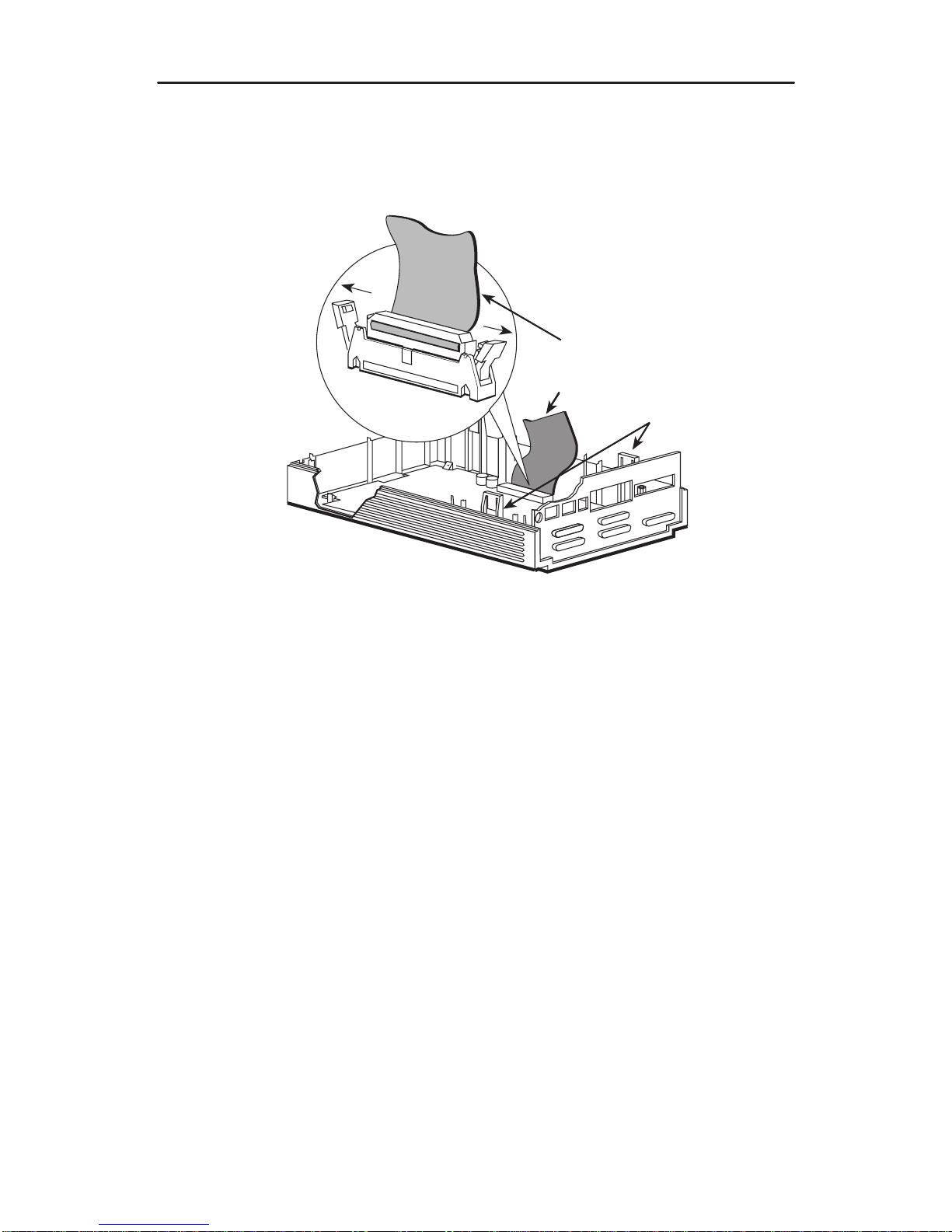

3. Connect the 40-pin TDM/MCMP flat cable to the new MUX CCA. Fold the flat cable

out over the side of the new expanded base.

4. Proceed to

Reassembling the DSU

40-Pin

TDM/MCMP

Flat Cable

496-15230

Snap

Tabs

Reassembling the DSU

Procedure

1. Secure the DSU to the expanded base using the two #4 thread-cutting screws at

the front corners, and the #4 screw with the captive lock-washer at the back corner.

2. Connect the flat cable’s 40-position header to the DSU as shown on page 5.

3. Connect the keypad flat cable by inserting the cable into its connector as far as it

will go, then pushing down on the latching mechanism.

4. Being careful not to bend the pins, align the LCD flat cable with its connector. Push

the cable into place.

5. Align the rear panel and four snap tabs. Replace the cover over the expanded

base, allowing the four tabs to snap into place.

Altri manuali per COMSPHERE 3610

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Paradyne Hardware di rete

Paradyne

Paradyne iMarc SLV 9820-2M Manuale utente

Paradyne

Paradyne COMSPHERE 3610 Aggiornamento firmware

Paradyne

Paradyne 7510-A2-GB20-00 727 Manuale utente

Paradyne

Paradyne ACCULINK 3161 CSU Manuale utente

Paradyne

Paradyne 7112 Manuale utente

Paradyne

Paradyne Comsphere 3510 Manuale utente

Paradyne

Paradyne MIM-4T1 Manuale utente

Paradyne

Paradyne GranDSLAM 4200 Manuale utente

Paradyne

Paradyne Hotwire 5446 Manuale utente

Paradyne

Paradyne Hotwire 8784 Manuale utente

Paradyne

Paradyne DC Power Entry Module 8820-S1-906 Manuale utente

Paradyne

Paradyne HotWire 8800 DSLAM Manuale utente

Paradyne

Paradyne Hotwire 7996 Manuale utente

Paradyne

Paradyne ACCULINK 3160 Manuale

Paradyne

Paradyne Hotwire 6210 Manuale utente

Paradyne

Paradyne ACCULINK 3160 Manuale utente

Paradyne

Paradyne 7110 Guida rapida

Paradyne

Paradyne ACCULINK 3163 DSU Manuale utente

Paradyne

Paradyne ACCULINK 316x Manuale

Paradyne

Paradyne COMSPHERE 3610 Manuale operativo e di manutenzione

Paradyne

Paradyne ACCULINK 3151 CSU Manuale utente

Paradyne

Paradyne 7915-A1 E1 SDSL Manuale utente

Paradyne

Paradyne Hotwire 5620 Manuale utente

Paradyne

Paradyne ACCULIN 3364 Manuale

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
