PASCO PASPORT PS-2104 Manuale utente

PS-2104

The PS-2104 Force Sensor measures force in newtons.

Force Quick Start

Additional Equipment Needed

• PASPORT Link Device (USB Link, Xplorer, etc.)

• EZscreen or DataStudioT software (version 1.5 or later)

• Hook and rubber bumper attachments (included)

• Thumbscrew (included) used to mount on cart or Accessory Bracket (CI-6545)

Equipment Setup

1. Connect the PASPORT Link Device to a USB port on your computer or USB hub.

2. Connect the sensor plug to a PASPORT Link Device.

3. The software launches when it detects a PASPORT sensor. From the

PASPORTAL screen, select a point of entry:

• an activity in the Workbook window,

• EZscreen, or

• DataStudio.

Sensor Specifications

Sensor Range:

50 newtons (N)

Accuracy:

1 %

Resolution:

0.03 newtons (N)

Max. Sample Rate:

1,000 sps

Default Sample Rate:

10 sps

Over-limit Protection:

Prevents damage from forces greater

than 50 N

ZERO Button:

Tares the output to zero newtons before

each use. Always tare with the sensor in

the orientation used during the experiment.

800-772-8700 • 916-786-3800 • techsupp@pasco.com • 012-07297D

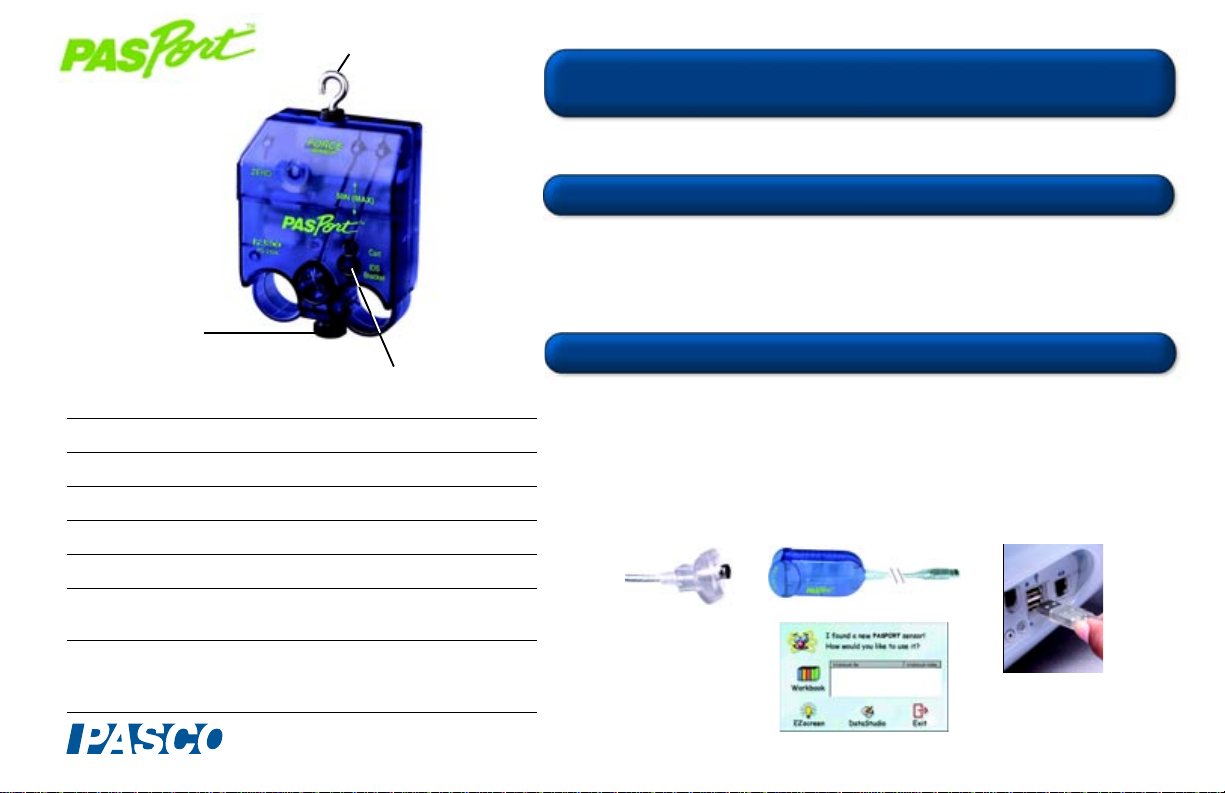

Force

Sensor

Holes for mounting

to a cart or an

accessory bracket

Built-in thumbscrew

for mounting on a

support rod

Apply force here

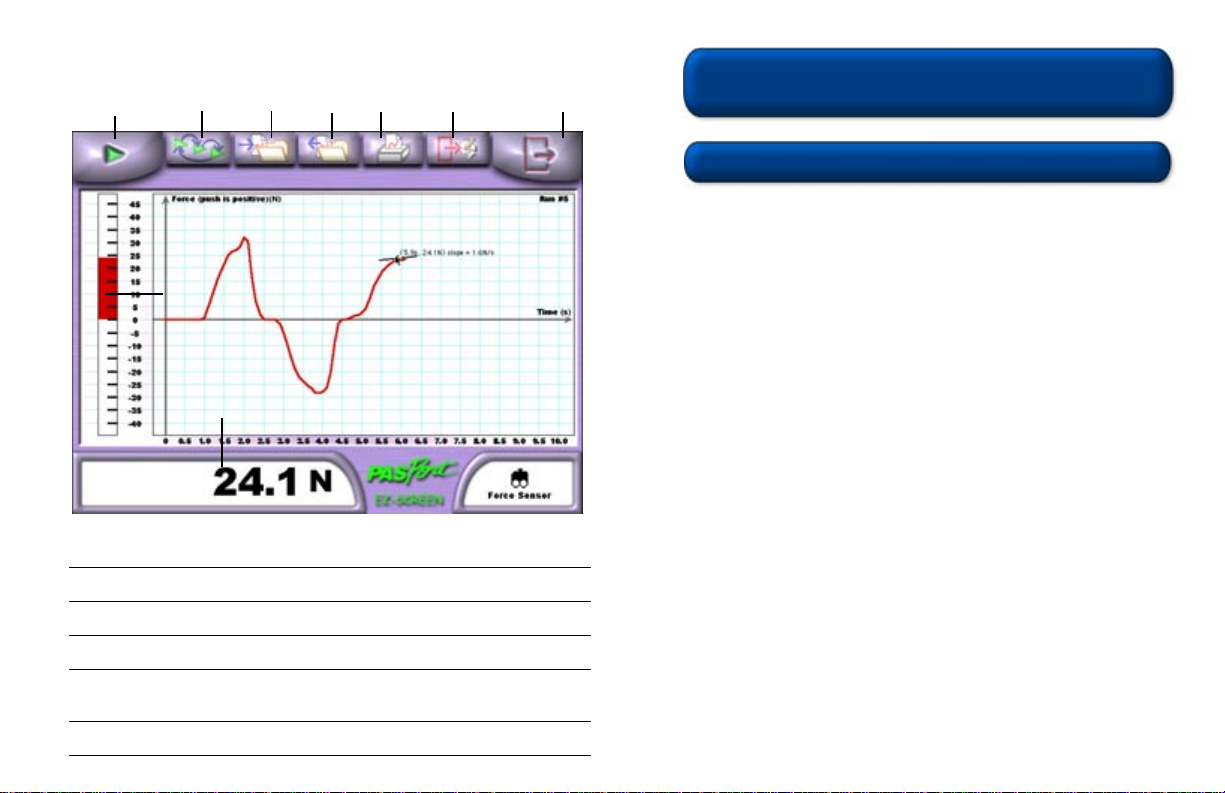

Force EZscreen

EZscreen Activity-Acceleration Due to Gravity

EZscreen Specifications

EZscreen Range:

50 newtons (N)

Recording Time:

up to 120 seconds

Scale-to-Fit:

Double-click the Graph to scale data

Information Tool:

Drag cursor over graph to display X,Y coordinate and

slope at a point

Export to DataStudio:

Click Exit to DataStudio

button

Toggle

Data

Runs Save

Data Open

Data Print

Graph

Quit

EZscreen

Force

Reading

Exit to

DataStudio

Clickthe Start

Button to

Record Data

1. Mount the Force Sensor on a horizontal support rod with

hook pointing down.

2. Press the Zero button on the Force Sensor to tare it.

3. Obtain a variety of objects of known mass, such as the

Hooked Mass Set (SE-8759). Hang a mass from the Force

Sensor hook.

4. Click the Start button and record data for 10 seconds.

5. Click the Stop button.

6. Repeat Steps 2–5 for each mass.

7. Using your data and the formula:

F = mg

(where F equals the force exerted by the mass, mequals the

mass, and gis the acceleration due to gravity), calculate an

average value for the acceleration due to gravity.

8. Imagine that you performed this experiment on the Moon

(where gis 1.63 m/s2). How would this experiment change?

Explain.

Note: Masses between 200–1000g yield best results.

Bar

Chart
