PASCO PS-3212 Manuale utente
PASCO Form Number Description Date Revision

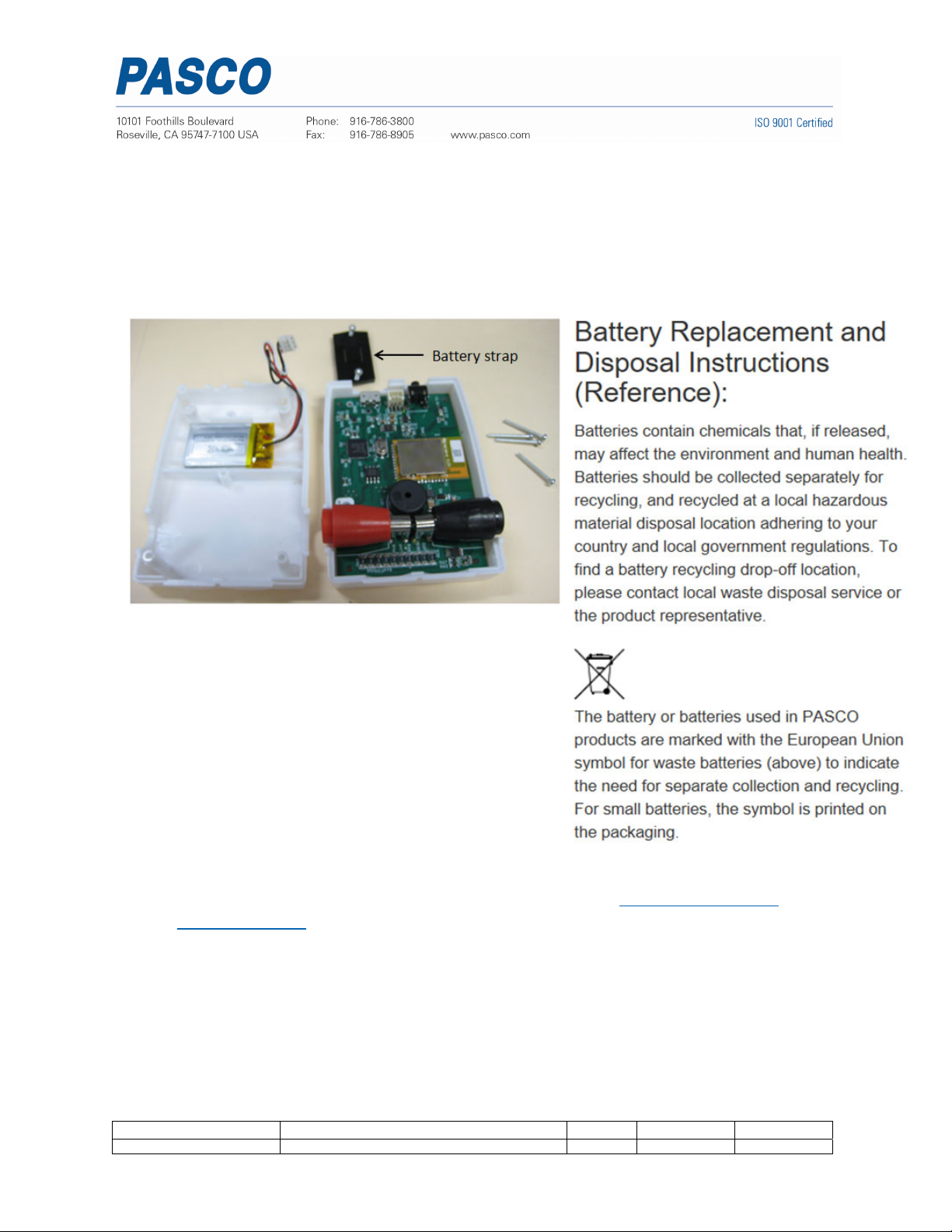

013-16109 PS-3212 Battery Replacement Instructions 05-05-22 Page 1 of 3 B
PS‐3212;WirelessCurrentSensorBatteryReplacementInstructions
Reference:Batterypartnumber540‐115;Li‐Poly300mAH
RecommendedEquipment:(PS‐3299;BatteryReplacementToolSet)

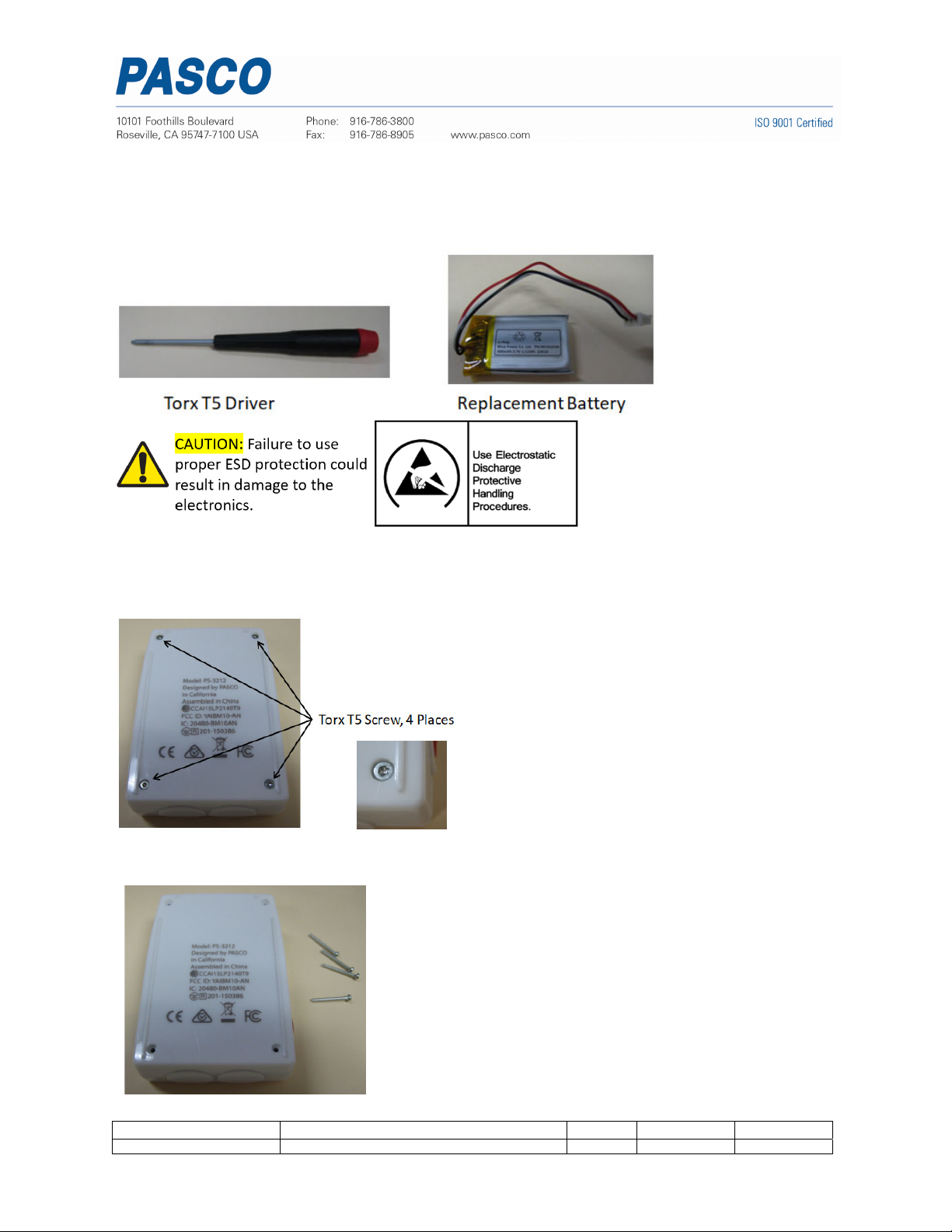

Step1:PositiontheSensoronasurfaceasshown.Notethelocationofthe(4)TorxT5
Screws.
Step2:Unscrewandremovethe4TorxScrewswiththeT5Screwdriver.
PASCO Form Number Description Date Revision
013-16109 PS-3212 Battery Replacement Instructions 05-05-22 Page 2 of 3 B

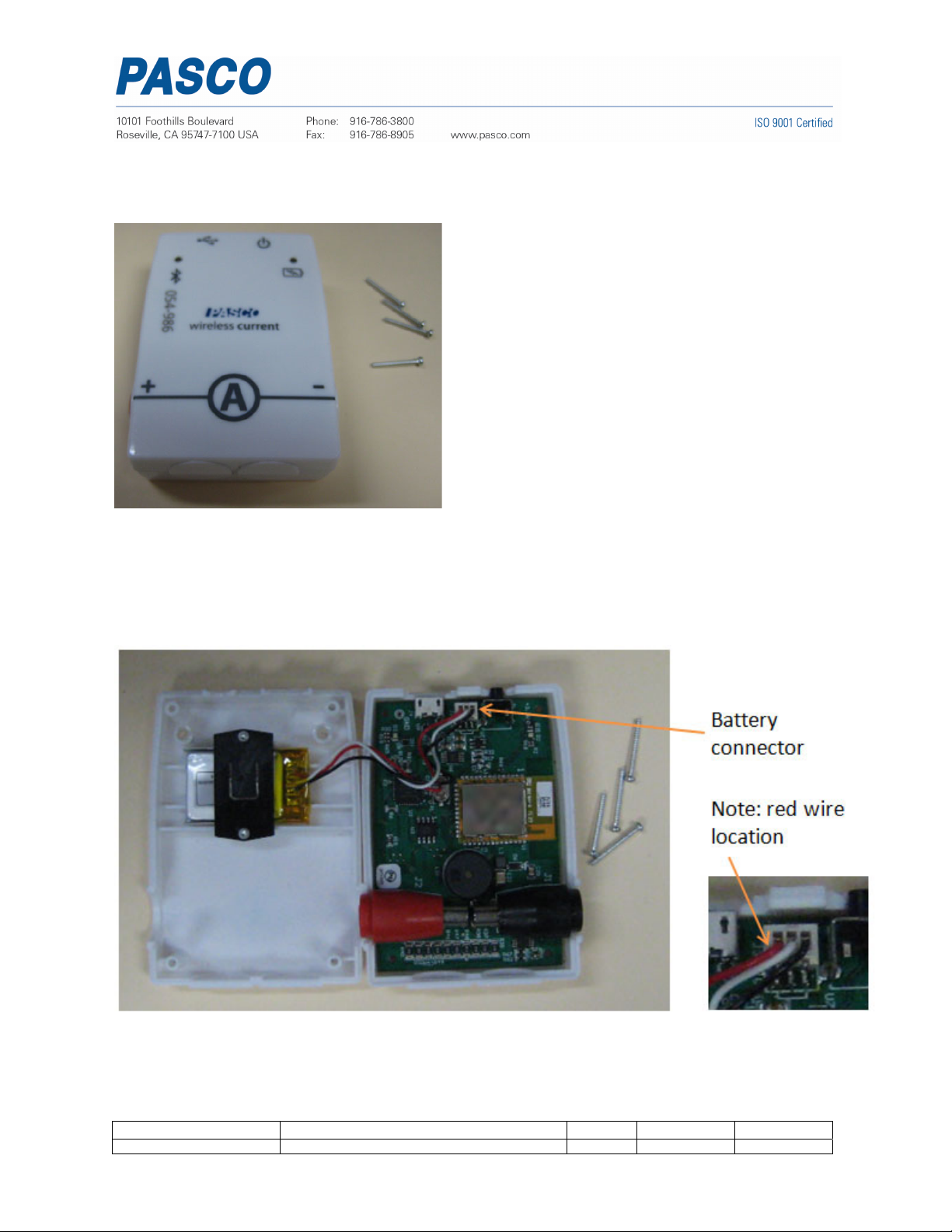

Step3:Whileholdingbothhalvestogether,fliptheproductoverlookingatthefrontas
shown.
Step4:Whileholdingthebottomwithonehand,liftandrotatethetopcovertotheleft.
PASCO Form Number Description Date Revision
013-16109 PS-3212 Battery Replacement Instructions 05-05-22 Page 3 of 3 B
Step5:Removethebatterystrapscrews(2)withtheT5Screwdriverandremovethebattery
strap.Unplugthebatteryfromitsconnector.Removethebatteryandaddthereplacement
batteryatthelocationshown(seeabovepicture)andpositionthewiringsimilartotherouting
shownabove.Plugthebatteryintoitsmatingconnectorandreversethestepsnotedaboveto
completethereassembly.
Ifyouneedfurtherassistance,pleasecontactTechnicalSupportat[email protected]or
throughwww.pasco.comonchat.Toaccesschatthroughyourbrowser,pleaseenableall
cookiesonourwebsite.
