PASCO PS-3236 Guida







PASCO Form Number Description Date Revision

013-17368 PS-3236 Battery Replacement Instructions 05-05-22 Page 1 of 4 A



PS‐3236;WirelessEKGSensorReplacementInstructions

Reference:Batterypartnumber540‐115;Li‐Poly300mAH

RecommendedEquipment:(PS‐3299;BatteryReplacementToolSet)



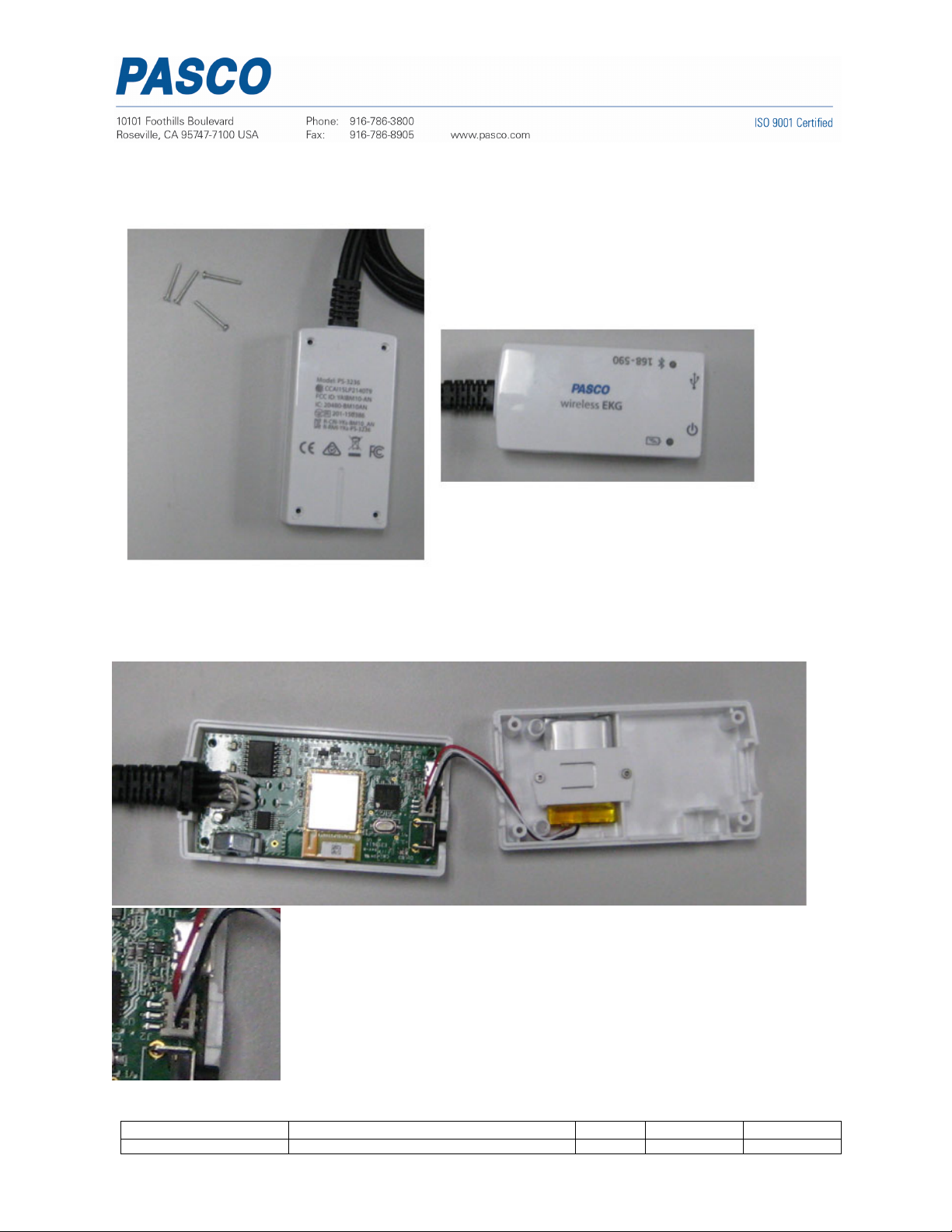

Step1:PositiontheSensoronasurfaceasshown.Notethelocationofthe(4)T5Screws.









PASCO Form Number Description Date Revision

013-17368 PS-3236 Battery Replacement Instructions 05-05-22 Page 2 of 4 A



Step2:UnscrewandremovetheQty=4T5ScrewswiththeT5Screwdriver.Fliptheassembly

overasshownbelow.





Step3:Separatethetwohalvesasshownbelow.Notetheconnectororientation.











PASCO Form Number Description Date Revision

013-17368 PS-3236 Battery Replacement Instructions 05-05-22 Page 3 of 4 A



Step4:RemovethebatteryholddowncoverbyremovingthetwoT5screwswithaTorxT5

Screwdriver.Unplugthebatteryconnectorandsetthebatteryaside.























NEXTPAGE

















PASCO Form Number Description Date Revision

013-17368 PS-3236 Battery Replacement Instructions 05-05-22 Page 4 of 4 A



Step5:Placethenewbatteryinthebatterycompartmentandsecurebyreattachingthe

batteryholddowncover.Pluginthebatteryintothebatteryconnectorandreversethesteps

notedabovetocompletethereassembly.Disposeoftheoldbatteryproperlyperthe

instructionsbelow.











Ifyouneedfurtherassistance,pleasecontactTechnicalSupportat[email protected]or

throughwww.pasco.comonchat.Toaccesschatthroughyourbrowser,pleaseenableall

cookiesonourwebsite.
