RLC Circuit

Introduction

The RLC Circuit board is designed to be used with a PASCO

850 or 550 Universal Interface to study the behavior of

resistors, inductors, and capacitors in an AC circuit. The board

includes three resistors, two capacitors, an air-core inductor, a

#50 miniature screw lamp, and a bi-color LED. The included

steel rod can be used to increase the inductance of the inductor

by placing the rod inside the coil.

NOTE: Prior to the first use, remove the bolt that secures

the inductor during shipping.

Inductor

An air core inductor with an inductance of

8.2 mH.

Steel Rod

For placing inside the inductor to increase the

inductance.

Resistors

Includes three resistors with a resistance of

100 Ω, 33 Ω, and 10 Ω.

Lamp

A replaceable #50 miniature screw base lamp.

LED

A bi-color LED in series with a 150 Ω resistor.

The illuminated color is dependent on the

polarity of the connection.

Capacitors

Includes two electrolytic capacitors with a

capacitance of 330 µF and 100 µF.

CI-6512 RLC Circuit Product Manual

012-04818E Page 1 of 4

Required Equipment

The equipment listed below is required for performing

experiments with the CI-6512 RLC Circuit.

PASCO Universal Interface

The UI-5000 850 Universal Interface or the UI-5001 550

Universal Interface supplies a power to the circuit using

its integrated signal generator and connections for

sensors. The signal generator is capable of reporting the

output voltage, current, and frequency of the signal.

Voltage Sensor

A voltage sensor is required to measure the voltage across

a single component in the circuit. Use either the UI-5100

Unshrouded Voltage Sensor or the UI-5110 Shrouded

Voltage Sensor.

Banana Plug Patch Cords

Cords are required to connect the RLC Circuit to the

Universal Interface. Patch cords are available from

PASCO in the following lengths:

• 15 cm (EM-9737)

• 30 cm (SE-7123)

• 75 cm (SE-9750, SE-9751, EM-9740, EM-9745)

• 200 cm (SE-9415A)

PASCO Data Collection Software

PASCO Capstone or SPAR vue software is required for

data collection and to control the signal output of the

Universal Interfaces. The 850 Universal Interface can

only be used with PASCO Capstone.

Circuit Setups

Though the name of this product is called "RLC Circuit," it is

possible to also create RC and LR circuits with the apparatus.

Additionally, it is possible to apply signals to each component

individually on the board.

RLC Circuit Setup

The resistors, capacitors, and inductor are connected in series

on the RLC Circuit board. To create an RLC circuit:

1. Connect the ground port of the signal generator to the

banana jack of a resistor.

2. Connect the signal generator port to the banana jack of a

capacitor.

Below is an example RLC circuit which contains a 10 Ω

resistor, a 330 µF capacitor, and the inductor.

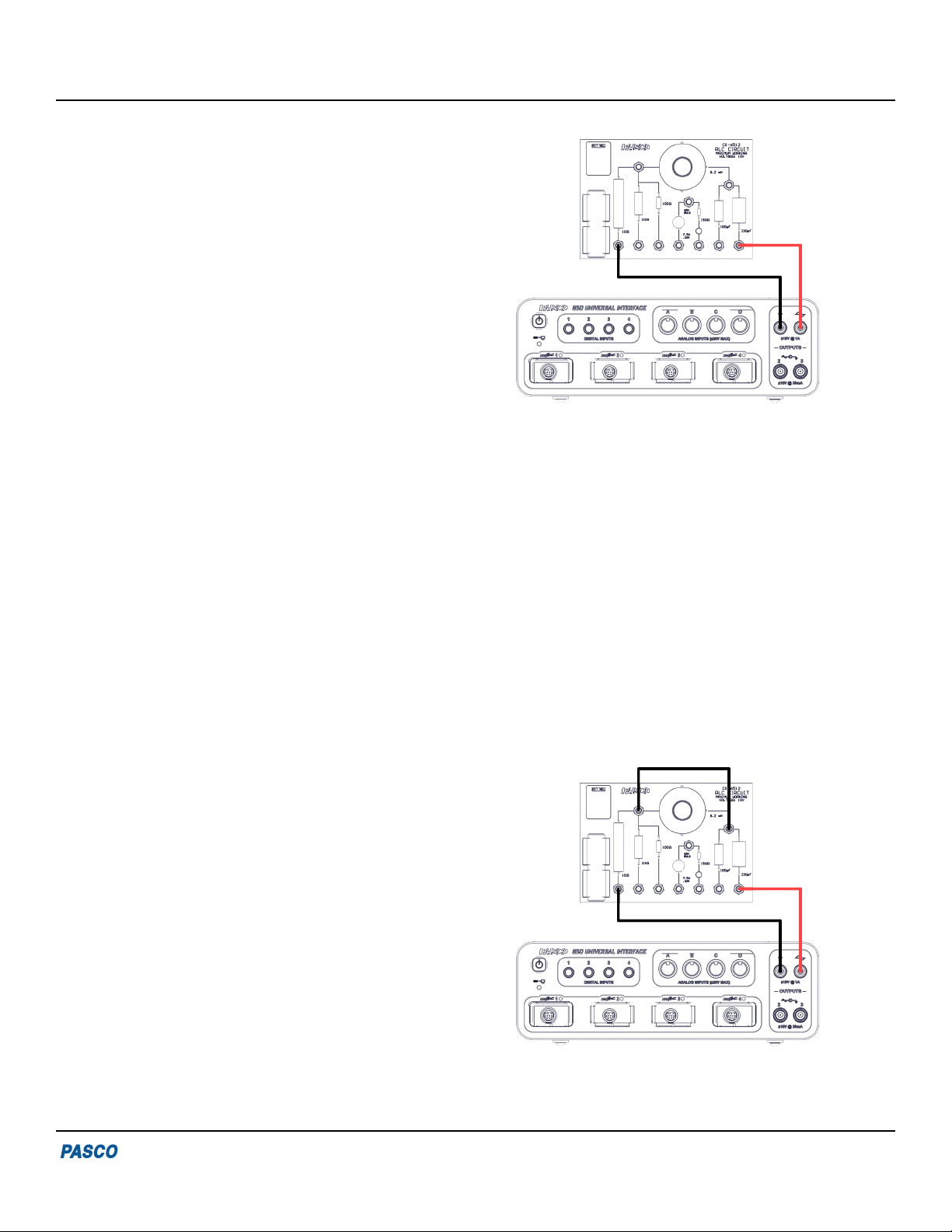

Figure 1. An RLC circuit example

RC Circuit Setup

The resistors, capacitors, and inductor are connected in series

on the RLC Circuit board. In order to create an RC circuit,

a cable must be connected across the inductor to bypass the

inductor. To create an RC circuit:

1. Connect the ground port of the signal generator to the

banana jack of a resistor.

2. Connect the signal generator port to the banana jack of a

capacitor.

3. Connect a banana cable to each jack of the inductor.

Below is an example RC circuit which contains a 10 Ω resistor

and 330 µF capacitor.

Figure 2. An RC circuit example

CI-6512 RLC Circuit Product Manual

012-04818E Page 2 of 4

LR Circuit Setup

Each resistor is connected in series with the inductor on the

RLC Circuit board. To create an LR circuit:

1. Connect the ground port of the signal generator to the

banana jack of a resistor.

2. Connect the signal generator port to the banana jack

shared by the inductor and capacitors.

Below is an example LR circuit which contains a 10 Ω resistor

in series with the inductor.

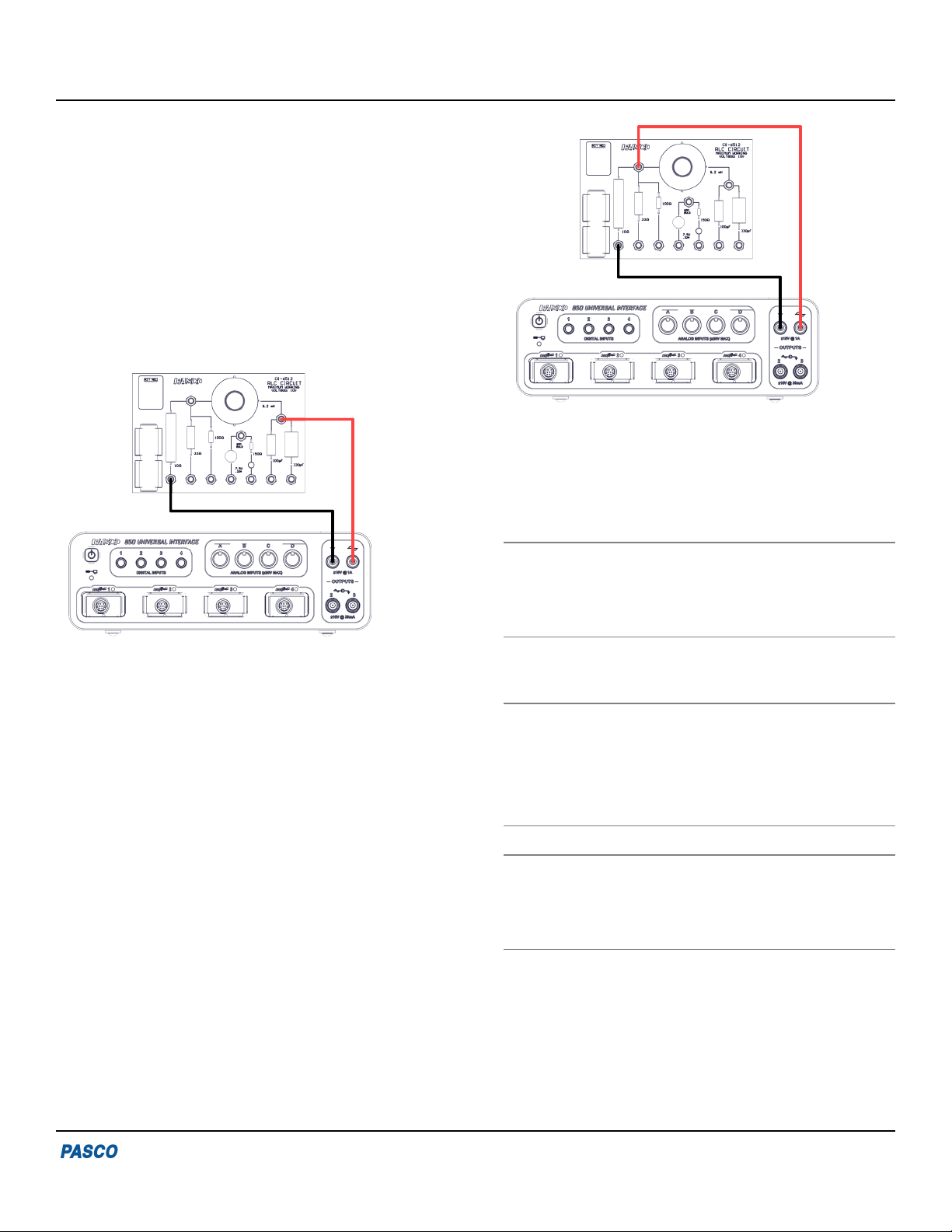

Figure 3. An LR circuit example

Single Component Setup

It is possible to connect a single component to the signal

generator on the Universal Interface. This can be useful for

performing an Ohm's Law experiment where the current

through a single resistor is measured as the voltage across it is

changed. To connect a single component:

1. Connect the ground port of the signal generator to the

banana jack of a component.

2. Connect the signal generator port to the banana jack on the

opposite end of the component.

The below example shows a single 10 Ω resistor connected to

the signal generator.

Figure 4. A single component connection example

Specifications

Maximum

Working Voltage

10 V

Resistors 100 Ω ± 5%, 1 W

33 Ω ± 5%, 5 W

10 Ω ± 5%, 10 W

Capacitors 100 µF ± 20 %, 16 V

330 µF ± 20 %, 16 V

Inductor 8.2 mH @ 1 kHz

6.5 Ω maximum DC resistance

0.8 A current rating RMS

0.75" ID X 1.75" OD

Lamp 7.5 V, 0.22 A, #50 miniature screw style

LED red (655 nm)/green (565 nm)

1.7–2.1 V typical forward voltage

1.5 mcd average brightness @ 20 mA

CI-6512 RLC Circuit Product Manual

012-04818E Page 3 of 4

Technical Support

For assistance with any PASCO product, contact PASCO

Technical Support.

Address PASCO scientific

10101 Foothills Blvd.

Roseville, CA 95747-7100

Phone 1-800-772-8700 (USA)

1-916-462-8384 (International)

Chat www.pasco.com

email [email protected]

Product End of Life Disposal Instructions

This electronic product is subject to disposal and recycling

regulations that vary by country and region. It is your

responsibility to recycle your electronic equipment per your local

environmental laws and regulations to ensure that it will be

recycled in a manner that protects human health and the

environment. To find out where you can drop off your waste

equipment for recycling, please contact your local waste recycle or disposal

service, or the place where you purchased the product.

The European Union WEEE (Waste Electronic and Electrical Equipment)

symbol and on the product or its packaging indicates that this product must not

be disposed of in a standard waste container.

Warranty, Copyright, and Trademarks

Limited Warranty: For a description of the product warranty, see the

Warranty and Returns page at www.pasco.com/legal.

is granted to non-profit educational institutions for reproduction of any part

of this manual, providing the reproductions are used only in their laboratories

and classrooms, and are not sold for profit. Reproduction under any other

circumstances, without the written consent of PASCO scientific, is prohibited.

Trademarks: PASCO and PASCO scientific are trademarks or registered

trademarks of PASCO scientific, in the United States and/or in other countries.

All other brands, products, or service names are or may be trademarks or

service marks of, and are used to identify, products or services of, their

respective owners. For more information visit www.pasco.com/legal.

CI-6512 RLC Circuit Product Manual

012-04818E Page 4 of 4
