RocketLink-G™ Model 3088 Series

G.SHDSL NTU with Fixed

Serial Interfaces

Quick Start Guide

Important

—This is a Class A device and is intended for use in a light industrial environment. It is not

intended nor approved for use in an industrial or residential environment.

Document Number: 03325U7-001 Rev. C

Part Number: 07M3088-QS

Revised: July 17, 2008

Sales Ofﬁce: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: [email protected]

WWW: www.patton.com

Model 3088 Quick Start Guide

1.0 Select conﬁguration method

Before powering up, you must select one of the following methods for conﬁguring your RocketLink-G:

•

Plug ‘n’ Play

—The RocketLink-G comes factory-conﬁgured for Plug ’n’ Play conﬁguration when connected

to a service-provider network.

•

DIP Switch

—For deploying the RocketLink-G in back-to-back applications. To use DIP-switch conﬁguration

you must ﬁrst set the DIP switches to a position other than all OFF or all ON before powering-up the Rock-

etLink-G. To conﬁgure your NTU using the DIP switches, refer to the section entitled “Hardware (DIP-switch)

conﬁguration” in the

RocketLink-G Model 3088 Series Getting Started Guide.

•

Software Conﬁguration

—Allows you to modify conﬁgurable parameters by connecting a PC to the con-

sole port and issuing software commands. To use software conﬁguration you must set all the DIP switches to

the ON position before powering-up the RocketLink-G. To conﬁgure your NTU via the console port, refer to

section “Software (CLI) conﬁguration” in the

RocketLink-G Model 3088 Series Getting Started Guide.

• This device contains no user serviceable parts. The equipment

shall be returned to Patton Electronics for repairs, or repaired

by qualiﬁed service personnel.

• AC Powered Units: The external power adaptor shall be a

listed Limited Power Source. Ensure that the power cable used

meets all applicable standards for the country in which it is to

be installed, and that it is connected to a wall outlet which has

earth ground. The mains outlet that is utilized to power the

device shall be within 10 feet (3 meters) of the device, shall

be easily accessible, and protected by a circuit breaker.

• DC Powered Units: The interconnecting cables shall be rated

for proper voltage, current, anticipated temperature, ﬂamma-

bility, and mechanical serviceability.

• Hazardous network voltages are present in WAN ports,

regardless of whether power to the unit is ON or OFF. To avoid

electric shock, use caution when near WAN ports. When

detaching the cables, detach the end away from the device

ﬁrst.

•

Do not work on the system or connect or disconnect cables dur-

ing periods of lightning activity.

WARNING

Model 3088 Quick Start Guide

2.0 Power up the NTU

Your G.SHDSL NTU comes with one of the following power supply options:

•

External AC adaptor with detachable power cord

•

External DC power supply with terminal block connector (model 48V-PSM3)

2.1 Models with external AC adaptor

Connect female plug of the AC power cord to the AC adaptor provided.

Connect the barrel-type connector of the AC adaptor to the

Power

connector on the RocketLink-G.

Insert the male plug of the AC power cord into an AC power outlet (100–240 VAC).

2.2 Models with external DC power supply

The 36-60 VDC DC to DC adapter is supplied with the DC version of the Model 3088. The black and red leads

plug into a DC source (nominal 48VDC) and the barrel power connector plugs into the barrel power supply jack

on the 3088. (See

ﬁgure 1

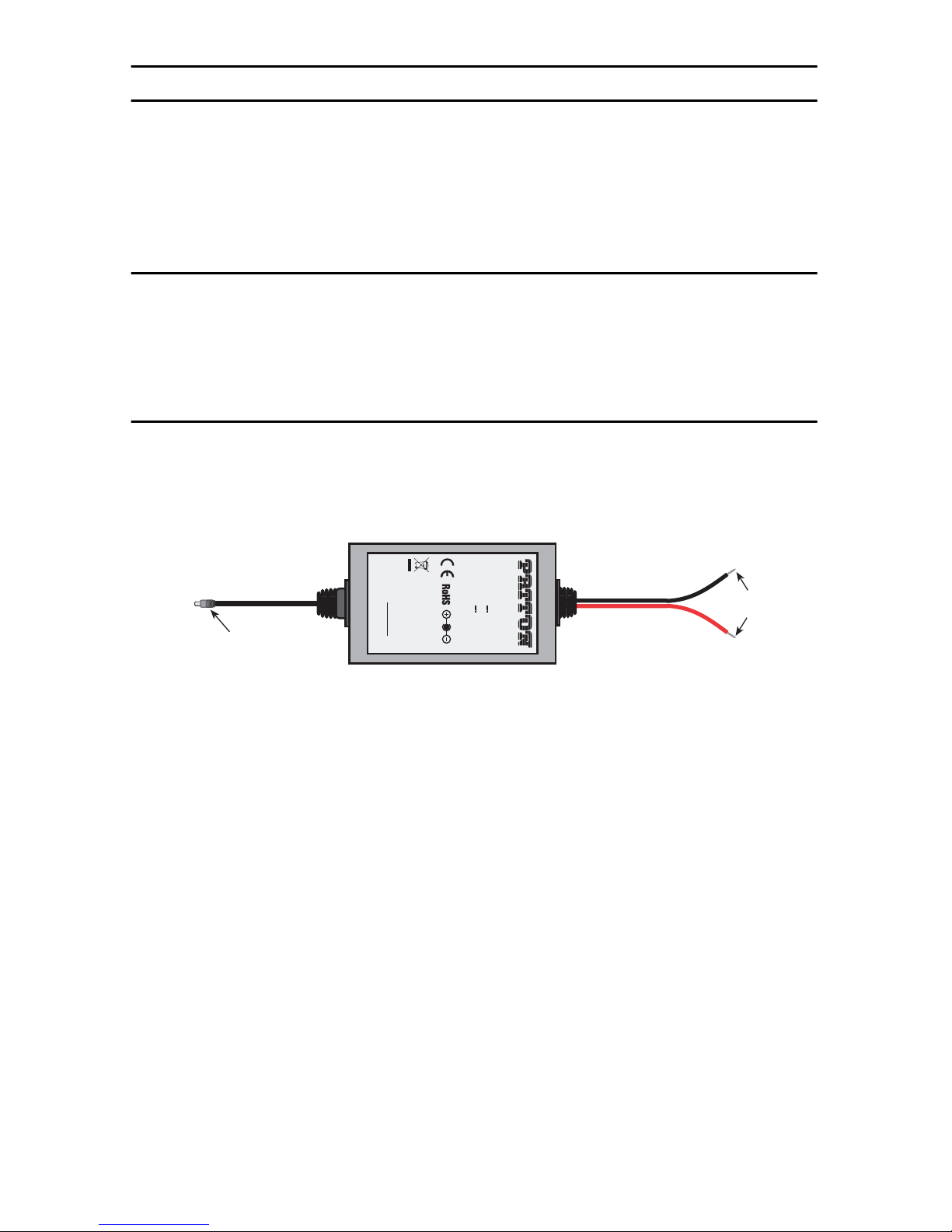

Figure 1.

DC Power Supply

To Power

Supply Jack To -48VDC

Source

-Vin

+Vin

SWITCHING POWER SUPPLY

MODEL : SYD1106-0505

INPUT : 36-60V 0.2A MAX

OUTPUT : +5V 1.0A

OUTPUT POWER : 5W MAX

S/N: G01234567890

MADE IN CHINA BY SUNNY

Black lead (-V)

Red lead (+V)

Barrel power connector

Model 3088 Quick Start Guide

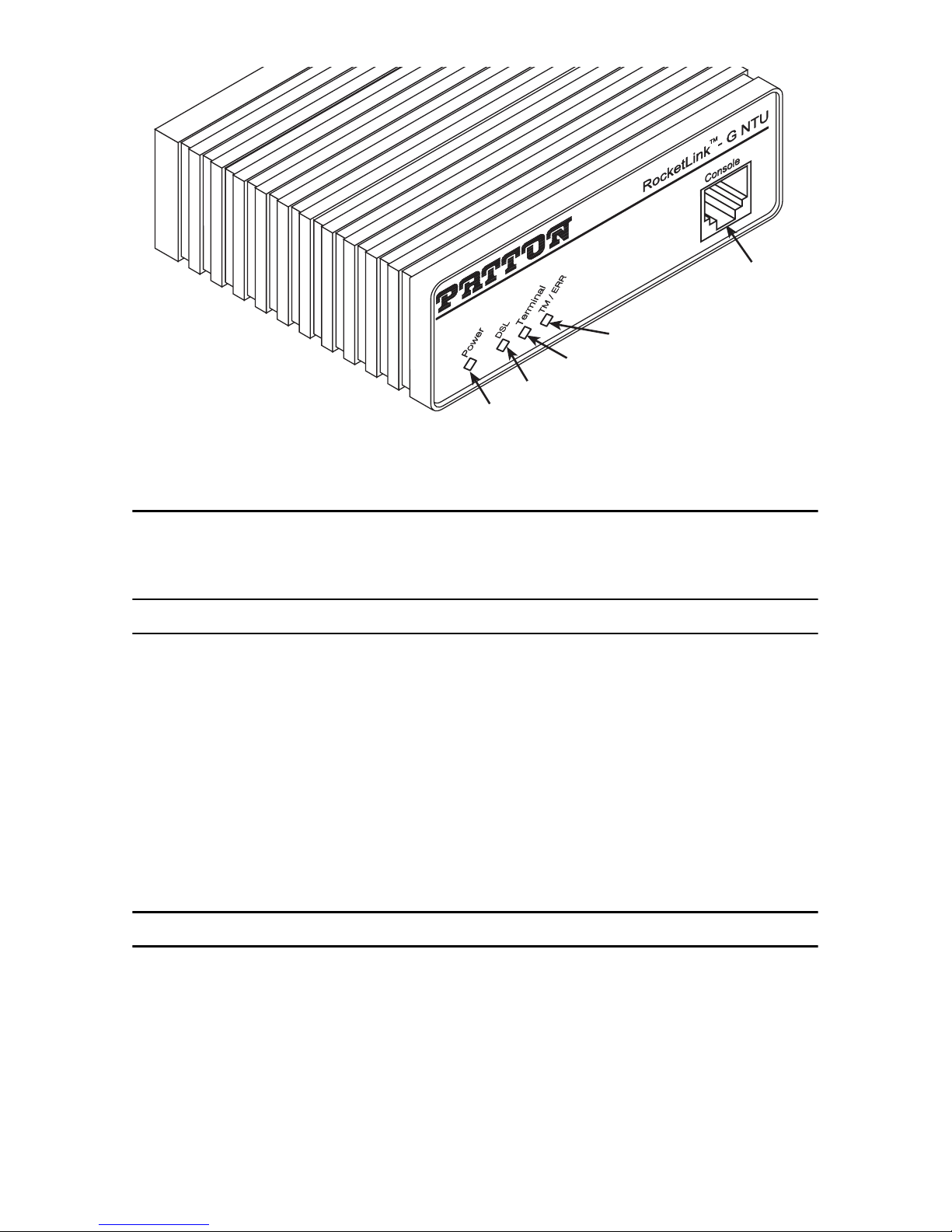

Figure 2.

Model 3088/CA front panel

2.3 Power up indication

Verify that the

Power

LED (see

ﬁgure 2

) illuminates and remains lit.

3.0 Connect the G.SHDSL port

Obtain single-twisted-pair cable with an RJ-45 plug connector at each end.

Plug one end of the cable into the RJ-45 socket (labelled

DSL)

on the RocketLink-G NTU.

—

If you are connecting to a DSL service

, plug the other end of the cable into the RJ-45 wall

socket that provides your G.SHDSL service.

—

If connecting to another RocketLink-G,

verify the other end of the cable is connected to the

DSL port on other RocketLink-G and the DSL port is correctly conﬁgured.

When a DSL link is established, the front-panel

DSL

LED will turn on.

4.0 Connect the serial port

Your RocketLink-G comes with one of the following serial WAN ports for connection to an NTU:

•

V.35 (DB-25F)—Model 3088/CA

•

X.21 (DB-15)—Model 3088/D

•

T1/E1 (120-Ohm RJ-48C and dual 75-Ohm BNC connectors)—Model 3088/K

•

T1/E1 (RJ-48C)—Model 3088/T

DSL

Terminal

Console

TM / ERR

Power

Model 3088 Quick Start Guide

Connect the serial cable to the RocketLink-G serial port as follows:

Attach the male connector of the serial cable to the female serial connector on the RocketLink-G.

Attach the other end of the cable to the serial connector on the local serial NTU.

Note

The V.35 interface is wired as a DCE. To connect the V.35 interface to third-party equipment wired as a

DCE, you must use a tail-circuit cable. You can purchase a tail-circuit cable from a datacom-supply ven-

dor. A tail-circuit cable will cross-over the necessary V.35 signals so that the two DCE interfaces

can communicate.

Note

You can connect the V.35 interface to an M/34 connector using Patton’s Model 2-34F25M

interface adapter.

Note

The X.21 interface is wired as a DCE. If you need to change the orientation ti DTE, refer to section “

Con-

necting the Model 3088/D (X.21) Serial Interface”

in the

Model 3088 Series Getting Started Guide,

The X.21 interface requires a cable with a male DB-15 connector.

Note

You can conﬁgure the T1/E1 interface to either recover the network clock from the T1/E1 line or supply

the network clock for the T1/E1 line.

5.0 Additional information

For detailed information about installing, conﬁguring, operating, and troubleshooting, refer to the

Model 3088

Series Getting Started Guide

on the enclosed Patton CD-ROM or at

www.patton.com/manuals

A.0 Compliance Information

A.1 Compliance

EMC:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN55024

•

GOST-R

Safety:

•

UL 60950-1/CSA C22.2 N0. 60950-1

•

IEC/EN60950-1

•

AS/NZS 60950-1

•

GOST-R

PSTN Regulatory:

•

FCC Part 68

•

CS03

Model 3088 Quick Start Guide

•

TBR12 & 13 (K and T models)

•

AS/ACIF S016:2001 (K and T models)

•

AS/ACIF S043:2003

•

-1979, expires 21.04.2011(3088/T/EUI)

•

-1980, expires 21.04.2011(3088/K/EUI)

•

-1981, expires 21.04.2011(3088/D/EUI)

•

-1982, expires 21.04.2011(3088/CA/EUI)

A.2 FCC Part 68 (ACTA) Statement

This equipment complies with Part 68 of FCC rules and the requirements adopted by ACTA. On the bottom side of

this equipment is a label that contains—among other information—a product identiﬁer in the format

US:

AAAEQ##TXXXX

. If requested, this number must be provided to the telephone company.

The method used to connect this equipment to the premises wiring and telephone network must comply with the

applicable FCC Part 68 rules and requirements adopted by the ACTA.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that

temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone com-

pany will notify the customer as soon as possible. Also, you will be advised of your right to ﬁle a complaint with

the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could

affect the operation of the equipment. If this happens the telephone company will provide advance notice in

order for you to make necessary modiﬁcations to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact our company. If

the equipment is causing harm to the telephone network, the telephone company may request that you discon-

nect the equipment until the problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility commission, public ser-

vice commission or corporation commission for information.

1.3 Radio and TV Interference (FCC Part 15)

This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in

strict accordance with the manufacturer's instructions—may cause interference to radio and television recep-

tion. This equipment has been tested and found to comply with the limits for a Class A computing device in accor-

dance with the speciﬁcations in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable

protection from such interference in a commercial installation. However, there is no guarantee that interference

will not occur in a particular installation. If the equipment causes interference to radio or television reception,

which can be determined by disconnecting the cables, try to correct the interference by one or more of the fol-

lowing measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna,

and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and

receiver are on different branches).

Model 3088 Quick Start Guide

1.4 Industry Canada Notice

This equipment meets the applicable Industry Canada Terminal Equipment Technical Speciﬁcations. This is con-

ﬁrmed by the registration number. The abbreviation, IC, before the registration number signiﬁes that registra-

tion was performed based on a Declaration of Conformity indicating that Industry Canada technical speciﬁcations

were met. It does not imply that Industry Canada approved the equipment.

This Declaration of Conformity means that the equipment meets certain telecommunications network protective,

operational and safety requirements. The Department does not guarantee the equipment will operate to the

user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to

the facilities of the local telecommunications company. The equipment must also be installed using an acceptable

method of connection. In some cases, the company’s inside wiring associated with a single line individual service

may be extended by means of a certiﬁed connector assembly (telephone extension cord). The customer should

be aware that compliance with the above condition may not prevent degradation of service in some situations.

Repairs to some certiﬁed equipment should be made by an authorized maintenance facility designated by the

supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give

the telecommunications company cause to request the user to disconnect the equipment. Users should ensure for

their own protection that the ground connections of the power utility, telephone lines and internal metallic water

pipe system, are connected together. This protection may be particularly important in rural areas.

A.5 EC Declaration of Conformity

(See section

A.6 “EG-Konformitätserklärung”

for German version.)

Product Description:

RocketLink-G 3088 Series

This equipment conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws

of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition

of their conformity.

The signed Declaration of Conformity can be downloaded from

www.patton.com/certiﬁcations/.

A.6 EG-Konformitätserklärung

(see section

A.5 “EC Declaration of Conformity”

for English version)

Produktbezeichnung

: RocketLink-G 3088 Sendereihe

Die bezeichneten Produkte stimmen in der von uns in Verkehr gebrachten Ausführung mit den Vorschriften fol-

gender Richtlinie überein:

R&TTE 1999/5/EG

Richtlinie des europäischen Parlaments und des Rates zur Angleichung der Rechtsvorschriften der

Mitgliedstaaten über Funkanlagen und Telekommunikations-Endeinrichtungen und die gegenseitige

Anerkennung ihrer Konformität.

The safety advice in the documentation accompanying the products shall be obeyed.

The conformity to the above directive is indicated by the CE sign on the device.

Model 3088 Quick Start Guide

Die unterzeichnete Konformitätserklärung kann heruntergeladen werden von:

www.patton.com/

certiﬁcations/.

A.7 Authorized European Representative

D R M Green

European Compliance Services Limited.

Oakdene House, Oak Road

Watchﬁeld,

Swindon, Wilts SN6 8TD, UK

Die Sicherheitshinweise in der mitgelieferten Produktdokumentation sind zu beachten.

Die Konformität mit der oben erwähnten Richtlinie wird durch das CE-Zeichen auf dem

Gerät bestätigt.

Model 3088 Quick Start Guide

The information in this document is subject to change without notice. Patton Electronics assumes no

liability for errors that may appear in this document.

Trademarks statement

The term

RocketLink-G

is a trademark of Patton Electronics Company. All other trademarks presented in this docu-

ment are the property of their respective owners.

Patton support headquarters in the USA

•

Online support: Available at

www.patton.com

•

E-mail support: E-mail sent to

[email protected]

will be answered within 1 business day

•

Telephone support: Standard telephone support is available ﬁve days a week—from

8:00 am

5:00 pm EST

(

1300

2200 UTC/GMT

)—by calling

+1 (301) 975-1007

•

Support via VoIP: Contact Patton free of charge by using a VoIP ISP phone to call

sip:[email protected]

•

Fax:

+1 (253) 663-5693

Alternate Patton support for Europe, Middle East, and Africa (EMEA)

•

Telephone support: Standard telephone support is available ﬁve days a week—from

8:00 am

5:00 pm CET

(

0900

1800 UTC/GMT

)—by calling

+41 (0)31 985 25 55

•

Fax:

+41 (0)31 985 25 26

Note For additional service and support information, refer to the “Contacting Patton for assistance” chapter

of the RocketLink-G 3088 Getting Started Guide located on the CD-ROM that came with your RocketLink-G

Router or available online at www.patton.com.

Warranty, Trademark, & Compliance Information

For warranty, trademark and compliance information, refer to the RocketLink-G 3088 Getting Started Guide located

on the CD-ROM that came with your NTU or available online at www.patton.com.

In accordance with the requirements of council directive 2002/96/EC on Waste of

Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate

this product from other waste and scrap and deliver to the WEEE collection system in

your country for recycling.

10 Model 3088 Quick Start Guide

NOTES

____________________________________________________________________

Altri manuali per RocketLink-G 3088 Series

Indice

Altri manuali Patton electronics Hardware di rete

Patton electronics

Patton electronics OnSite 9100 Manuale utente

Patton electronics

Patton electronics OnSite 07MOS10xx-GS Manuale utente

Patton electronics

Patton electronics 3101RC Manuale utente

Patton electronics

Patton electronics 2715RC Manuale utente

Patton electronics

Patton electronics 2111 Manuale utente

Patton electronics

Patton electronics OnSite 1052 Series Manuale utente

Patton electronics

Patton electronics NetLink-E1 2715 Manuale utente

Patton electronics

Patton electronics Patton EtherBITS 2232 Manuale utente

Patton electronics

Patton electronics 2710RC Series Manuale utente

Patton electronics

Patton electronics ForeFront 2616RC Manuale utente

Patton electronics

Patton electronics NetLink 2720 Series Manuale utente

Patton electronics

Patton electronics NetLink 2701/B Manuale utente

Patton electronics

Patton electronics 2888 Manuale utente

Patton electronics

Patton electronics SmartNode 4400 Manuale utente

Patton electronics

Patton electronics 2450 Manuale utente

Patton electronics

Patton electronics ipRocketLink IAD 3086 Manuale utente

Patton electronics

Patton electronics ForeFront 6081RC EdgeRoute Guida utente

Patton electronics

Patton electronics RocketLink-G 3088/I Manuale utente

Patton electronics

Patton electronics 2784 NAU Manuale utente

Patton electronics

Patton electronics SL402X Manuale utente

Patton electronics

Patton electronics IM 1/F Manuale utente

Patton electronics

Patton electronics 2720/I Series Manuale utente

Patton electronics

Patton electronics 2500 Series Manuale utente

Patton electronics

Patton electronics Model 2604 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
