OnSite Models 9100, 9130, 9200 & 9300

Expansion Modules

Quick Start Guide

Part Number: 07M9000-QS, Rev. B

Revised: February 20, 2012

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: support@patton.com

WWW: www.patton.com

2OnSite Expansion Modules Quick Start Guide

1.0 Introduction

This guide provides instructions for adding expansion modules to your Patton OnSite base system. Refer to the

following sections for installation instructions for your specific module:

•

2.0 “Model 9100 E1 Module” on page 2

•

3.0 “Model 9130 DS3/E3 Module” on page 4

•

4.0 “Model 9200 Ethernet Module” on page 5

•

5.0 “Model 9300 STM-1 Module” on page 6

2.0 Model 9100 E1 Module

2.1 Unpacking and Installation

To install the HD-E1 module, follow the procedures in Chapter 7 of the OnSite Series Administrator’s Reference

Guide. Figure 1 shows the alignment and insertion of the HD-E1 module into one of the available expansion

slots of the OS-10.

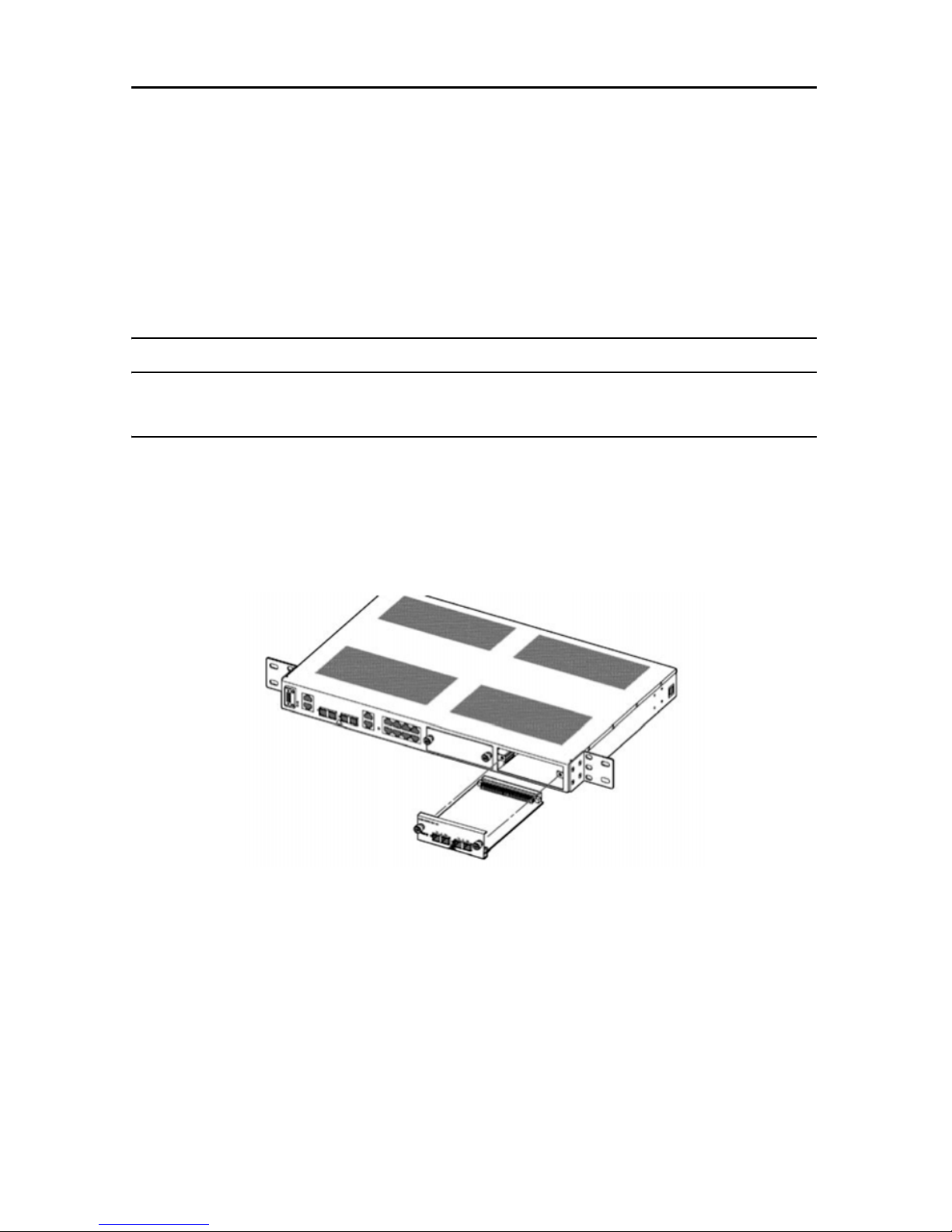

Figure 1. Installing the HD-E1 module

Read the safety information in the OnSite Series User Manual and

Administrator’s Reference Guide thoroughly before installing and operat-

ing your OS-10 Series system. Failure to follow this safety information

can lead to personal injury or damage to the equipment.

The High-density E1 module is NOT hot swappable. You will need to

power down the OS-10 system before starting the module insertion pro-

cedure.

WARNING

CAUTION

OnSite Expansion Modules Quick Start Guide 3

2.2 Cable Management

The HD-E1 module uses a future bus connector on the front panel and requires the use of cables with compatible

plugs for access to the E1 signals. These cables are ordered separately from the module and need to be specified

according to the termination option for the module (75-ohm or 120-ohm) and the required cable length for the

site.

Note Contact your local Patton sales representative if the shipment does not include the required cables for

the module.

Chapter 7 of the OnSite Series Administrator’s Reference Guide provides information on the location and signal

pin-out for each of the 21 E1 ports on the future bus connector. Each module requires six cables for access to all

21 E1 ports. When installing the cables, make sure that the cable bundle does not cause strain on the future bus

connector by pulling it up or down or sideways. You may tie the cable bundle together using a strap, as shown in

Figure 2, to create a strain relief bend. In addition, use another strap, as shown in Figure 2, to tie the cable

bundle to the rack post. This additional strap secures the cable bundle in place and prevents accidental move-

ment that may cause strain to the connector.

Figure 2. Cable dressing for the HD-E1 module

Make sure that cable plug has the correct orientation before inserting the

plug into the module. The plug should be inserted within a single section

of the future bus connector with the release latch facing down. (The mod-

ule has six, 24-pin connector sections.) The plug should snap into place

smoothly without the use of force. Wrong insertion may bend the connec-

tor pins.

CAUTION

4OnSite Expansion Modules Quick Start Guide

2.3 Getting Started

After the module is securely installed to the chassis (using the mounted screws on the front panel), turn the

power back on to the S1000 system. The STAT LED of the HD-E1 module turns on to a solid amber light for about

ten seconds after the system detects the module during the reboot process. After the system completes the

reboot, use the OnSight Device Manager to set the Administrative Type for the slot where the module resides to

21-port E1 expansion module. The STAT LED of the module turns on to a solid green light when the Administra-

tive Status of the module is enabled and the Operational Status is in service (IS).

At this point, the module is now ready for the provisioning of E1 services using the OnSight Device Manager or

EMS.

3.0 Model 9130 DS3/E3 Module

3.1 Unpacking and Installation

To install the DS3/E3 module, follow the procedures in Chapter 9 of the OnSite Series Administrator’s Reference

Guide. Figure 3 shows the alignment and insertion of the DS3/E3 module into one of the available expansion

slots of a modular OS-10 Series platform.

Note Hot swapping the DS3/E3 module is not supported on the OS1052 and OS1063 platforms.

Figure 3. Installing the DS3/E3 module

OnSite Expansion Modules Quick Start Guide 5

3.2 Getting Started

The 3-port DS3/E3 module supports insertion into or removal from any available expansion slot on the modular

OS1052 and OS1063 chassis while the system is powered on and carrying traffic. The following procedure

applies to module insertion into a system after the power is turned ON:

•

After the module is securely installed to the chassis (using the mounted screws on the front panel), the STATED

of the module becomes a solid amber light for about ten seconds after the system detects the module.

•

After the STAT LED turns off, use the OS-10 Node Manager to set the Administrative Type for the slot wherehe

module resides

•

The STAT LED of the module becomes a solid green light when the Administrative Status of the module is set

tonabled and the Operational Status is in service (IS).

•

At this point, the module is now ready for the provisioning of services using the OS-10 Node Manager or

EMS.

4.0 Model 9200 Ethernet Module

4.1 Unpacking and Installation

To install the HD-ENET module, follow the procedures in Chapter 8 of the OnSite Series Administrator’s Reference

Guide. Figure 1 shows the alignment and insertion of the HD-ENET module into one of the available expansion

slots of a modular OS-10 Series platform.

Note Hot swapping the HD-ENET module is supported on the OS1052 and OS1063 platforms.

Figure 4. Installing the HD-E1 module

6OnSite Expansion Modules Quick Start Guide

4.2 Getting Started

The HD-ENET module supports insertion into or removal from any available expansion slot on the OS1052 and

OS1063 chassis while the system is powered on and carrying traffic. The following procedure applies to module

insertion into a system that is powered ON:

•

After the module is securely installed to the chassis (using the mounted screws on the front panel), the STAT

LED of the HD-ENET module becomes a solid amber light for about ten seconds after the system detects the

module.

•

After the STAT LED turns off, use the OS-10 Node Manager to set the Administrative Type for the slot where

the module resides to 8-port Ethernet expansion module.

•

The STAT LED of the module becomes a solid green light when the Administrative Status of the module is set to

Enabled and the Operational Status is in service (IS).

•

At this point, the module is now ready for the provisioning of Ethernet services using the OS-10 Node Man-

ager or NMS.

5.0 Model 9300 STM-1 Module

This section provides a brief overview of the information that you need to install the 2-port STM-1 module. There

are two types of STM-1 expansion module: 2-port STM-1 optical interface (STM-1o) module and 2-port STM-1

electrical interface (STM-1e) module. Table 1 provides the product codes that identify each module type. The

STM-1 modules require software Release 4.0 and above for operation in the OS1052 and OS1063 platforms.

Table 1. Product Codes for the STM-1 Modules

Module Type Code Description

Optical 9300-STM1-S11-02 2-port STM-1 optical S-1.1 interface

9300-STM1-L11-02 2-port STM-1 optical L-1.1 interface

Electrical 9300-STM1-075-02 2-port STM-1 electrical 75-ohm G.703 interface

To protect your eyes, never look at the transmit LED or laser of the STM-

1 optical interface (STM-1o) module through a magnifying device while it

is powered on. Never look directly at a fiber port on the module or at the

ends of fiber cable when they are powered on.

CAUTION

OnSite Expansion Modules Quick Start Guide 7

5.1 Unpacking and Installation

To install the 2-port STM-1 module, follow the procedures in Chapter 10 of the OnSite Series Administrator’s Ref-

erence Guide. Figure 1 shows the alignment and insertion of the module into one of the available expansion

slots of a modular OS-10 Series platform.

Note Hot swapping the 2-port STM-1 module is supported on the OS1052 and OS1063 platforms.

Figure 5. Installing the 2-port STM-1 optical interface module

5.2 Getting Started

The 2-port STM-1 module supports insertion into or removal from any available expansion slot on the modular

OS1052 and OS1063 chassis while the system is powered on and carrying traffic. The following procedure

applies to module insertion into a system that is powered ON:

•

After the module is securely installed to the chassis (using the mounted screws on the front panel), the STAT

LED of the module becomes a solid amber light for about ten seconds after the system detects the module.

•

After the STAT LED turns off, use the OS-10 Node Manager to set the Administrative Type for the slot where

the module resides to 2-port STM-1o expansion module or 2-port STM-1e expansion module, depending on

the type of STM-1 module that you install into the system (optical or electrical).

•

The STAT LED of the module becomes a solid green light when the Administrative Status of the module is set to

Enabled and the Operational Status is in service (IS).

•

At this point, the module is now ready for the provisioning of services using the OS-10 Node Manager or EMS.

8OnSite Expansion Modules Quick Start Guide

6.0 Additional Information

For detailed instructions, refer to the OnSite Series User Manual and the OnSite Series Administrator’s Reference

Guide available online at www.patton.com/manuals/OS10xx.pdf and www.patton.com/manuals/

OS10xx-arg.pdf.

A.0 Customer and Technical Support

Online support: www.patton.com

E-mail support: suppor[email protected]—answered within 1 business day

Telephone support:

•

Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to

2200 UTC/GMT)

•

Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800

UTC/GMT)

Fax: +1 (253) 663-5693 (USA) or +41 (0)31 985 25 26 (Switzerland)

The information in this document is subject to change without notice. Patton Electronics assumes no

liability for errors that may appear in this document.

In accordance with the requirements of council directive 2002/96/EC on Waste of

Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate

this product from other waste and scrap and deliver to the WEEE collection system in

your country for recycling.
