SmartNode 4654 and 4658 Series

ADSL2+ Multiport ISDN VoIP IAD

Quick Start Guide

Important

—This is a Class A device and is intended for use in a light industrial environment. It is not

intended nor approved for use in an industrial or residential environment.

Approval—This device is approved for connection to the public ISDN telecommunication network,

over BRI/S0-ISDN interfaces.

Zulassung—Zugelassen für die Anschaltung an das öffentliche ISDN Telekommunikationnetz an

BRI/S0-ISDN Schnittstellen.

Aprobación—Este aparato está aprobado para conexión a red publica ISDN sobre interfaz BRI/S0.

Approbation—Cet appareil est approuve pour la connexion au reseau ISDN public avec les interfaces

BRI/S0.

Part Number: 07MSN4650A-QS, Rev. C

Revised: February 8, 2012

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: support@patton.com

WWW: www.patton.com

2SmartNode 4654 & 4658 ADSL2+ Quick Start Guide

1.0 Power up the SmartNode

1. Connect the SmartNode to the mains (AC) power source with the power cable.

2. Wait until the Power LED stops blinking and remains constantly lit. Now the SmartNode is ready

to configure.

2.0 Connecting the SmartNode to your laptop PC

•This device contains no user serviceable parts. The equipment shall be

returned to Patton Electronics for repairs, or repaired by qualified ser-

vice personnel.

•Mains Voltage: Do not open the case the when the power cord is

attached. Line voltages are present within the power supply when the

power cords are connected. The mains outlet that is utilized to power

the devise shall be within 10 feet (3 meters) of the device, shall be eas-

ily accessible, and protected by a circuit breaker.

•Ensure that the power cable used meets all applicable standards for the

country in which it is to be installed, and that it is connected to a wall

outlet which has earth ground.

•For units with an external power adapter, the adapter shall be a listed

Limited Power Source.

•Hazardous network voltages are present in WAN ports regardless of

whether power to the unit is ON or OFF. To avoid electric shock, use

caution when near WAN ports. When detaching the cables, detach the

end away from the device first.

•Do not work on the system or connect or disconnect cables during peri-

ods of lightning activity.

The interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, flam-

mability, and mechanical serviceability.

WARNING

CAUTION

SmartNode 4654 & 4658 ADSL2+ Quick Start Guide 3

Figure 1. Connecting to the PC

1. Connect the PC’s Ethernet port to LAN (ETH 0/0) port of the SmartNode 4650 ADSL2+. The SmartNode

4650 ADSL2+ Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through Ethernet

cables for host or hub/switch connections. (See figure 1.)

2. The SmartNode comes with a built-in DHCP server to simplify configuration. Therefore, to automatically

configure the PC for IP connectivity to the SmartNode, configure the laptop PC for DHCP. The SmartNode

will provide the PC with an IP address.

3. Check the connection to the SmartNode by executing the ping command from the PC command window

as follows:

ping 192.168.1.1

3.0 Configuring the desired IP address

3.1 Factory-default IP settings

The factory default configuration for the Ethernet interface IP addresses and netmasks are listed in table 1.

Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a default DHCP

server. The WAN interface uses DHCP client to get the IP address and netmask automatically from the

service provider.

If these addresses match with those of your network, go to section 4.0 “Connecting the SmartNode to the

network” on page 4. Otherwise, continue with the following sections to change the addresses and

network masks.

Table 1. Factory default IP address and network mask configuration

Item IP Addresss Network Mask

WAN interface DSL port (DSL 0/0) DHCP DHCP

LAN interface Ethernet 1 (ETH 0/0) 192.168.1.1 255.255.255.0

DHCP server address range (LAN) 192.168.1.10-192.168.1.19 255.255.255.0

ACT LINK

12V,1.25A

–+

Straight-through wired cable

LAN (ETH 0/0)

Laptop PC

4SmartNode 4654 & 4658 ADSL2+ Quick Start Guide

3.2 Login

1. To access the SmartNode, start the Telnet application on your PC. Type the default IP address into the

address field: 192.168.1.1. Accessing your SmartNode via a Telnet session displays the login screen.

Type the factory default login: administrator and leave the password empty. Press the Enter key after the

password prompt.

password:<Enter>

192.168.1.1>

2. After you log in, your SmartNode will be running in operator execution mode (indicated by > character

in the command line prompt). To enter configuration mode, use the commands enable and configure.

192.168.1.1>enable

192.168.1.1#configure

192.168.1.1(cfg)#

3.3 Changing the WAN IP address

1. To modify IP configuration settings, you must enter context IP mode. Enter the following command:

192.168.1.1(cfg)#context ip router

192.168.1.1(ctx-ip)[router]#

2. Now you can set your IP address and network mask for the interface ETH 0/0(WAN). In this example a

network 172.16.1.0/24 is assumed. The IP address in example is set to 172.16.1.99. (You should set it

to the IP address that the network provider has given you.)

Note The examples in this guide use a private IP network with the network address 172.16.1.0/24.

192.168.1.1(ctx-ip)[router]#interface eth_dsl

192.168.1.1(if-ip)[eth_dsl]#ipaddress 172.16.1.99 255.255.255.0

2002-10-29T00:09:40 : LOGINFO : Link down on interface eth0.

2002-10-29T00:09:40 : LOGINFO : Link up on interface eth0.

172.16.1.99(if-ip)[eth_dsl]#

3. Copy this modified configuration to your new start-up configuration. This will store your changes in non-

volatile memory. On the next start-up the system will initialize itself using the modified configuration.

172.16.1.99 (if-ip)[eth_dsl]#copy running-config startup-config

172.16.1.99 (if-ip)[eth_dsl]#

The SmartNode can now be connected to your network.

4.0 Connecting the SmartNode to the network

The interconnecting cables shall be acceptable for external use and shall be rated for

the proper application with respect to voltage, current, anticipated temperature, flam-

mability, and mechanical serviceability.

CAUTION

SmartNode 4654 & 4658 ADSL2+ Quick Start Guide 5

In general, the SmartNode will connect to the network via the WAN (DSL) port. This enables the SmartNode to

offer routing services to the PC hosts on LAN (ETH 0/)) port. The SmartNode 4650 ADSL2+ Series provides an

auto-MDX feature for both Ethernet ports, so you can use a straight-through or cross-over cable to connect to a

host or a switch (see figure 2).

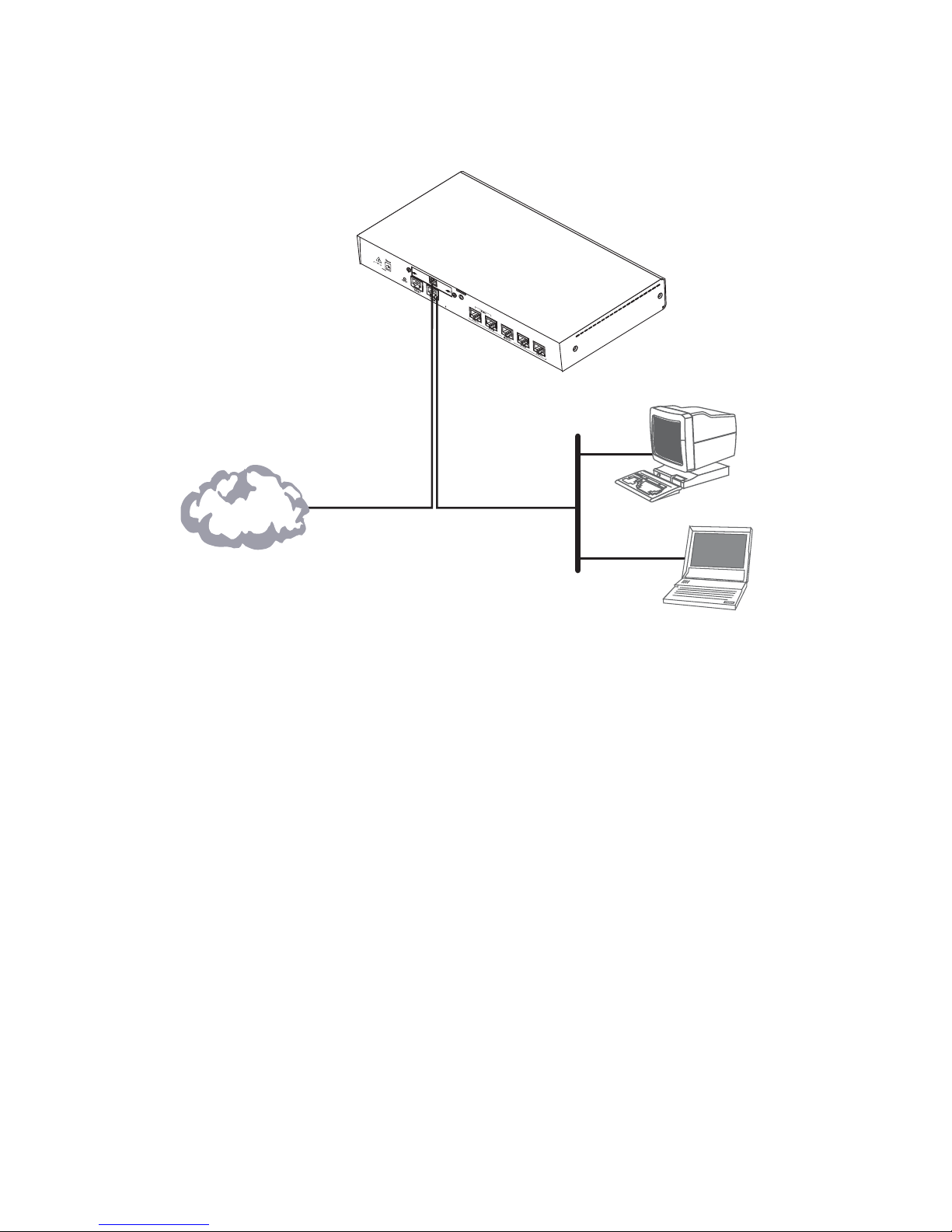

Figure 2. Connecting the SmartNode to the network

1. You can check the connection with the ping command from the SmartNode to another host on the

local LAN.

172.16.1.99(if-ip)[eth_dsl]#ping <IP Address of the host>

Note If the WAN address is not set to DHCP, to ping a device outside your local LAN you must first configure

the default gateway. (For information on configuring the default gateway, refer to section “Set IP

addresses” in Appendix C, “Command Summary” of the SmartNode Series SmartWare Software Config-

uration Guide.)

ACT LINK

12V,1.25A

– +

Straight-through wired

or crossover cable LAN (ETH 0/0)

LAN

WAN (DSL)

Network

6SmartNode 4654 & 4658 ADSL2+ Quick Start Guide

5.0 Loading the configuration (optional)

Patton provides a collection of configuration templates on the support page at www.patton.com/smart-

node—one of which may be similar enough to your application that you can use it to speed up configuring the

SmartNode. Simply download the configuration note that matches your application to your PC. Adapt the config-

uration as described in the configuration note to your network (remember to modify the IP address) and copy

the modified configuration to a TFTP server. The SmartNode can now load its configuration from this server.

Note If your application is unique and not covered by any of Patton’s configuration templates, you can man-

ually configure the SmartNode instead of loading a configuration file template. In that case, refer to the

SmartNode Series SmartWare Software Configuration Guide for information on configuring the SmartNode

device.

In this example we assume an TFTP server resides on the host with the IP address 172.16.1.11 and the configu-

ration file named SN.cfg resides in the root directory of the TFTP server.

172.16.1.99(if-ip)[eth0]#copy tftp://172.16.1.11/SN.cfg startup-

config

Download...100%

172.16.1.99(if-ip)[eth0]#

After you reboot the SmartNode the new startup configuration will become active.

172.16.1.99(if-ip)[eth0]#reload

Running configuration has been changed.

Do you want to copy the 'running-config' to the 'startup-config'?

Press 'yes' to store, 'no' to drop changes : no

Press 'yes' to restart, 'no' to cancel : yes

The system is going down

6.0 Additional Information

For detailed information about configuring and operating guidance, set up procedures, and troubleshooting,

refer to the SmartNode 4650 ADSL Series User Manual available online at www.patton.com/manuals/

SN4650A.pdf and the SmartWare Software Configuration Guide available online at www.patton.com/

smartnode.

When you issue the reload command, the SmartNode will ask if you want to copy the

running configuration to the startup configuration. Since you just downloaded a con-

figuration file to the startup configuration you must answer this question with NO.

Otherwise, the downloaded configuration will be overwritten and lost!

IMPORTANT

SmartNode 4654 & 4658 ADSL2+ Quick Start Guide 7

A.0 Customer and Technical Support

Toll-Free VoIP support: call sip:[email protected] with a VoIP SIP client

Online support: www.patton.com

E-mail support: s[email protected]—answered within 1 business day

Telephone support:

•

Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST (1300 to

2200 UTC/GMT)

•

Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm CET (0900 to 1800

UTC/GMT)

Fax: +1 (253) 663-5693 (USA) or +41 (0)31 985 25 26 (Switzerland)

B.0 Compliance Information

B.1 Compliance

EMC Compliance:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN55024

Safety Compliance:

•

UL60950-1/CSA C22.2 No. 60950-1

•

IEC/EN 60950-1

•

AS/NZS 60950-1

PSTN Regulatory Compliance:

•

TBR3

•

AS/ACIF S031

•

AS/ACIF S043 (ADSL card)

B.2 Radio and TV interference

The SmartNode router generates and uses radio frequency energy, and if not installed and used properly—that

is, in strict accordance with the manufacturer’s instructions—may cause interference to radio and television

reception. The SmartNode router have been tested and found to comply with the limits for a Class A computing

device in accordance with specifications in Subpart B of Part 15 of FCC rules, which are designed to provide rea-

sonable protection from such interference in a commercial installation. However, there is no guarantee that

8SmartNode 4654 & 4658 ADSL2+ Quick Start Guide

interference will not occur in a particular installation. If the SmartNode router does cause interference to radio or

television reception, which can be determined by disconnecting the unit, the user is encouraged to try to correct

the interference by one or more of the following measures: moving the computing equipment away from the

receiver, re-orienting the receiving antenna and/or plugging the receiving equipment into a different AC outlet

(such that the computing equipment and receiver are on different branches).

B.3 ISDN compliance

This device is approved for connection to the public ISDN telecommunication network.

B.4 CE Declaration of Conformity

Product Description: SmartNode 4650 ADSL2+ Series

This equipment conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws

of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition

of their conformity.

The signed Declaration of Conformity can be downloaded from www.patton.com/certifications/.

B.5 EG-Konformitätserklärung

Produktbezeichnung: SmartNode 4650 Sendereihe

Die bezeichneten Produkte stimmen in der von uns in Verkehr gebrachten Ausführung mit den Vorschriften fol-

gender Richtlinie überein:

R&TTE 1999/5/EG

Richtlinie des europäischen Parlaments und des Rates zur Angleichung der Rechtsvorschriften der Mitglied-

staaten über Funkanlagen und Telekommunikations-Endeinrichtungen und die gegenseitige Anerkennung ihrer

Konformität.

Die unterzeichnete Konformitätserklärung kann heruntergeladen werden von: www.patton.com/

certifications/.

When this device is used in North America, it shall be connected to a Network Termina-

tion Device and not connected directly to an outside POTS line.

The safety advice in the documentation accompanying the products shall be obeyed.

The conformity to the above directive is indicated by the CE sign on the device.

Die Sicherheitshinweise in der mitgelieferten Produktdokumentation sind zu beachten.

Die Konformität mit der oben erwähnten Richtlinie wird durch das CE-Zeichen auf dem

Gerät bestätigt.

CAUTION

SmartNode 4654 & 4658 ADSL2+ Quick Start Guide 9

B.6 Zulassung

Zugelassen fur die Anschaltung an das öffentliche ISDN Telekommunikationnetz an BRI/S0-ISDN Schnittstellen.

B.7 Authorized European Representative

D R M Green, European Compliance Services Limited.

Avalon House, Marcham Road, Abingdon, Oxon OX14 1UD, UK

10 SmartNode 4654 & 4658 ADSL2+ Quick Start Guide

The information in this document is subject to change without notice. Patton Electronics assumes no

liability for errors that may appear in this document.

Trademarks statement

The term SmartNode is a trademark of Patton Electronics Company. All other trademarks presented in this docu-

ment are the property of their respective owners.

Warranty, Trademark, & Compliance Information

For warranty, trademark and compliance information, refer to the SmartNode 4650 ADSL Series User Manual

located online at www.patton.com/manuals.

____________________________________________________________________

In accordance with the requirements of council directive 2002/96/EC on Waste of

Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate

this product from other waste and scrap and deliver to the WEEE collection system in

your country for recycling.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Patton electronics Hardware di rete

Patton electronics

Patton electronics 593/45 Manuale utente

Patton electronics

Patton electronics SmartNode 4400 Manuale utente

Patton electronics

Patton electronics 2500RC Manuale utente

Patton electronics

Patton electronics 3004 ECB Series Manuale utente

Patton electronics

Patton electronics SmartNode 4400 Manuale utente

Patton electronics

Patton electronics 2715RC Manuale utente

Patton electronics

Patton electronics ForeFront 6081RC EdgeRoute Guida utente

Patton electronics

Patton electronics ipRocketLink 3088FR Manuale utente

Patton electronics

Patton electronics 2720/I Series Manuale utente

Patton electronics

Patton electronics 2784 NAU Manuale utente

Patton electronics

Patton electronics NetLink 2701/B Manuale utente

Patton electronics

Patton electronics NetLink 2960 RAS Manuale utente

Patton electronics

Patton electronics ipRocketLink IAD 3086 Manuale utente

Patton electronics

Patton electronics OnSite 1052 Series Manuale utente

Patton electronics

Patton electronics 3096RC Manuale utente

Patton electronics

Patton electronics 3196RC Manuale utente

Patton electronics

Patton electronics OnSite 07MOS10xx-GS Manuale utente

Patton electronics

Patton electronics SMARTNODE 4900 Manuale utente

Patton electronics

Patton electronics 2710RC Series Manuale utente

Patton electronics

Patton electronics NetLink 2707C Manuale utente

Patton electronics

Patton electronics OnSite 2884 Manuale utente

Patton electronics

Patton electronics DigiLink-V 2530 Manuale utente

Patton electronics

Patton electronics ForeFront 2616RC Manuale utente

Patton electronics

Patton electronics ipRocketLink IAD 3086 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
