Patton SmartNode 10200 Series Manuale utente

SmartNode™ 10200 Series

TDM+VoIP Smart Media Gateway

Quick Start Guide

Important

—This is a Class A device and is not intended for use in a residential environment.

Part Number: 07MSN10200-QS, Rev. D

Revised: May 7, 2012

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: support@patton.com

www.patton.com

2SmartNode 10200 Series Quick Start Guide

• Do not open the device when the power cord is connected. For sys-

tems without a power switch and without an external power

adapter, line voltages are present within the device when the power

cord is connected.

• For devices with an external power adapter, the power adapter shall

be a listed Limited Power Source The mains outlet that is utilized to

power the device shall be within 10 feet (3 meters) of the device,

shall be easily accessible, and protected by a circuit breaker in compli-

ance with local regulatory requirements.

• For AC powered devices, ensure that the power cable used meets all

applicable standards for the country in which it is to be installed.

• For AC powered devices which have 3 conductor power plugs (L1, L2

& GND or Hot, Neutral & Safety/Protective Ground), the wall outlet

(or socket) must have an earth ground.

• For DC powered devices, ensure that the interconnecting cables are

rated for proper voltage, current, anticipated temperature, flammabil-

ity, and mechanical serviceability.

• WAN, LAN & PSTN ports (connections) may have hazardous voltages

present regardless of whether the device is powered ON or OFF.

PSTN relates to interfaces such as telephone lines, FXS, FXO, DSL,

xDSL, T1, E1, ISDN, Voice, etc. These are known as “hazardous net-

work voltages” and to avoid electric shock use caution when working

near these ports. When disconnecting cables for these ports, detach

the far end connection first.

• Do not work on the device or connect or disconnect cables during peri-

ods of lightning activity.

• This device contains no user serviceable parts. This device can only be

repaired by qualified service personnel.

• If one has reason to open the chassis or case, then the precautions

mentioned above shall be followed. This includes both the warnings

relating to disconnection of the input power, and the warnings relat-

ing to the disconnection of WAN, LAN & PSTN ports.

In accordance with the requirements of council directive 2002/96/EC on

Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-

of-life you separate this product from other waste and scrap and deliver

to the WEEE collection system in your country for recycling.

This device is NOT intended nor approved for connection to the PSTN.

It is intended only for connection to customer premise equipment.

WARNING

SmartNode 10200 Series Quick Start Guide 3

1.0 Before you begin

In the box, you will find:

•

One SmartNode 10200

•

One set of mounting brackets with screws

•

One DB-9 to RJ-45 adapter SCSI Cables and Patch Panels, if applicable

•

Three RJ45 Ethernet Straight Cables (male-male)

•

One warranty sheet

•

One packing slip

•

One SmartNode 10200 Series Quick Start Guide

•

One SmartNode 10200 Important Notice sheet with unique information for your specific unit

To install the SN10200, you will need (not included):

•

Two AC power cords

•

19” equipment rack

2.0 Installing the rack hardware

1. Install rack-mounting hardware on to the SN10200 and install the unit on the equipment rack.

2. Connect the Ethernet port to your management network.

Figure 1. Installing the SN10200

SmartNode

™

Console

Ethernet

Power

TDM+VoIPSmartMediaGateway

Management

Ethernet

Management Port

Serial Console

Management Port

Power LED

4SmartNode 10200 Series Quick Start Guide

3.0 Connecting to the VoIP Network

1. Connect the VoIP Ports 0/1 and 0/1 to your network.

Note Ethernet ports (ETH 0/0 & 0/1), and SMS ports (SMS-0/0 & 0/1) are not used when connecting VoIP.

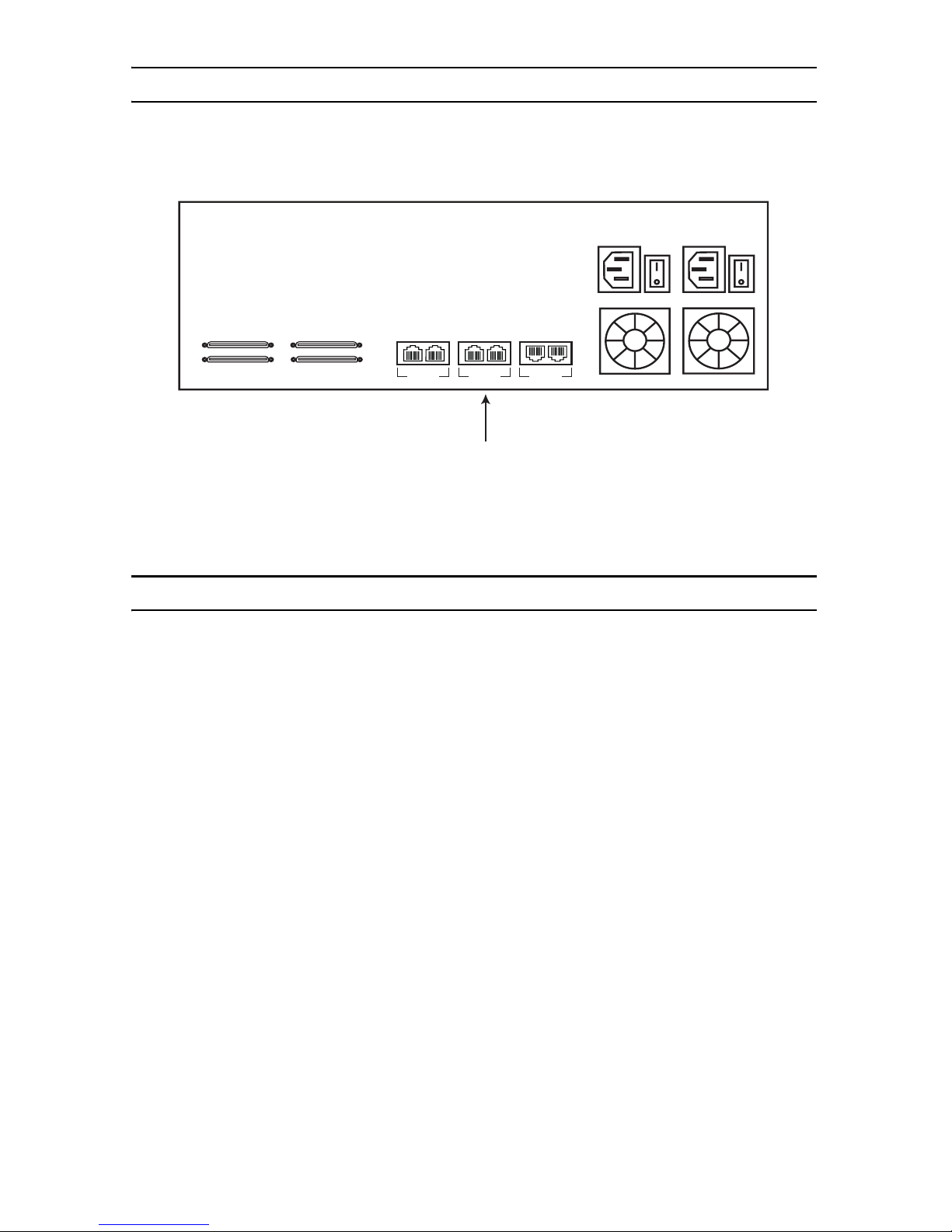

Figure 2. Connecting the VoIP ports

4.0 Connecting to the PSTN Network

1. Connect the SN10200 to the PSTN, using one of the following options:

–

SCSI Interface (T1/E1), (patch panel provided)

–

Dual BNC (DS3)

–

Optical Interface (OC3/STM-1)

ETH VoIP SMP

0/0 0/1 0/0 0/1 0/0 0/1

VoIP Ports

1–2

49-64

33-48

17-32

1-16

SmartNode 10200 Series Quick Start Guide 5

4.1 SCSI (T1/E1)

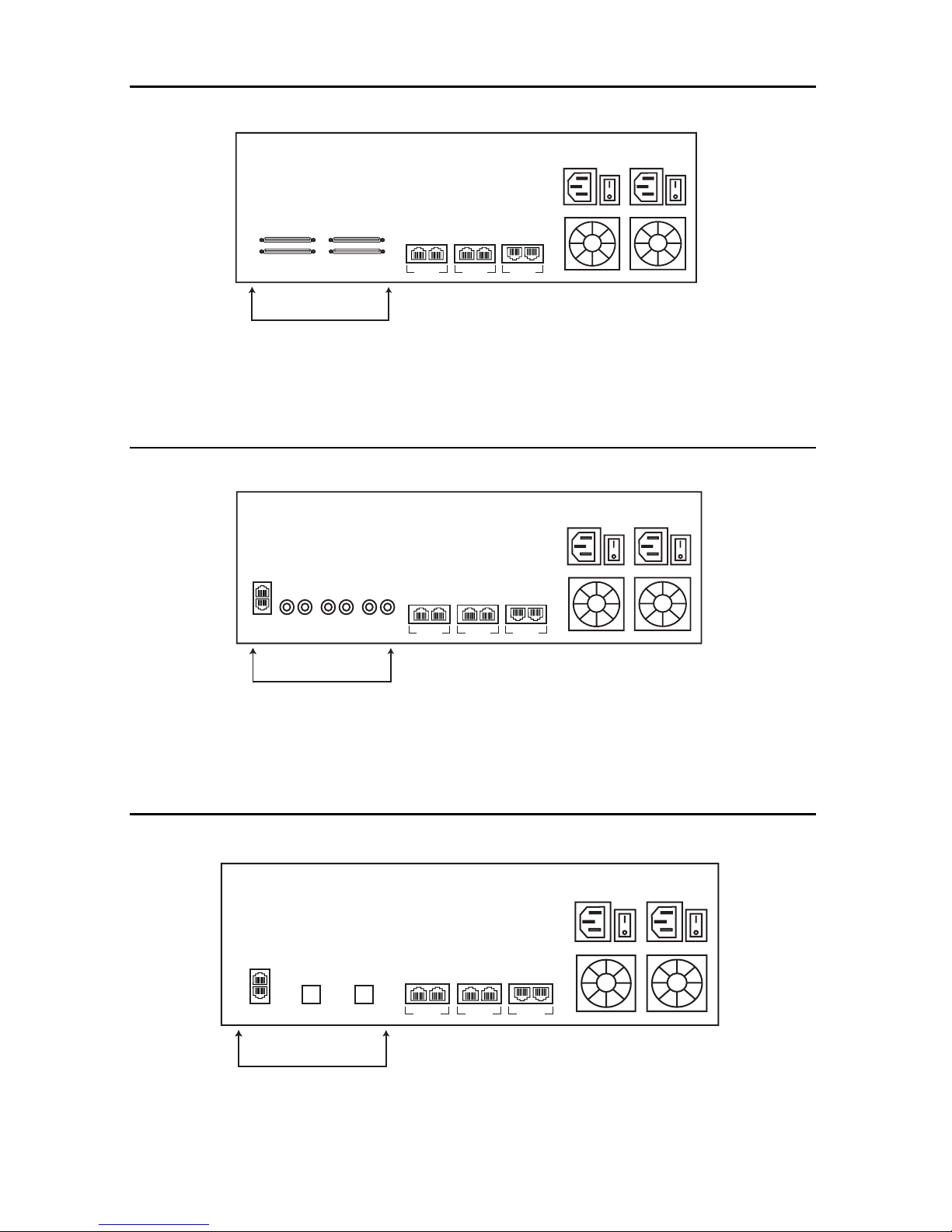

Figure 3. Connecting to the PSTN via SCSI

4.2 Dual BNC (DS3)

Figure 4. Connecting to the PSTN via Dual BNC connectors

4.3 Optical Interface (OC3/STM-1)

Figure 5. Connecting to the PSTN via the optical interface

ETH VoIP SMP

0/0 0/1 0/0 0/1 0/0 0/1

T1/E1

SCSI connectors

49-64

33-48

17-32

1-16

ETH VoIP SMP

0/0 0/1 0/0 0/1 0/0 0/1

DS3

Dual BNC connectors

RxTx

BIT1

BIT2

RxTxRxTx

321

ETH VoIP SMP

0/0 0/1 0/0 0/1 0/0 0/1

OC3/STM-1

BIT1

BIT2

APS MAIN

6SmartNode 10200 Series Quick Start Guide

5.0 Connecting to the power source

1. Connect to two independent power sources (if only one power source is used, press the green button at

the rear of the unit to disable the audible alarm).

2. Verify that the Power LED on the front panel is a Solid Green.

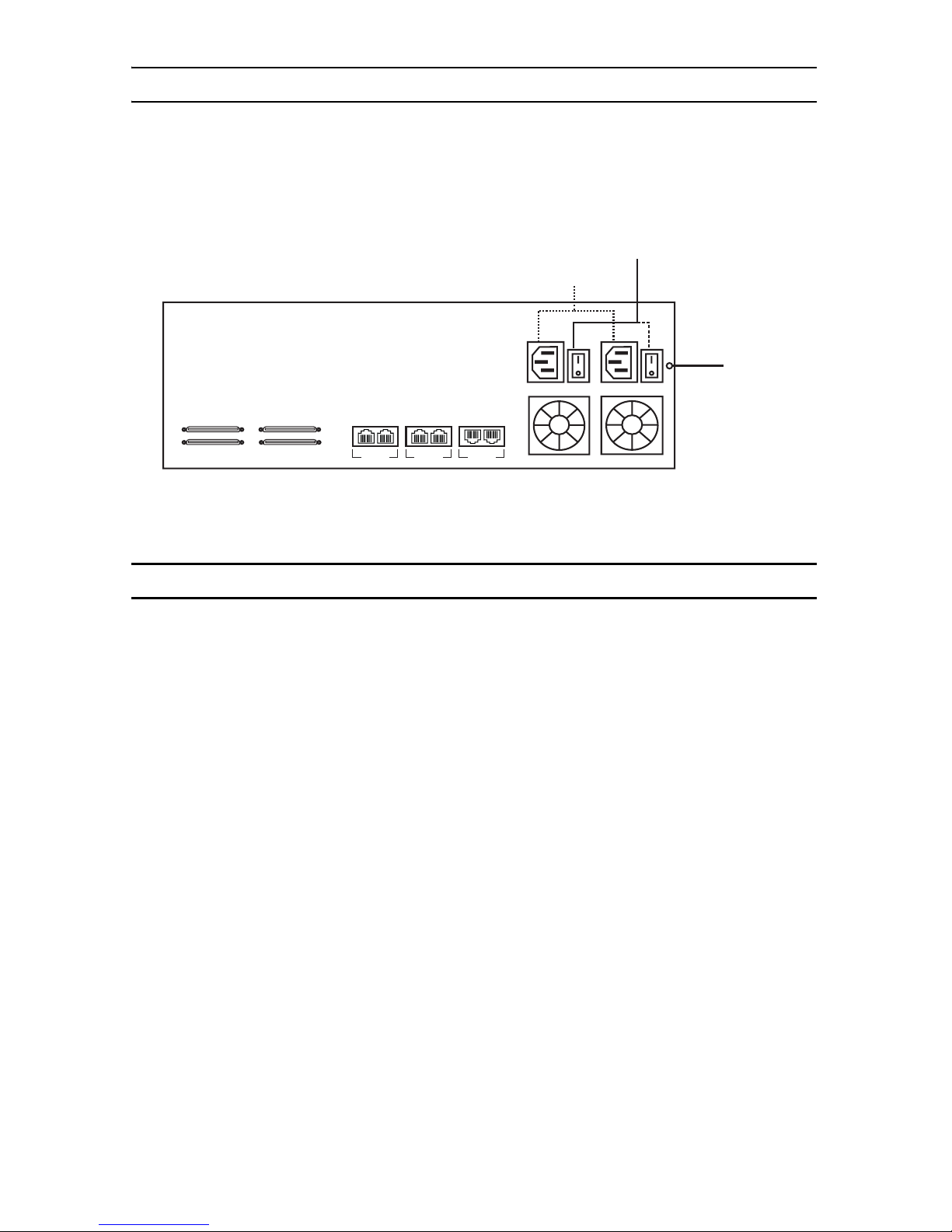

Figure 6. Connecting the power source

6.0 Connecting to the Control host

1. Connect to the Control host through the console serial port (see 6.1 “Connecting the console serial

port” on page 7) OR the Ethernet management interface (see 6.2 “Connecting the Ethernet man-

agement interface” on page 7).

The IP address of the management port is 192.168.200.10/24. If it is not possible to connect to the

management port via IP, use the serial cable to connect to the SmartNode Control host for the first time.

2. Default HOSTNAME is the Control host serial number, which can be found in the “Important Notice” sheet

included with your shipment.

3. Refer to the "Important Notice" sheet for the username and password to log onto the Control host. Navi-

gate to: HTTP://HOSTNAME:12358, to configure the SmartNode unit. (username/password: root/root)

ETH VoIP SMP

0/0 0/1 0/0 0/1 0/0 0/1

Audible

alarm button

Power switch

Power socket

49-64

33-48

17-32

1-16

SmartNode 10200 Series Quick Start Guide 7

6.1 Connecting the console serial port

1. Connect a CAT5 RJ-45 (male-male) cable (supplied with unit) between the COM port of your computer

and the serial port (labeled 1010) of the SN10200.

2. If your computer’s serial port features a DB9 connector, use the DB9 to RJ-45 adapter supplied with your

SN10200. If your computer's serial port features a USB connector, you will need to provide a USB to DB9

adapter.

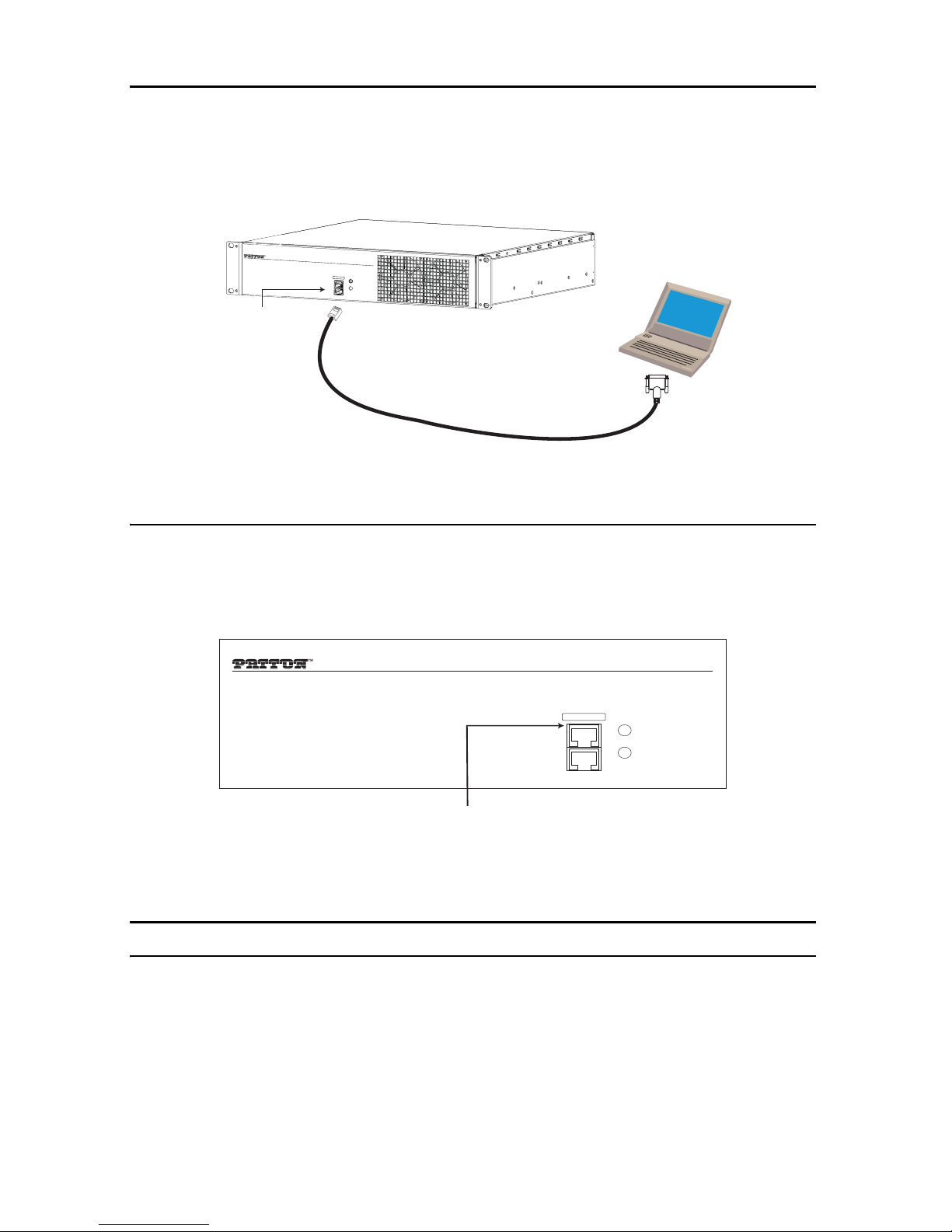

Figure 7. Connecting the console serial port

6.2 Connecting the Ethernet management interface

1. Connect the supplied CAT5 Ethernet cable to the management port labeled Ethernet on the front of the

SmartNode 10200.

2. Log into the SmartNode using the specific credentials included on the “Important Notice” sheet that

shipped with your unit. The management port is configured with a static Class C IP address by default.

Figure 8. Connecting the management interface

7.0 Configuring the SmartNode

You may access the SmartNode through the console management port, or through the Ethernet management

port. Refer to the following sections for more information:

•

7.1 “Accessing the SmartNode via the Console Management port” on page 8

•

7.2 “Accessing the SmartNode via the Ethernet Management port” on page 8

SmartNode

™

Console

Ethernet

Power

TDM+VoIPSmartMediaGateway

Management

Serial Console

Management Port

Serial Terminal (PC)

Note A Patton Model 16F-561 RJ45 to DB-9 adapter is included with

each SmartNode 10200 Series device

SmartNode™

Console

Ethernet

Power

TDM+VoIP Smart Media Gateway

Management

Ethernet

Management Port

8SmartNode 10200 Series Quick Start Guide

7.1 Accessing the SmartNode via the Console Management port

Logging into the SmartNode Console

1. To physically connect the console serial port, follow the instructions in 6.1 “Connecting the console

serial port” on page 7.

2. To communicate with the SN10200 through the console port, you must first configure a terminal emula-

tor or console application (such as HyperTerminal or Putty) in order to configure initial settings. Configure

the terminal emulator with the following settings:

3. Log into the console using the specific credentials included on the 'Important Notice' that shipped with

your unit. (If you do not have the “Important Notice” sheet, contact support@patton.com).

7.2 Accessing the SmartNode via the Ethernet Management port

Logging into the SmartNode via SSH

1. To physically connect the Ethernet management port, follow the instructions in 6.2 “Connecting the

Ethernet management interface” on page 7.

2. To access the SN10200, you must use an SSH connection. The password is set at the factory and is indi-

cated on the “Important Notice” sheet included with your unit. (If you do not have the “Important

Notice” sheet, contact support@patton.com).

3. The factory default configuration for the Management Ethernet Interface is a Static IP address of

192.168.200.10/24.

Preparing for Web Management

After logging into the SN10200 via the console port or SSH, a control menu displays. This menu allows you to

complete simple tasks like setting the time zone and configuring the management IP Address, and more compli-

cated tasks like advanced debugging.

For debugging assistance, contact Patton’s Support team at support@patton.com. Once your IP Address and

Time Zone are set, there are no more configuration steps in the CLI and you may proceed to the web manage-

ment page.

Baud rate Data rate Parity Stop bits Flow control

9600 8 bits None 1None

SmartNode 10200 Series Quick Start Guide 9

8.0 Logging into the Web Interface

This section describes how to login and navigate the SmartNode 10200 Web Portal.

The first step involved in initially configuring any Smart Media system involves logging on to the Web Portal. This

can be divided into two distinct tasks: connecting to the 10200 via IP and logging on to the Web Portal. For

establishing IP connectivity refer to 7.2 “Accessing the SmartNode via the Ethernet Management

port” on page 8.

8.1 Connecting to the web server

Using a web browser, connect to the Web Portal by typing the following in your address bar:

–

http://[DEVICE HOST NAME]:12358

or, alternately,

–

http://[DEVICE IP ADDRESS]:12358

8.2 Logging on to the Web Portal

In order to log on to the Web Portal configuration tool, enter the root user ID and password. The default values

for these parameters are:

–

User ID: root

–

Default password: root

9.0 Additional Information

Refer to the following manuals–available online at www.patton.com/manuals–for detailed information

about installing, configuring, and operating the SN10200 models, along with warranty, trademark, and compli-

ance information.

•

SmartNode 10200 Series User Manual –www.patton.com/manuals/SN10200.pdf

•

Smart Media System Software Configuration Guide –www.patton.com/manuals/SmartMedia-scg.pdf

10 SmartNode 10200 Series Quick Start Guide

A.0 Compliance Information

A.1 Compliance

EMC:

•

FCC Part 15, Class A

•

EN55022, Class A

•

EN ETSI 300 386 V1.3.3

Low-Voltage Directive (Safety):

•

UL 60950-1/CSA C22.2 No. 60950-1

•

IEC/EN60950-1

A.2 Radio and TV Interference (FCC Part 15)

This device generates and uses radio frequency energy, and if not installed and used properly—that is, in strict

accordance with the manufacturer's instructions—may cause interference to radio and television reception. This

equipment has been tested and found to comply with the limits for a Class A computing device in accordance with

the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection from

such interference in a commercial installation. However, there is no guarantee that interference will not occur in

a particular installation. If the equipment causes interference to radio or television reception, which can be

determined by disconnecting the cables, try to correct the interference by one or more of the following mea-

sures: moving the computing equipment away from the receiver, re-orienting the receiving antenna, and/or

plugging the receiving equipment into a different AC outlet (such that the computing equipment and receiver are

on different branches).

A.3 CE Declaration of Conformity

Patton Electronics, Inc declares that this device is in compliance with the essential requirements and other rele-

vant provisions of Directive 1999/5/EC. The Declaration of Conformity may be obtained from Patton Electron-

ics, Inc at www.patton.com/certifications.

The safety advice in the documentation accompanying this device shall be obeyed. The conformity to the above

directive is indicated by CE mark on the device.

A.4 Authorized European Representative

D R M Green

European Compliance Services Limited.

Avalon House, Marcham Road

Abingdon,

Oxon OX14 1UD, UK

Indice

Altri manuali Patton Portale

Patton

Patton SmartNode 4110 Series Manuale utente

Patton

Patton SmartNode SN4170 Manuale utente

Patton

Patton SmartNode 5541 Series Manuale utente

Patton

Patton SN4112 Manuale utente

Patton

Patton SmartNode 10100 Series Manuale utente

Patton

Patton SmartNode 4120 Manuale utente

Patton

Patton SmartNode 4740 Series Manuale utente

Patton

Patton SmartNode 4830 DSL Series Manuale utente

Patton

Patton SmartNode SN10100A Series Manuale utente

Patton

Patton SmartNode 10100 Series Manuale utente

Patton

Patton SmartNode 5540E Series Manuale utente

Patton

Patton SmartNode 4554 Manuale utente

Patton

Patton 1000 Manuale utente

Patton

Patton SmartNode 4940 Series Manuale utente

Patton

Patton SmartNode 4554 Manuale utente

Patton

Patton SmartNode SN10200A Series Istruzioni operative e di manutenzione

Patton

Patton SmartNode 4970 Series Manuale utente

Patton

Patton SmartNode 5540 Series Manuale utente

Patton

Patton SmartNode 4900 Manuale utente

Patton

Patton SmartNode 4520 Series Manuale utente

Patton

Patton 07MSNOGA-DS5 Manuale utente

Patton

Patton Smart Node 4120 Manuale utente

Patton

Patton SmartNode 4970 Series Manuale utente

Patton

Patton SmartNode 4970A Series Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
