PCE Instruments PCE-MSR 100 Manuale utente

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

FL-33458

USA

From outside US: +1

Tel: (561) 320-9162

Fax: (561) 320-9176

info@pce-americas.com

PCE Instruments UK Ltd.

Units 12/13

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: (0) 2380 98703 0

Fax: (0) 2380 98703 9

info@pce-instruments.com

www.pce-instruments.com/english

www.pce-instruments.com

Manual

PCE-MSR 100

Version 1.0

Date of creation: 30.07.2015

Date of last change: 30.07.2015

Manual

Contents

1Introduction .............................................................................................................3

2Safety notes.............................................................................................................3

3Specification............................................................................................................4

4How to use...............................................................................................................5

5Contact.....................................................................................................................6

5.1 PCE Instruments UK .................................................................................................................. 6

5.2 PCE Americas ............................................................................................................................ 6

Manual

1 Introduction

Thank you for purchasing a PCE-MRS 100 from PCE Instruments.

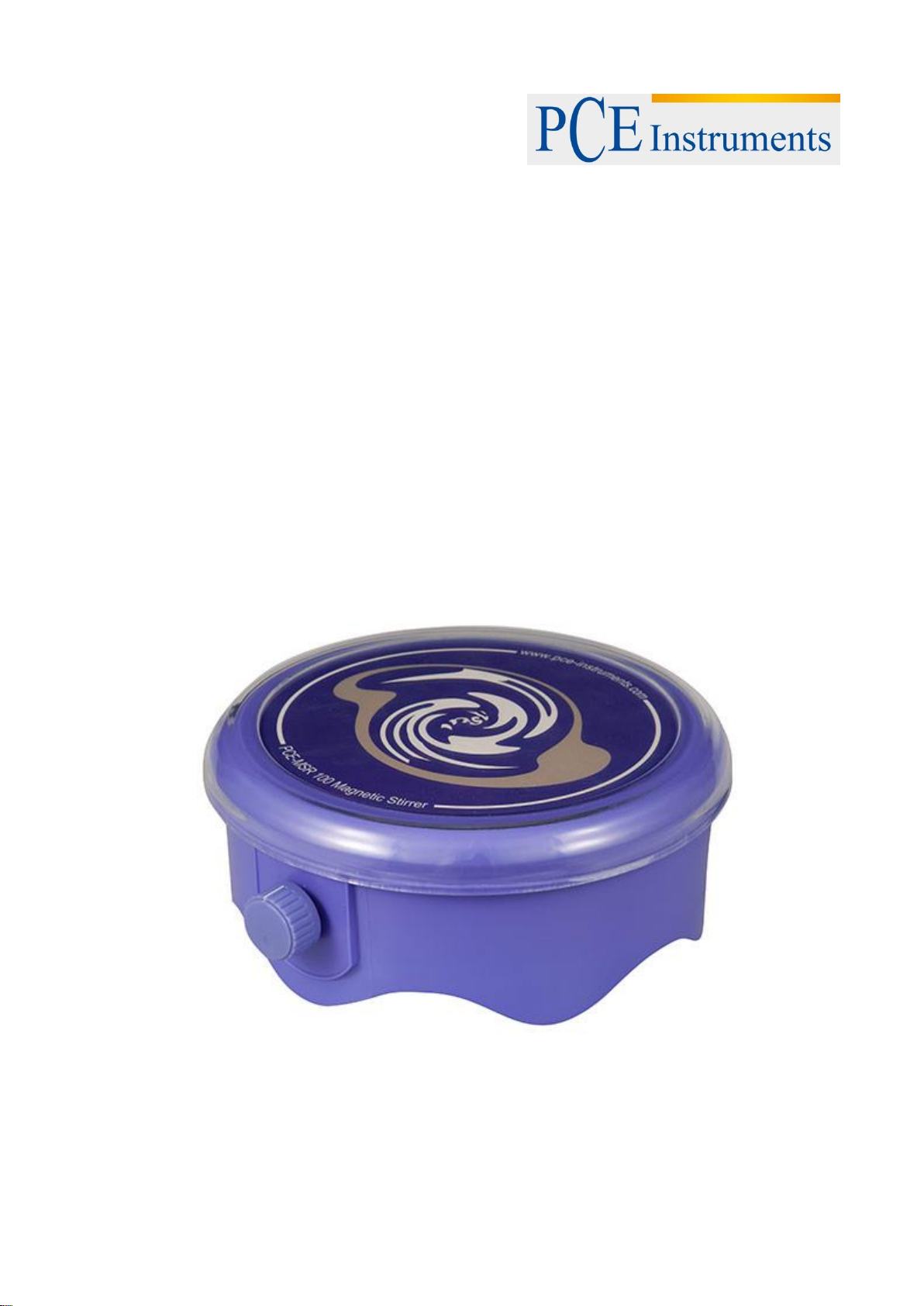

The laboratory stirrer is ideal for fluids, consisting of various components to mix with different rotation

speeds, and guarantees great results. The laboratory stirrer allows you to whisk liquids in open rather

than in closed containers. Thus, for example with the laboratory stirrer you can work with substances that

require segregation of the environment. The simple geometry of the floating stirrer of the laboratory stirrer

PCE-MSR 100 also considerably facilitates rinsing and cleaning. To get the small magnets out of the

stirring containers, one uses a long, plastic coated magnetic bar.

2 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The device

may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no

warranty of damages or injuries caused by non-observance of the manual.

- The device may only be used in approved temperature range

- The opening of the case should only be done by qualified personnel of the PCE Instruments.

- The instrument should never be placed with the user interface (e.g. keyboard side on a table)

- You should not make technical changes on the device

- The appliance should only be cleaned with a damp cloth / use only pH-neutral cleaner

This user's handbook is published from PCE Instruments without any guarantee.

We expressly point to our general guarantee terms, they can be found in our general terms of business.

If you have any questions please contact PCE Instruments.

Manual

3 Specification

Maximum Stirring Volume

2 litre (H2O)

Stirring Speed

0 … 1250 rpm

Plate Dimensions

Dia.145mm

Plate Material

Stirring Bar Dimensions

30(L) × 7(Dia.)mm

Ambient Temperature

Room Temperature … 60°C

Dimensions

185(Dia.) × 75(H)mm

Input Power

AC 220V/50Hz

Weight

0.6kg

Manual

4 How to use

1. Before plugging the plug into the power outlet, ensure that local mains power voltage matchs the

stirrer requirements.

2. Place a stir bar into the container. Rotate the control knob clockwise to turn on the stirrer.

3. If necessary, rotate the control knob slowly to adjust run speed of the stir bar.

4. If the stir bar does not work well, please move the container slightly, ensure that the stir bar is in

container's center.

Manual

5 Contact

If you have any questions about our range of products or measuring instruments please contact PCE

Instruments.

5.1 PCE Instruments UK

By post:

PCE Instruments UK Ltd.

Units 12/13 Southpoint Business Park

Ensign Way, Southampton

Hampshire

United Kingdom, SO31 4RF

By phone:

02380 987 035

5.2 PCE Americas

By post:

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

33458 FL

USA

By phone:

561 320 9162
