Technical specifications:
RF section:
- Frequency range: 540-1800KHz (MW), 5000-6000KHz (SW), 6000-7000KHz (SW), 7000-8000KHz (SW), 40m+80m
(HAM) and other bands on request
- RF Output Power: about 100W/500W/1000W/2000Wpeak topeak depending on selected band and frequency
- Output connector: BNC, 50 ohms (100W model), 7/16 female for 500W/1000W/2000W models
- PLL steps: 1KHz, DDS generated signal
- Spurious/harmonic rejection: >25dB onsome bands band >50dB (may require additional externalfilter)
- No-tune wideband amplifier design with custom built filter (for 500W/1000W/2000W)
- Power supply 100W model: 24-48V (2,5A). Use 50V for maximum output power, 2.1mm power socket, center (+),
polarity protection (diode + fuse)
- Power supply 500W/1000W/2000W models: Mains 220-240V/50Hz, will work with 110V power with some derating

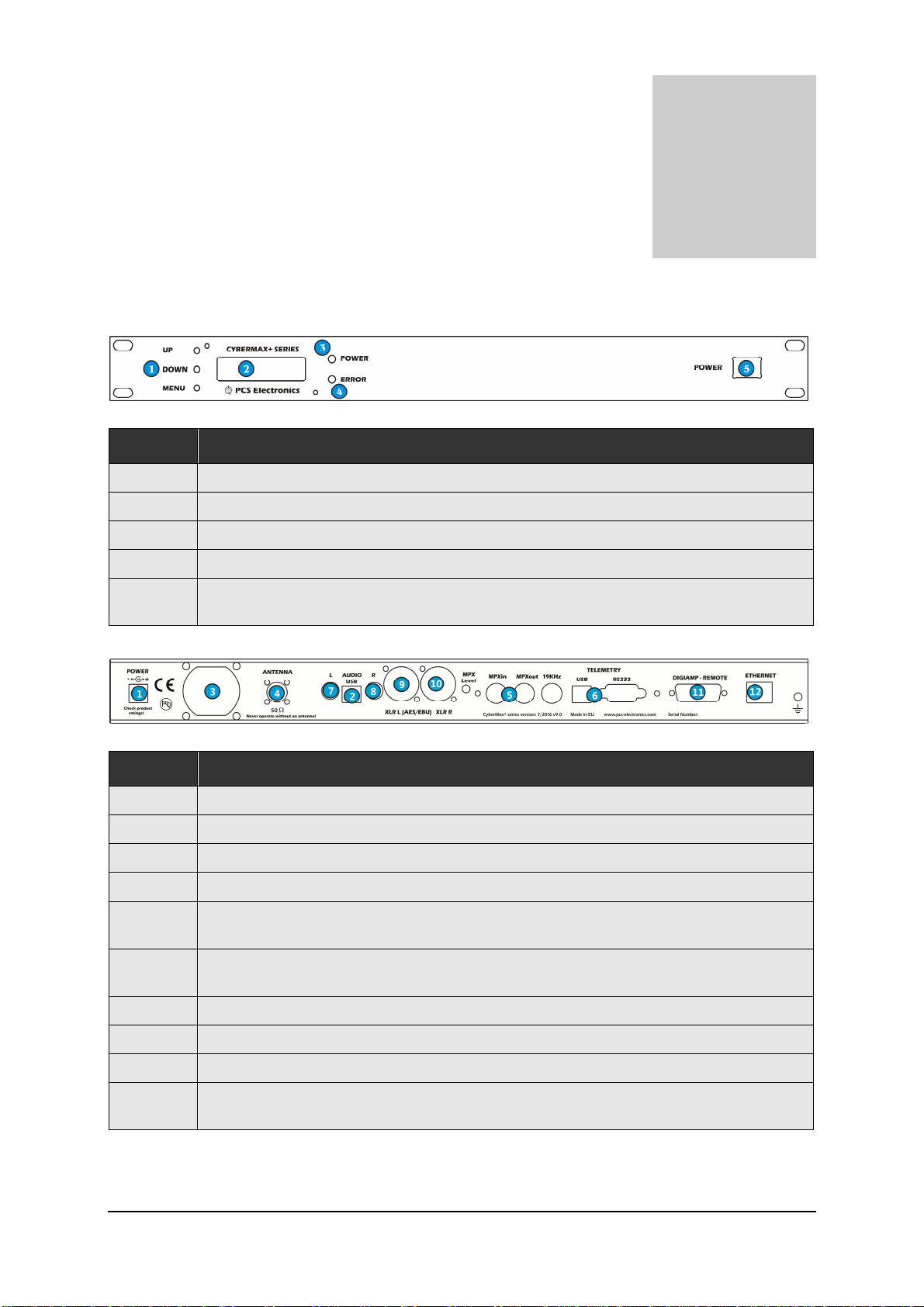

- LCD display shows: Power, frequency, temperature, supply voltage, audio level
- Ambient temperature: 0° to +45°C
- External dimensions 1H rack: (W x D x H) 19" x depth (130mm) x height 1HE (44mm)
- Weight: 1kg
– External dimensions 1000W (W x D x H) 19″ x depth (492mm) x height 2HE (88mm)
– Physical weight 15Kg
– Volumetric weight up to 20Kg
– External dimensions 2000W (W x D x H) 19″ x depth (550mm) x height 3HE (132mm)
– Physical weight 25Kg
– Volumetric weight up to 30Kg
Audio section:
- Audio performance: Less than<1% distortion, 20Hz-4500Hz(adjustable bandwidthup to 7500KHzfor digital modes)
- Limiter + DSP compressor and filter
– Audio connectors exciter board only: 3-pin jumper
– Audioconnectorsfor units in a rack enclosure: BNC (single-ended input), 2x RCA, 2x balanced XLR and USB audio
– Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
– Audio input impedance: 10Kohms resistive, balanced
– Pre-emphasis Flat, 50 or 75usec
