PMU50 PROJECTOR MOUNT

To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference.

To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the projector

and the mount.

Fully tighten all of the mounting screws as specified in the instructions.

Special techniques are necessary for installation of the mount.

Do not attempt to perform this work by yourself.

Request an installation specialist to install this unit.

Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.

Please remember that if you remove the mount from the wall/ceiling later, you will find the screw holes and anchor bolts for the

mounting unit left on the wall.

All PDR mounts and adapters carry a lifetime warranty against defects in material and workmanship. We are not liable for

improper installation that results in damage to mounts, adapters or presentation equipment.

Mounts by

A division of David Engineering & Mfg. Inc.

!Simple to adjust no-tools required

!Low profile

!1 ½”NPT-ready or flush mount

!+30° -5° Pitch

!+ -5° yaw

!360 ° rotation

!55 lb load rating

!Lateral shift capable

!Quick projector removal with exclusive

“Bayonet locking system”

3 1/4 ”

Features

Thank you for purchasing the PDR Projector mount with the exclusive “Bayonet locking system”.

Bayonet Locking System

Locking thumb screw

Rotate 360 deg

the strength of the wood beam is not sufficient, add reinforcement.

Always confirm the center of the beam is used for the installation.

Avoid installing in locations where the temperature and humidity are excessively high, and where contact with any

not install in locations where there are excessive amounts of dust,

Do not block the ventilation holes. Leave sufficient clearance in regard to the surroundings to avoid blocking the ventilation..

The internal temperature could elevate and possibly result in fire. Install the projector (4") or more away from surroundings.

Do not install in locations where there is excessive vibration or impact. Injury and damage could result from the projector mount

light. Strong light could result in eye fatigue during usage.

Use the specified bolts and screws in the specified places and tighten firmly. Failure to do this could cause injury if the projector

could result with injury due to the projector mount falling..

C a u t i o n : I n s t a l l a t i o n o f u n i t i s t o b e c a r r i e d o u t b y q u a l i f i e d t e c h n i c i a n s o n l y . I n s t a l l i n a n a p p r o p r i a t e

l o c a t i o n b y c h e c k i n g t h e w a l l s t r u c t u r e a n d d u r a b i l i t y f o r s a f e t y a n d a c c i d e n t p r e v e n t i o n .

INSTALLATION LOCATION

INSTALLATION ON A WOODEN CEILING STRUCTURE

Always install so that the load is supported by a wood beam. If

Do not install on decorative ceilings or plaster board.

water is possible. These can result in fire or electric shock.

Do not install close to an air conditioner intake or outlet. Do

oily smoke or tobacco smoke. Fire could result.

falling.

Do not install where there is direct sunlight or other strong

mount falls.

Do not alter any of the parts. Do not use broken parts. This

Note:

CAUTION

WARNING

REV 031708

The ceiling where the mount is to be installed must be capable of long-term support of

the total load of the projector and mount. Measures should be taken to ensure sufficient

strength to withstand the force of earthquakes, vibrations and other external forces.

Incorrect installation can cause the projector mount to fall and cause injury.

Total load of the mount (projector + Mount)

Maximum weight - 55 Lbs (25Kg.)

Ø15.75” MAX REACH

3.26”

2.13”

5°

30°

5°

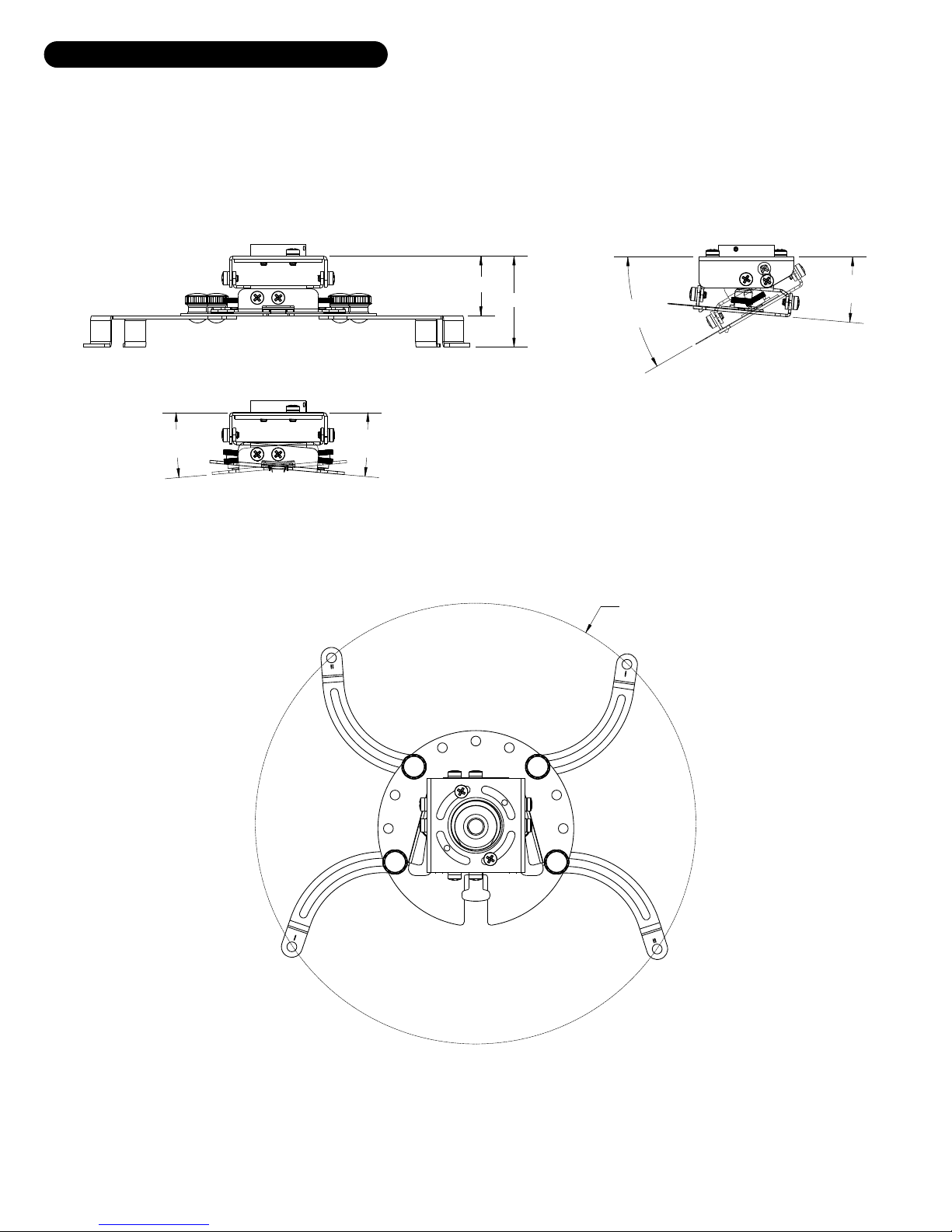

PRODUCT SPECIFICATIONS

4.3 mm x 8.9mm steel washer 4pcs

2.7mm x 6mm steel washer 4 pcs

C9/32” x 47/64” Nylon washer 4 pcs

1/4-20 x 5/8 carriage bolts 4 pcs

Leveling barrels 4 pcs

M 3 x 25mm Pan Head Philips machine Screw 4 pcs

M2.6 x 25mm Cheese Head slotted machine Screw 4 pcs

1/4” X 2” lag bolt 2 pcs

9/32” ID steel washer 2 pcs

HM4 x 25mm Pan Head Philips machine Screw 4 pcs

M6 x 25mm Pan Head Philips machine Screw 4 pcs

Black plastic knob 4 pcs

Adjustable arm (right) 2 pcs

Adjustable arm (left) 2 pcs

ADAPTER PLATE HARDWARE

D,E

G,H,I,J

Adapter plate 1 pc

Fig 1

Note: must be used with washer “E”

1. FASTEN THE PROJECTOR MOUNT TO 1 ½”NPT PIPE

1: The bracket must be secured to a ceiling structure capable of at least

2: Screw the bayonet sub assembly onto the 1 ½” NPT pipe (not supplied).

3: Secure with the locking set screw making sure the sub assembly safety lever is facing the front of the projector.

4: Fine adjustment can be made for rotation by loosening the two screws on the 1 ½’collar and rotating to the desired

position and tighten the two screws. SEE FIG 2

(4) times the weight of the projector + mount.

Fig 2

Fig 3

2. FLUSH MOUNTING THE PROJECTOR MOUNT

safety lever

Rotation screws

locking set screw

Pipe Not Supplied

Bayonet Sub Assembly

Projector Front

1: The bracket must be secured to a ceiling structure capable of at least (4) times the weight of the projector + mount.

2: For flush mounting of the pmu50 remove the 1 ½” collar and the side screws.

3: Position the pmu50 mounting plate against the ceiling structure with the chamfer facing the rear of the viewing screen (a solid wood

construction is required behind any ceiling structure). SEE FIG 3

4: Using the two lag bolts and washer supplied fasten to the ceiling.

5: Re-attach the bottom part of the mount using the side screws removed earlier. SEE FIG 3

Chamfer facing away

from the viewing screen

Wood beam

Front of mount

Side screws

1: Start by screwing the leveling barrels ( A ) into the Adjustable arms (K and L). A screwdriver slot is provided in the barrel (A). The barrels only

need to be threaded approx. 1/8“ through the bottom of the arm (K and L). If the mounting plane of the projector is not flat, the barrels can be

adjusted to make up the difference in height. SEE FIG 1

2: Using the adapter plate ( M ) attach the adjustable arms ( K,L ) with the hardware supplied (B,C,F). No need to tighten at this time. SEE FIG 1

3: Place the Universal adapter plate onto the projector. Using the proper hardware supplied ( screws G,H,I,or J) (washers D or E )

lightly fasten to the projector. SEE FIG 3

4: Position the universal adapter plate approx over the center of the projector. Tighten the screws to the projector and then tighten the plastic knobs
