NG3000-5000 Installation Guide Rev 1 PN IG-0021 17/08/17 RS-2100
NG3000-5000 (All Models)
Installation Guide
Page 2
Change History
Rev Comment Name Date
How to use this Installation Guide
This document is intended to be used only as a Quick Start Guide, to facilitate safe and
correct installation and initial configuration of your Peak Scientific gas generator.
For more extensive user operation directions, we recommend you download the User
Manual from the website.
Please visit www.peakscientific.com/downloads to
download the full User Manual for your gas generator.
Thank you for selecting Peak Scientific to meet your laboratory gas generation needs,
and should you require any further assistance or support please do not hesitate to
contact Peak Scientific or Peak Partner from which you purchased your generator.
Page 3
Safety Notices
Peak Scientific Instruments cannot anticipate every possible circumstance which may
represent a potential hazard. The warnings detailed within this document detail the
most known potential hazards, but by definition cannot be all inclusive. If the user
employs an operating procedure, item of equipment or a method of working which
is not specifically recommended by Peak Scientific, the user must ensure that the
equipment will not be damaged or become hazardous to persons or property.
Symbols
This document uses the following symbols to highlight specific areas important to the
safe and proper use of the Generator
A WARNING notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause
personal injury or in the worst case death. Do not proceed beyond a WARNING
notice until the indicated conditions are fully understood or met.
A CAUTION notice denotes a hazard. It calls attention to an operating procedure,
process or similar, which if not correctly performed or adhered to, could cause
damage to the Generator or the Application. Do not proceed beyond a CAUTION
notice until the indicated conditions are fully understood or met.
Caution, risk of electric shock. Ensure power to the Generator has been removed
before proceeding.
Safety Notice to Users
These instructions must be read thoroughly and understood before
installation and operation of your Peak Generator. Use of the generator
in a manner not specified by Peak Scientific MAY impair the SAFETY
provided by the equipment.
When handling, operating or carrying out any maintenance, personnel
must employ safe engineering practices and observe all relevant local
health and safety requirements and regulations. The attention of UK
users is drawn to the Health and Safety at Work Act 1974, and the
Institute of Electrical Engineers regulations.
If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
WARNING
WARNING
WARNING
WARNING
CAUTION
Page 3
Page 4
Fittings Kit
PTFE 6mm Tubing 00-1302
x3m
x1
UK Mains Cable C13 04-1030
x1
US Mains Cable C13 6-15 04-1029
x1
EU Mains Cable C13 04-1038
x1
US Mains Cable C13 5-15 04-1039
x2
1/4” - 6mm Push Fit Elbow Fitting 02-4331
No. 8 Screw 00-4075
x4
x4
No. 8 Wall Plug 00-4076
x1
1/4” x 1/8” Compression Fitting 02-1000
x1
1/4” x 1/4” Compression Fitting 02-4421
Page 5
Unpack the generator from the shipping crate and position on a flat surface, in
desired area.
1.
2.
The NG range generator is designed to be mounted against a wall for safety reasons.
Locate the screw in the top right rear corner of the unit, beside the yellow warning
label.
Page 6
3.
Next, using the screw which was removed, fit the bracket and washers provided to the
generator. Again this should be repeated for the other side. The bracket is adjustable to
accommodate varying kickboard widths.
4.
Remove the screw from the generator this should be repeated for the other
side of the unit, and retain.
Page 7
6.
5.
Finally, using the dimensions provided, fix the wall plugs to the wall, ensuring wall plug
is suitable for the type of wall. If not, use the correct type. Secure the generator to the
wall with the screws from the fittings kit.
For NG 3000-5000(A) before the unit is used, the transit brackets must first be
removed from the compressor.
For NG 3000-5000 please proceed to step 10
To remove the transit bracket first remove the 11 screws on the front panel as shown.
then remove the front panel from the generator.
Page 8
7.
Now locate the red transit bracket attached to the compressor foot plate, and remove
the two screws on the bracket.
8.
Then remove the front panel from the generator.
Page 9
9.
Attach the ¼” Compression Fitting 02-4421 to the generators gas outlet.
10.
Next remove the transit bracket by first lifting up and then out of the generator.
Replace the front panel and secure it to the generator using the 11 screws that were
previously removed.
02-4421
Page 10
11.
12.

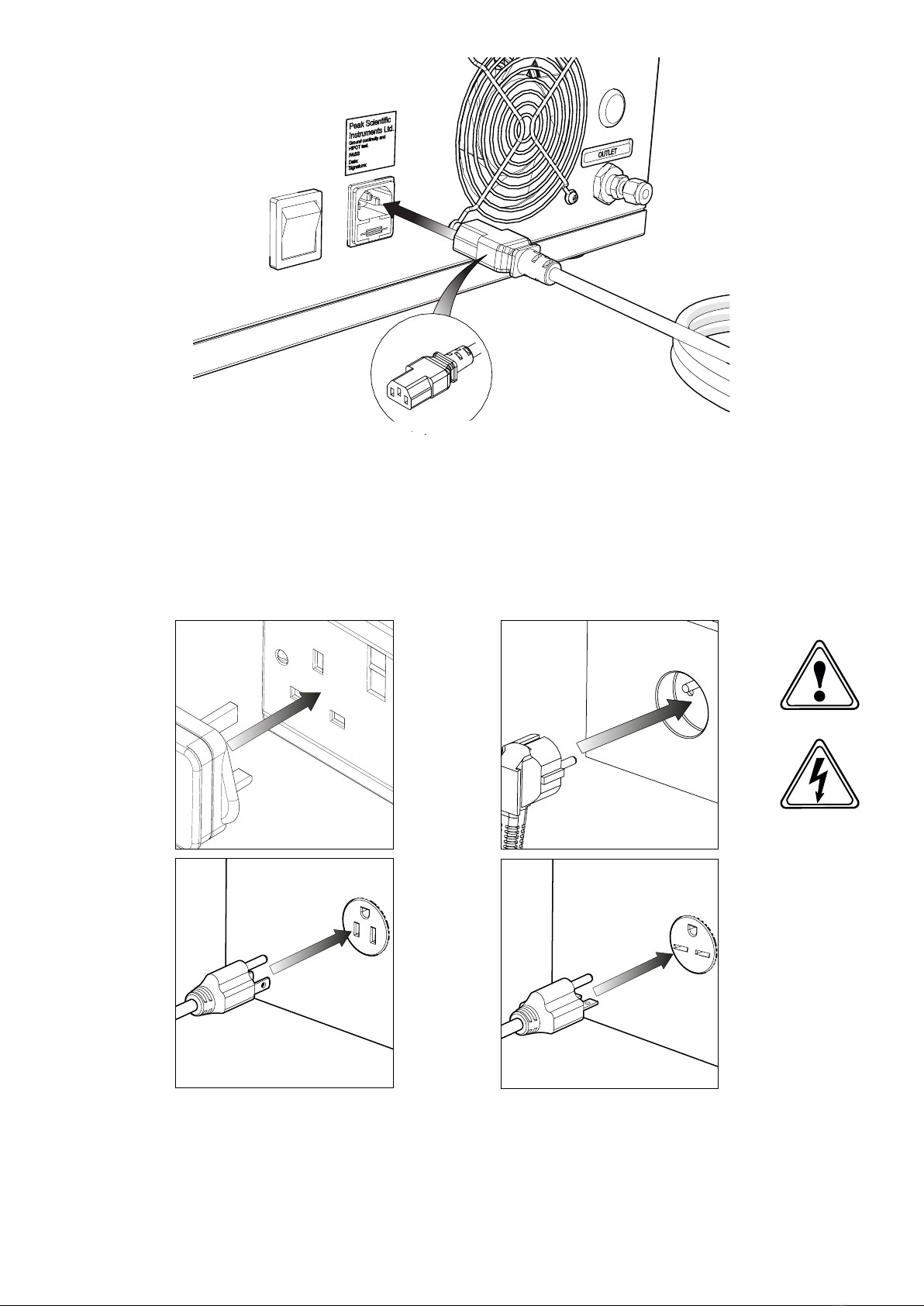

Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C19
cable into the mains input at the side of the generator.
04-1030/04-1029/
04-1038/04-1039
110VAC 50/60Hz OR 230VAC 50/60Hz
Plug the mains cable into the corresponding 110VAC 50/60Hz OR 230VAC 50/60Hz
single phase power supply.
CAUTION ensure the correct cable has been selected for your electrical supply
For non-gas versions of the MS Table proceed to step 15.
CAUTION
UK EU
US
110V
US
230V
