peerless-AV DST965 Guida
* NOTE: DST965 WILL NOT WORK WITH ADJUSTABLE
EXTENSION COLUMNS AEC006009, OR AEC012018 Maximum Load Capacity: 300 Ib (136 kg)
* SEE NOTE
2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
Installation and Assembly: Back to Back Ceiling Mount
Model: DST965
2 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
ABC
F
D
E
Before you start make sure all parts listed are included with your product.

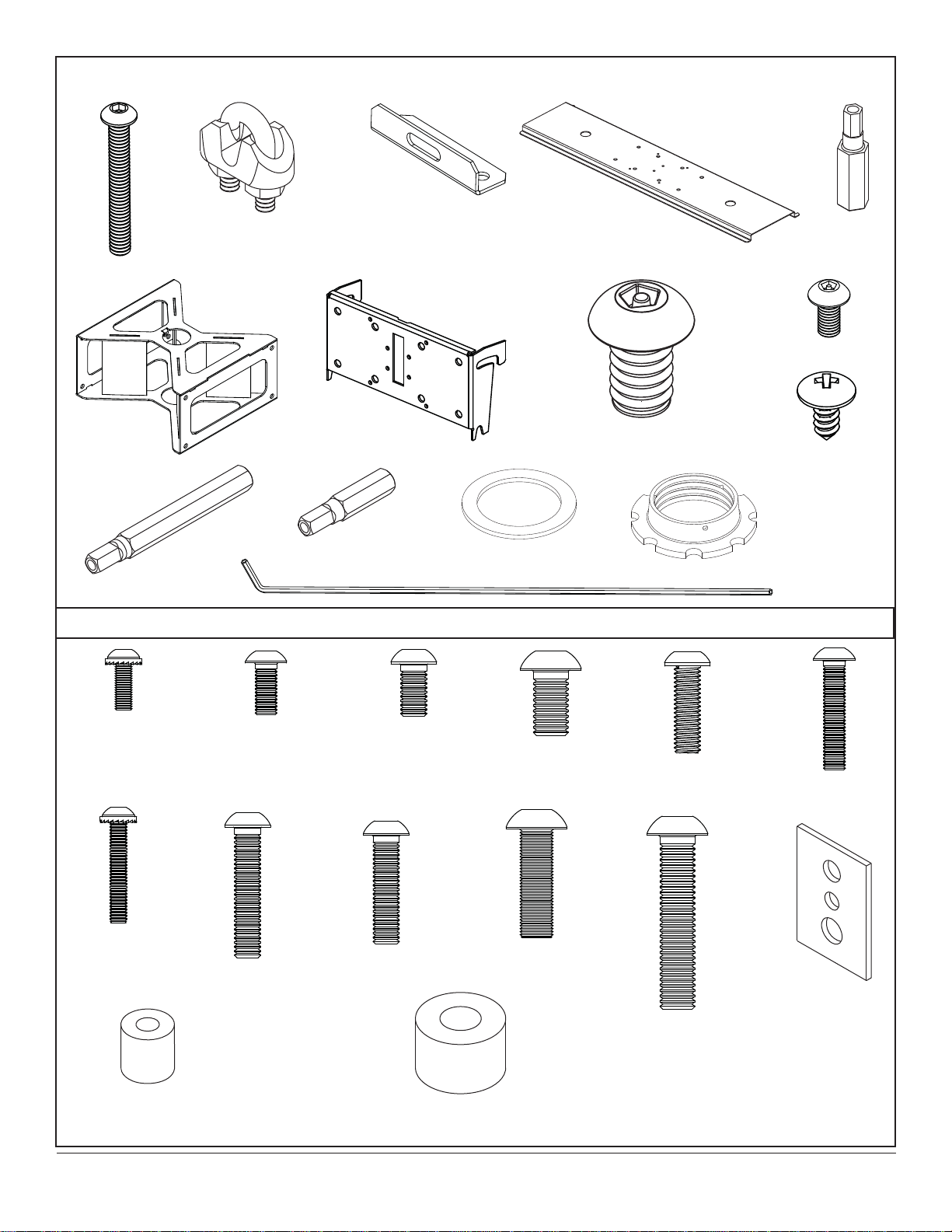

PARTS LIST
Description Qty. Part #
A
main cover 2 145-1452
Bside cover 2 145-1453
Ccable assembly 1 600-0033
Dadapter bracket 4 202-1655
Ecomponent shelf clamp 2 145-1180
Fbottom bracket 1 145-1454
Gcomponent shelf 2 145-1179
HM5 x 10 mm socket pin type-F screw 12 520-1164
I1/4-20 X 2" socket screw 4 520-1010
Jcable wire clamp 1 560-0104
Kcable bracket 2 145-1178
Lsafety belt (not shown) 1 170-8039-1
Madapter plate 2 201-1110
N4 mm security driver tool 1 560-1133
Ointerface bracket 1 200-1090
Ptilt bracket 2 200-1552
QM10 x 1.5 x 15 mm penta-pin™ screw 16 520-9263
RM5 x .8 x 10 mm self-tapping penta-pin screw 1 505-9010
S#8 x 3/8" truss head sheet metal screw 1 520-1078
TM10 x 2" penta-pin tool 1 520-9260
UM5 x 1" penta-pin tool 1 520-9249
V
2.125" ID x 2.875" OD x .062" H fiber washer 1 540-9432
Wretaining collar 1 1800-375
X
18" allen wrench 1 560-1727
G
H
3 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
KJ MN
OP Q R
S
TU
VW
X
Some parts may appear slightly different than illustrated.
I
M5 x 25 mm (8)
520-1122
M4 x 12 mm (12)
510-1079
M4 x 25 mm (8)
510-1082
M5 x 12 mm (8)
520-1064 M6 x 12 mm (8)
520-1050
M6 x 25 mm (8)
520-1211
I.D. .22" (5.6 mm) (8)
540-1057
multi-washer (8)
580-1036
I.D. .34" (8.7 mm ) (8)
540-1059
M6 x 20 mm (8)
520-9554
M6 x 30 mm (8)
520-1067
M8 x 15 mm (12)
520-1068
M8 x 40 mm (8)
520-1152
M8 x 25 mm (8)
520-1101
Security Adapter Bracket Fasteners
4 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
1Note: Notch indicates bottom of interface bracket (O) as shown in detail 1.
Slide interface bracket (O) onto adjustable extension column (not supplied) and attach using fiber washer (V) and
retaining collar (W) as shown in figure 1.1.
Carefully thread retaining collar (W) onto end of extension column. Tighten retaining collar (W) at least four
complete turns ending with one of the small holes aligned with slot in the end of extension column. Insert and
tighten M5 x 10 mm penta-pin screw (R) using M5 x 1" penta-pin tool (U) as shown in figure 1.2.
Secure Interface bracket (O) into place using one #8 x 3/8" truss head sheet metal screw (S)
as shown in detail 2.
V
W
O
R
SLOT
Detail 1
NOTCH
Figure 1.2 Figure 1.1
ADJUSTABLE
EXTENSION
COLUMNS
Detail 2
S
5 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
3
Detail 4
E
G
G
Secure two component shelves (G) to adjustable extension column (not supplied) using two component shelf
clamps (E) and four 1/4-20 X 2" socket screws (I).
NOTE: Make sure that component shelves are in the orientation as shown in detail 4.
G
GE
Attaching Component Shelf
I
ADJUSTABLE
EXTENSION
COLUMNS
2Screw eight M10 x 15 mm penta-pin screws (Q) into interface bracket (O) leaving approximately
1/4" of exposed thread as shown below and in detail 3.
Q
O
Q
O
1/4"
Detail 3
6 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
5Hook tilt plate (P) and support assembly onto M10 x 15 mm penta-pin screws (Q).
Repeat with second support assembly.
Q
P
SUPPORTASSEMBLIES
4Secure four M10 x 15 mm penta-pin screws (Q) through
cable bracket (K), tilt plate (P), main cover (A), and adapter
plate (M), and as shown below.
Repeat with second support assembly. K
AP
Q
M
TOP
7 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
7Secure bottom bracket (F) to support assemblies using M5 x 10 mm socket pin Type F screws (H)
as shown below. SUPPORTASSEMBLIES
H
SUPPORTASSEMBLIES
6Run cable assembly (J) down through extension column around and through two cable brackets (K)
as shown below.
Secure cable to itself using u-bolt, clamp and nuts from cable wire clamp (J).
U-BOLT
CABLE
CLAMP
NUT
KK
C
F
8 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
Note: "X" dimensions should be equal.
Installing Adapter Brackets
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (D) on back of screen, align to holes, and center on back of screen as shown below. Attach
the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers and
spacers as shown in step 8-1 and step 8-2.
NOTE: Top and bottom holes on screen must always be used.
Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
NOTE: Tighten using security allen wrench (X).
MEDIUM HOLE FOR M5 SCREWS
SMALL HOLE FOR M4 SCREWS
LARGE HOLE FOR M6 SCREWS
DCENTER BRACKETS
VERTICALLY ON BACK OF
SCREEN
X
X
Notes:
• The number of fasteners used will vary,
depending upon the type of screen.
• Multi-washers and spacers may not be
used, depending upon the type of screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as
shown.
MULTI-WASHER
8
• Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
NOTE: For flat back screens proceed to step 8-1. For bump-out or recessed back screen skip to step 8-2.
9 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as
shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not
over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled
fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into
screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place.
Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the
baffled fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
For Flat Back Screen
For Bump-out or Recessed Back Screen
8-1
8-2
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
DISPLAY
MULTI-WASHER
SCREW
ADAPTER
BRACKET
(BB)
fig. 8.2
SPACER
fig. 8.1
ADAPTER
BRACKET
(BB)
DISPLAY
MULTI-WASHER
SCREW
10 of 11 ISSUED: 10-24-11 SHEET #: 125-9260-3 03-17-14
D
M

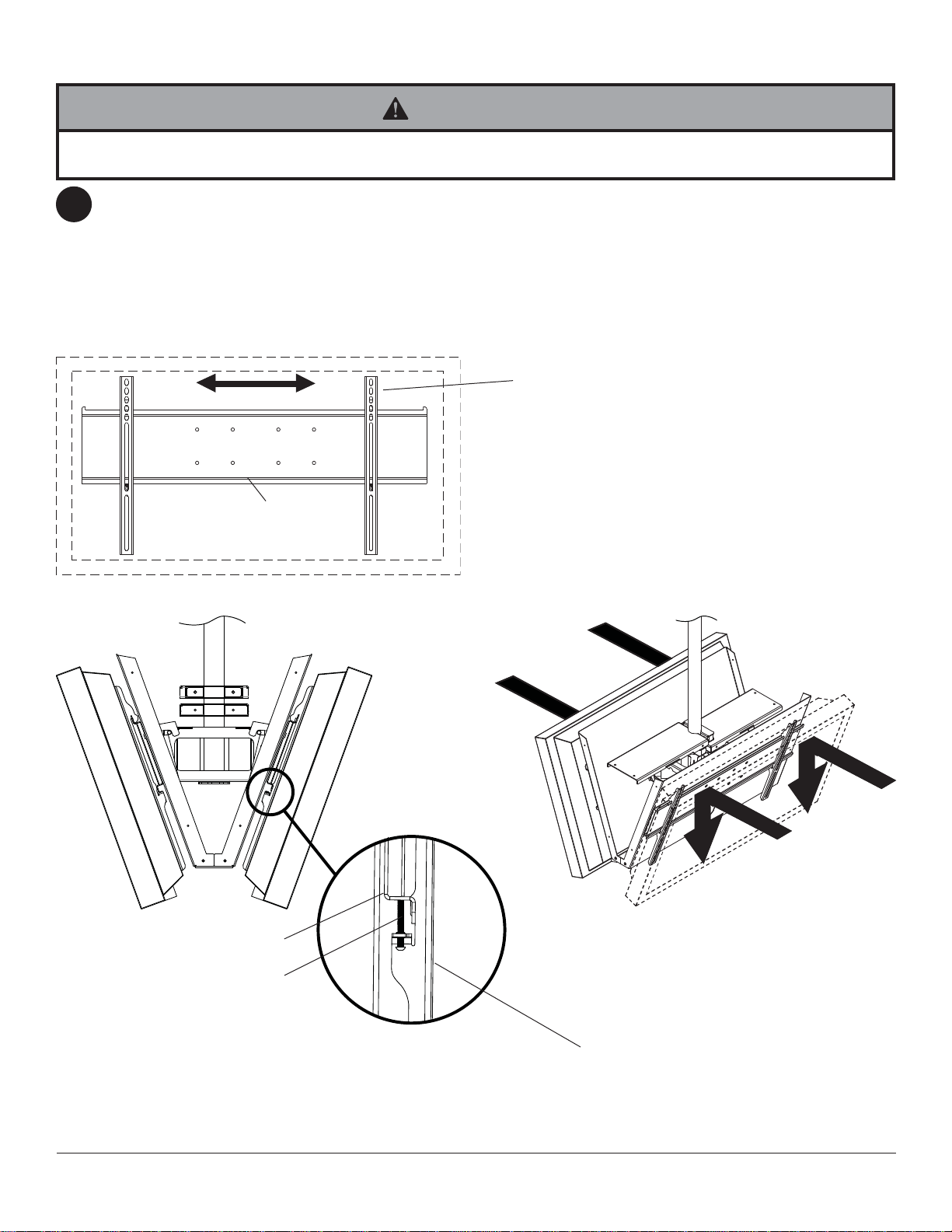

Mounting and Removing Flat Panel Screen
Hook adapter brackets (D) onto adapter plate (M), then slowly swing screen in as shown. Turn safety/security
screws clockwise at least six times to prevent screen from being removed as shown in detail 5.
Tighten using wrench (X).
Screen can be adjusted horizontally if desired as shown in figure 9.1.
NOTE: To lock the screen down, tighten safety/security screws to adapter bracket as shown in detail 5.
To remove screen from mount, loosen safety/security screws, swing screen away from mount, and lift screen off of
mount.
9
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
WARNING
Fig. 9.1
DETAIL 5
SAFETY/SECURITY
SCREWS
D
M
