Peerless-AV LCD Screens Guida

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com

ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

Max Load Capacity: 20 lbs (9 kg)

Installation and Assembly:

Desktop Mount with Desk Clamp and Grommet for 19" - 30"

LCD Screens

Models: LCT100S

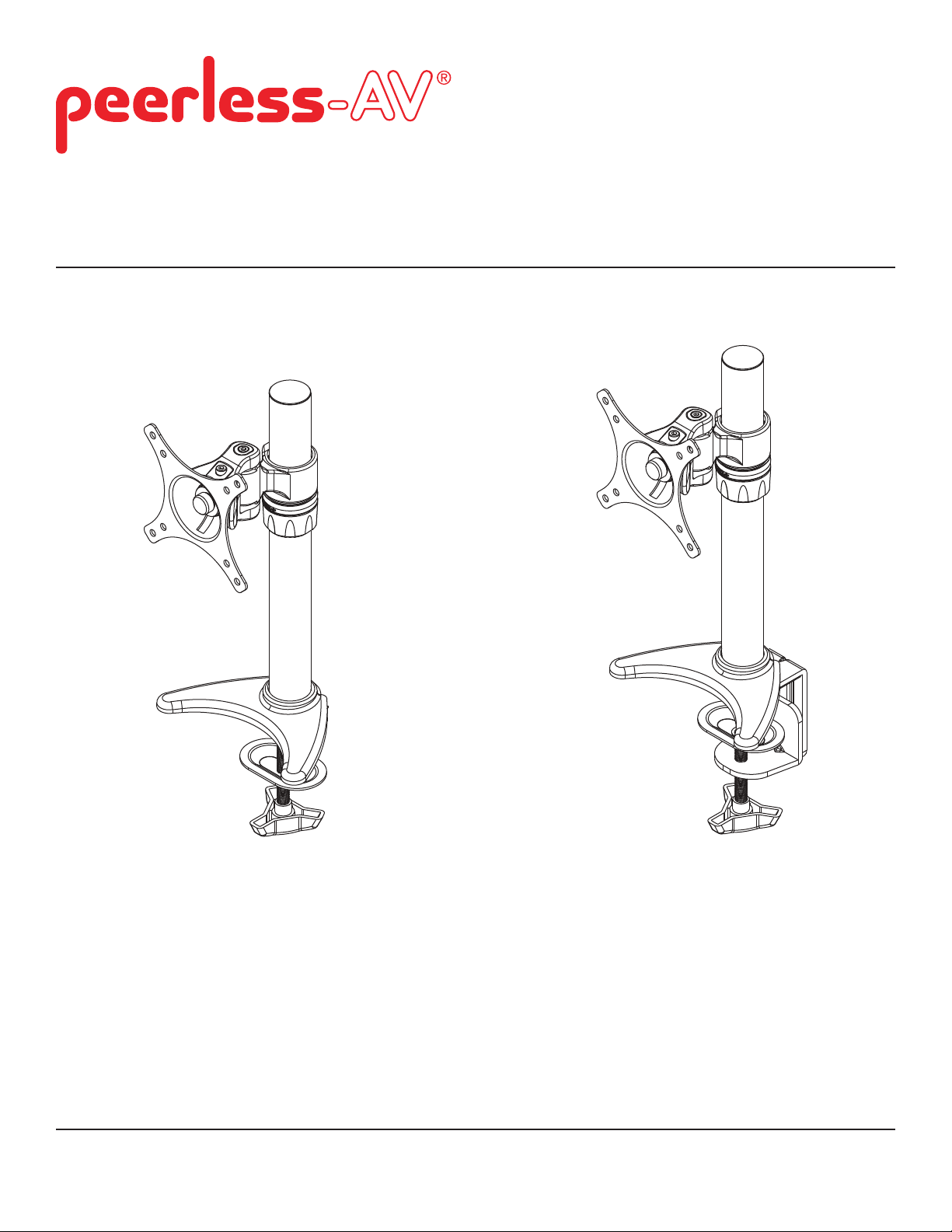

GROMMET INSTALLATION DESK CLAMP INSTALLATION

2 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

NOTE: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

• phillips screwdriver

• drill

• 7/16" (11 mm) drill bit

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Mounting Surface .............................................................................................................................................4

Attaching Adapter Plate Assembly to Screen .........................................................................................................................5

Cable Management ................................................................................................................................................................6

WARNING

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-865-2112.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum Load Capacity. See page 1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

 

power.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

3 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

Description Qt

Acolumn assembly 1

Badapter plate assembly 1

Cgrommet assembly 1

Dround rubber pads 2

Esquare rubber pads 2

FM4 x 12 mm phillips screw 4

GM4 x 25 mm phillips screw 4

Hspacer 4

I4 mm allen wrench 1

J2.5 mm allen wrench 1

Kcable clip 1

Lcable tie 5

Parts List

󰀨

Before you begin, make sure all parts shown are included

with your product. A B

F G H

K L

4 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

Apply four rubber pads (D, E) to bottom of column

assembly (A) as shown below. Attach column

assembly (A) to mounting surface with a maximum

thickness of 3".

Skip to step four.

Clamp Installation Method

Remove clamp assembly from column assembly

(A

from grommet assembly (C) and attach to column

assembly (A) with four M6 x 8 mm screws using

4mm allen wrench (I

Apply four rubber pads (D, E) to bottom of column

assembly (A) as shown below.

2 3

Grommet Installation Method

g. 1.1

g. 1.2

M6 X 8 MM

SCREWS

M6 X 8 MM

SCREWS

CLAMP

ASSEMBLY

MOUNTING

PLATE

Drill a 7/16" (11mm) dia. hole through mounting

surface with a maximum thickness of 3". Place

column assembly (A) on mounting surface and

secure using grommet assembly (C).

5 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

Attaching Adapter Plate Assembly to Screen



screen face side down. If screen has knobs on the back, remove them to allow the adapter plate assembly to be

attached. Place adapter plate assembly (B) on back of screen.

Choose hole pattern as shown in detail 1.

FOR DISPLAYS WITH FLAT BACKS: Attach adapter plate assembly (B) to display using four 12mm screws

(F

FOR DISPLAYS WITH RECESSED BACKS: Attach adapter plate assembly (B) to display using four 25mm

screws (G) and four spacers (H

 

can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to

become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns into the screen inserts or if screws bottom out and plate is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

VESA 100mm

VESA 75mm

VESA 75mm VESA 100mm

DETAIL 1

g. 4.1

g. 4.2

6 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

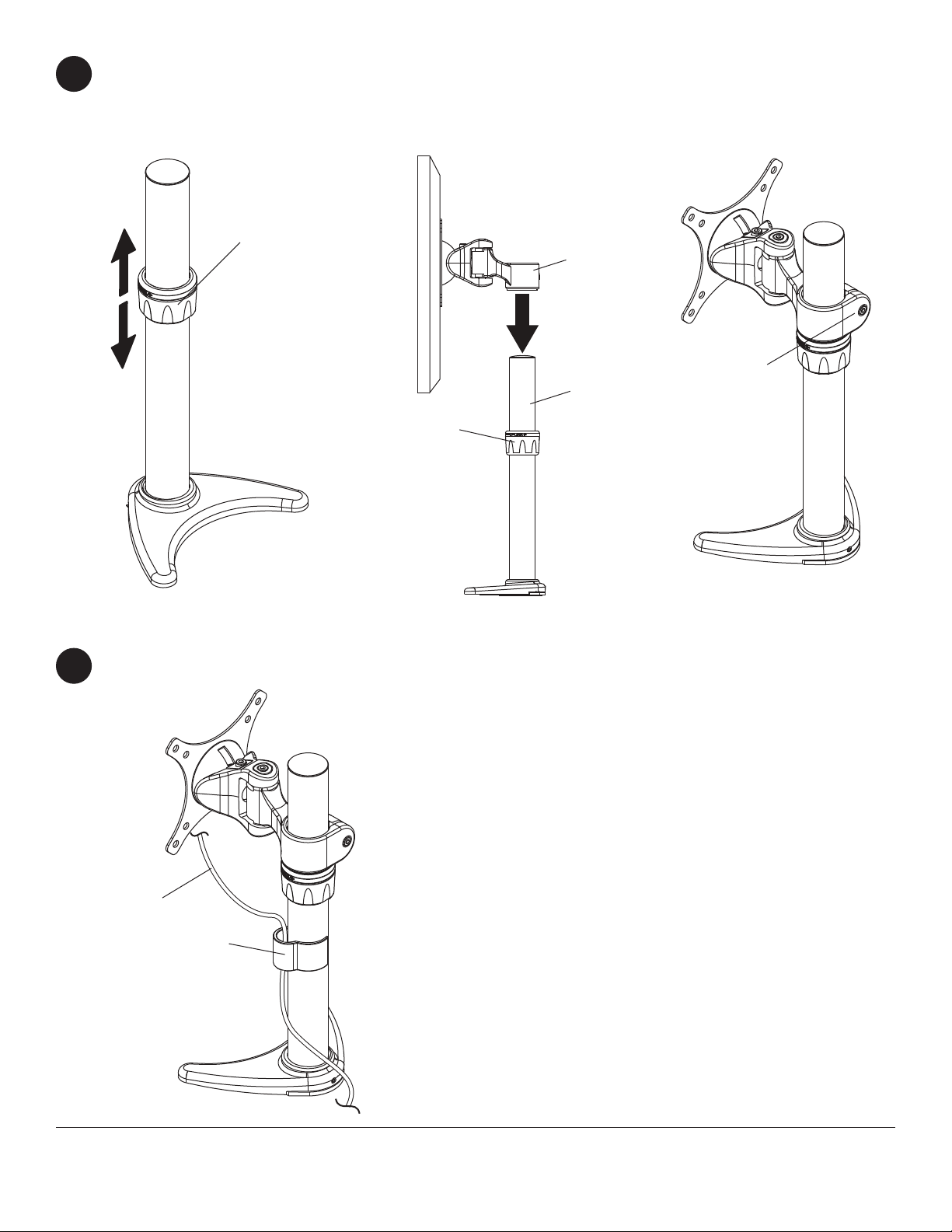

Cables may be routed using cable clip (K).

LOCKCOLLAR

SET SCREW

CABLES



Insert adapter plate assembly (B)onto column assembly (A

Tighten set screw on rear of adapter plate assembly (B) using 2.5mm allen wrench (J

LOCKCOLLAR

g. 5.1 g. 5.2 g. 5.3

7 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

All other brand and product names are trademarks or registered trademarks of their respective owners.

To lock down rotation, tighten set screw shown in detail 2.

To lock down tilt, tighten screw shown in detail 3.

To lock down swivel, tighten screw shown in detail 4.

360°

+80/-20°

SET SCREW

DETAIL 2

DETAIL 3

DETAIL 4

TILT SCREW

SWIVEL

SCREW

180°

8 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-6 2020-03-09

Peerless-AV Europe

Unit 3 Watford Interchange,

Colonial Way, Watford, Herts,

WD24 4WP, United Kingdom

Customer Care

44 (0) 1923 200 100

www.peerless-av.com

Peerless-AV América Latina

Av. de las Industrias 413

Parque Industrial Escobedo

General Escobedo N.L., México 66062

Servicio al Cliente

01-800-849-65-77

www.peerless-av.com

Peerless-AV

2300 White Oak Circle

Aurora, IL 60502

Email: [email protected]

Ph: (800) 865-2112

Fax: (800) 359-6500

www.peerless-av.com

www.peerless-av.com/warranty

Warranty Garantía Garantie Garantie Garantie

Garanzia Záruka Záruka Garantia 

ENG ESP FRN DEU NEL

ITL  SLK POR TÜR
