Peerless-AV DS-S560-B2X2 Manuale utente

12015-06-12 #:126-9066-6 (2020-01-14)

ENG

DS-S560-B2X2

46" - 60"

(117 - 152 cm)

800 lb

(363 kg)

MAX

22015-06-12 #:126-9066-6 (2020-01-14)

ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete

installation. Before installing make sure the supporting surface will support the combined load of the equipment

and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product

may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to

safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could

lead to product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support

please call customer care at 1-800-865-2112.

WARNING

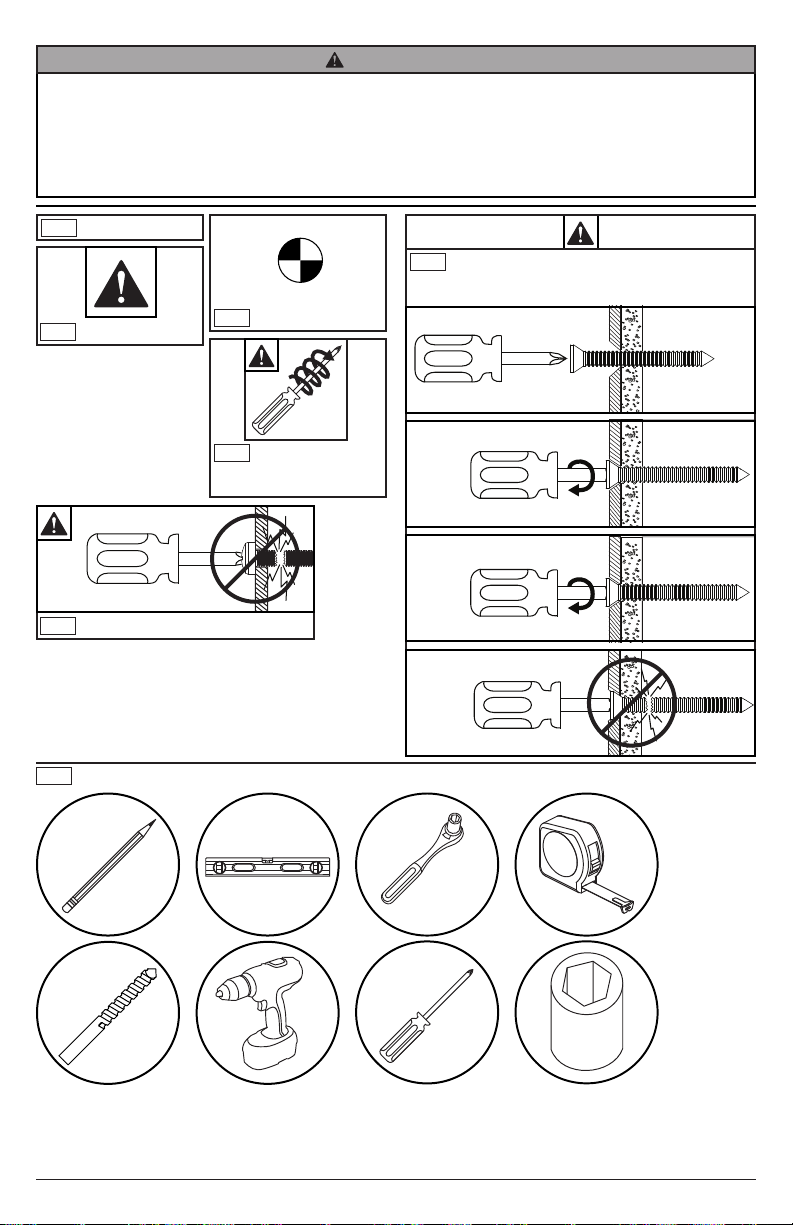

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

Symbols

ENG

WARNING

ENG

Screws must get at

least three full turns

and t snug.

ENG

Do not overtighten screws.

ENG

Tools Needed for Assembly.

ENG

Display center.

ENG

3/8"

(10mm)

3/8"

(10mm)

ENG

32015-06-12 #:126-9066-6 (2020-01-14)

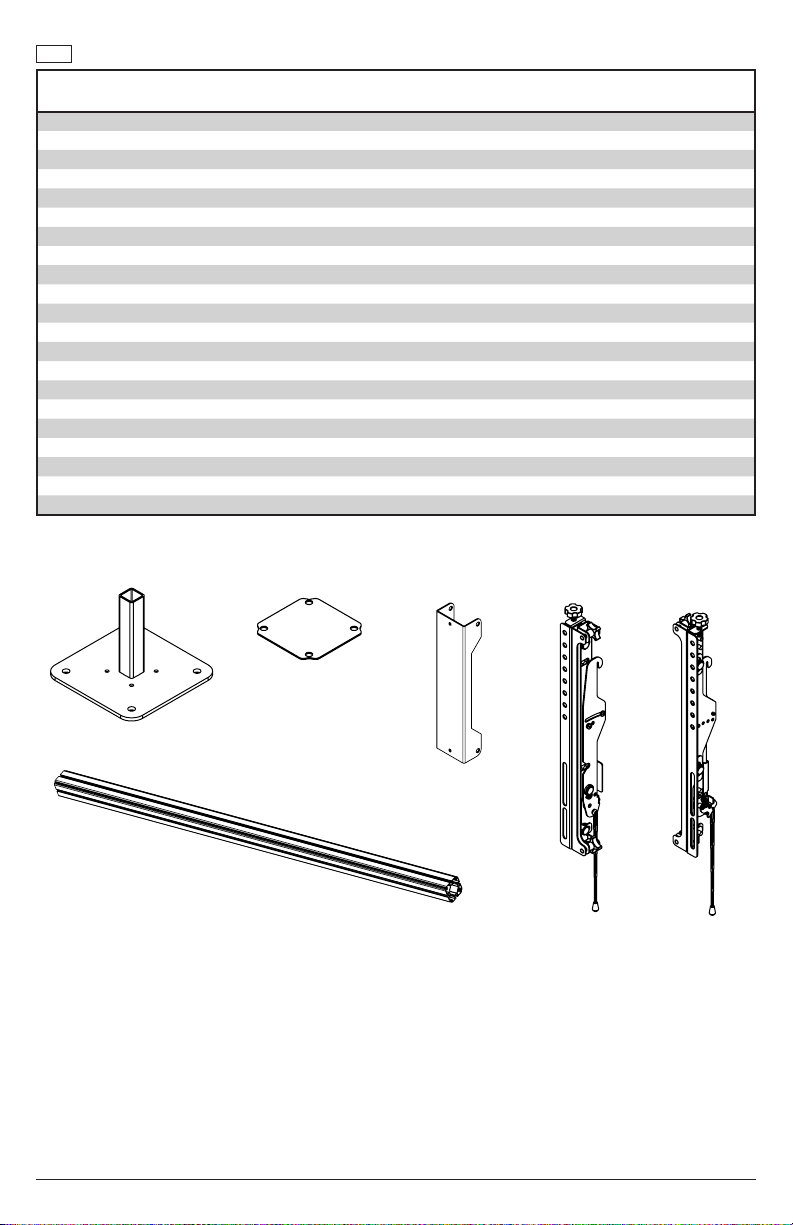

Parts List

Part #

Description Qty

Apedestal 2 147-T1426

Bcolumn 2 146-T1131

Ccover 2 145-T1809

Dvertical support bracket 4 145-T1806

Eleft adaptor bracket 8 146-1609

Fright adaptor bracket 8 146-1608

Gouter support bracket 4 146-T1290

Hdual cross support 4 146-T1905

Icord bracket 4 146-T1321

JM8 x 16mm socket button screw 64 520-9527

KM8 square nut 16 530-1066

Lcover clip 8 590-0317

MM5 x 10mm type-f, socket pin screw 16 520-1164

Nknob 4 560-1160

O1/4" power bit 1 560-0263

P5mm allen wrench 1 560-9640

Qnylon shoulder washer 32 590-2233

RM6 x 12mm socket pin screw 32 520-1050

S4mm allen wrench 1 560-9646

TM6 x 35mm screw 8 520-0717

Urawl bolt #6913 8 5M9-381-H03

Parts (Before beginning, make sure you have all parts shown below).

C (2)

cover

B (2)

column

D (4)

vertical support

bracket

A (2)

pedestal F (8)

right adaptor

bracket

E (8)

left adaptor

bracket

ENG

42015-06-12 #:126-9066-6 (2020-01-14)

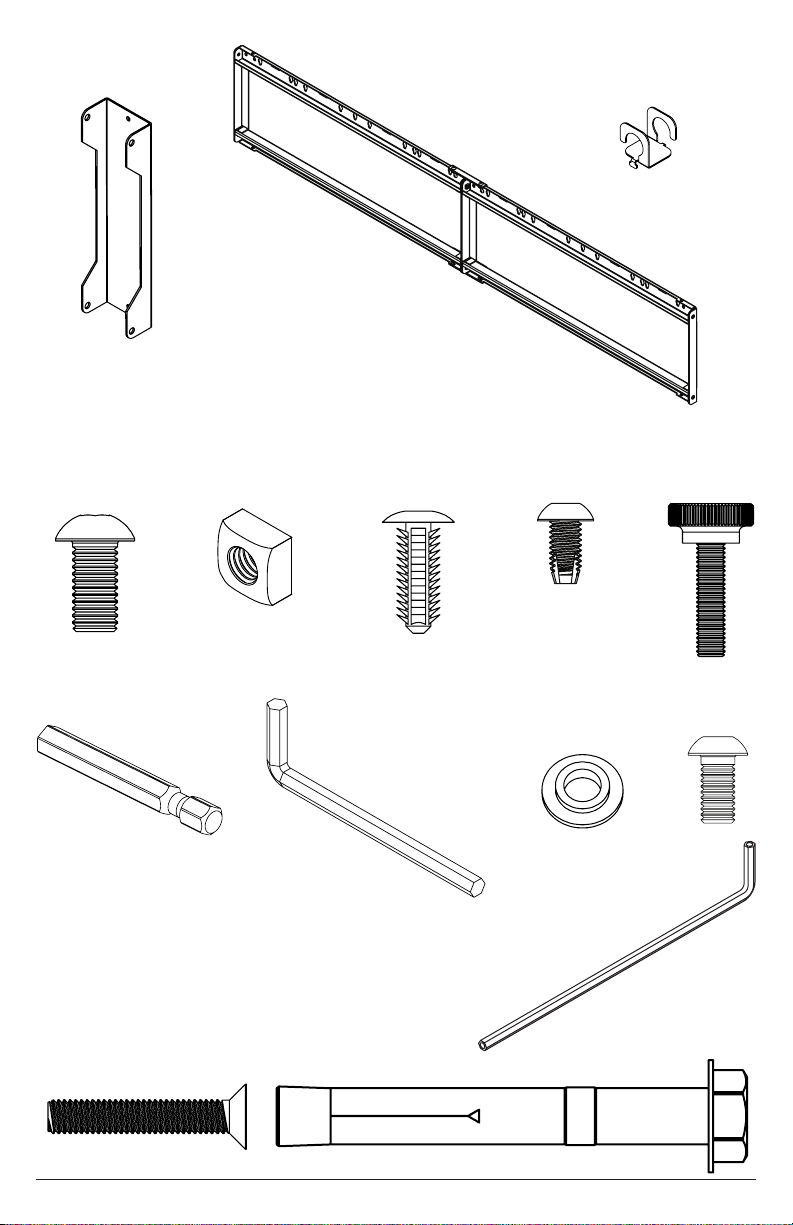

I (4)

cord

bracket

H (4)

dual cross

support

J (64)

M8 x 16mm

K (16)

M8 square nut

L (8)

cover clip

M (16)

M5 x 10mm

O (1)

1/4" power

bit

P (1)

5mm allen

wrench

nylon shoulder

washer

Q (32)

M6 x 12mm

R (32)

4mm allen

wrench

S (1)

rawl bolt

U (8)

M6 x 35mm

T (8)

G (4)

outer support bracket

N (4)

knob

52015-06-12 #:126-9066-6 (2020-01-14)

T (4)

62015-06-12 #:126-9066-6 (2020-01-14)

2-1

2-2

J (8)

K (4)

1/8"

(3mm)

1/8"

(3mm)

TIGHTEN

CONNECTING

HARDWARE

DISPLAY

HEIGHT

72015-06-12 #:126-9066-6 (2020-01-14)

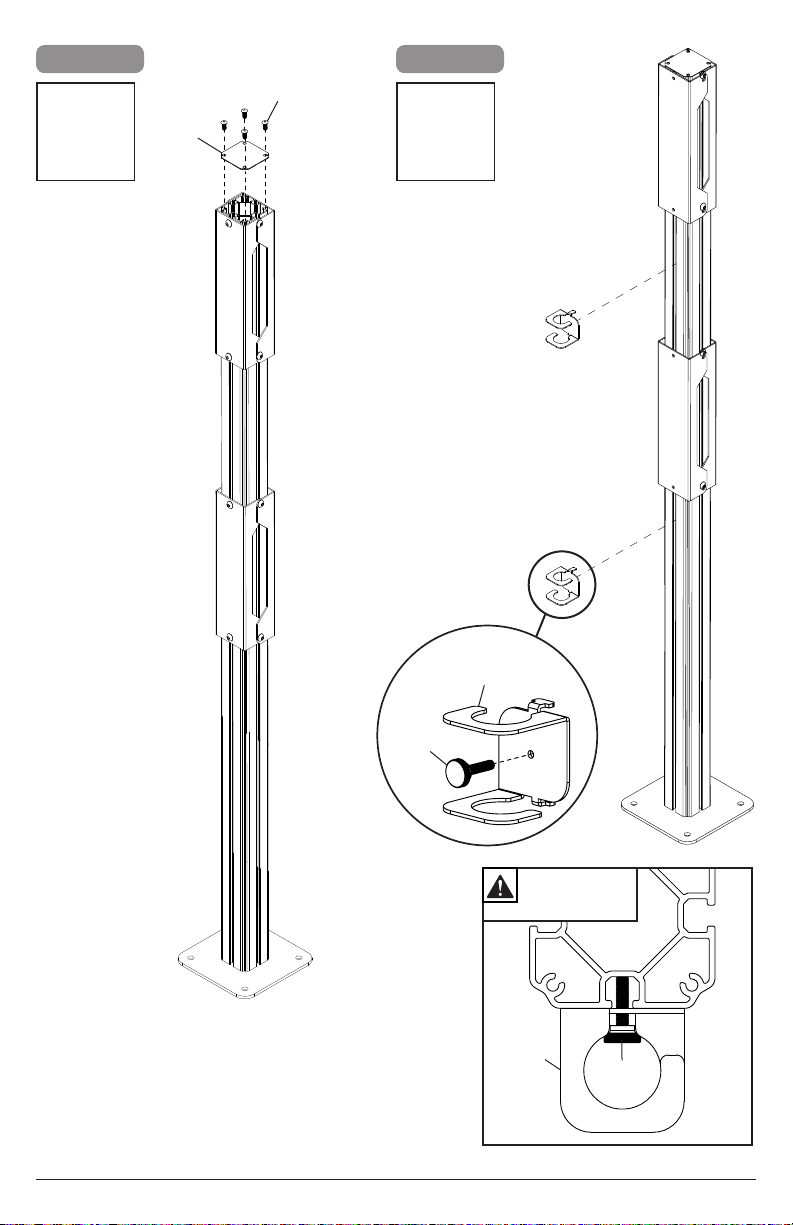

3-1 3-2

x2 x2

I (2)

N (2)

TIGHTEN

CONNECTING

HARDWARE

TOP VIEW

L (4)

82015-06-12 #:126-9066-6 (2020-01-14)

ENG - When installing Peerless mounts on a concrete oor, the oor must be at least 8" thick with a minimum

compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster,

drywall, or other nishing material.

WARNING

92015-06-12 #:126-9066-6 (2020-01-14)

U (8)

4-1

Align base. Mark mounting holes.

ENG

4-3

Align base. Install using concrete anchors

provided.

ENG

3/8"

(10mm)

55.00"

(1397mm)

ENG Maximum 35 ft • lb (47 N.M.).

55.00"

(1397mm)

4-2

Drill mounting holes into

supporting surface

(3" (76mm) minimum

depth required).

ENG

3/8"

(10mm)

(76mm)

3/8"

(10mm)

10 2015-06-12 #:126-9066-6 (2020-01-14)

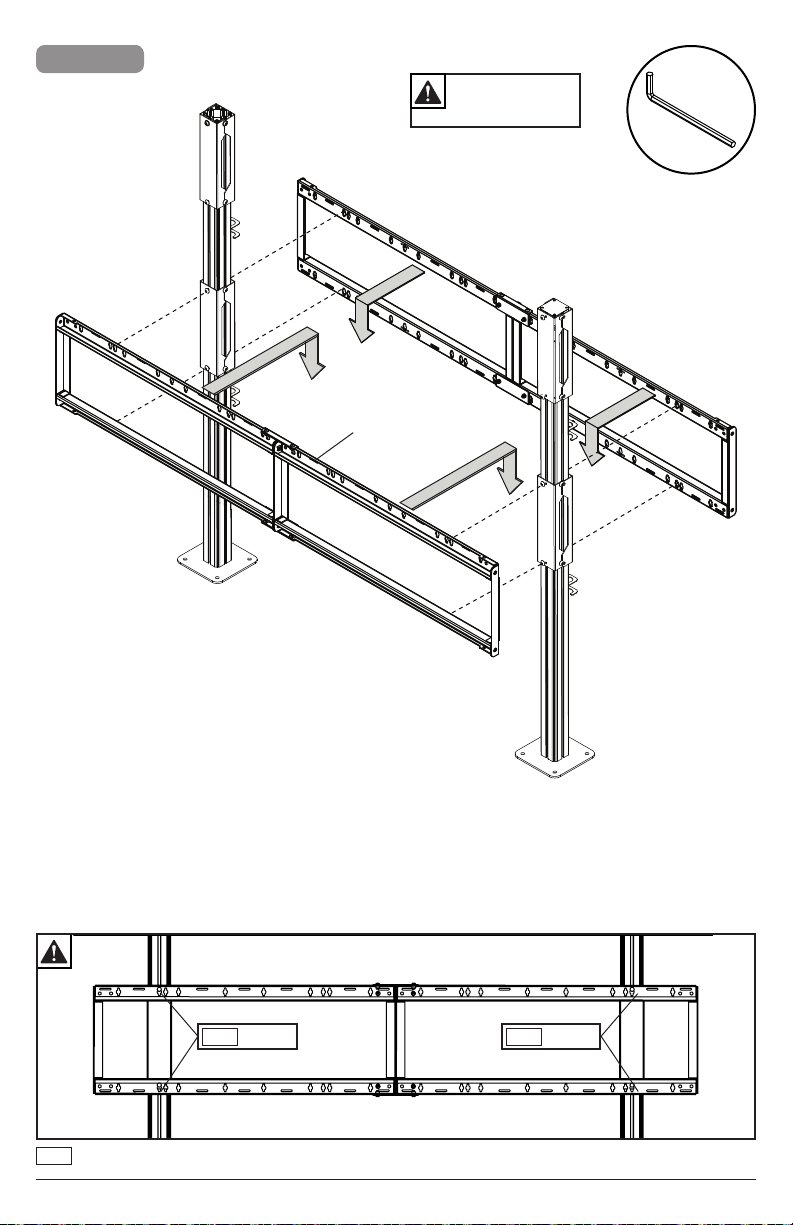

5-1

H (2)

Cross supports must center on columns.

ENG

Tighten.

ENG Tighten.

ENG

TIGHTEN

CONNECTING

HARDWARE
