Peerless-AV PLP-UNM Guida

1 of 5 ISSUED: 06-01-06 SHEET #: 202-9145-4 08-08-12

Installation and Assembly - Universal Adapter

Bracket for 22" - 46" LCD Screens Models: PLP-UNM, PLP-UNM-S,

PLP-UNMP, PLP-UNMP-S

IMPORTANT! Read instruction sheet before you start installation and assembly.

Used with specific

mounts only DD

PLP-UNM PLP-UNM-S PLP-UNMP PLP-UNMP-S

Description Qty Part # Part # Part # Part #

AA adapter plate 1 201-1016 201-4016 201-1016 201-4016

BB adapter bracket 2 201-1512 201-4512 201-1515 201-4515

CC allen wrench 1 560-9646 560-9646 560-0072 560-0072

DD M5 x 10mm screw 4 520-1063 520-1063 520-9250 520-9250

Parts List

Before you begin, make sure all parts shown are included with your product.

2 of 5 ISSUED: 06-01-06 SHEET #: 202-9145-4 08-08-12

M5 x 25 mm (4)

520-1122

M4 x 12 mm (4)

510-1079

M4 x 25 mm (4)

510-1082

M5 x 12 mm (4)

520-1064 M6 x 12 mm (4)

520-1050

M6 x 25 mm (4)

520-1211

I.D. .26" (6.6 mm) (4)

540-1058 I.D..203"(5.16mm)(4)

540-1040

SecurityAdapter Bracket Fasteners

M4 x 12 mm (4)

504-9013

Phillips Adapter Bracket Fasteners

M4 x 25 mm (4)

504-1015

M5 x 12 mm (4)

520-1027

M5 x 25 mm (4)

520-9543

M6 x 12 mm (4)

520-1128

M6 x 25 mm (4)

520-1208

I.D. .26" (6.6 mm) (4)

540-1058 I.D..203"(5.16mm)(4)

540-1040

3 of 5 ISSUED: 06-01-06 SHEET #: 202-9145-4 08-08-12

• Tightenscrewssoadapterbracketsarefirmlyattached.Donottightenwithexcessiveforce.Overtighteningcancause

stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

• Thisproduct is intended for indoor use only.Useofthisproductoutdoorscouldleadtoproductfailureandpersonal

injury.

Installing Adapter Brackets

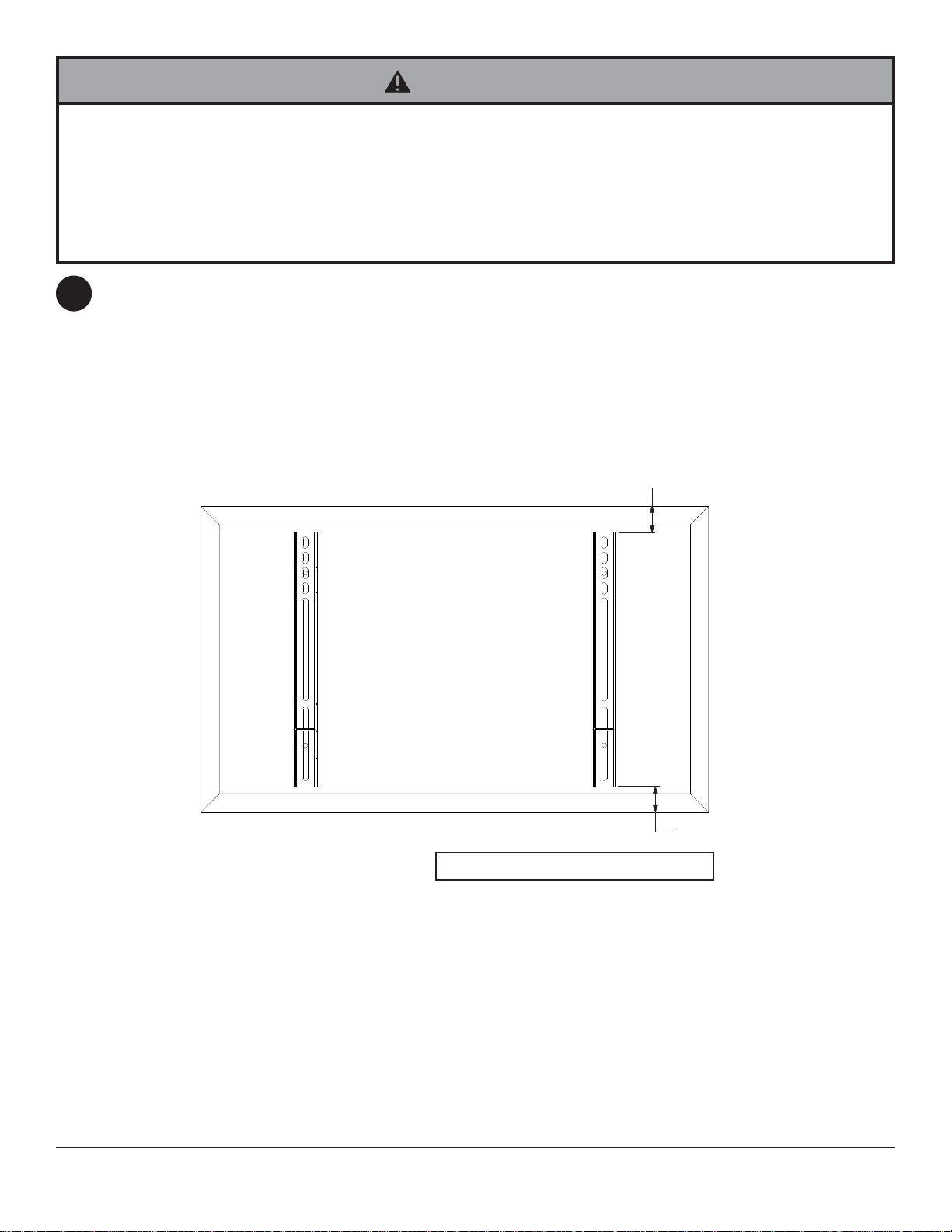

BB CENTERBRACKETSVERTICALLY

ONBACKOFSCREEN

Notes:

• Thenumberoffastenersusedwillvary,dependinguponthetype of screen.

• Washers and spacers may not be used, depending upon the type of screen.

WARNING

NOTE: For flat back screens proceed to step 1-1. For bump-out or recessed back screen skip to step 1-2.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.

Place adapter brackets (BB) on back of screen, align to holes, and center on back of screen as shown below. Attach

the adapter brackets to the back of the screen using the appropriate combination of screws, washers and spacers as

shownin figure 1.1 and figure 1.2.

NOTE: Top and bottom holes must always be used.

Verifythat all holes are properly aligned, and then tighten screws using a phillipsscrewdriver.

NOTE: If usingsecurityscrews,tightenusingsecurityallen wrench (CC).

NOTE: "X"dimensions should beequal.

4 of 5 ISSUED: 06-01-06 SHEET #: 202-9145-4 08-08-12

Begin with the shortest length screw, hand thread through washer and adapter bracket into screen as shown below.

Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten. If

screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack.

Repeatfor remaining mounting holes, level brackets and tighten screws.

NOTE: Spacersmay not be used, depending upon the type of screen.

Begin with longer length screw, hand thread through washer, adapter bracket and spacer in that order into screen as

shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over

tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener

pack.Repeat for remaining mounting holes, level brackets and tightenscrews.

For Flat Back Screen

For Bump-out or Recessed Back Screen

SCREEN

WASHER

SCREW

ADAPTER

BRACKET(BB)

fig. 1.2

SPACER

fig. 1.1

1-1

1-2

ADAPTER

BRACKET(BB)

SCREEN

WASHER

SCREW

Ifyou have any questions, please call Peerless customercareat1-800-865-2112.

5 of 5 ISSUED: 06-01-06 SHEET #: 202-9145-4 08-08-12

Mounting and Removing Flat Panel Screen

Referto mount instruction sheet for attachment of adapter plate to mount.

Hook adapter brackets (BB) onto adapter plate (AA), then slowly swing screen in as shown. Turnscrews clockwise at

leastsixtimes to prevent screen from being removed as shown in detail 1.

NOTE:Tightenscrewsusingallenwrench(CC).

Screen can be adjusted horizontally if desired.

NOTE:To lock the screen down, tighten screws to adapter bracket as shown in detail 1.

To removescreenfrommount,loosen screws,swing screenawayfrommount,andliftscreenoffofmount.

DETAIL 1

SCREWS

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
