PEERLESS VPM 25-W Guida

ISSUED: 05-19-04 SHEET #: 081-9031-2 08-31-04

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com

1 of 5

This product is intended for use with UL

Listed products and must be installed by a

qualified professional installer.

Read instruction sheet before you start installation and assembly.

Maximum Load Capacity:

50 lb (22.7 kg)

Models: VPM 25-W,

SVPM 25-W

DVD/DVR/VCR Mount for

Slimline®Standard Wall Mount

Installation and Assembly -

DVD/DVR/VCRMOUNT

SLIMLINEWALLMOUNT

Installing a Single DVD/DVR/VCR Mount .......................................................................................................... page4

Installing Multiple DVD/DVR/VCR Mounts......................................................................................................... page5

WIDTH (W) HEIGHT (H) MAXIMUM MINIMUM

13.25" - 17.25" 1.5" - 2.75" 17.25" x 2.50" 13.25" x 1.5"

(337 mm - 438 mm) (38 mm - 70 mm) (438 mm x 64 mm) (337 mm x 38 mm)

INSIDE DIMENSIONS MEDIA PLAYER DIMENSIONS

ISSUED: 05-19-04 SHEET #: 081-9031-2 08-31-04

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com

2 of 5

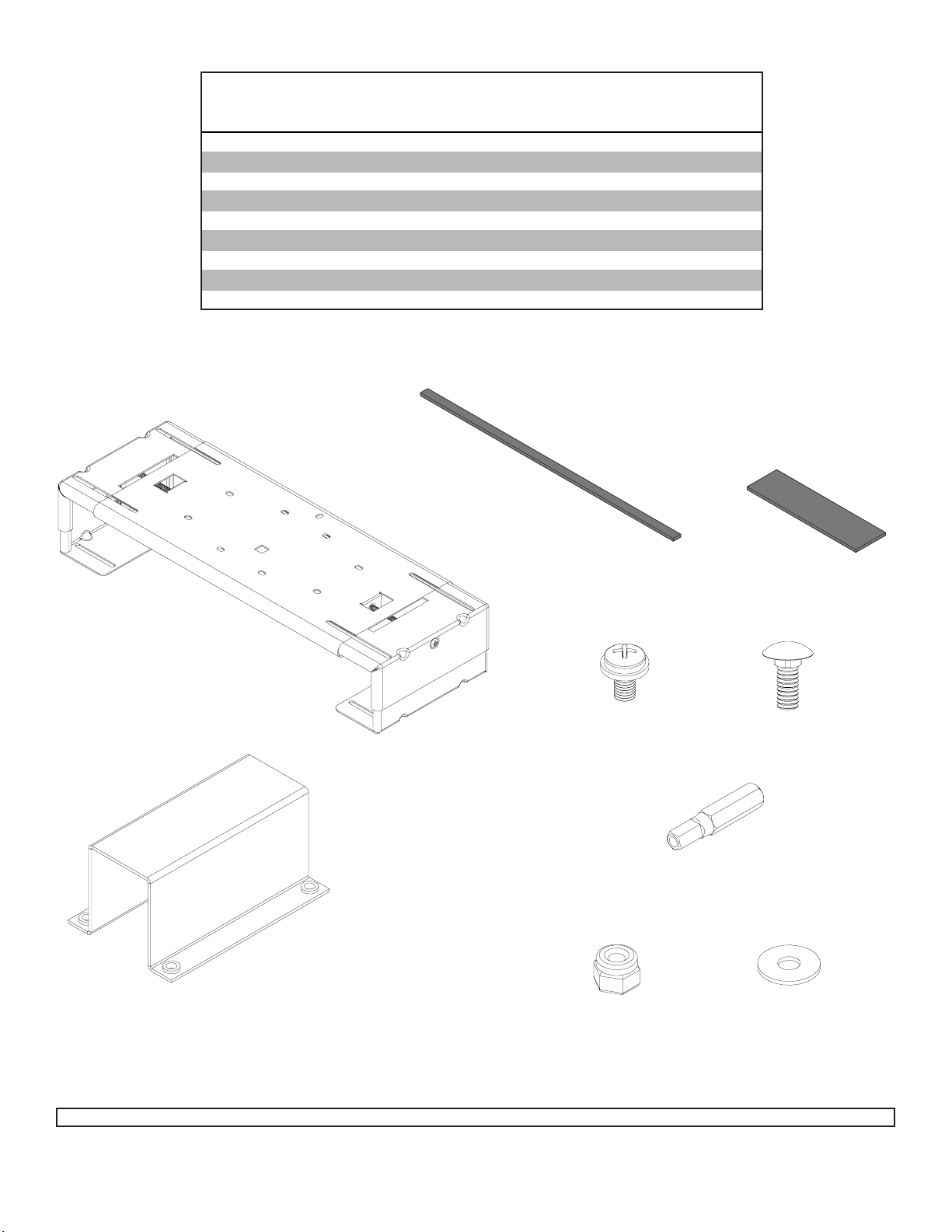

VPM 25-W SVPM 25-W

Description Qty. Part Part

ADVD/DVR/DVR mount 1 081-0072 081-0073

Bhanger bracket 1 1245-271 1245-271

CM5 x .8 x 12 mm phillips screw/washer combo 4 520-1030 520-1030

D#10-24 x 1/2" carriage bolt 4 520-9523 520-9523

E#10-24 nylock nut 4 530-9341 530-9341

F#10 SAE washer 4 540-9400 540-9400

GM5 x 1" penta-pin™ tool driver 1 – 520-9249

H1.5" x 4.5" x .125" adhesive foam 2 599-1122 599-1122

I.375" x 12.75" x .125" adhesive foam 2 599-3802 599-3802

Parts List

ISSUED: 05-19-04 SHEET #: 081-9031-2 08-31-04

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com

3 of 5

Peelandplace four piecesofadhesive foam (H, I) on the horizontalcrosssupport and vertical adjustersasshown

infigure 1.1 and1.2.

fig 1.1 fig 1.2

HORIZONTAL

CROSS

SUPPORT

VERTICALADJUSTER

Slidehanger bracket (B) ontoarm,underneaththe tray.AttachDVD/DVR/VCR mount (A) to hangerbracket(B)

using four M5 x 12 mm screw/washer combos (C) as shown below.

SLIMLINEWALL MOUNT

ISSUED: 05-19-04 SHEET #: 081-9031-2 08-31-04

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com

4 of 5

Adjust size of DVD/DVR/VCR mount (A) to fit media player by loosening vertical and horizontal adjustment screws

whereshown in figure2.1 on both sides.Insert media playerandalign front ofplayerwith front ofTVon Slimline®

wallmount. Tighten vertical andhorizontaladjustmentscrews where shown infigure2.2on both sides untilplayer

securely fits in mount.

Note: TV and Slimline wall mount not shown in illustrations.

MEDIAPLAYER

fig 2.1

fig 2.2

Installing a Single DVD/DVR/VCR Mount

HORIZONTAL ADJUSTMENTSCREW

VERTICALADJUSTMENTSCREW

HORIZONTAL ADJUSTMENTSCREW

VERTICALADJUSTMENTSCREW

ISSUED: 05-19-04 SHEET #: 081-9031-2 08-31-04

For customer service call 1-800-729-0307 or 708-865-8870.

Visit the Peerless Web Site at www.peerlessindustries.com

5 of 5

If adhesive foam (H) is covering slots, trim foam (H) to expose slots. Insert four carriage bolts (D)into

slots of upper DVD mount (A). Loosely attach lower DVD mount (A) using four #10 SAE washers (F)

and #10-24 nylock nuts (E). This will allow access to the vertical adjustment screws of the upper mount

by being able to easily move the lower mount. Note: TV and TV mount not shown in illustrations.

Installing Multiple DVD/DVR/VCR Mounts

Adjust size of the upper DVD mount (A) to fit media player by loosening screws on both sides. Insert

mediaplayerand align front ofplayerwithfrontof TV on TV mount.Tightenverticalandhorizontal

adjustment screws where shown on both sides until player securely fits in mount.

Note: To access the vertical adjustment screws of the upper mount, slide the lower mount to the side.

Repeatforthe opposite side.

Centerlower DVD mount(A) and securely tightenfour nuts (E).Repeatbeginningof this steptoinstall

the media player into the lower DVD mount.

PeerlessandSlimlineareregisteredtrademarksandPenta-PinisatrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

UPPERMOUNT(A)

LOWERMOUNT(A)

VERTICAL

ADJUSTMENT

SCREW

DETAIL 1

• Do not stack more than three DVD/DVR/VCR Mounts

froma TV mount.

WARNING

• Stacked load cannot exceed 50 lb.

WARNING

UPPERMOUNT

LOWERMOUNT

MEDIAPLAYER

HORIZONTAL ADJUSTMENT

VERTICALADJUSTMENT
