PEERLESS PARAMOUNT PRFLU Manuale utente

ISSUED: 11-02-09 SHEET #: 202-9393-1

Paramount™ Universal Flat Wall Mount

for 32" - 60" LCD and Flat Panel

Plasma Screens

Max UL Load Capacity: 200 lb (90.7kg)

Model: PRFLU

Installation Guide

This product was designed to be installed on wood stud walls and solid concrete (2000 psi density

minimum) or cinder block walls. Before installing make sure the supporting surface will support the

combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten

screws or damage can occur or product may fail. Never exceed the Maximum UL Load Capacity.

This product is intended for indoor use only. Use of this product outdoors could lead to product

failure or personal injury. This mount is designed to attach the screen 0.63" from the wall. Please

refer to manufacturer's installation guide recommendations for required distance from wall to

avoid risk of injury or property damage. For support please call customer care at 1-800-865-2112.

WARNING

USC

2 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

E(4)

M4 x 12 mm

T(1)

C(4)D(4)

F(4)

M4 x 25 mm

G(4)

M5 x 12 mm H(4)

M5 x 25 mm

I(4)

M6 x 12 mm J(4)

M6 x 20 mm K(4)

M6 x 25 mm

L(4)

M6 x 30 mm

M(6)

M8 x 16 mm N(4)

M8 x 25 mm O(4)

M8 x 40 mm

P(4)

ID .22" (5.6 mm)

Q(4)

ID .34" (8.7 mm)

R(6)

A(1)

B(2)

Tools Needed for Assembly

• stud nder ("edge to edge" stud nder is

recommended)

•phillips screwdriver

•drill

• 5/32" (4 mm) bit for wood stud wall

• 5/16" (8 mm) bit for concrete and cinder block

• level

• hammer (optional)

3 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

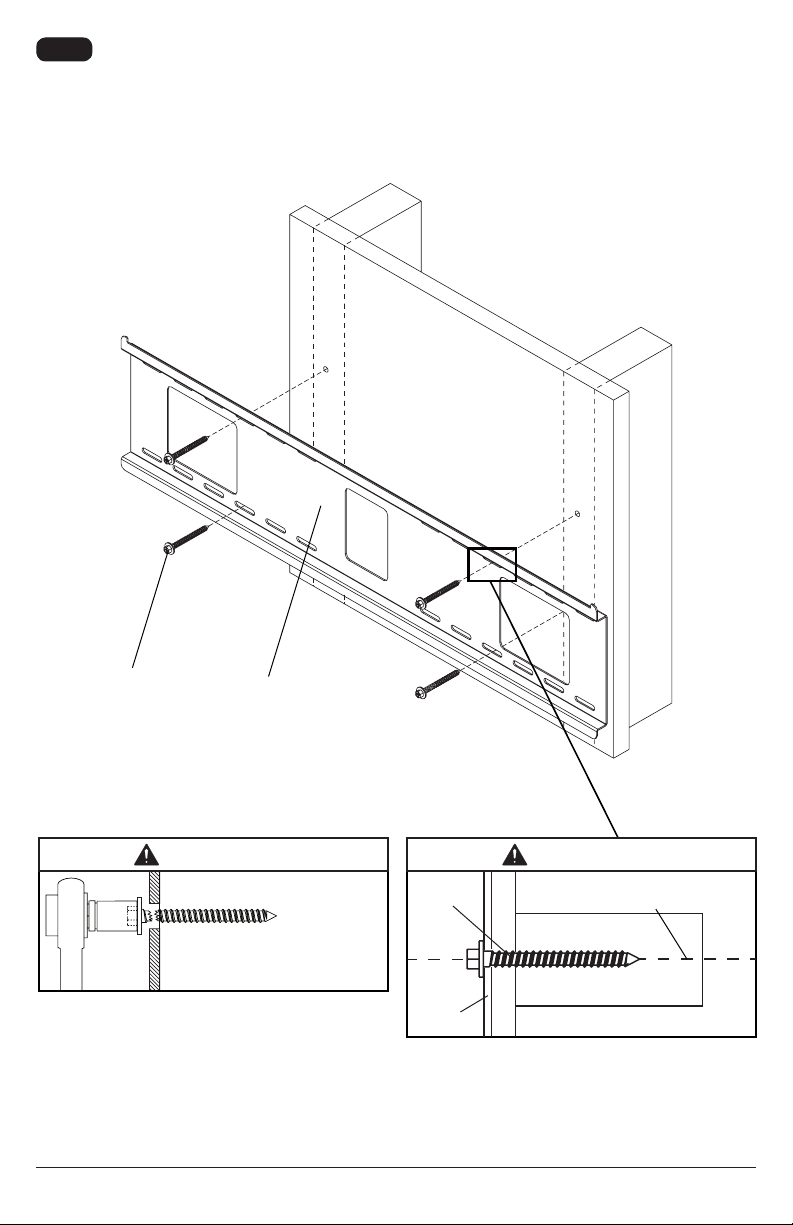

Installation to Double Wood Stud Wall

Use wall plate (A) as a template, make sure it is level, and mark four mounting holes along the center

lines of the wood studs. Drill four 5/32" (4 mm) dia. holes 2.5" (64 mm) deep. Level wall plate (A) and

attach to wall with four wood screws (C) into stud center. Use of an edge to edge stud nder is highly

recommended. Tighten screws rmly, but do not overtighten.

Do not over tighten screws, or

damage may occur.

TOP CUTAWAY VIEW

Wood screws must

center in stud.

STUD

WARNING WARNING

4 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

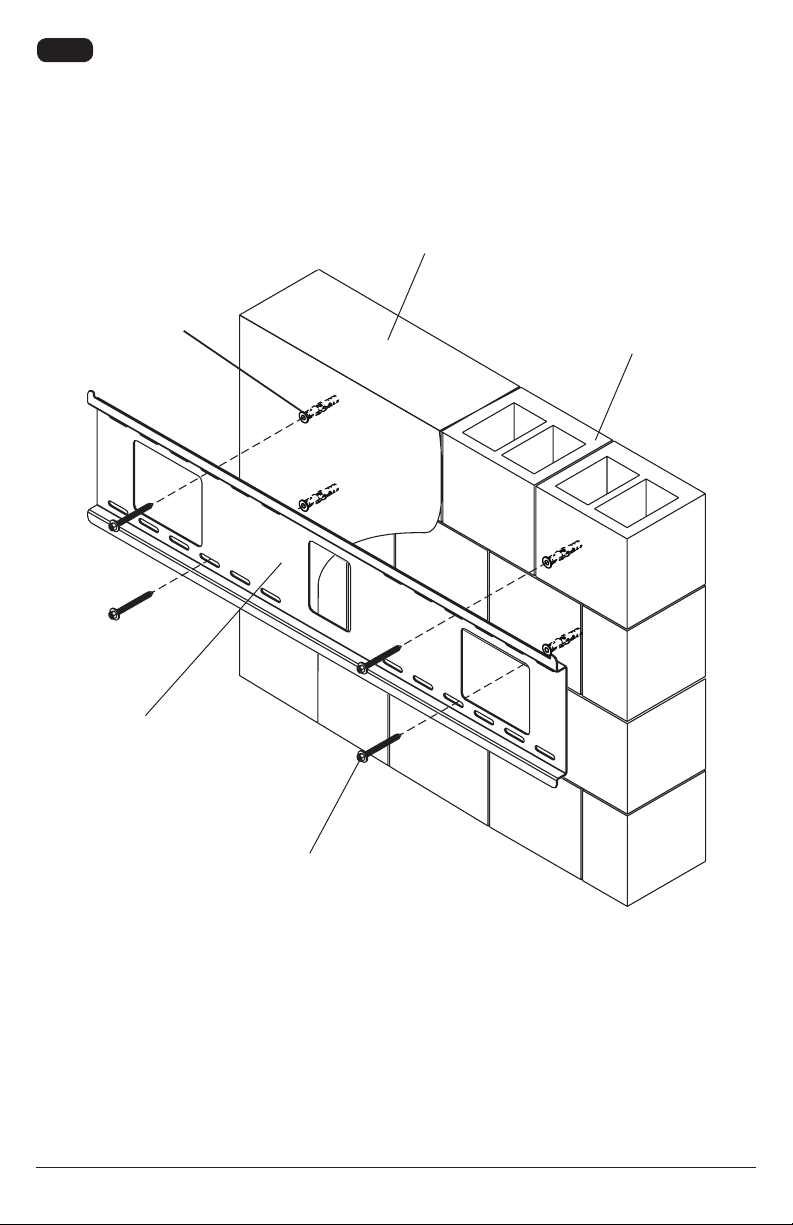

Installing to Solid Concrete or Cinder Block

Level wall plate (A) and use as a template to mark four mounting holes. Drill four 5/16" (8 mm) dia.

holes to a minimum depth of 2.5" (64 mm). Insert four anchors (D) into holes and secure wall plate

(A) with four screws (C). Tighten screws rmly, but do not overtighten.

SOLID CONCRETE

CINDER BLOCK

5 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

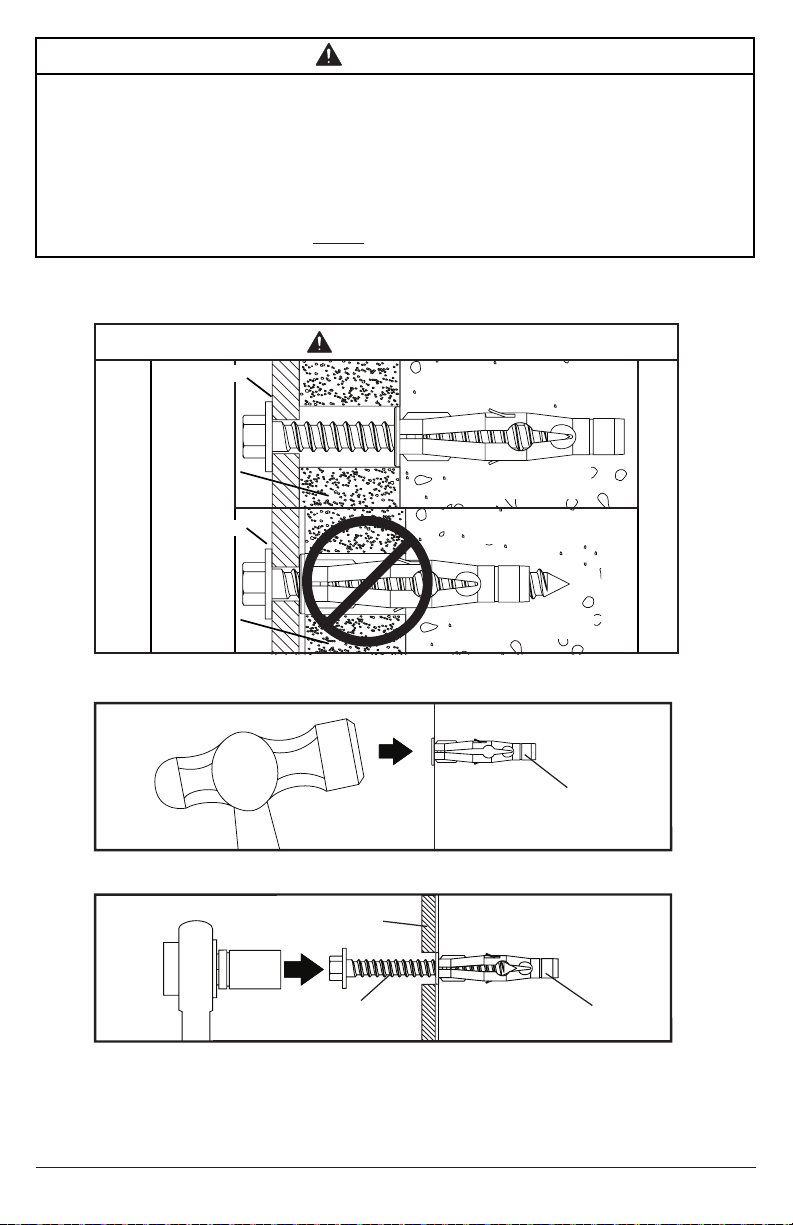

concrete

Place plate (A) over anchors (D). Secure with screws (C). Tighten screws.

Drill holes and insert anchors (D).

• When installing Peerless wall mounts on cinder block, verify that you have a minimum

of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete

anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, gener-

ally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM C-90

specications. It is suggested that a standard electric drill on slow setting is used to drill the

hole instead of a hammer drill to avoid breaking out the back of the hole when entering a

void or cavity.

• Always attach concrete anchors directly to load-bearing concrete.

WARNING

CUTAWAY VIEW

INCORRECT

CORRECT

plaster/

drywall

concrete

plaster/

drywall

wall plate

CORRECT

WARNING

concrete

6 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

To prevent scratching the screen, set a cloth on a at, level surface that will support the weight of

the screen. Place screen face side down. If screen has knobs on the back, remove them to allow

the adapter brackets to be attached. Place adapter brackets (B) on back of screen, align to

holes, and center on back of screen as shown below. Attach the adapter brackets to the back of

the screen using the appropriate combination of screws, multi-washers, and spacers as shown

in gure 2.1 or 2.2.

NOTE: Top and bottom holes on screen must always be used.

Verify that all holes are properly aligned, and then tighten screws using a phillips

screwdriver.

Installing Adapter Brackets

Notes:

• The number of fasteners used

will vary, depending upon the

type of screen.

• Multi-washers and spacers may

not be used, depending upon

the type of screen.

• Use the corresponding hole in

the multi-washer that matches

your screw size.

MEDIUM HOLE

FOR M5 SCREWS

SMALL HOLE

FOR M4 SCREWS

LARGE HOLE

FOR M6 SCREWS

MULTI-WASHER

NOTE: "X" dimensions should be equal.

BCENTER BRACKETS

VERTICALLY ON BACK

OF SCREEN

7 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

For Bump-out or Recessed Back Screen

2-2 Refer to screen compatibility chart to determine the proper fastener to use. Visit

www.peerlessmounts.com/2 for a full screen compatibility chart for this mount.

Begin with longer length screw, hand thread through multi-washer, adapter bracket (B) and

spacer in that order into screen as shown below. Screw must make at least three full turns

into the mounting hole and t snug into place. Do not over tighten. If screw cannot make

three full turns into the screen, select a longer length screw from the bafed fastener pack.

Repeat for remaining mounting holes, level brackets and tighten screws.

2-1 Refer to screen compatibility chart to determine the proper fastener to use. Visit

www.peerlessmounts.com/2 for a full screen compatibility chart for this mount.

Begin with the shortest length screw, hand thread through multi-washer and adapter

bracket (B) into screen as shown below. Screw must make at least three full turns into the

mounting hole and t snug into place. Do not over tighten. If screw cannot make three full

turns into the screen, select a longer length screw from the bafed fastener pack. Repeat for

remaining mounting holes, level brackets and tighten screws.

NOTE: Spacers may not be used, depending upon the type of screen.

For Flat Back Screen

ADAPTER BRACKET (B)

SCREEN g 2.1

MULTI-WASHER

SCREW

If you have any questions, please call Peerless customer care at 1-800-865-2112.

SCREEN

MULTI-WASHER

SCREW

g 2.2

SPACER

• If screws don't get three complete turns in the screen inserts or if screws bottom out and

bracket is still not tightly secured, damage may occur to screen or product may fail.

WARNING

ADAPTER BRACKET (B)

8 of 27 ISSUED: 11-02-09 SHEET #: 202-9393-1

Failure to lock brackets (B) with safety

screws can cause sceen to come off mount

if hit accidentally.

WARNING

Mounting and Removing Flat Panel Screen

Hook adapter brackets (B) onto wall plate (A). Then slowly swing screen in as shown. Turn safety

screws, using allen wrench (T) clockwise at least six times to prevent screen from being removed as

shown in detail 1 of gure 3.1. Always use an assistant to safely lift and position the at panel screen.

Screen can be adjusted horizontally if desired as shown in gure 3.2.

NOTE: To lock the screen down, tighten safety screws to wall plate as shown in detail 1.

To remove screen from mount, loosen safety screws, swing screen away from mount and lift screen

off of mount.

g. 3.1

DETAIL 1

g. 3.2

SAFETY SCREWS

PUBLICADO: 11-02-09 HOJA #: 202-9393-1

Máxima capacidad (UL) de carga: 200 lb (90.7kg)

Modelo: PRFLU

Guía para la instalación

Soporte universal de pared plano

Paramount™ para pantallas LCD y pantallas

planas de plasma de 32" a 60"

Este producto está diseñado para ser instalado en paredes con montantes de madera y en

paredes de concreto macizo (de una densidad mínima de 2,000 psi) o de bloques de hormigón.

Antes de instalarlo, asegúrese de que la supercie de apoyo sostendrá la carga combinada

del equipo y los jadores. No apriete los tornillos en exceso; los podría dañar. Nunca exceda

la Capacidad Máxima (UL) de Carga. Este producto está diseñado para uso en interiores

solamente. Utilizar este producto en exteriores podría causar fallas del producto o lesiones

a individuos. Este soporte está diseñado para sostener la pantalla a 0.63" de la pared. Por

favor, repase las recomendaciones del manual de instalación del fabricante con respecto a

la distancia necesaria de la pared para evitar el riesgo de sufrir lesiones o causar daños a la

propiedad. Si necesita ayuda, por favor, llame a Servicio al Cliente de Peerless al 1-800-865-2112.

ADVERTENCIA

USC

10 de 27 PUBLICADO: 11-02-09 HOJA #: 202-9393-1

Español

T(1)

C(4)

E(4)

M4 x 12 mm

D(4)

F(4)

M4 x 25 mm

G(4)

M5 x 12 mm H(4)

M5 x 25 mm

I(4)

M6 x 12 mm J(4)

M6 x 20 mm K(4)

M6 x 25 mm

L(4)

M6 x 30 mm

M(6)

M8 x 16 mm N(4)

M8 x 25 mm O(4)

M8 x 40 mm

P(4)

ID .219" (5.56 mm)

Q(4)

ID .344" (8.74 mm)

R(6)

A(1)

B(2)

Herramientas necesarias para el ensamblaje

• localizador de montantes (se

recomienda uno de "borde a borde")

• destornillador phillips

• taladro

• broca de 5/32" (4 mm) para paredes

con montantes de madera

• broca de 5/16" (8 mm) para concreto

macizo o de bloques de hormigón de

escorias

• nivel

• martillo (opcional)
