FAN HEATER

MODEL: PSH700S

READ AND SAVE THESE INSTRUCTIONS

Attention: Pictures in the manual are for reference only.

OWNER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances,basic precautions should always be followed to

reduce the risk of fire,electric shock,and injury to persons,including the following:

1. Read all instructions before using heater.

2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot

surface. If provided, always use handles when moving this heater. Keep

combustible materials such as furniture, pillows, bedding, papers, clothes and

curtains at least 3 feet (0.9m) from the front of the heater and keep them away

from the sides and rear.

3. Extreme caution is necessary when any heater is used by or near children or

invalids and whenever the heater is left operating and unattended.

4. Always unplug the heater when not in use.

5. Do not operate any heater with a damaged cord or plug or after the heater

malfunctions, has been dropped or damaged in any manner. Discard heater or

return heater to authorized service facility for examination, electrical or

mechanical adjustment, or repair.

6. Do not use the heater outdoors.

7. This heater is not intended for use in bathroom, laundry areas and similar moist

indoor locations. Never locate heater where it may fall into a bathtub or other

water container.

8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners,

or similar coverings. Do not route cord under furniture or appliances. Arrange

cord away from traffic area and where it will not be tripped over.

CAUTION:

This appliance has a polarized plug (one blade is wider than the

other). To reduce the risk of shock, this plug is intended to fit only one way in a

polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it

still does not fit, contact a qualified electrician. DO NOT attempt to defeat this

safety feature. To do so could result in an electric shock hazard.

10. This heater draws 12.5 amps during operation. To prevent overloading a

circuit, do not plug the heater into a circuit that already has other appliances

working.

11.

CAUTION:

It is normal for the plug to feel warm to the touch; however, a loose

fit between the AC outlet (receptacle) and plug may cause overheating and

distortion of the plug. Contact a qualified electrician to replace loose or worn

outlet.

12. To disconnect the heater, first turn controls to off, then remove plug from

outlet. Never pull by the cord.

13. Do not insert or allow foreign objects to enter any ventilation or exhaust

opening as this may cause an electric shock or fire, or damage the heater.

14. To prevent a possible fire, do not block air intakes or exhaust in any manner.

Do not use on soft surface, like a bed, where openings may become blocked.

15. A heater has hot and arcing or sparking parts inside. Do not use it in the areas

where gasoline, paint, or flammable liquids are used or stored.

16. Use this heater only as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock, or injury to

persons.

17.

CAUTION:

Always plug heaters directly into a wall outlet/receptacle. Never

use with an extension cord or reloadable power tap (outlet/power strip).

18. The output of this heater may vary and its temperature may become intense

enough to burn exposed skin. Use of this heater is not recommended for

persons with reduced sensitivity to heat or an inability to react to avoid burns.

19.

20.

CAUTION:

to prevent electric shock, match wide blade of plug to wide slot

and fully insert.

21.

DO NOT COVER

Warning: In order to avoid overheating, do not cover the heater.

“SAVE THESE INSTRUCTIONS”

OPERATING INSTRUCTIONS

Step.1.

● Check before turning on the machine

1. Check if the power wire is under good condition.

2. The product adopts 120V 60Hz AC power supply, before using, please confirm if the rated current

of the power socket meets the local requirements with safe grounding device, otherwise, please

replace it with the qualified socket.

Step.2.

● Put the machine on the flat place

Uneven place may possibly cause the tip-over switch at abnormal position, then the fan heater

can’t work after turning on, therefore, please put the fan heater on the flat place, at least the surface

below the base of the fan heater must be flat.

Step.3.

● Plug in the fan heater

Plug the fan heater directly into a wall outlet/receptacle, fit only one way in a polarized outlet, match

wide blade of plug to wide slot and fully insert, if the plug does not fit fully in the outlet, reverse the

plug and try again. Never use the fan heater with an extension cord or reloadable power tap (outlet/

power strip).

Step.4.

● Turn on the fan heater and select modes

Turn the Power selection knob to select 4 functions: (Heat) 1500W High, (Heat) 900W Low, (Fan)

High, (Fan) Low.

Step.5.

● Turn off the fan heater

A. Turn the Power Switch Knob to 0 position.

B. Remove the power plug, store the fan heater after the entire machine has become cool.

OFF （Fan）LOW

（Fan）HIGH

（Heat）LOW

（Heat)HIGH

Power selection knob

Pilot light

Safty grille

DO NOT COVER

CAUTION

ADDITIONAL FEATURES

This fan heater has additional features:

•Convenient Carry Handle – allows for easy transport from room to room.

TROUBLESHOOTING

If your fan heater fails to operate, please follow these instructions:

•Ensure that your circuit breaker or fuse is working properly.

•Be sure the fan heater is plugged in and that the electrical outlet is working properly.

•Check for any obstruction. If you find any obstruction, turn the fan heater “OFF”. Unplug

the fan heater and wait a few minutes for it to cool down. Carefully remove the

obstruction.Plug the fan heater in and turn it on again by referring to the OPERATING

INSTRUCTIONS.

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOURFAN HEATER, PLEASE SEE THE WARRANTY

INFORMATION FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE FAN

HEATER YOURSELF. DOING SO MAY VOID THE WARRANTY AND COULD CAUSE DAMAGE OR

PERSONAL INJURY. IF THE PROBLEM STILL PERSISTS, PLEASE CONTACT US BY REFERRING TO

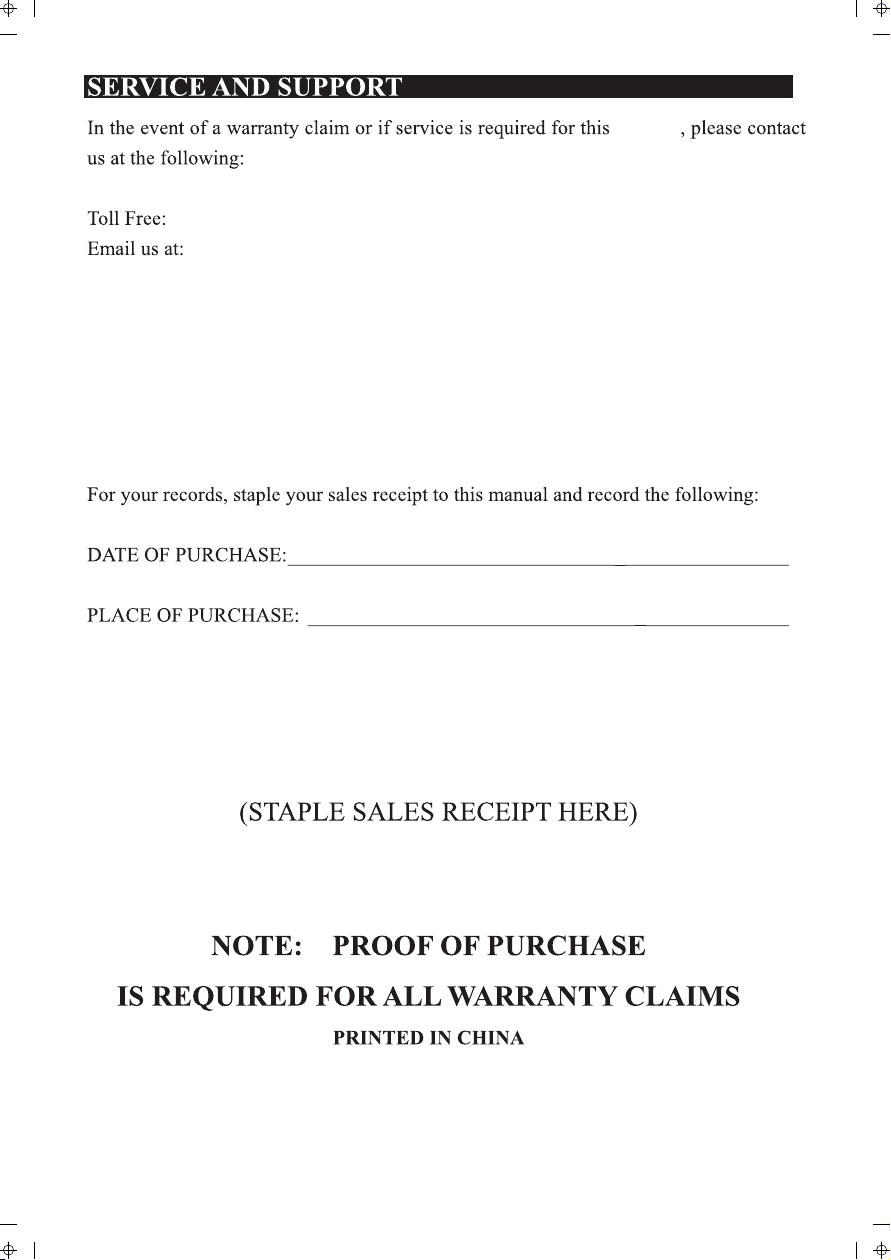

THE SERVICE & SUPPORT INFORMATION ON THE FOLLOWING PAGE.

● Safety Protection

1.Overheat protection: When the temperature in the fan heater is too high due to abnormality in

the use environment or improper use, the thermostat device can automatically cut off the power

and the fan heater stops working. After the whole fan heater is cooling, the fan heater can return

to the normal use after removing the abnormality.

2.Inversion/Tip-over protection: When the whole fan heater is inverted (tipped over) or leave the

surface where it is placed(like desk or floor, etc.), the safety system will automatically cut off the

power, and return to the work state before inversion after the body is placed upright.

The inversion/tip-over protection is not sensitive when this fan heater is placed on carpet, please

don’t use it on carpet.

CLEANING AND STORAGE

It is recommended that the fan heater be cleaned at least one time during the operating season in

order to provide the optimum level of performance. ALWAYS TURN THE POWER SWITCH OFF

AND UNPLUG THE FAN HEATER BEFORE CLEANING.Be sure to save the box for off-season storage.

•Turn the fan heater “OFF” , unplug it and wait for the fan heater to cool down.

•Use a dry cloth to clean only external surfaces of the fan heater.

•Do not use any cleaning agents or detergents.

•Never immerse the fan heater in water.

•Pack the fan heater in the original carton and store it in a cool and dry place.

SPECIFICATIONS

Model No.: PSH700S

Voltage: 120V, 60Hz

Current: Maximum continuous draw: 12.5 Amps.

Power: (HEAT) LOW = 900 Watts, (HEAT) HIGH = 1500 Watts

Tolerances on all specifications: Not exceeded than 105%.

For questions or comments,please write to:

Midea America Corporation

Customer Care Center

11411 NW 107th Street,

Suite 12 Miami, FL 33178

[email protected]

1-866-646-4332

product

Midea America Corporation warrants as limited herein to the original purchaser of retail that

each new Pelonis fan heater, shall be free of defects in material and workmanship for a

period of one (1) year from the date of original purchase. This one (1) year warranty is

limited to the heating elements, motor and electric control circuit board.

In the event of malfunctions or failure of your Pelonis fan heater, simply deliver or send the

Pelonis fan heater, postage prepaid along with PROOF OF PURCHASE, within the warranty

period of one (1) year, to Midea America Corporation. Midea America Corporation reserves

the right to inspect the claimed defective part or parts to determine if the defect or

malfunction complaint is covered by this warranty. Midea America Corporation shall, within

sixty(60)days after receipt of the product, at its option, repair and/or replace the defective

part or parts free of charge. This warranty shall only cover defects arising from normal

usage. Midea America Corporation assumes no responsibility whatsoever if the Pelonis fan

heater should fail during the warranty period by reason of:

Midea America Corporation makes no further warranties or representations, express or

implied except those contained herein. No representative or dealer is authorized to assume

any other liability regarding the Pelonis fan heater. The duration of the implied warranty

granted under State law, including warranties of merchantability and fitness for particular

purpose are limited in duration should the duration of the express warranty grant it

hereunder. Midea America Corporation shall in no event be liable for direct, indirect, special

or consequential damages.

ONE (1) YEAR LIMITED WARRANTY

Please read all instructions before attempting to use this product.

Misuse, negligence, physical damage or accidents.

Lack of maintenance (see instructions for proper maintenance).

Repair by any unauthorized party during the warranty period.

Damage caused by connection to an improper input voltage (see specification

label on your Pelonis fan heater).

Some states do not allow limitations on how long an implied warranty lasts, and/or the above

limitations or exclusion may not apply to you. This warranty gives you specific legal rights

and you may have other rights which vary from state to state.
