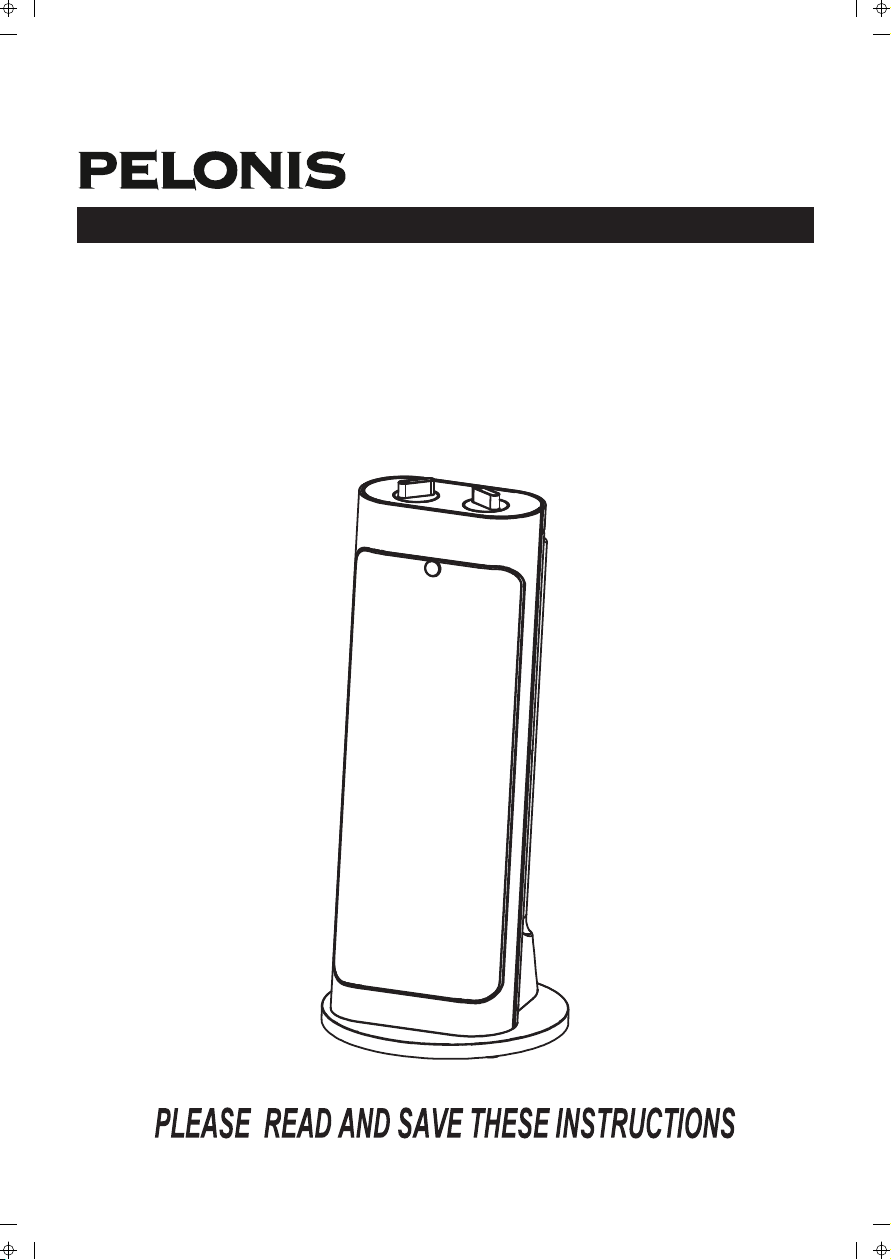

OWNER’S MANUAL

PTC CERAMIC HEATER

MODEL: PTH15A2BGB

1

Control Panel Functions

A

C

B

Power and Setting Control Power Indicator Light

Thermostat Control

OPERATION INSTRUCTIONS

• Place the heater on a firm level surface that is free of obstructions, and at least 3 ft. (0.9m) away

from all walls and other objects such as furniture, curtains, plants or combustible material.

• With the Power and Setting Control “A” in the “OFF” position, plug the heater into a grounded

120V outlet.

• Turn the heater “ON” by turning the Power and Setting Control “A” clockwise to the desired

power setting (LOW, HIGH, LOW & OSC or HIGH & OSC). The Power Indicator Light “B” will

illuminate. The power settings operate as follows:

LOW: The Fan and heating elements operate at LOW setting operates at 900W.

HIGH: The Fan and heating elements operate at HIGHT setting operates at 1500W.

LOW&OSC: The Fan and heating elements operate at LOW setting with oscillation.

HIGH&OSC: The Fan and heating elements operate at HIGHT setting with oscillation.

• Turn the Thermostat Control “C” to the desired setting between “MIN” and “MAX.”

IMPORTANT!

Your heater is equipped with a

polarized alternating current line plug

(a plug having one blade wider than

the other). This plug will fit into the

power outlet only one way. This is a

safety feature. If you are unable to

insert the plug fully into the outlet, try

reversing the plug. If the plug still fails

to fit, contact your electrician to

replace your outlet. DO NOT defeat

the safety purpose of the polarized

plug.

This heater includes a safety tip-over switch, which will shut the heater off in case

it is tipped over. If at any time, the heater does tip over, please put the heater back in

the upright position. The heater will resume its normal operation.

2

D

C

B

A

TROUBLESHOOTING

CLEANING AND STORAGE

Model No.: PTH15A2BGB

Voltage: 120V~, 60Hz

Current: Maximum continuous draw: 12.5 Amps

Output: 5200 BTUs

Power: LOW=900 Watts, HIGH=1500 Watts

Tolerances on all specifications:Approximately +5%

SPECIFICATIONS

If your heater fails to operate, please follow these instructions:

•Ensure that your circuit breaker or fuse is working properly.

•Be sure the heater is plugged in and that the electrical outlet is working properly.

•Check for any obstruction. If you find an obstruction, turn the heater “OFF.” Unplug

the heater and wait a few minutes for it to cool down. Carefully remove the

obstruction. Plug the heater in and turn it on again by referring to the OPERATING

INSTRUCTIONS.

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HEATER, PLEASE SEE THE WARRANTY

INFORMATION FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE

HEATER YOURSELF. DOING SO MAY VOID THE WARRANTY AND COULD CAUSE DAMAGE OR

PERSONAL INJURY. IF THE PROBLEM STILL PERSISTS, PLEASE CONTACT US BY REFERRING TO

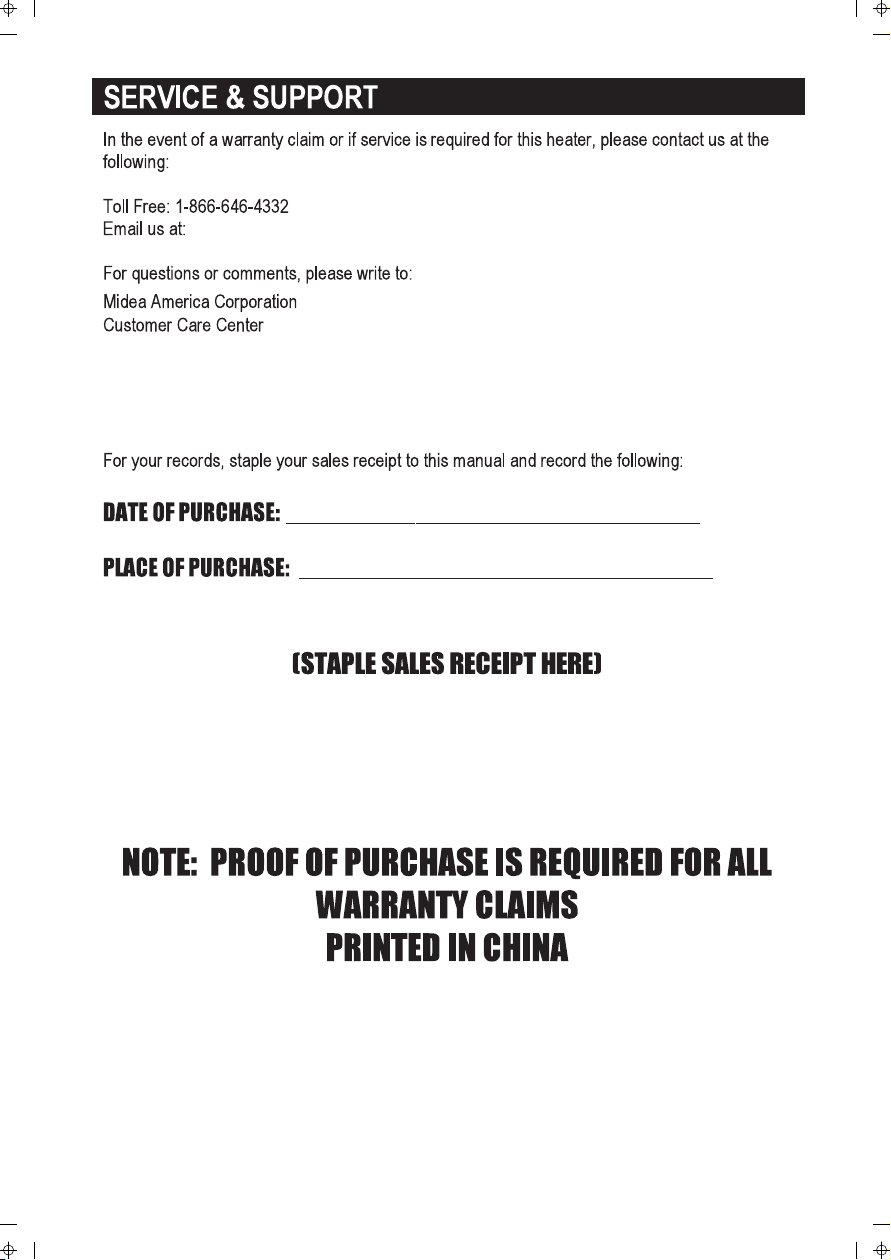

THE SERVICE & SUPPORT INFORMATION ON THE FOLLOWING PAGE.

It is recommended that the heater be cleaned at least one time during the operating season in

order to provide the optimum level of performance. ALWAYS TURN THE POWER SWITCH OFF

AND UNPLUG THE HEATER BEFORE CLEANING.Be sure to save the box for off-season storage

•Turn the heater “OFF,” unplug it and wait for the heater to cool down.

•Use a dry cloth to clean only external surfaces of the heater.

•Do not use any cleaning agents or detergents.

•Never immerse the heater in water.

•Pack the heater in the original carton and store it in a cool and dry place.

This heater includes a thermal cut-off that shuts the heater off if it

overheats due to abnormal conditions. If this occurs, turn the heater "OFF", unplug

it, and inspect and remove any objects on or adjacent to the heater. Allow it to

cool for a few minutes, and then plug it back in and resume normal operation.

3

[email protected]

5 Sylvan Way, Suite 100

Parsippany, NJ 07054

4
