Pentair Maytronics ecoclear 800-VS Manuale utente

800-VS Pool Pump

Installation

& Operation

Manual

Should the installer or owner be unfamiliar with the correct installation or operation

of this type of equipment you should contact the distributor/manufacturer for the

correct advice before proceeding with the installation or operation of this product.

The pump operator or owner must be provided with this owner’s manual.

Manufactured by

800-VS Pool Pump Owner’s Manual

Page

Features and Beneﬁts 4

Technical Information 5

Model Data 5

Hydraulic Performance 6

Dimensions 6

Installation 7

Pump Positioning 7

Piping 8

Pool Outlets 8

Electrical 9

Equipotential Bonding 9

Operation 10

Priming the Pump 10

Speed Selection 11

Variable Speed Adjustment 11

Set Priming Options 12

Service & Maintenance 13

Troubleshooting 14

Troubleshooting Guide 14

Motor Flash Codes 16

Spare Parts 17

CONTENTS

800-VS Pool Pump Owner’s Manual

The Ecoclear® 800-VS Pool Pump is the ideal pump for new or existing pools. Utilising

advanced hydraulic design and the latest technology in permanent magnet, variable

speed motors, the Ecoclear® 800-VS Pool Pump has the perfect combination of

eciency and performance. The Ecoclear® 800-VS Pool Pump delivers energy savings

and the power when you need it. You will also have the peace of mind that you are

doing your bit for the environment and reducing your carbon foot print.

• Variable speed pump, with 3 programmable speeds, allows you to eortlessly select

the most ecient setting to meet you ﬁltration, cleaning and water feature needs.

• Axial ﬂux, brush-less permanent magnet motor delivers high eciency and low

noise levels.

• Fault protected motor prevents damage by automatically shutting down the motor

in the event of a locked rotor, under voltage, over voltage or over current condition

and will automatically reduce the speed during an over temperature condition.

• Precision-ﬁt internal components and superior hydraulic design deliver eortless

performance, energy savings and extended pump life.

• A heavy-duty construction and a motor rated for continuous operation make the

Ecoclear® 800-VS Pool Pump a tough, long-lasting performer.

• The high-capacity trap holds a large amount of debris, so you clean less often.

• The Cam and Ramp™lid is easy to remove and locks in place with a quarter turn,

making inspection and cleaning a breeze.

• Quick-disconnect plumbing unions.

• Adjustable priming speed and duration up to 2 hours.

FEATURES & BENEFITS

800-VS Pool Pump Owner’s Manual

Model Data

RPM: Low 1450RPM (default factory setting)

Med 2400RPM (default factory setting)

High 2850RPM (default factory setting)

Adjustable Range: 1000-2850RPM

Electrical Rating: 230-240V 50Hz single phase

Rated Current: Low: 1.3A (max)

Med: 4.4A (max)

High: 6.0A (max)

Input Power (P1): Low: 160W (max)

Med: 595W (max)

High: 945W (max)

Input Power (P2): Low: 130W (max)

Med: 475W (max)

High: 800W (max)

Maximum Ratings: 2850RPM, 945W, P2 800W, 6.0A

IP Rating: IP25

Inlet (Suction): ABS Barrel Union to suit 50mm PVC

pressure pipe to AS/NZS 1477

Outlet (Discharge): ABS Barrel Union to suit 50mm PVC

pressure pipe to AS/NZS 1477

Maximum Total Head: 17m

Water Temperature Range: 5°C – 40°C

Maximum Ambient temperature: 50°C

Recommended pH Range: 7.2 - 7.8 (Guide Only)

Sound Power Level (Lwa): Low: 57.5dB

Med: 65.2dB

High: 69.3dB

Motor: Axial ﬂux, permanent magnet, DC

Protection: Mains over voltage, mains under

voltage, over temperature, under

temperature, locked rotor, over current,

phase disconnect.

Supply cord: 10A, H07RNF, 2m.

TECHNICAL INFORMATION

800-VS Pool Pump Owner’s Manual

587

286

316

301

253

142

199

275

132

232

WHISPERFLO VS 800

A A

B B

C C

D D

E E

F F

Hydraulic Performance

Dimensions

TECHNICAL INFORMATION

0 50 100 150 200 250 300 350 400

Head (m)

Flow (LPM)

WhisperFlo VS 800

2850 RPM

2400 RPM

2000 RPM

1600 RPM

1450 RPM

Ecoclear® 800-VS Pool Pump

800-VS Pool Pump Owner’s Manual

The pump must be installed and serviced by a suitably qualified person in

order to avoid hazard. Incorrectly installed or tested equipment may fail,

causing severe injury or property damage.

These instructions are a guide only. Should you the installer or owner of

the product be unfamiliar with the correct installation or operation of this

product you should contact a suitably qualified person for advice.

Do not connect system to high pressure or mains water system.

This pump is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the pump.

The Ecoclear® 800-VS Pool Pump is electrically connected. Ensure that it

is isolated from electrical supply during installation and any subsequent

service work.

1. Plan the position of the pump

For best performance, allow pump suction inlet height to be as far below

water level as possible and allow the use of short, direct suction pipe with

minimum bends (to reduce friction losses).

a. Have enough ventilation to keep ambient temperature below the motor’s rated

ambient temperature whenever the pump is running. If installed in an enclosure/

pump house, the enclosure must have adequate ventilation (200sq.cm min, inlet &

outlet) and air circulation Allow 200mm to keep rear of motor clear.

b. Have adequate floor drainage to prevent flooding and be protected from excess

moisture.

c. Be solid, level, rigid and vibration free.

d. To reduce vibration and pipe stress, bolt pump to mount.

Fixing holes accept 12mm fasteners.

e. Be within 2m of a power outlet for electrical connection (refer to AS/NZS 3000 for

rules regarding connection of electrical equipment in pool zones).

f. Allow adequate access for servicing pump and piping.

INSTALLATION

800-VS Pool Pump Owner’s Manual

3. Pool Outlets

a. The pump suction system must provide protection

against hazard of suction entrapment or hair entrapment/

entanglement. The pool outlet piping must be in accordance

with the latest AS1926.3 standard.

b. Suction outlet covers and skimmers must have been tested and

found to comply with the latest AS1926.3 standard or ASME/

ANSI specification for Suction Fittings.

2. Piping

For best performance, allow pump suction inlet height to be as far below

water level as possible and allow the use of short, direct suction pipe with

minimum bends (to reduce friction losses).

a. Use only Australian Standard PVC pressure pipe. For best performance use at

least 50mm diameter pipe for all connections to the pump. Never use a suction

pipe smaller than pump suction connections (50mm) and use larger pipe for long

suction distances.

b. To avoid stress on the pump, support both suction and discharge pipes

independently. Place these supports as close to the pump as possible.

c. To avoid a strain left by a gap at the last connection, start all piping at the pump

and run pipe away from the pump.

INSTALLATION

800-VS Pool Pump Owner’s Manual

Do not use extension leads as they are unsafe in and around the Pool Zone.

Hazardous voltage. Can shock, burn or cause death.

To avoid dangerous or fatal electrical shock, turn OFF power to pump and

remove plug from outlet before working on electrical connections.

4. Electrical

5. Equipotential bonding

If equipotential bonding is required, connect all metal parts of the swimming pool

or spa structure and to all electrical equipment, metal conduit, and metal piping in

accordance with the wiring rules. Run a wire from the equipotential bonding terminal

on the pump (bottom, left motor bolt with serrated washer) to the pool bonding

structure.

a. Electrical installation shall be in accordance with the national wiring rules (AS/NZS

3000) taking into account its ratings (Class I, IPX5). The pump is supplied with a

standard Australian 10 amp plug and 2 metres of cord. Select the correct Pool Zone

for installation.

b. An RCD with maximum rated residual current of 30mA is required for the power

supply to the pump. Additionally, if a suitable socket outlet is not available a

weatherproof socket must be installed by an electrician in a suitable location.

RCD tripping indicates an electrical problem. If RCD trips and will not reset have a

qualified electrician inspect and repair electrical system.

c. Incorrect voltage can cause fire or seriously damage pump and voids warranty.

d. Voltage at pump must not be more than 6% above or 10% below motor

nameplate rated voltage or pump may overheat, causing overload tripping and

reduced component life. If voltage is less than 90% or more than 106% of rated

voltage when pump is running at full load, consult the power company.

INSTALLATION

800-VS Pool Pump Owner’s Manual

1. Priming the pump

NEVER run pump dry. Running pump dry may damage seals, causing leakage and

flooding. Fill pump with water before starting motor.

Freezing conditions will damage the unit, as water expands as it freezes. Ensure

that the Ecoclear® 800-VS Pool Pump is located so that it is not prone to freezing,

or ensure that the product is disconnected and dried of water during cold

conditions.

Trapped air in system can cause explosion. Ensure all air is out of the system

before operating or testing equipment.

Fire and burn hazard. Modern motors run at high temperatures. To reduce the

risk of fire, do not allow leaves, debris, or foreign matter to collect around the

pump motor. To avoid burns when handling the motor, let it cool for at least 20

minutes before trying to work on it.

Small children using pool must ALWAYS have close adult supervision.

Pump suction is hazardous and can trap and drown or disembowel bathers. Do

not use or operate pump, pool/spas if a suction outlet cover is missing, broken,

or loose. Follow the guidelines below for a pump installation which minimises risk

to users of pool and spas.

NEVER tighten or loosen trap lid while pump is operating.

It is not necessary to lubricate

the O-ring. The original

equipment O-ring contains a

permanent internal lubricant.

c. Remove the trap lid (turn anti-clockwise).

d. Fill trap tank with water.

e. Check the lid O-ring and sealing surface, ensure there is no dust or debris on either, and

replace the lid (turn clockwise to tighten by hand only - no wrenches!).

f. Open the shut-off valves on the suction and discharge pipes, if present.

g. Release all air from filter, pump and piping system (refer filter owner’s manual). In a

flooded suction system (water source higher than pump), pump will prime itself when

suction and discharge valves are opened and air is released.

h. Switch on power to the pump to start.

i. Pump should start to prime now. Priming time will depend on vertical height of suction lift

and horizontal length of suction piping but is generally between 30 seconds to 3 minutes

under normal installation conditions.

j. The Ecoclear® 800-VS Pool Pump will start slowly but ramp up to high speed for the first

2 minutes to assist priming. It will then switch to the selected speed.

*Should the pump not prime, ensure that all valves are open, lint trap is

clear of debris and suctions and suction pipe end is submersed in water,

and that there are no leaks in suction pipe. See troubleshooting guide.

a. Before removing trap lid, SWITCH OFF

POWER SUPPLY to pump.

b. CLOSE SHUT-OFF VALVES on suction and

discharge pipes, if present.

OPERATION

Indice

Altri manuali Pentair Pompa per piscina

Pentair

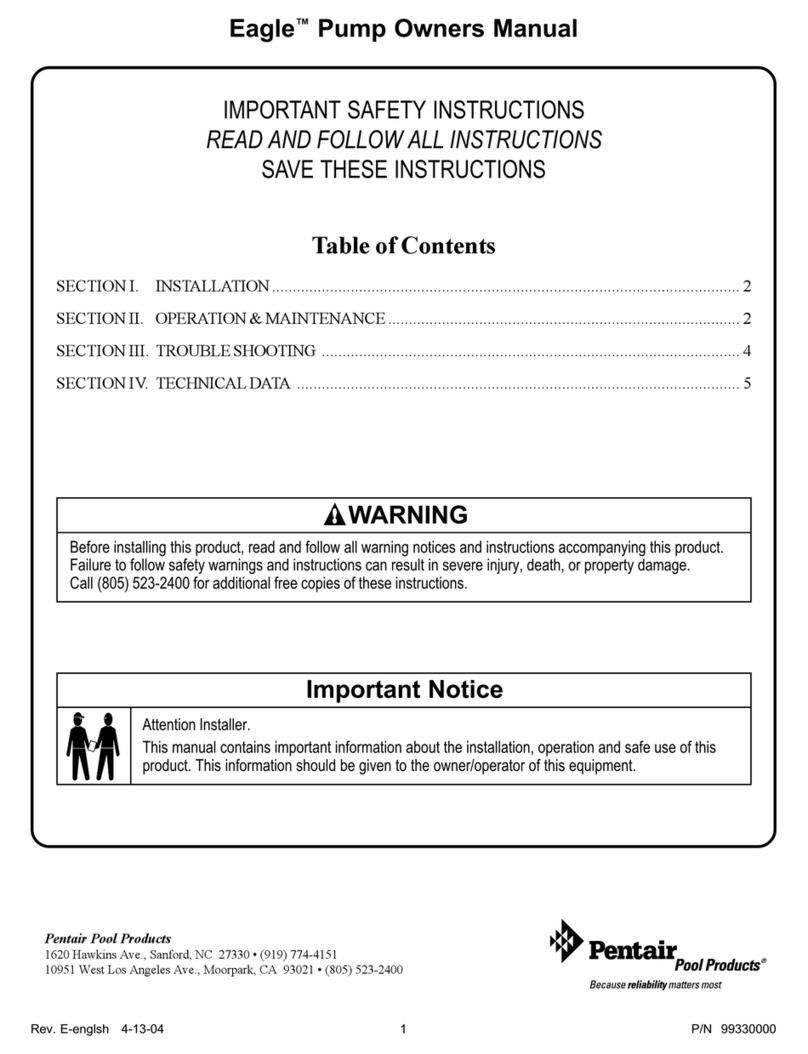

Pentair Pump Eagle Manuale utente

Pentair

Pentair INTELLIFLO WHISPERFLOVSD Manuale utente

Pentair

Pentair Deck Jet II MagicStream Manuale utente

Pentair

Pentair WHISPERFLO VS 1500 Manuale utente

Pentair

Pentair WhisperFlo VS 800 Manuale utente

Pentair

Pentair sta-rite 5PXF Manuale utente

Pentair

Pentair IntelliFlo VF Manuale utente

Pentair

Pentair SHURflo Manuale del proprietario

Pentair

Pentair STA-RITE SILENTFLO SF550100 Manuale utente

Pentair

Pentair Ultra-Flow Manuale utente

Pentair

Pentair STA-RITE SWIMMEY Series Manuale utente

Pentair

Pentair OptiFlo Manuale utente

Pentair

Pentair OPTIFLO 348195SR Manuale utente

Pentair

Pentair STA-RITE DYNA-PRO Manuale utente

Pentair

Pentair SWIMMEY Series Manuale utente

Pentair

Pentair ONGA LEISURETIME LTP400 Manuale utente

Pentair

Pentair IntelliComm Manuale utente

Pentair

Pentair JWP SERIES Manuale utente

Pentair

Pentair IntelliFlo VS+SVRS Manuale utente

Pentair

Pentair Teel 4RJ93 Istruzioni per l’uso

Pentair

Pentair 5P2R Manuale utente

Pentair

Pentair MYERS MSP7 Manuale utente

Pentair

Pentair Sta-Rite EcoSelect Enviromax 800 Manuale utente

Pentair

Pentair PUMP Manuale utente

Manuali Pompa per piscina popolari di altre marche

TIP

TIP STEAM 35000 INV Schema elettrico

Jacuzzi

Jacuzzi J-HI27C Manuale utente

PoolRite

PoolRite SQI 400 Manuale utente

Calpeda

Calpeda NMP Manuale utente

WilTec

WilTec 50374 Manuale utente

Evolution

Evolution Evoflow Storm Eco-V Manuale utente

AquaTools

AquaTools AT240701 Manuale utente

Sibo

Sibo AquaForte RD352 Manuale utente

CLS

CLS VICTORIA PLUS SILENT Manuale utente

Pond One

Pond One Piranha 800 Manuale utente

Hayward

Hayward VSP Manuale utente

Resol

Resol DeltaSol B Pro Manuale utente

Evolution Aqua

Evolution Aqua UniTech Perfect 5000 Manuale utente

Outside Living Industries

Outside Living Industries Ubbink Heatermax Pool Guida rapida

CPI

CPI Olympic 2P1815 Manuale utente

Flotec

Flotec FP6121-01 Manuale utente

Polygroup

Polygroup SUMMER WAVES SKIMMERPLUS SFX330 Manuale utente

Sears

Sears 390.26280 Manuale utente

Pentair maytronics ecoclear 800-VS Manuale utente

Manuali Pompa per piscina popolari di altre marche
